TASK 73-22-34-300-007 EEC And Terminal Block Assembly - Related Parts - Nut Replacement, Repair 007 (VRS3350)

DMC:V2500-A0-73-22-3400-03A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-22-34-300-007 EEC And Terminal Block Assembly - Related Parts - Nut Replacement, Repair 007 (VRS3350)

Effectivity

FIG/ITEM

PART NO.

01-120

2A0955-01

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Repair Parts

FIG/ITEM

PART NO

PART IDENT

QTY

01-040

744382

Nut Option

1 off

01-160

AS3228-102

Rivet

2 off

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-22-34-350-057 Remove the Nut from the EEC Support

    1. Remove the two rivets that attach the nut to the support.

    2. CAUTION

      DO NOT REMOVE PARENT MATERIAL FROM THE SUPPORT.

      Remove the nut from the support.

    2. SUBTASK 73-22-34-350-058 Install a New Nut to the EEC Support

    1. Refer to Figure.

    2. Put a new nut on the support.

      3. Install new rivets into the holes in the support.

      1. Refer to SPM TASK 70-39-03-390-501.

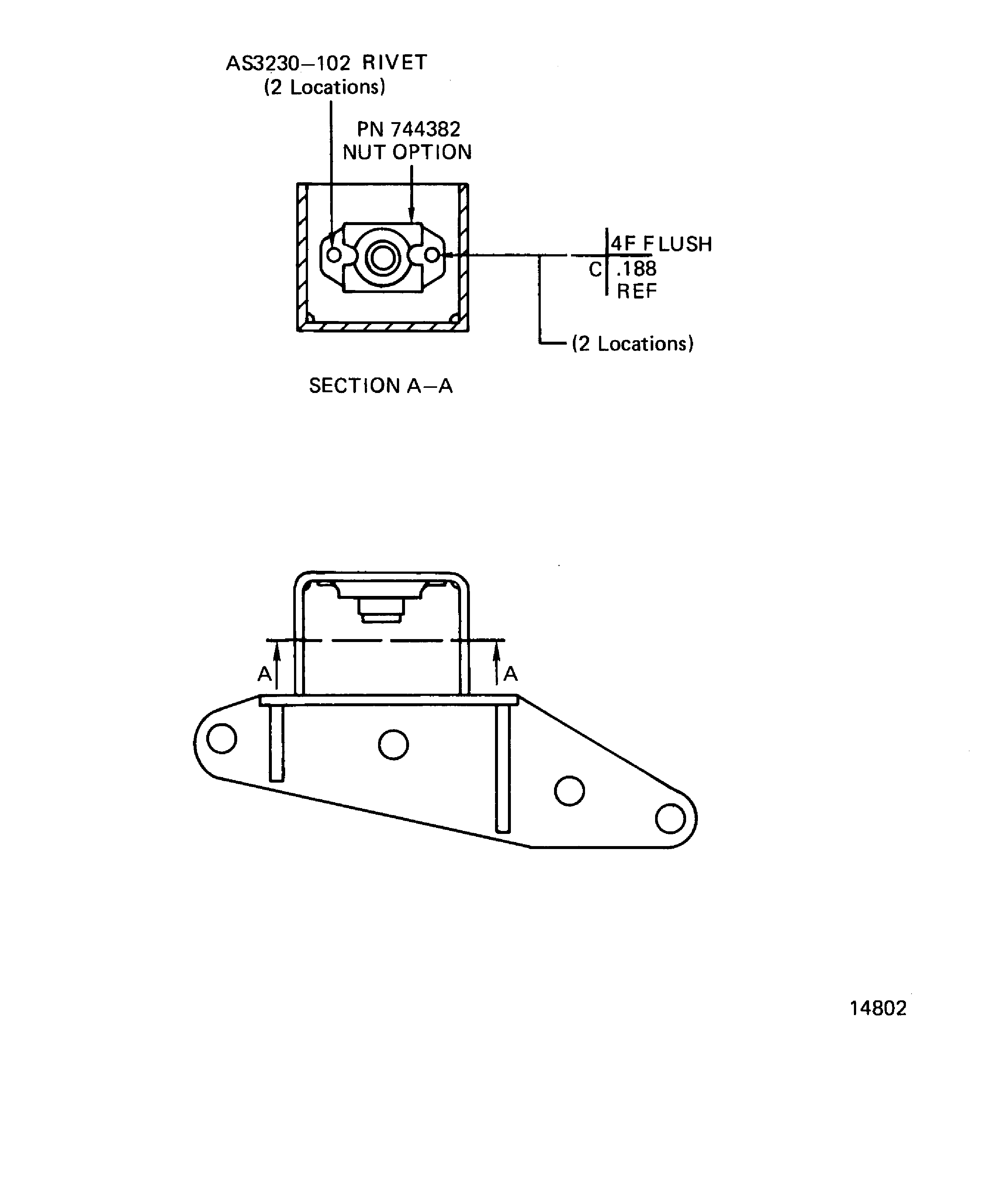

    3. Figure: Install the Nut on the EEC Support

    Install the Nut on the EEC Support

Requirements After Job Completion

Follow-On Conditions

NONE
