Common Information
TASK 73-22-35-460-401 EEC Data Entry Plug - Related Parts - Assemble The Data Entry Plug Assembly, Assembly-001
General
Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.
For standard torque data and procedures, refer to SPM TASK 70-41-00-400-501 and SPM TASK 70-41-02-400-501.
For lockwire data and procedures, refer to SPM TASK 70-42-05-400-501 and SPM TASK 70-41-02-400-501.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Strap Wrench | LOCAL | Strap Wrench | TG-70 | |
| IAE 1P16271 Holding fixture | 0AM53 | IAE 1P16271 | 1 off |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-138 LOCKWIRE | LOCAL | CoMat 02-138 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Remove the protective cap or bag from the data entry plug connector.
Align the main key on the data entry plug connector with the holding fixture receptacle main key-way.
Use light hand pressure to engage the data entry plug connector with the holding fixture receptacle and tighten with your fingers.
Install the data entry plug connector on the IAE 1P16271 Holding fixture 1 off as follows:
Align and install the anti-vibration rubber (73-22-35,01-125) 1 off on the jumper end(s) or into the backshell (73-22-35,01-130) of the data entry plug connector.
CAUTION
MAKE SURE THE BACKSHELL DOES NOT TURN WHEN YOU LOOSEN THE BACKSHELL NUT. IF THE BACKSHELL TURNS, DAMAGE TO THE JUMPER WIRES CAN OCCUR.Install the backshell on the connector and tighten the backshell nut with your fingers.
Torque the backshell nut to 53 to 58 lbfin (5.99 to 6.55 Nm). Use TG-70 Strap Wrench or equivalent.
Lock the backshell to the backshell nut with CoMat 02-138 LOCKWIRE.
Remove the data entry plug assembly from the holding fixture.
Install a protective cap or a clean dry bag on the data entry plug assembly.
SUBTASK 73-22-35-460-051 Install the Backshell on the Data Entry Plug Connector (73-22-35,01-100)

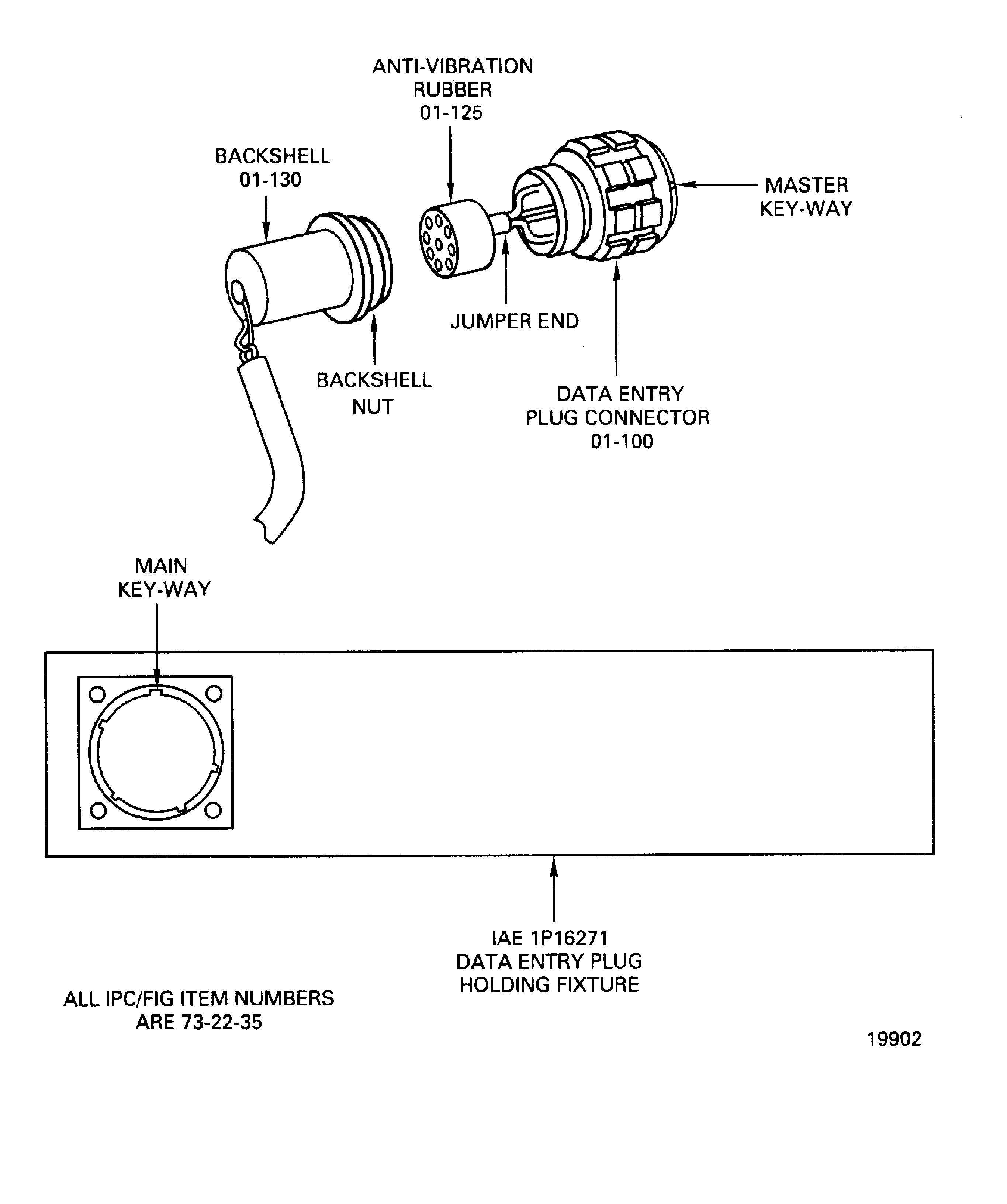

Figure: Assemble The Data Entry Plug Assembly
Assemble The Data Entry Plug Assembly
