TASK 73-22-35-300-004 EEC Data Entry Plug - Related Parts - Replace The Data Entry Plug Backshell Assembly, Repair-004 (VRS3503)

DMC:V2500-A0-73-22-3500-01A-920A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-22-35-300-004 EEC Data Entry Plug - Related Parts - Replace The Data Entry Plug Backshell Assembly, Repair-004 (VRS3503)

Effectivity

FIG/ITEM

PART NO.

01-100

2A2309

01-100

2A3106

01-100

5A0431

01-100

5A0432

Material of component

DESCRIPTION

RR SYMBOL

MATERIAL

Data entry plug assembly

-

Stainless steel

General

Price and availability - none

The practices and processes referred to in the procedure by TASK number are in the SPM.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

01-130

5A9210

Backshell Assembly

1 off

01-130

2A2303

Backshell Assembly

1 off

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-22-35-350-055 Replace the Data Entry Plug Backshell Assembly

    1. Replace the data entry plug backshell assembly with a new backshell assembly.

    2. Refer to Figure and Figure.

    2. SUBTASK 73-22-35-350-056-A00 V2500-A1: Identify the New Data Entry Plug Backshell

    1. Mark the PART No., CLASS No.01 or 02, RATING No., BUMP No., EPR MOD No. and ENG. S/N on the new backshell assembly with the same data as applicable from the removed backshell assembly. Use the vibration peen method.

      2. Refer to Figure.

      1. Use the procedure given in TASK 70-09-00-400-501.

    3. SUBTASK 72-22-35-350-056-B00 V2500-A5: Identify the New Data Entry Plug Backshell

      1. Mark the PART No., CLASS 01, RATING No., BUMP No., EPR MOD No., VARIENT No. and ENG. S/N on the new backshell assembly with the same data as applicable from the removed backshell assembly. Use the vibration peen method.

      1. Refer to Figure.

      2. Use the procedure given in TASK 70-09-00-400-501.

    4. SUBTASK 73-22-35-220-066 Examine the Repair

      1. Examine the backshell assembly for damage. Make sure the data on the new backshell assembly is the same as the data on the removed backshell assembly.

      1. Refer to Figure and Figure.

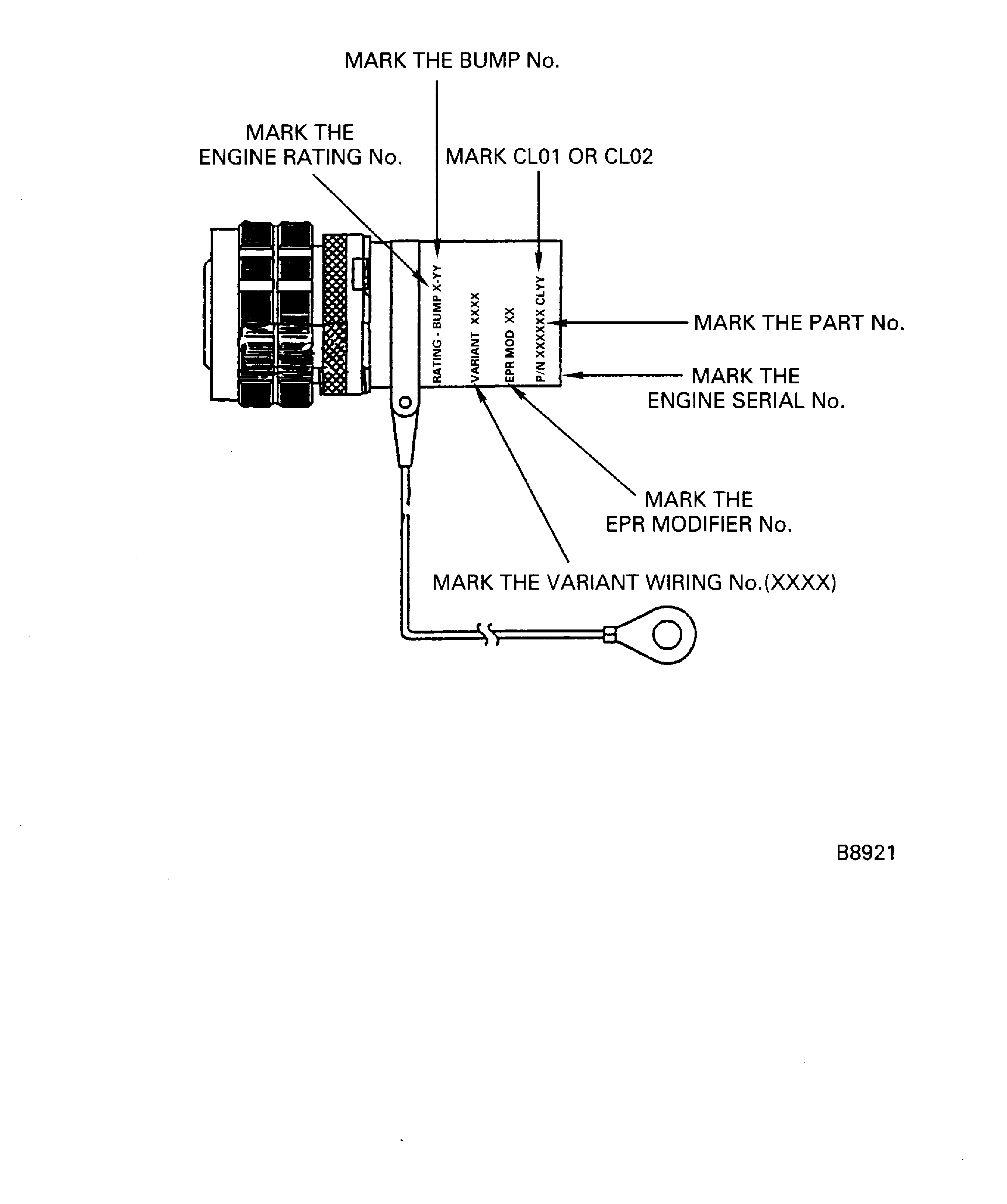

    5. Figure: V2500-A1: Data Entry Plug Backshell Assembly Replacement Repair

    V2500-A1: Data Entry Plug Backshell Assembly Replacement Repair

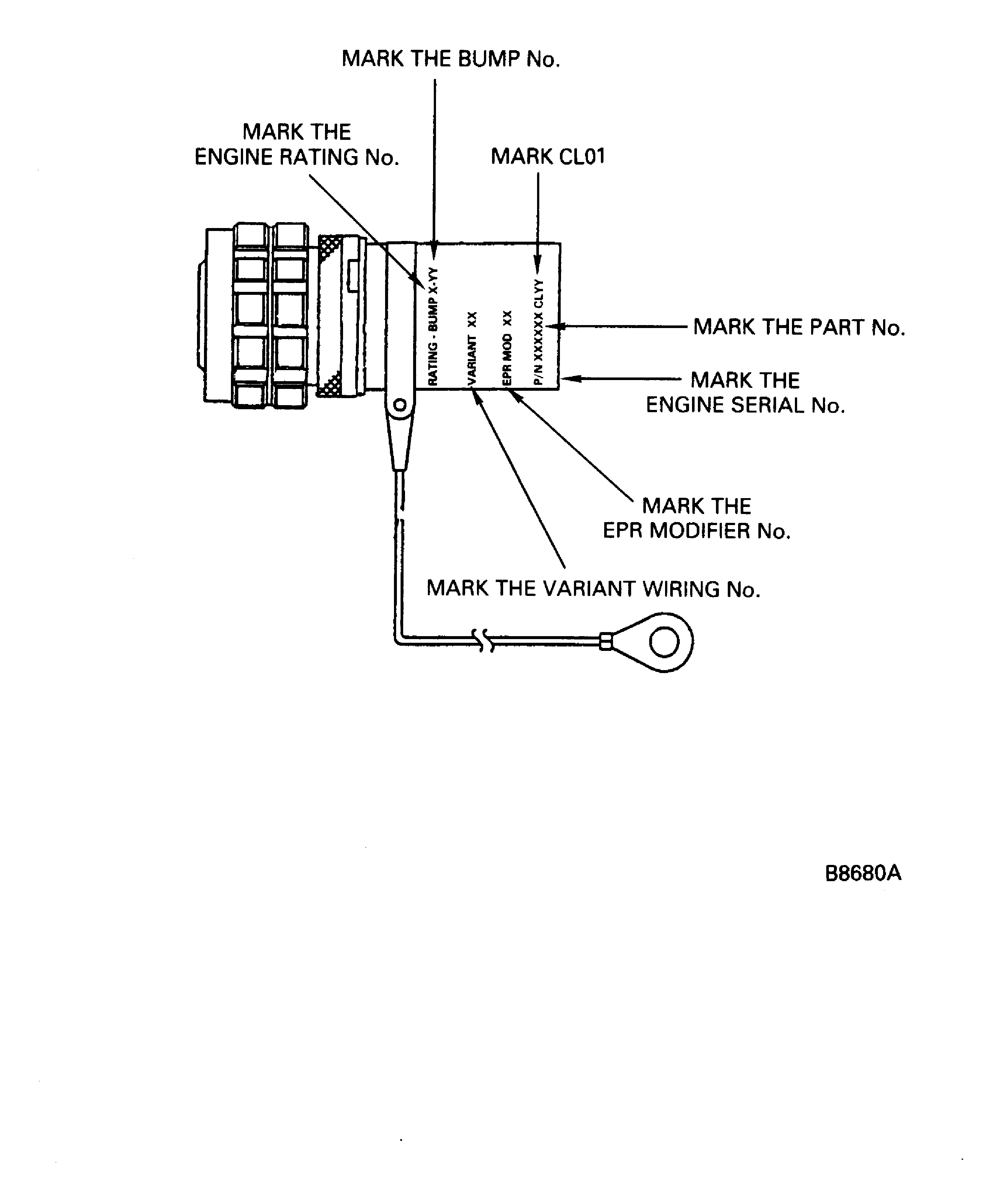

    Figure: V2500-A5: Data Entry Plug Backshell Assembly Replacement Repair

    V2500-A5: Data Entry Plug Backshell Assembly Replacement Repair

Requirements After Job Completion

Follow-On Conditions

NONE
