Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 75-22-49-300-001 Bearing Compartment Cooling And Sealing Air Tubes - Blend Repair Surface Damage, Repair-001 (VRS1650)
Effectivity
FIG./ITEM | PART NO. |
05-100 | 5A8765 |
05-100 | 6A5311 |
05-500 | 5A8764 |
05-500 | 6A6010 |
06-100 | 5A9357 |
06-500 | 5A9090 |
07-100 | 5A9091 |
08-100 | 5A9039 |
08-500 | 5A8757 |
09-100 | 5A9041 |
09-500 | 5A9042 |
10-100 | 5A9038 |
11-100 | 5A9381 |
13-100 | 5A0174 |
15-100 | 6A2164 |
15-100 | 6A5386 |
15-500 | 6A2155 |
16-100 | 6A2157 |
16-100 | 6A5387 |
16-500 | 6A2156 |
16-500 | 6A5388 |
17-100 | 6A2159 |
General
Price and availability.
Refer to IAE for any these items.
Tools.
Repair parts.
Repair of spares.
The practices and processes referred to in the procedure by the TASK number are in SPM.
NOTE
Related repairs
Air tube assembly - Replace the lug. Refer to Repair, VRS7001 TASK 70-35-24-300-501 (REPAIR-001).
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent penetrant inspection equipment | LOCAL | Fluorescent Penetrant Inspection Equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to SPM TASK 70-35-03-300-501.
Use abrasive stone or CoMat 05-020 WATERPROOF SILICON CARBIDE abrasive paper and CoMat 05-021 WATERPROOF SILICON CARBIDE, and/or a fine file.
Surface finish of the repaired area must be the same as the adjacent area.
Make smooth and/or hand polish to remove the nicks, galls, scores and/or pick-up.
SUBTASK 75-22-49-350-051 Remove the Nicks, Galls, Scores and/or Pick-up from the Air Tube Assembly
Refer to TASK 75-22-49-200-101 (INSPECTION-001) and TASK 75-22-49-200-102 (INSPECTION-002).
Visually examine the repaired area for nicks, galls, scores and/or pick-up using 10X magnifying glass.
Visually examine the repaired area.
SUBTASK 75-22-49-220-074 Examine the Air Tube Assembly
Refer to SPM TASK 70-23-05-230-501.
Make sure there are no cracks in the repaired area.
Fluorescent penetrant examine the repaired area.
SUBTASK 75-22-49-230-054 Examine the Air Tube Assembly for Cracks

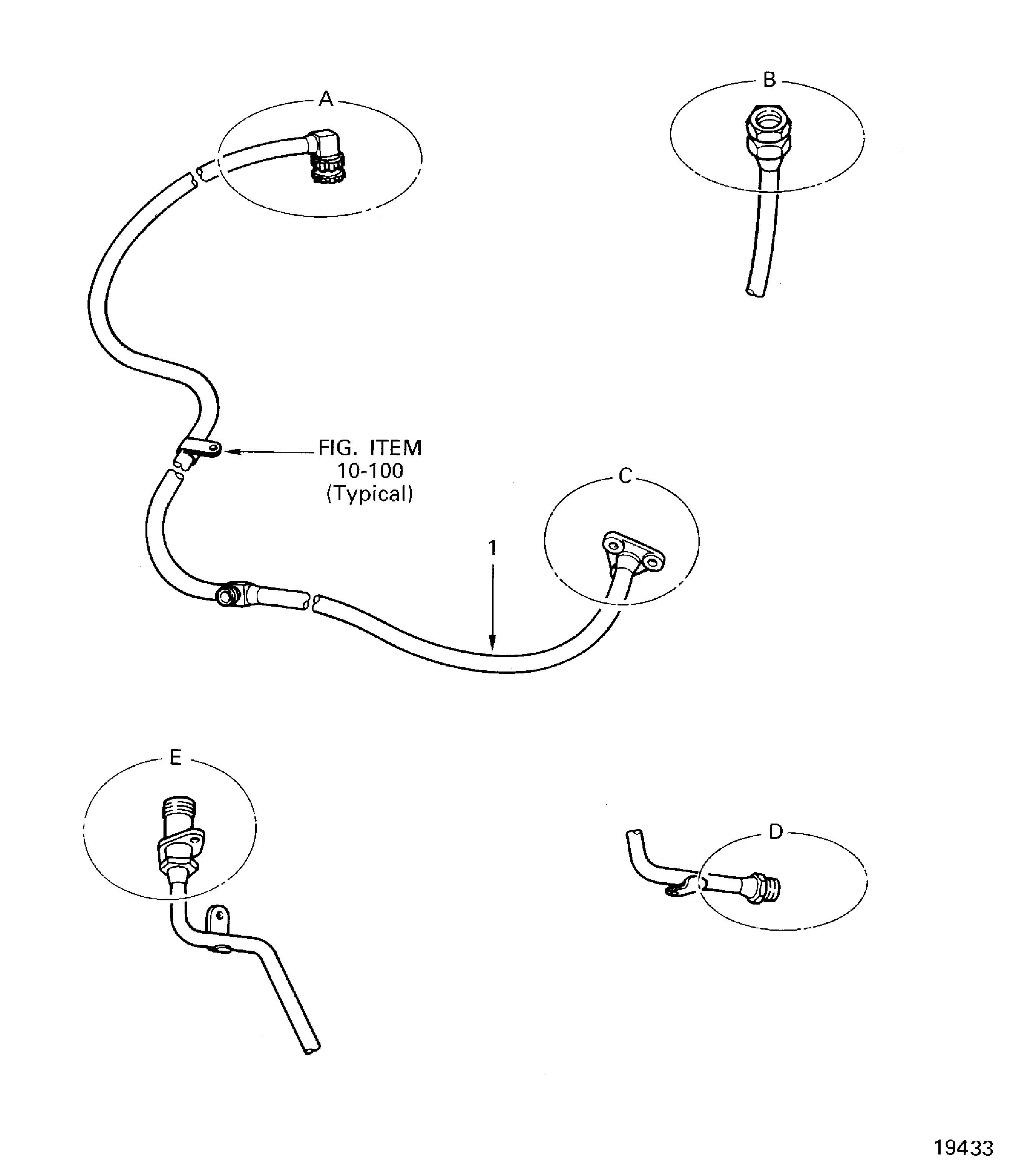

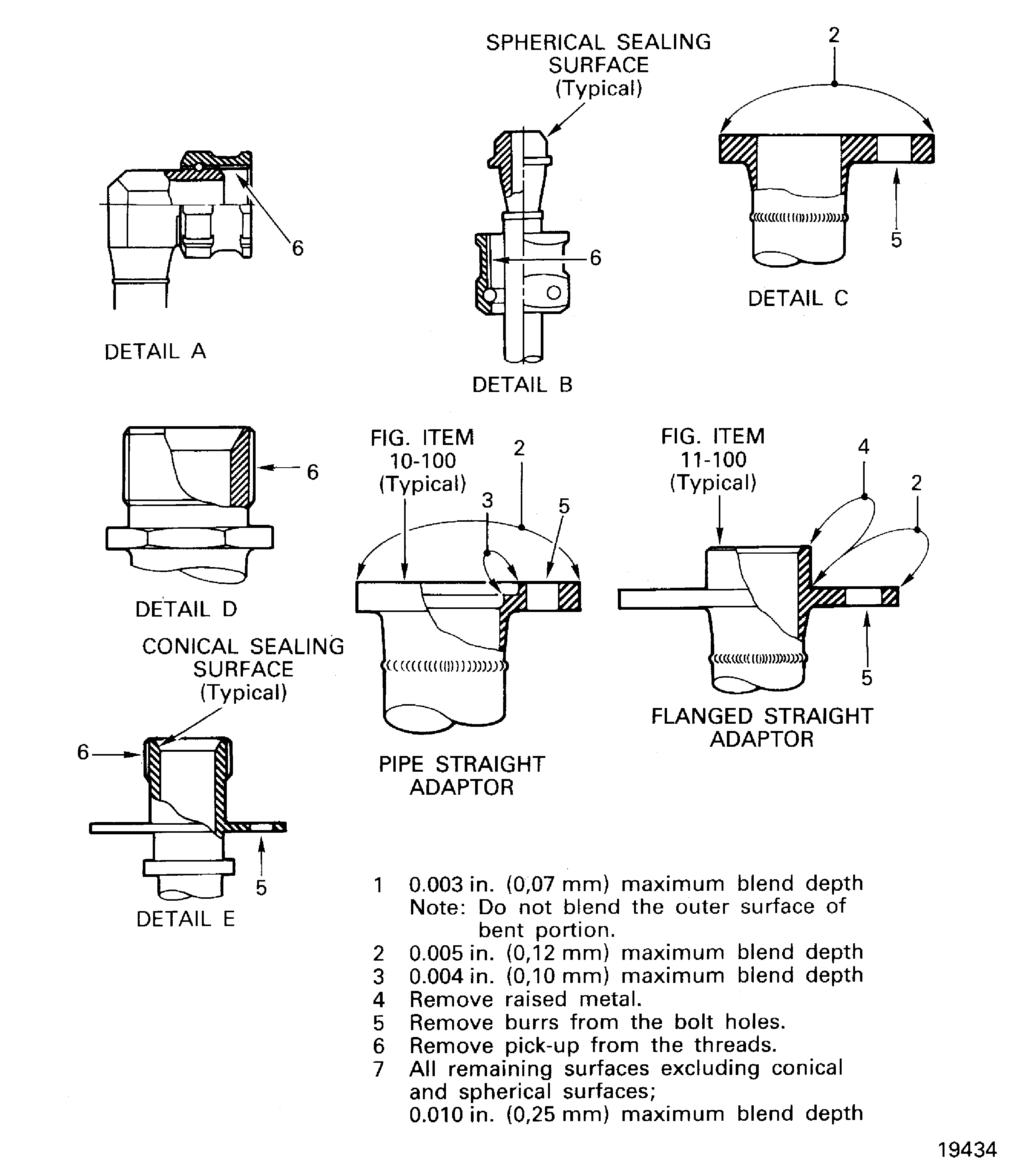

Figure: Repair Details and Dimensions
Repair Details and Dimensions
Repair Details and Dimensions
