TASK 75-24-49-300-043 LPT ACC Cooling Air Ducts - Replace The Upper Cooling Air Duct Assembly, Repair-043 (VRS4442)
Material of component
PART IDENT | IAE SYMBOL | MATERIAL |
Cooling Air Duct assembly | Ti6A14V Housing Ti/X10CrNi Tubes |
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Magnifying glass | LOCAL | Magnifying glass |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 03-246 WELDING MATERIAL | LOCAL | CoMat 03-246 |
Spares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| TUBE - ASSEMBLY OF | 0AM53 | 3A2664 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2642 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2665 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2666 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2644 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2646 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2667 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2573 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2668 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2640 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2669 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2670 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2671 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2672 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2673 | 1 | |
| TUBE - ASSEMBLY OF | 0AM53 | 3A2674 | 1 |
Safety Requirements
NONEProcedure
Use a soft cloth only.
Clean the tube end.
SUBTASK 75-24-49-110-093 Clean the Tube End
Use 10x Magnifying glass.
Possible cracks cause decrease in weld strength.
Do the test for cracks.
SUBTASK 75-24-49-220-150 Examine the Parts for Cracks
Refer to SPM TASK 70-31-13-310-501.
Clean the surfaces to be welded.
SUBTASK 75-24-49-110-094 Clean the Surfaces to be Welded
Refer to Figure and Figure and SPM TASK 70-31-13-310-501.
For purity of welds, weld in a protective gas environment.
Use CoMat 03-246 WELDING MATERIAL as necessary.
Use applicable fixture.
Weld replacement tube into position using tungsten inert gas method.
SUBTASK 75-24-49-310-067 Weld in the Replacement Tube
Put the part in an oven for two hours at 887 deg F (475 deg C).
Use argon or vacuum or air.
Heat treat air cooling duct assembly.
SUBTASK 75-24-49-370-062 Heat Treat after Repair
Refer to SPM TASK 70-31-13-310-501 for acceptance standards.
Examine the weld quality.
SUBTASK 75-24-49-220-151 Examine the Welds
Refer to SPM TASK 70-23-05-230-501.
Medium sensitivity.
No cracks permitted.
Do the test for cracks.
SUBTASK 75-24-49-230-121 Examine the Repaired Areas for Cracks

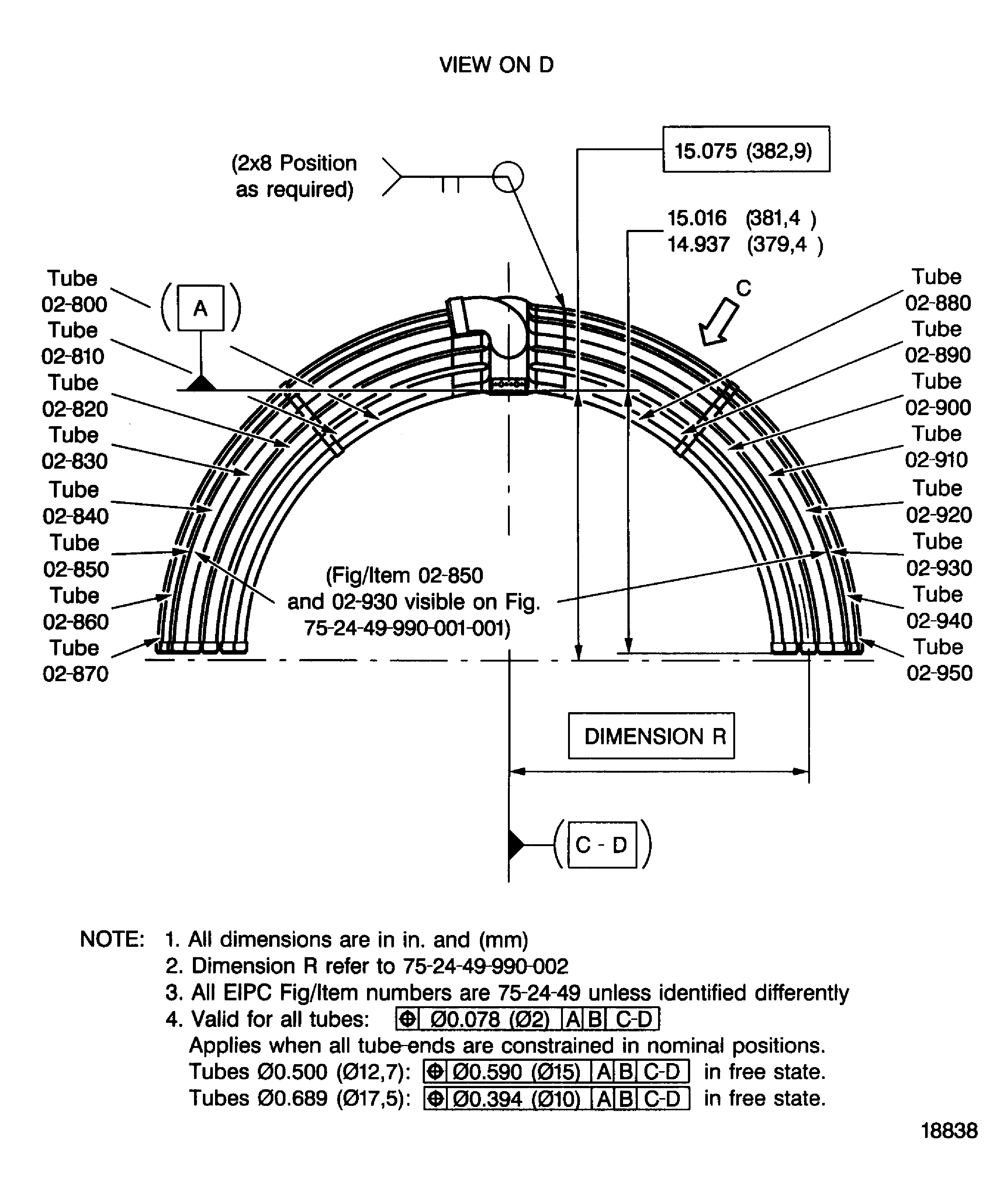

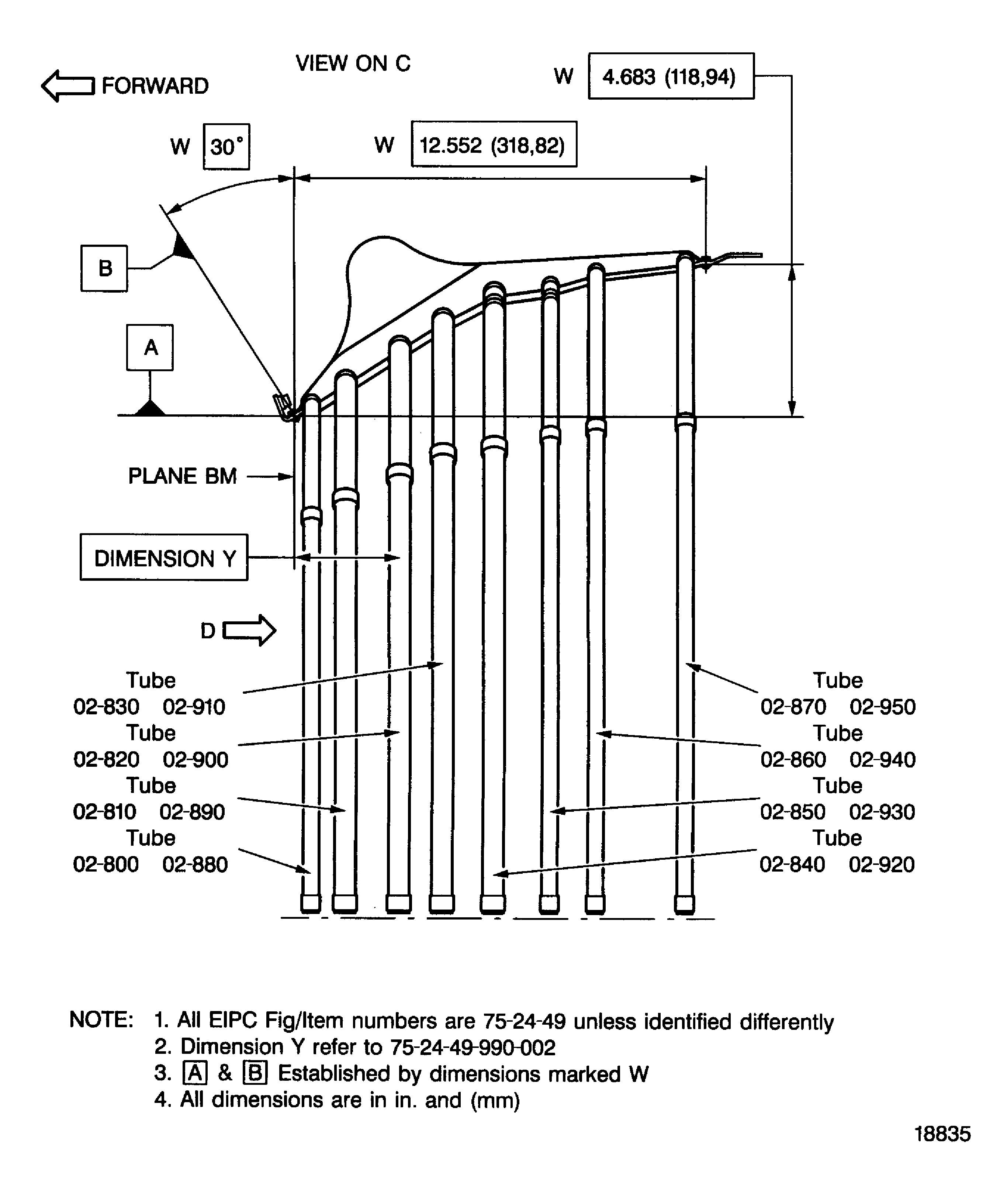

Figure: Upper Air Cooling Duct Assembly - Replacement Of Tubes
Upper Air Cooling Duct Assembly - Replacement Of Tubes
Upper Air Cooling Duct Assembly - Replacement Of Tubes
Upper Air Cooling Duct Assembly - Replacement Of Tubes

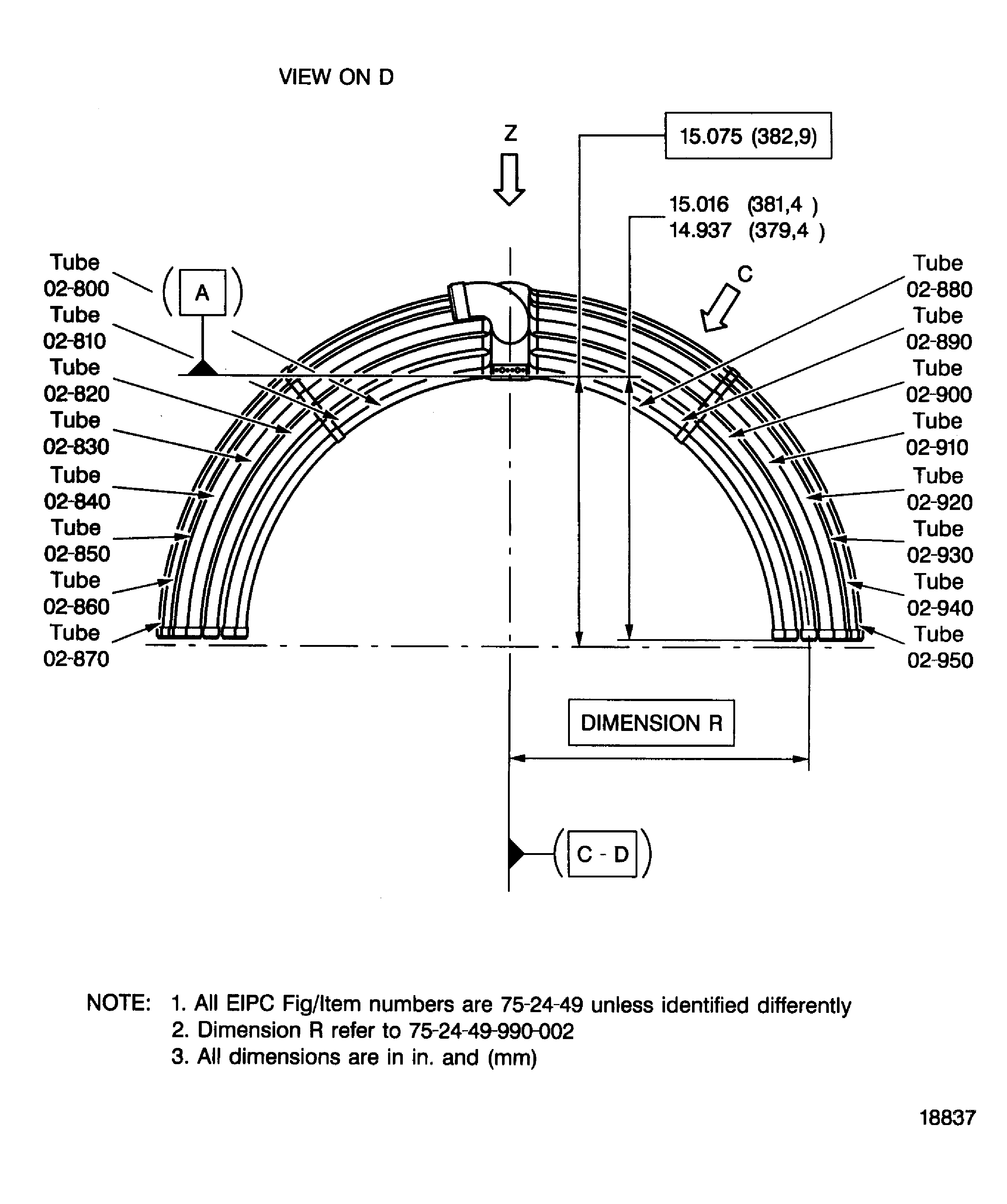

Figure: Upper Air Cooling Duct Assembly - Replacement Of Tubes
Upper Air Cooling Duct Assembly - Replacement Of Tubes
Upper Air Cooling Duct Assembly - Replacement Of Tubes
