TASK 75-24-49-300-017 LPT ACC Support Assemblies - Replace The Screw Thread Inserts, Repair-017 (VRS4052)

DMC:V2500-A0-75-24-4915-02A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-24-49-300-017 LPT ACC Support Assemblies - Replace The Screw Thread Inserts, Repair-017 (VRS4052)

Effectivity

FIG/ITEM

PART NO.

02-490

3A1749

03-490

3A1762

03-490

3A2320

03-720

3A1759

04-010

3A1745

Material of Component

PART IDENT

SYMBOL

MATERIAL

Support assemblies

C263

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

For more equipment and materials necessary to do this repair, refer to SPM TASK 70-35-08-300-501.
Equivalent equipment may be used.

NOTE

For repair of the support assemblies use the quantity of repair parts as necessary.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

02-500

MS21209F1- 10

Screw thread insert

2

03-500

MS21209F1- 10

Screw thread insert

4

03-500

MS21209F1- 10

Screw thread insert

6

03-721

MS21209F1- 10

Screw thread insert

2

04-120

MS21209F1- 10

Screw thread insert

2

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-24-49-350-081 Remove the Damaged Screw Thread Inserts

      1. Remove the damaged screw thread inserts.

      1. Refer to SPM TASK 70-35-08-300-501.

      2. Refer to Figure.

    2. SUBTASK 75-24-49-220-088 Examine the Threads for Damage and Raised Material

      1. Examine the threads.

      1. Damage, which does not permit the installation of the new screw thread insert is not permitted.

      2. Remove raised material.

    3. SUBTASK 75-24-49-350-082 Install the New Screw Thread Inserts

      1. Install the new screw thread inserts as necessary.

      1. Refer to SPM TASK 70-35-08-300-501.

    4. SUBTASK 75-24-49-220-089 Do the Post Repair Inspection

      1. Examine the screw thread inserts for correct installation.

      1. Refer to SPM TASK 70-35-08-300-501.

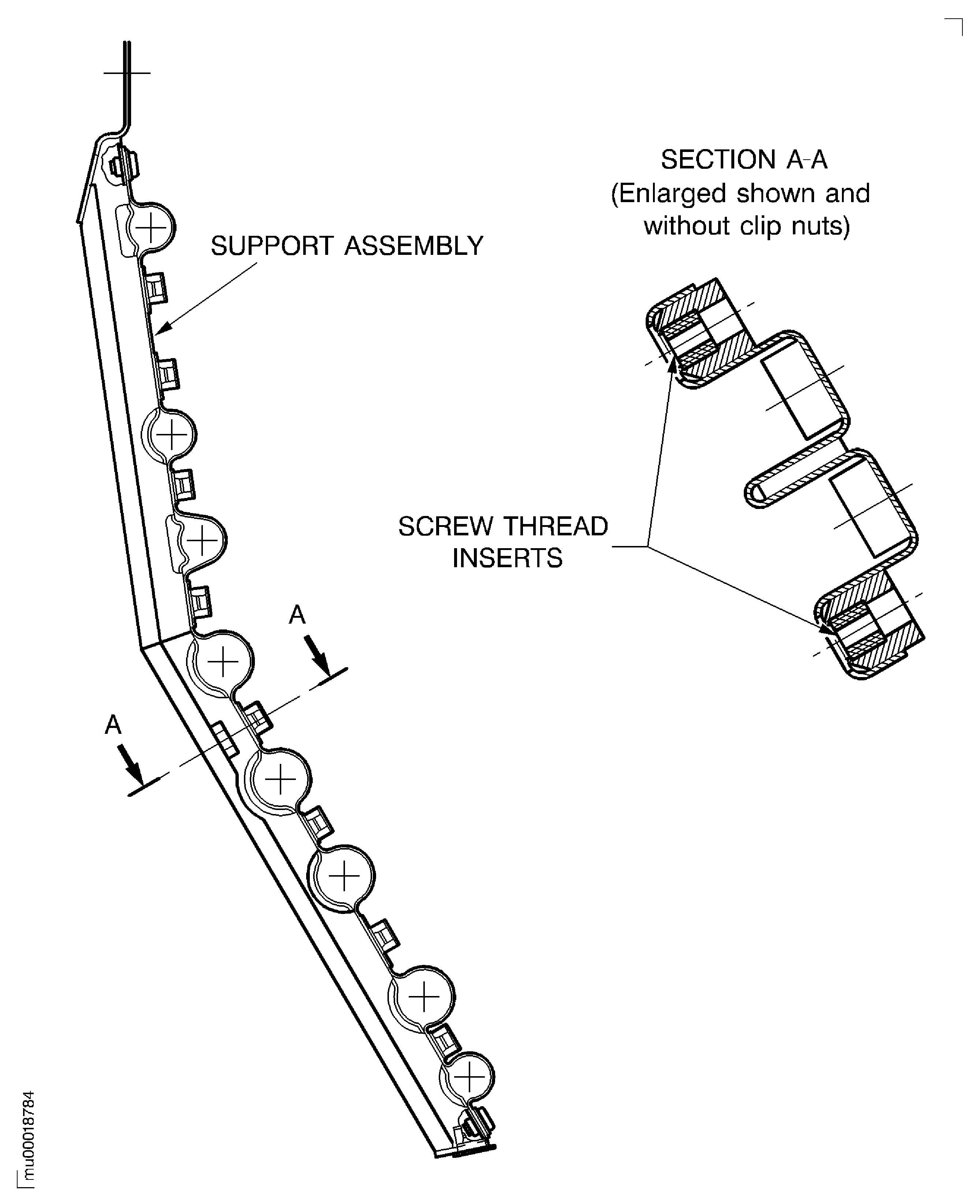

    5. Figure: Replace The Screw Thread Inserts Of The Support Assemblies

    Replace The Screw Thread Inserts Of The Support Assemblies

Requirements After Job Completion

Follow-On Conditions

NONE
