TASK 75-24-51-300-003 Active Clearance Control (ACC) Valve - Related Parts - Replace The Insert Of The Active Clearance Control (ACC) Spherical Joint Assembly, Repair-003 (VRS1537)

DMC:V2500-A0-75-24-5100-00A-920A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-24-51-300-003 Active Clearance Control (ACC) Valve - Related Parts - Replace The Insert Of The Active Clearance Control (ACC) Spherical Joint Assembly, Repair-003 (VRS1537)

Effectivity

FIG/ITEM

PART NO.

01-275

2A1412

Material of component

DESCRIPTION

RR SYMBOL

MATERIAL

ACC spherical joint assembly

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

For the method to clean the parts, refer to Cleaning-000 TASK 75-24-51-100-400.

NOTE

To identify the consumable materials refer to the PCI.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

01-304

MS21209F4-15

Insert

6 off

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Kit, Insert screw threadLOCALKit, Insert screw thread
Helicoil insert equipmentLOCALHelicoil insert equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 04-004 JOINTING COMPOUND, LIGHT GRADELOCALCoMat 04-004

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-24-51-350-055 Remove the Damaged Helicoil Inserts (01-304)

    1. Refer to Figure.

      2. Remove the damaged helicoil inserts.

      1. Refer to SPM TASK 70-35-08-300-501.

    2. SUBTASK 75-24-51-350-056 Install the New Inserts (01-304)

    1. Refer to Figure.

    3. SUBTASK 75-24-51-220-073 Examine the Installed Inserts (01-304)

    1. Refer to Figure.

      2. Examine the inserts and the repaired area.

      1. Refer to SPM TASK 70-35-08-300-501.

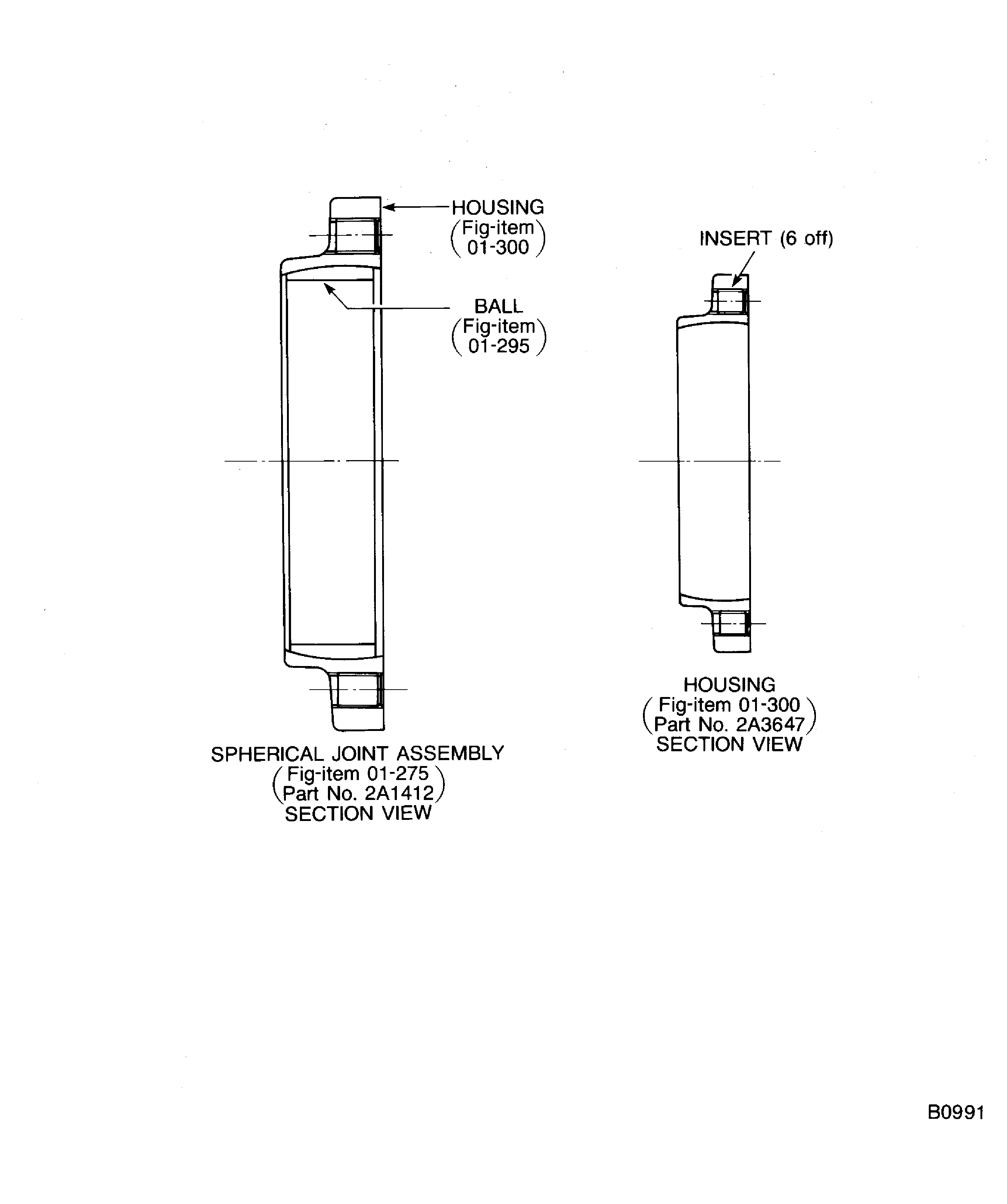

    4. Figure: Replacement Of The Insert

    Replacement Of The Insert

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Supply Number:CoMat 04-004
Type:sp01
Supply Short Name:CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE
Supply Name:CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE
Specification Groups:
Doc NumberType
OMAT: 4/46 (REF RR)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
JCR-025 (JAEC REF)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
MSRR 9055 (RR REF)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
Suppliers:
ManufacturerRemarks
LOCAL
460Y4
CJ731
K3237
Manufacturer Code:LOCAL
Tool Number:Helicoil insert equipment
Tool Name:Helicoil insert equipment
Manufacturer Code:LOCAL
Tool Number:Kit, Insert screw thread
Tool Name:Kit, Insert screw thread
