TASK 75-24-51-300-006 Active Clearance Control (ACC) Valve - Related Parts - Replace The Insert Of The Active Clearance Control (ACC) Housing Assembly, Repair-006 (VRS1519)

DMC:V2500-A0-75-24-5100-01A-920A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-24-51-300-006 Active Clearance Control (ACC) Valve - Related Parts - Replace The Insert Of The Active Clearance Control (ACC) Housing Assembly, Repair-006 (VRS1519)

Effectivity

FIG/ITEM

PART NO.

01-275

2A1512

01-275

2A1534

01-276

2A1587

01-276

2A3735

01-286

2A1588

01-286

2A3736

01-287

2A1589

01-287

2A3737

Material of component

PART IDENT

IAE SYMBOL

MATERIAL

ACC housing assembly

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

For the method to clean the parts, refer to Cleaning-000 TASK 75-24-51-100-400.

NOTE

To identify the consumable materials, refer to the PCI.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

01-294

MS21209F4-10

Insert, screw thread

5 off

01-296

MS21209F1-15

Insert

4 off

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Kit, Insert screw threadLOCALKit, Insert screw thread
Helicoil insert equipmentLOCALHelicoil insert equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 04-004 JOINTING COMPOUND, LIGHT GRADELOCALCoMat 04-004

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-24-51-350-002 Remove the Damaged Helicoil Inserts (01-294 and/or 01-296)

    1. Refer to Figure.

      2. Remove damaged helicoil inserts.

      1. Refer to SPM TASK 70-35-08-300-501.

    2. SUBTASK 75-24-51-350-003 Install the New Inserts (01-294 and/or 01-296)

    1. Refer to Figure.

    3. SUBTASK 75-24-51-220-098 Examine the Installed Inserts (01-294 and/or 01-296)

    1. Refer to Figure.

      2. Examine inserts and repaired area.

      1. Refer to SPM TASK 70-35-08-300-501.

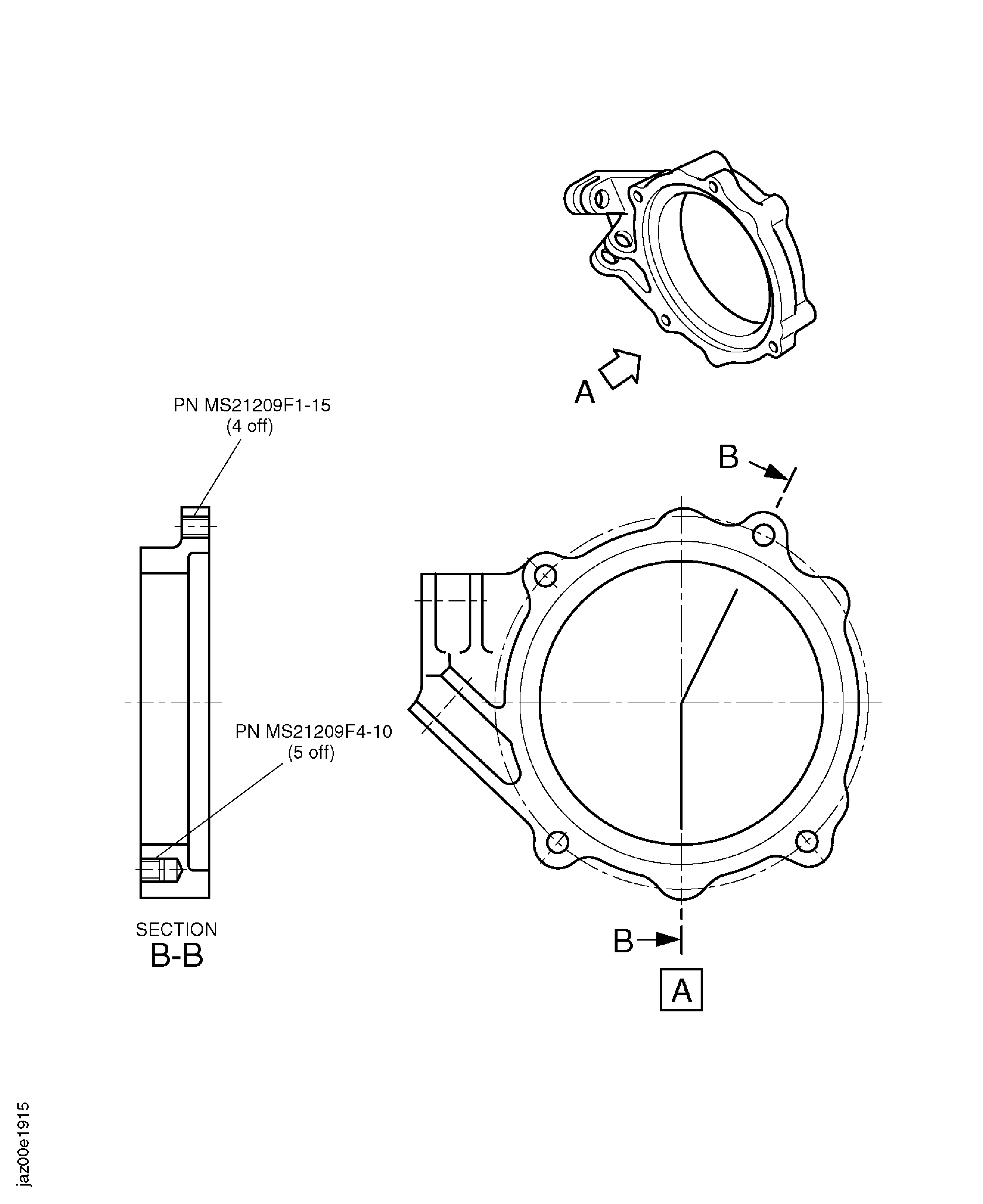

    4. Figure: Replacement Of The Insert

    Replacement Of The Insert

Requirements After Job Completion

Follow-On Conditions

NONE
