TASK 75-31-43-840-001 LPC Bleed Slave Actuator - Related Parts - Modifiy The Bracket At Clip Point 5560, Rework-001 - SBE 75-0044

DMC:V2500-A0-75-31-4300-00A-933A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-31-43-840-001 LPC Bleed Slave Actuator - Related Parts - Modifiy The Bracket At Clip Point 5560, Rework-001 - SBE 75-0044

Effectivity

FIG/ITEM

PART NO.

01-090

6A5650

General

The practices and processes referred to in the procedure by TASK/SUBTASK number are in the SPM.

NOTE

Equivalent materials or equipment can be used.

NOTE

More equipment and materials necessary to do this rework are in the SPM TASKS given below:
Refer to SPM TASK 70-09-00-400-501.
Refer to SPM TASK 70-11-03-300-503.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical Cleaning EquipmentLOCALChemical Cleaning Equipment
Standard Workshop EquipmentLOCALStandard Workshop Equipment
Scribing toolLOCALScribing tool
Vibro-engraving equipmentLOCALVibro-engraving equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-31-43-110-054 Clean the Support Bracket

      1. Chemically clean

      1. Refer to SPM TASK 70-11-03-300-503.

    2. SUBTASK 75-31-43-350-053 Mark the Support Bracket

    1. Refer to Figure.

      2. Mark the rework area

      1. Use a locally manufactured template with a Scribing tool.

    3. SUBTASK 75-31-43-350-054 Remove the Unwanted Material

    1. Refer to Figure.

      2. Remove the unwanted material

      3. Remove burrs and break sharp edges

    4. SUBTASK 75-31-43-220-068 Examine the Support Bracket

    1. Refer to Figure.

      2. Visually examine and measure the dimensions of the support bracket.

    5. SUBTASK 75-31-43-350-055 Identify the Reworked Support Bracket

    1. Refer to Figure.

      2. Replace the part number with the new part number.

      1. Refer to SPM TASK 70-09-00-400-501.

        NUMBER BEFORE 6A5650

        NEW NUMBER 6A5812

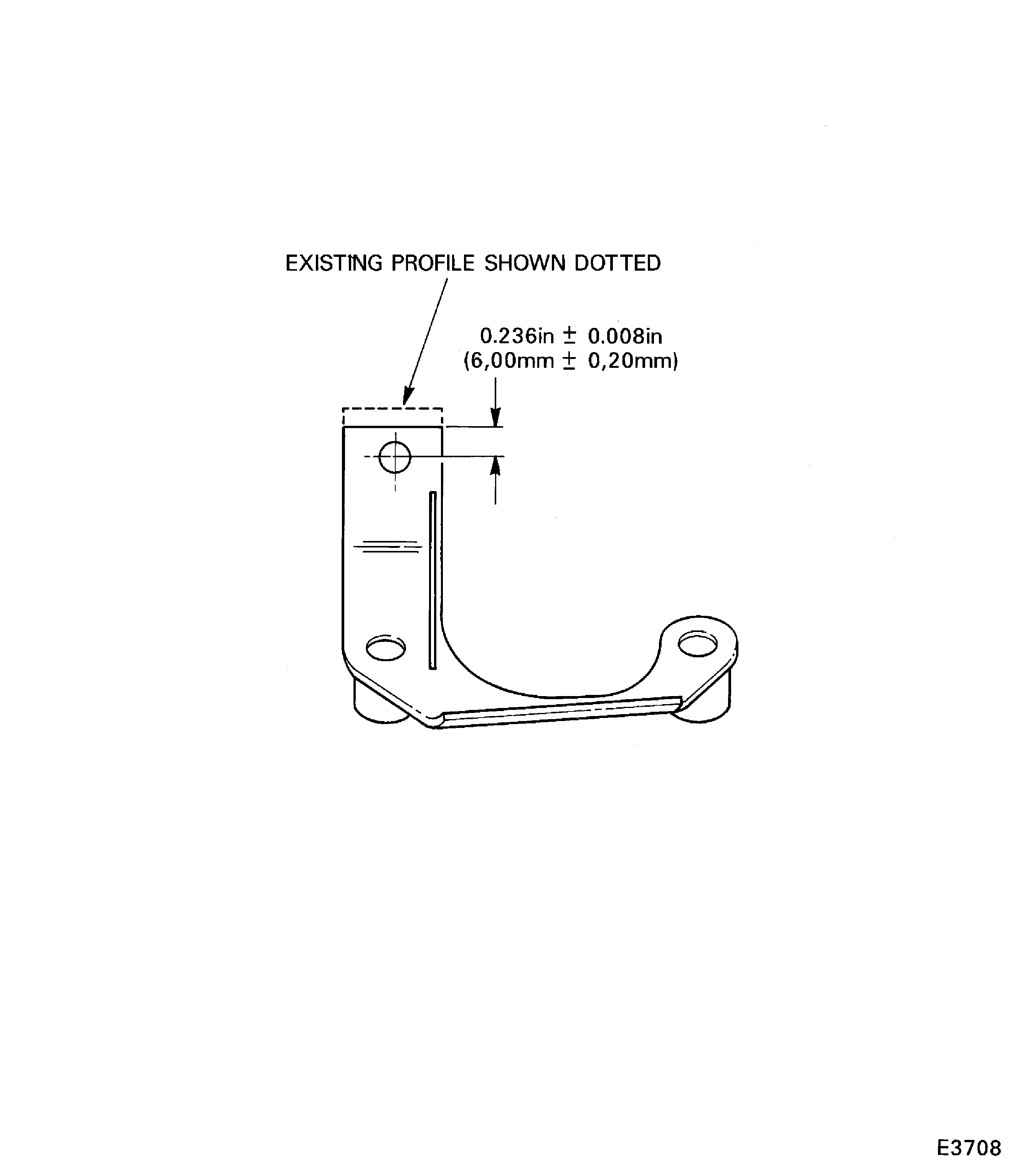

    6. Figure: View Showing Rework of Existing Bracket

    View Showing Rework of Existing Bracket

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
