TASK 79-11-41-300-021 Oil Tank - Related Parts - Replace The Damaged or Loose Wire Thread Inserts In The Oil Tank Assembly, Repair-021 (VRS5226)

DMC:V2500-A0-79-11-4100-01A-920A-C|Issue No:003.00|Issue Date:2015-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 79-11-41-300-021 Oil Tank - Related Parts - Replace The Damaged or Loose Wire Thread Inserts In The Oil Tank Assembly, Repair-021 (VRS5226)

Effectivity

FIG/ITEM

PART NO.

01-860

4B7030

01-860

4B7195

01-860

4B7244

Material of component

PART IDENT

SYMBOL

MATERIAL

Oil Tank Assembly

A537-T61 (AMS 4219)

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Tools for removal and installation may be purchased from Heli-Coil Product Division/Mite Corporation, Danbury, Connecticut 06108.

NOTE

Equivalent materials or equipment may be used.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Removal toolLOCAL1227-6
Tang removal toolLOCAL3695-4
Installation toolLOCAL7552-4

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
INSERT96906MS21209F1-20LA/R
INSERT - WIRE, THREAD, 0.250 DIA96906MS21209F4-15LA/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 79-11-41-350-061 Remove the Damaged Wire Thread Inserts

    1. Refer to Figure or Figure.

      2. Remove the damaged wire thread inserts.

      1. Refer to SPM TASK 70-35-08-300-501.

    2. SUBTASK 79-11-41-220-113 Examine the Threads

    1. Refer to Figure or Figure.

      2. Examine the threads.

      1. Refer to SPM TASK 70-35-08-300-501.

    3. SUBTASK 79-11-41-350-062 Install the New Wire Thread Inserts

    1. Refer to Figure or Figure.

      2. Install the new wire thread inserts.

      1. Refer to Repair parts.

      2. Refer to SPM TASK 70-35-08-300-501.

      3. Remove the tangs.

      1. NOTE

        All free tangs shall be removed from the fan frame immediately after breaking off.

        Refer to SPM TASK 70-35-08-300-501.

    4. SUBTASK 79-11-41-330-059 Repair the Damaged Anodic Treatment

      1. Check the surface.

      1. Do the touch-up process if the anodic treatment has been damaged by the wire thread insert installation.

      2. Refer to SPM TASK 70-38-02-300-503.

    5. SUBTASK 79-11-41-230-063 Do a Crack Test on the Repaired Area

      1. Do a crack test on the repaired area.

      1. Refer to SPM TASK 70-35-08-300-501.

    6. SUBTASK 79-11-41-220-096 Examine the Wire Thread Inserts

      1. Examine the new wire thread inserts for correct installation.

      1. Refer to SPM TASK 70-35-08-300-501, SUBTASK 70-35-08-220-001.

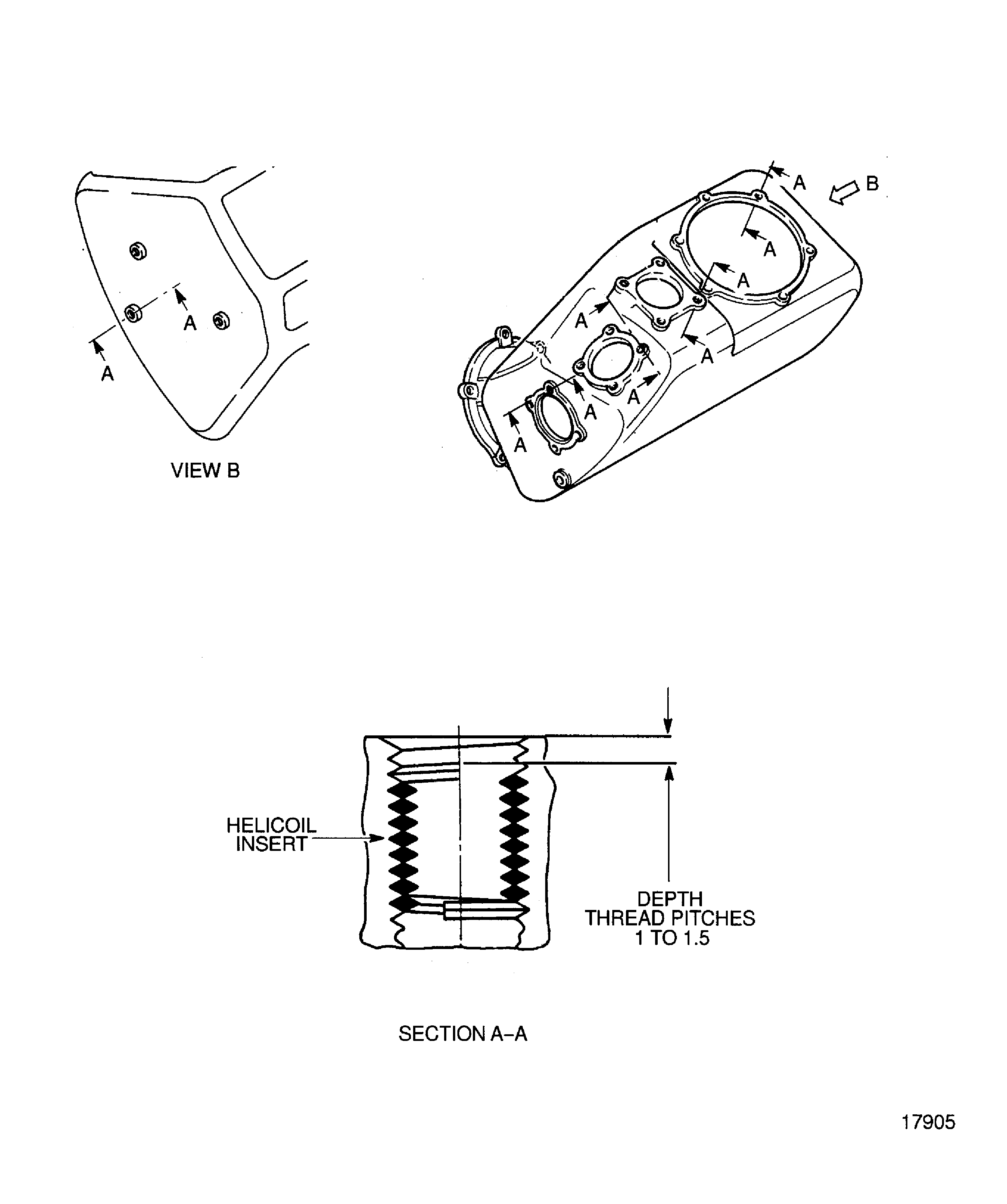

    7. Figure: Oil Tank Assembly (P/N 4B7030), Replace The Damaged or Loose wire Thread Inserts

    Oil Tank Assembly (P/N 4B7030), Replace The Damaged or Loose wire Thread Inserts

    Figure: Oil tank Assembly (P/N 4B7195 and 4B7244), Replace the Damaged or loose wire Thread Inserts

    Oil tank Assembly (P/N 4B7195 and 4B7244), Replace the Damaged or loose wire Thread Inserts

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised incorrect SPM task references. (PSCOMM MIZ704MI)
