TASK 79-22-43-300-021 Scavenge Oil Filter Housing - Related Parts - Replace The Filter Support In The Casing Assembly, Repair-021 (VRS5651)

DMC:V2500-A0-79-22-4300-01A-920A-C|Issue No:002.00|Issue Date:2015-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 79-22-43-300-021 Scavenge Oil Filter Housing - Related Parts - Replace The Filter Support In The Casing Assembly, Repair-021 (VRS5651)

Effectivity

FIG/ITEM

PART NO.

01-550

4B7168

01-550

4B7215

01-550

4B7382

Material of component

PART IDENT

SYMBOL

MATERIAL

Casing

Aluminum alloy

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Heat GunLOCALHeat Gun
Arbor PressLOCALArbor press
IAE 3F10443 Drift, removal0AM53IAE 3F104431
IAE 3F10444 Drift, installation0AM53IAE 3F104441
IAE 3F10445 Base, support (removal)0AM53IAE 3F104451
IAE 3F10446 Base, support (installation)0AM53IAE 3F104461

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
SUPPORT - FILTER0AM534P7106

Safety Requirements

NONE

Procedure

    1. SUBTASK 79-22-43-330-071 Remove the Filter Support from the Casing Assembly

    1. Refer to Figure.

    3. Discard the filter support.

    2. SUBTASK 79-22-43-220-088 Examine the Casing Assembly Filter Support Seat

    1. Refer to Figure.

      2. Examine the casing assembly filter support seat.

      1. Remove the high metal where necessary.

    3. SUBTASK 79-22-43-220-001 Measure the Diameter of the Casing Assembly Filter Support Seat and Filter Support

    1. Refer to Figure.

      2. Measure the diameter of the filter support seat in the casing assembly.

      1. Measure the seat at different locations.

      2. Make an average and record the diameter.

      3. Measure the outer diameter of the new filter support.

      1. Measure the diameter at the different locations.

      2. Make an average and record the diameter.

      4. Calculate the interference between the diameter of the filter support and its seat.

      1. The interference value must be between 0.00039 to 0.00310 in. (0.010 to 0.080 mm).

    4. SUBTASK 79-22-43-350-076 Install the New Filter Support, in the Casing Assembly

    1. Refer to Figure.

      2. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.

        WARNING

        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.

        WARNING

        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED.

        WARNING

        IMMEDIATELY GET MEDICAL ATTENTION IF PAIN OR BLISTERING PERSIST.

        Increase the temperature of the casing assembly filter support seat.

      1. Do not increase the temperature of the casing above 212 deg F (100 deg C).

      2. Use a Heat Gun.

      3. Put the new filter support in the casing assembly seat.

      1. Use protective gloves.

      4. Install the filter support.

      2. Apply a load of 110 lb (50 Kg) maximum.

    5. Let the parts get the ambient temperature.

    6. Remove the drift.

      7. Check that the filter support is correctly installed.

      1. Measure dimension H at several locations.

      2. The minimum value is 3.8346 in. (97.40 mm).

    5. SUBTASK 79-22-43-350-077 Record the Repair

    1. Refer to Figure.

      2. Make a mark VRS5651 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501. SUBTASK 70-09-00-400-001.

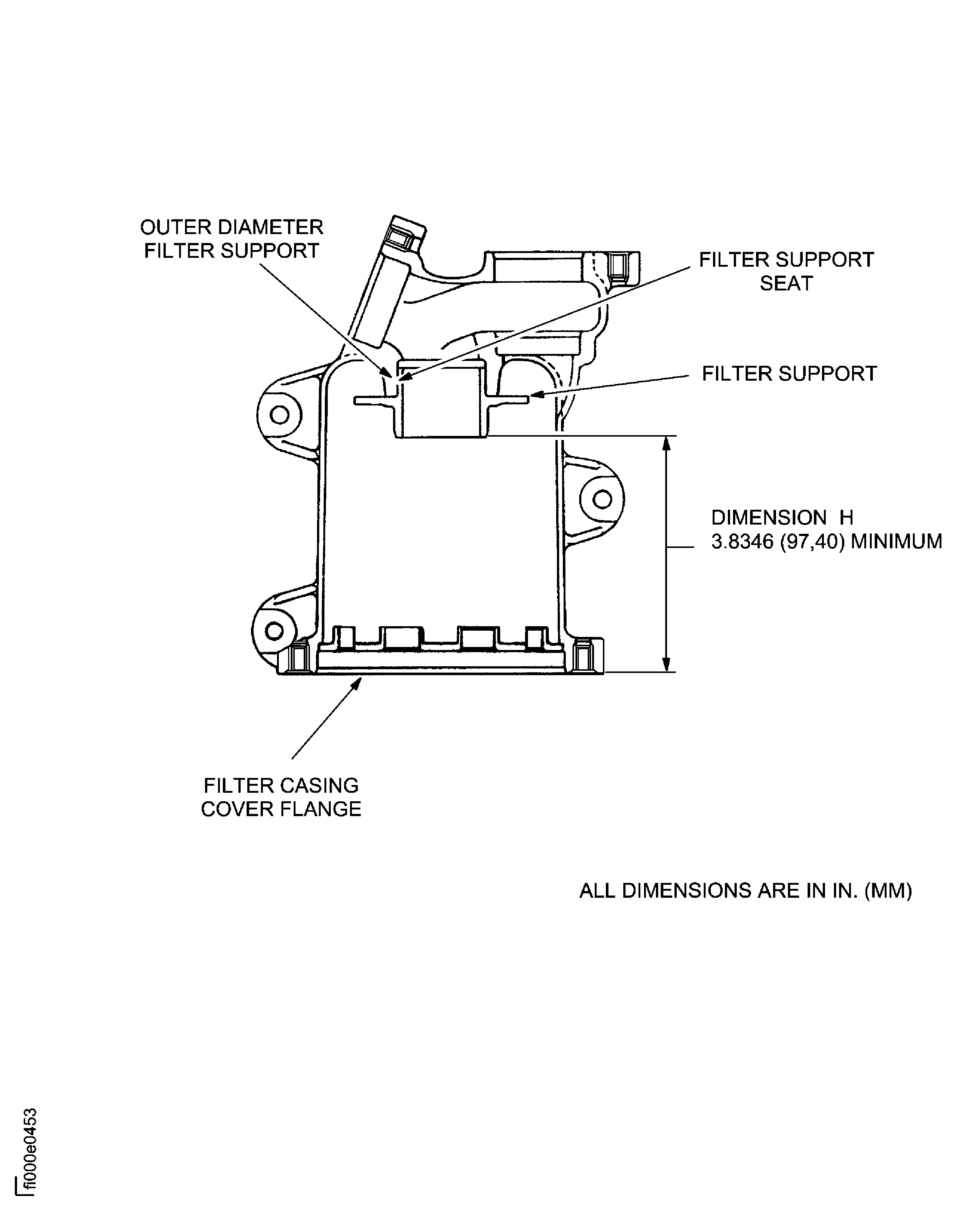

    6. Figure: Repair All Details And Dimensions

    Repair All Details And Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Update part numbers. (EC 14VF868)
