DMC:V2500-A1-30-21-49-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B30214903 | ICE AND RAIN PROTECTION-ANTI-ICE DUCTS, PRE SBN70-0134 | aa | ||
| SBN0134-01 | ICE AND RAIN PROTECTION-ANTI-ICE DUCTS, PRE SBN71-0257 | ab | ||
| SBN0257-01 | ICE AND RAIN PROTECTION-ANTI-ICE DUCTS | ac | ||
| 090 | 1-07597-00-00 | • DUCT - INSULATION,TAI OUTER 51563 | aa-ac | 1 |
| 100 | 740-3101-501 | • DUCT - ASSY OUTER ANTI ICE 51563 (SEE 71-11-11) PRE SBN70-0134 | aa-ab | 1 |
| 100A | 740-3101-507 | • DUCT - ASSEMBLY OUTER ANTI ICE 51563 POST SBN70-0134 PRE SBN71-0257 | aa-ab | 1 |
| 100B | 745-3101-501 | • DUCT - ASSEMBLY 51563 POST SBN71-0257 | ac | 1 |
| 110 | S13953-11 | • PACK K1209 | aa-ac | 1 |
| 120 | S16497-9 | • D K1209 | aa-ac | 1 |
| 500 | 740-3102-505 | • DUCT - ASSY,INNER ANTI ICE 51563 (SEE 71-11-11) | aa-ac | 1 |
| 510 | S13631-17 | • D K1209 | aa-ac | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

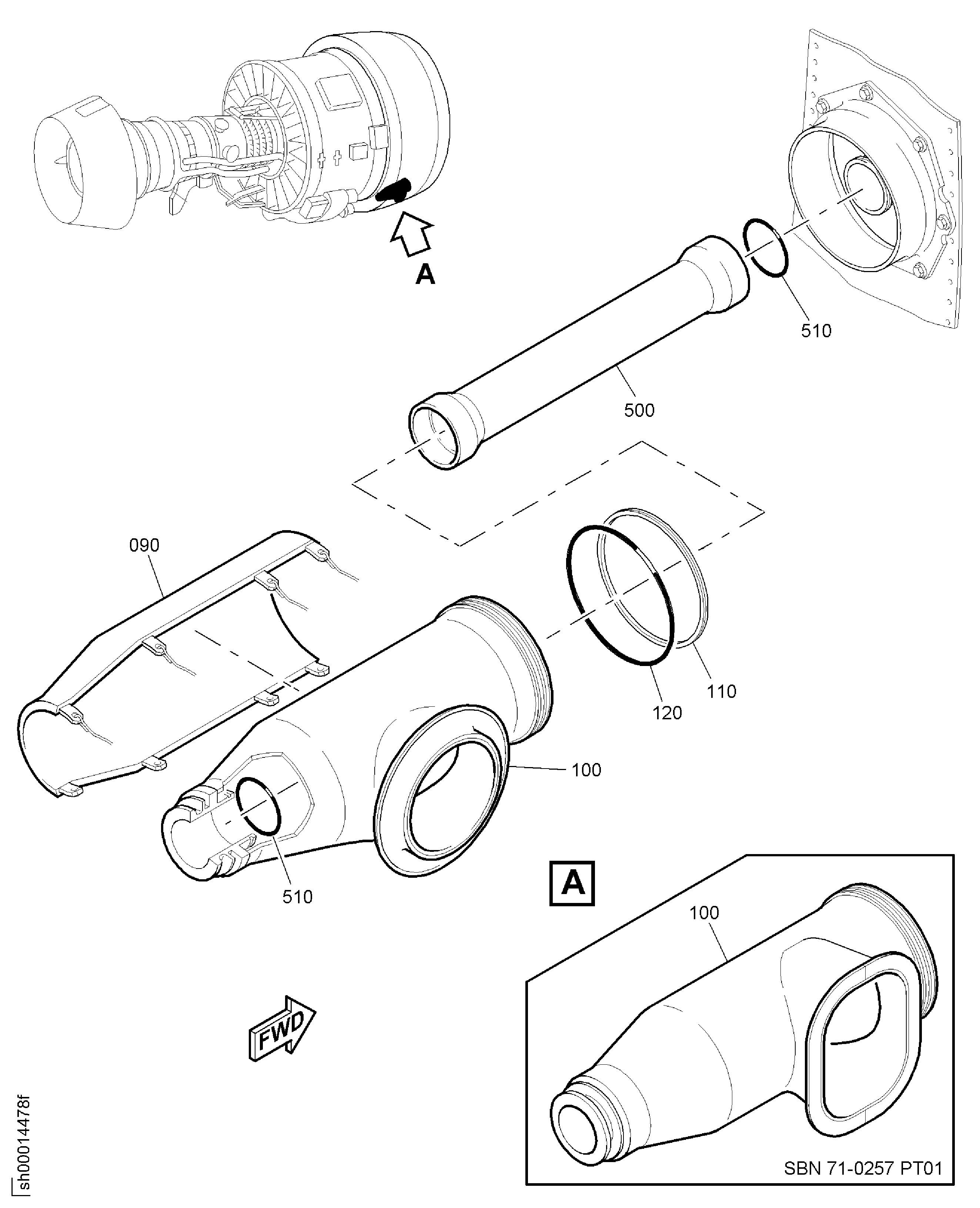

Figure: ICE AND RAIN PROTECTION-ANTI-ICE DUCTS
DUCT ASSY ANTI ICE
