DMC:V2500-A1-70-35-24-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B70352401 | STANDARD PRACTICES-REPAIR PARTS- GENERAL, PRE SBE70-0724 | aa | ||
| SBE0724-01 | STANDARD PRACTICES-REPAIR PARTS- GENERAL, PRE SBE70-0990 | ab | ||
| SBE0990-01 | STANDARD PRACTICES-REPAIR PARTS- GENERAL | ac | ||
| 005 | LK64933 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 050 | LK64921 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 055 | LK64922 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 060 | LK64923 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 065 | LK64924 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 070 | LK64925 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 075 | LK64926 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 080 | LK64927 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 085 | LK64928 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 090 | LK64929 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 095 | LK64930 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 100 | LK64931 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 105 | LK70785 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 110 | LK81707 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 115 | LK64932 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 150 | LK71218 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 155 | LK64934 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 160 | LK64935 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 165 | LK64936 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 170 | LJ34521 | • TUBE - 2.000 OD X .036 POST SBE70-0724 | ab-ac | 1 |
| 200 | LK64937 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 250 | JR17153 | • RING POST SBE70-0724 | ab-ac | 1 |
| 300 | JR17170 | • RING POST SBE70-0724 | ab-ac | 1 |
| 305 | JR17171 | • RING POST SBE70-0724 PRE SBE70-0990 | ab-ac | 1 |
| 305A | JR17171 | • RING ALT AS52820 POST SBE70-0990 | ab-ac | 1 |
| -305B | AS52820 | • RING - WELDING U1653 ALT AS52821 POST SBE70-0990 | ab-ac | REF |
| -305C | AS52821 | • RING - WELDING U1653 ALT JR17171 POST SBE70-0990 | ab | REF |
| 310 | JR17172 | • CONNECTR POST SBE70-0724 PRE SBE70-0990 | ab-ac | 1 |
| 310A | JR17172 | • CONNECTR ALT AS52822 POST SBE70-0990 | ab-ac | 1 |
| -310B | AS52822 | • RING - WELDING U1653 ALT AS52823 POST SBE70-0990 | ab-ac | REF |
| -310C | AS52823 | • RING - WELDING U1653 ALT JR17172 POST SBE70-0990 | ab | REF |
| 315 | AS52824 | • RING - WELDING U1653 POST SBE70-0724 | ab-ac | 1 |
| 320 | JR17174 | • RING POST SBE70-0724 PRE SBE70-0990 | ab-ac | 1 |
| 320A | JR17174 | • RING ALT AS52826 POST SBE70-0990 | ab-ac | 1 |
| -320B | AS52826 | • RING - WELDING U1653 ALT AS52827 POST SBE70-0990 | ab-ac | REF |
| -320C | AS52827 | • RING - WELDING U1653 ALT JR17174 POST SBE70-0990 | ab | REF |
| 325 | JR17175 | • CONNECTR POST SBE70-0724 PRE SBE70-0990 | ab-ac | 1 |
| 325A | JR17175 | • CONNECTR ALT AS52828 POST SBE70-0990 | ab-ac | 1 |
| -325B | AS52828 | • RING - WELDING U1653 ALT AS52829 POST SBE70-0990 | ab-ac | REF |
| -325C | AS52829 | • RING - WELDING U1653 ALT JR17175 POST SBE70-0990 | ab | REF |
| 330 | AS52830 | • RING - WELDING U1653 POST SBE70-0724 | ab-ac | 1 |
| 335 | AS52832 | • RING - WELDING U1653 POST SBE70-0724 | ab-ac | 1 |
| 340 | JR17183 | • CONNECTR POST SBE70-0724 PRE SBE70-0990 | ab-ac | 1 |
| 340A | JR17183 | • CONNECTR ALT AS52836 POST SBE70-0990 | ab-ac | 1 |
| -340B | AS52836 | • RING - WELDING U1653 ALT AS52837 POST SBE70-0990 | ab-ac | REF |
| -340C | AS52837 | • RING - WELDING U1653 ALT JR17183 POST SBE70-0990 | ab | REF |
| 345 | JR17184 | • RING POST SBE70-0724 | ab-ac | 1 |
| 350 | JR17185 | • RING POST SBE70-0724 PRE SBE70-0990 | ab-ac | 1 |
| 350A | JR17185 | • RING ALT AS52838 POST SBE70-0990 | ab-ac | 1 |
| -350B | AS52838 | • RING - WELDING U1653 ALT AS52839 POST SBE70-0990 | ab-ac | REF |
| 350C | AS52839 | • RING - WELDING U1653 ALT JR17185 POST SBE70-0990 | ab | 1 |
| 355 | LK70787 | • RING POST SBE70-0724 | ab-ac | 1 |
| 360 | AS52840 | • RING - WELDING U1653 POST SBE70-0724 | ab-ac | 1 |
| 365 | LK64938 | • RING POST SBE70-0724 | ab-ac | 1 |
| 400 | AS52825 | • RING - WELDING U1653 POST SBE70-0724 | ab-ac | 1 |
| 405 | AS52831 | • RING - WELDING U1653 POST SBE70-0724 | ab-ac | 1 |
| 410 | AS52833 | • RING - WELDING U1653 POST SBE70-0724 | ab-ac | 1 |
| 415 | AS52841 | • RING - WELDING U1653 POST SBE70-0724 | ab-ac | 1 |
| 450 | JR17585 | • RING POST SBE70-0724 | ab-ac | 1 |
| 475 | B434997 | • RING - TEE ALT JR17187 POST SBE70-0724 | ab-ac | 1 |
| 475A | JR17187 | • RING - TEE ALT B434997 POST SBE70-0724 | ab-ac | 1 |
| 500 | LK64940 | • SLEEVE - .375 0DIA X.022 POST SBE70-0724 | ab-ac | 1 |
| 550 | JR17602 | • SLEEVE - .1875 0DIA X.028 POST SBE70-0724 | ab-ac | 1 |
| 555 | JR17590 | • SLEEVE - .250 0DIA X.028IN POST SBE70-0724 | ab-ac | 1 |
| 560 | LK46450 | • SLEEVE - .3125 0DIA X.028 POST SBE70-0724 | ab-ac | 1 |
| 565 | LK46451 | • SLEEVE - .375 0DIA X.028 POST SBE70-0724 | ab-ac | 1 |
| 570 | JR17591 | • SLEEVE - .4375 0DIA X.028IN POST SBE70-0724 | ab-ac | 1 |
| 575 | LK46452 | • SLEEVE - .500 0DIA X.028 POST SBE70-0724 | ab-ac | 1 |
| 580 | LK46453 | • TUBE POST SBE70-0724 | ab-ac | 1 |
| 585 | JR17594 | • SLEEVE - .750 0DIA X.028IN POST SBE70-0724 | ab-ac | 1 |
| 590 | JR17598 | • SLEEVE - 1.000 0DIA X.028IN POST SBE70-0724 | ab-ac | 1 |
| 595 | JR17599 | • SLEEVE - 1.125 0DIA X.028 POST SBE70-0724 | ab-ac | 1 |
| 600 | JR17600 | • SLEEVE - 1.250 0DIA X.028 POST SBE70-0724 | ab-ac | 1 |
| 605 | LK70786 | • SLEEVE - TUBE POST SBE70-0724 | ab-ac | 1 |
| 610 | JR17601 | • SLEEVE POST SBE70-0724 | ab-ac | 1 |
| 615 | LK64939 | • SLEEVE - 1.625 O/D X.028 POST SBE70-0724 | ab-ac | 1 |
| 650 | JR17610 | • SLEEVE POST SBE70-0724 | ab-ac | 1 |
| 655 | JR17614 | • SLEEVE - .625 0DIA X.036 POST SBE70-0724 | ab-ac | 1 |
| 660 | JR17616 | • SLEEVE - .750 0DIA X.036 POST SBE70-0724 | ab-ac | 1 |
| 665 | LK64941 | • SLEEVE POST SBE70-0724 | ab-ac | 1 |
| 700 | JR17640 | • SLEEVE - 1.250 0DIA X .048 POST SBE70-0724 | ab-ac | 1 |
| 725 | B439513 | • SLEEVE - TUBE CONNECTING POST SBE70-0724 | ab-ac | 1 |
| -725A | JR17623 | • SLEEVE - TUBE POST SBE70-0724 | ab-ac | REF |
| 750 | JR17619 | • SPACER - WELDING,TUBE JOINT POST SBE70-0724 | ab-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

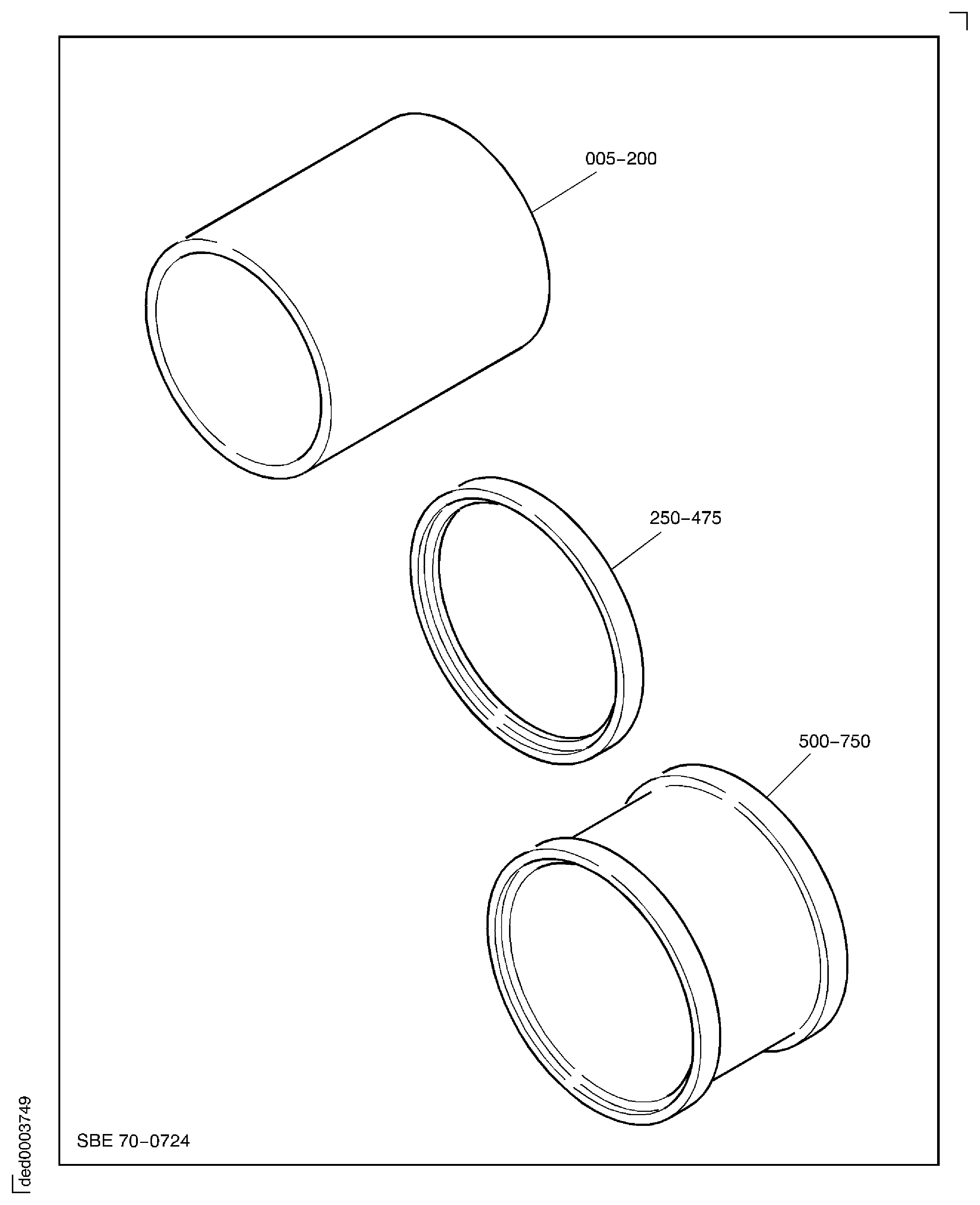

Figure: STANDARD PRACTICES-REPAIR PARTS- GENERAL
STANDARD PRACTICES - REPAIR PARTS - GENERAL
