TASK 71-00-02-000-007-A00 (A1-PPBU) - Remove The Thermal Anti-Ice (TAI) Duct Insulation, Removal-007

DMC:V2500-A1-71-00-0200-06A-520A-B|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 71-00-02-000-007-A00 (A1-PPBU) - Remove The Thermal Anti-Ice (TAI) Duct Insulation, Removal-007

General

Fig/item numbers in parentheses in the procedure agree with those used in the EIPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the EIPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts. Let the parts soak before removal.

Discard all rubber seal rings, split cotter pins and gaskets removed in this procedure.

Remove and discard the lockwire and keywashers before the tube, connector or component is disconnected.

All the tubes, hoses and ducts removed in this procedure must have their maintenance completed, as given in the Component Maintenance Manual (CMM-THD-V2500-1IA) or the Aeroquip Maintenance Manual (29-11-49) as specified.

Seal all openings when the tubes and components are disconnected to prevent contamination from unwanted material.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-00-02-020-023 Remove the Thermal Anti-Ice (TAI) Duct Insulation

    1. Refer to Figure.

      2. Remove the TAI duct insulation.

      1. Remove the installed clamps that attach the inner and outer venturi duct insulation halves ICE AND RAIN PROTECTION-ANTI-ICE DUCTS (30-21-49, 01-220) and ICE AND RAIN PROTECTION-ANTI-ICE DUCTS (30-21-49, 01-225) to the venturi duct. Remove the inner and outer venturi duct insulation halves.

      2. Remove the installed clamps that attach the inner and outer pipe insulation halves ICE AND RAIN PROTECTION-ANTI-ICE DUCTS (30-21-49, 01-210) and ICE AND RAIN PROTECTION-ANTI-ICE DUCTS (30-21-49, 01-215) to the duct assembly. Remove the pipe insulation halves.

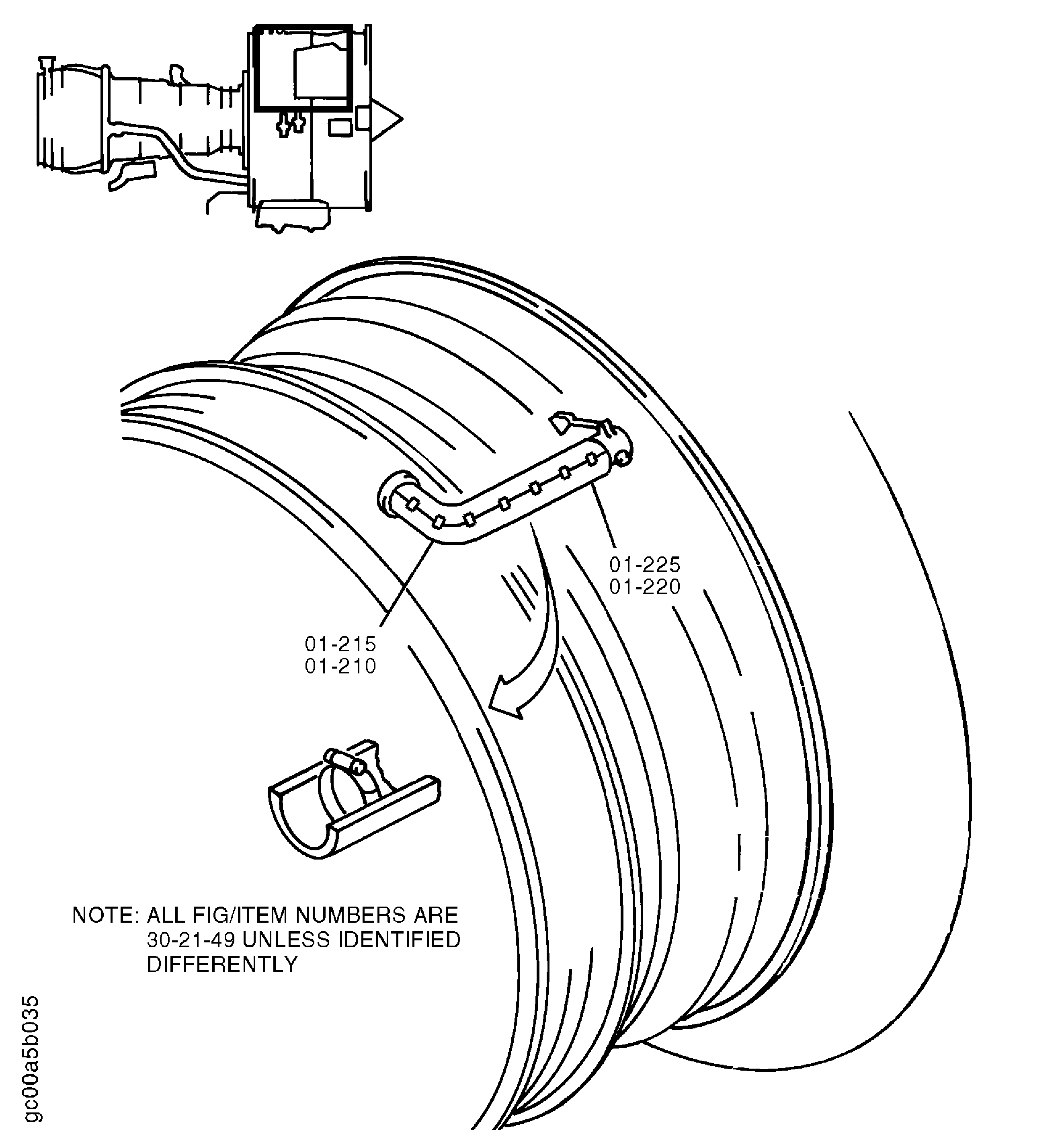

    2. Figure: Remove Thermal Anti-Ice (TAI) Duct Insulation

    Remove Thermal Anti-Ice (TAI) Duct Insulation

Requirements After Job Completion

Follow-On Conditions

NONE
