DMC:V2500-A1-71-00-20-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B71002003 | POWER PLANT-DEMOUNTABLE | aa | ||
| -005 | 740-0501-501 | SHIELD - ASSY,FIRE NO.1 STRUT 51563 PRE SBE72-0024 | ***** | REF |
| 010 | 740-0500-501 | • SHIELD 51563 PRE SBE72-0024 | ***** | 1 |
| 012 | MS21043-04 | • NUT 96906 PRE SBE72-0024 | ***** | 2 |
| 014 | AN960C4L | • WASHER 81352 PRE SBE72-0024 | ***** | 2 |
| 016 | NAS1802-04-6 | • SCREW 80205 PRE SBE72-0024 | ***** | 2 |
| 030 | 740-0500-502 | • SHIELD 51563 PRE SBE72-0024 | ***** | 1 |
| 032 | MS21043-04 | • NUT 96906 PRE SBE72-0024 | ***** | 2 |
| 034 | AN960C4L | • WASHER 81352 PRE SBE72-0024 | ***** | 2 |
| 036 | NAS1802-04-6 | • SCREW 80205 PRE SBE72-0024 | ***** | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

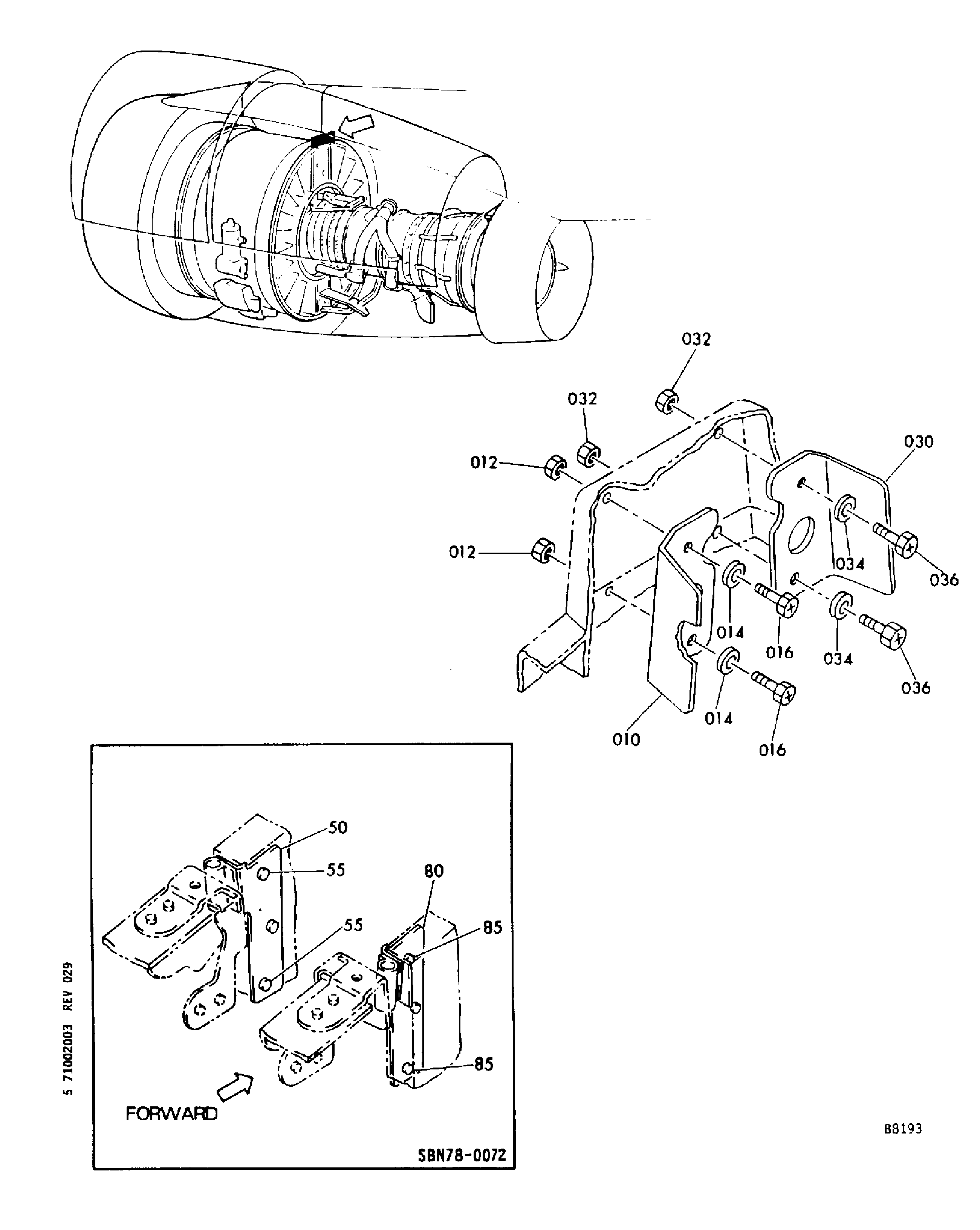

Figure: POWER PLANT-DEMOUNTABLE
