DMC:V2500-A1-71-11-43-01A-941A-DIssue No:002.00Issue Date:2020-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71114301 | POWER PLANT - AIR INTAKE COWL HARNESS, PRE SBN71-0043 | aa | ||
| SBN0043-01 | POWER PLANT - AIR INTAKE COWL HARNESS, PRE SBE70-0136 | ab | ||
| SBE0136-01 | POWER PLANT - AIR INTAKE COWL HARNESS, PRE SBN70-0098 | ac | ||
| SBN0098-01 | POWER PLANT - AIR INTAKE COWL HARNESS, PRE SBN70-0097 | ad | ||
| SBN0097-01 | POWER PLANT - AIR INTAKE COWL HARNESS, PRE SBN70-0289 | ae | ||
| SBN0289-01 | POWER PLANT - AIR INTAKE COWL HARNESS, PRE SBN70-0626 | af | ||
| SBN0626-01 | POWER PLANT - AIR INTAKE COWL HARNESS, PRE SBN70-0745 | ag | ||
| SBN0745-01 | POWER PLANT - AIR INTAKE COWL HARNESS, PRE SBE71-0350 | ah | ||
| SBE0350-01 | POWER PLANT - AIR INTAKE COWL HARNESS | ai | ||
| 100 | 740-3234-501 | • CABLE - ASSEMBLY OF 51563 | aa-ah | 1 |
| 100A | 740-3234-503 | • CABLE - P2/T2, ASSEMBLY OF 51563 POST SBN70-0135 PRE SBE70-0136 | ***** | 1 |
| 100B | 740-3234-505 | • CABLE - P2/T2 J805, ASSEMBLY OF 51563 POST SBE70-0136 PRE SBN70-0098 | ***** | 1 |
| 100C | 740-3234-507 | • CABLE - P2/T2 J805, ASSEMBLY OF 51563 POST SBN70-0098 PRE SBN70-0097 | ad | 1 |
| 100D | 740-3234-509 | • CABLE - P2/T2 J805, ASSEMBLY OF 51563 POST SBN70-0097 PRE SBN70-0289 | ad-ae | 1 |
| 100E | 740-3234-511 | • CABLE - P2/T2 J805, ASSEMBLY OF 51563 POST SBN70-0289 PRE SBN70-0626 | ad-af | 1 |
| 100F | 745-3234-501 | • CABLE - ASSEMBLY OF 51563 POST SBN70-0626 | ag-ah | 1 |
| 110 | A105AP | • NUT - HEXAGON K7766 PRE SBN71-0043 | aa | 4 |
| 110A | AS8623A | • NUT - 0.112 DIA U1653 POST SBN71-0043 PRE SBN70-0626 | ab-af | 4 |
| 110B | FSS4-1201 | • • NUT 58998 POST SBN70-0626 | ag-ah | 2 |
| 120 | A117-1A | • BOLT K7766 PRE SBN70-0626 | aa-af | 4 |
| 120A | A218-12A | • • BOLT K7766 POST SBN70-0626 | ag-ah | 4 |
| 128 | SP154A | • • WASHER K7766 POST SBN70-0626 | ag-ah | 4 |
| 130 | 380AA003M1203A | • • BACKSHELL 51563 PRE SBN70-0626 | aa-af | 1 |
| 130A | 387AS008M1203A2 | • • • BACKSHELL 06324 POST SBN70-0626 | ag-ah | 1 |
| 150 | BSK17E1203PD06 | • • CONNECTOR 51563 PRE SBN70-0289 | aa-ae | 1 |
| 150A | ESC10KE01203P6 | • • CONNECTOR POST SBN70-0289 PRE SBN70-0745 | aa-ah | 1 |
| 150B | ESC10KE01203P60 | • • • CONNECTOR POST SBN70-0745 | aa-ah | 1 |
| 170 | 380AS003M1203A2 | • • BACKSHELL 51563 PRE SBN70-0098 | aa-ac | 1 |
| 170A | 387AS008M1203A2 | • • BACKSHELL 06324 POST SBN70-0098 | aa-ah | 1 |
| 190 | BSK12F12-03SD | • • CONNECTOR 49367 PRE SBN70-0289 | aa-ae | 1 |
| 190A | ESC10SE61203SN | • • CONNECTOR U1653 POST SBN70-0289 PRE SBN70-0745 | aa-ah | 1 |
| 190B | ESC10SE61203SN0 | • • • CONNECTOR U1653 POST SBN70-0745 | aa-ah | 1 |
| 500 | 740-3235-501 | • CABLE - ASSEMBLY OF 51563 | aa-ah | 1 |
| 500A | 740-3235-503 | • CABLE - ASSEMBLY OF 51563 POST SBN70-0135 PRE SBE70-0136 | ***** | 1 |
| 500B | 740-3235-505 | • CABLE - P2/T2, ASSEMBLY J806,J807 51563 POST SBE70-0136 PRE SBN70-0098 | ***** | 1 |
| 500C | 740-3235-507 | • CABLE - P2/T2, ASSEMBLY J806,J807 51563 POST SBN70-0098 PRE SBN70-0097 | ad | 1 |
| 500D | 740-3235-509 | • CABLE - P2/T2, ASSEMBLY J806,J807 51563 POST SBN70-0097 PRE SBN70-0289 | ad-ae | 1 |
| 500E | 740-3235-511 | • CABLE - ASSEMBLY OF 51563 POST SBN70-0289 | ad-ah | 1 |
| 510 | A105AP | • NUT - HEXAGON K7766 PRE SBN71-0043 | aa | 8 |
| 510A | AS8623A | • NUT - 0.112 DIA U1653 POST SBN71-0043 PRE SBN70-0626 | ab-af | 8 |
| 510B | FSS4-1201 | • NUT 58998 POST SBN70-0626 | ag-ah | 2 |
| 515 | FSS4-1601 | • NUT - PLATE 58998 POST SBN70-0626 | ag-ah | 2 |
| 520 | A117-1A | • BOLT K7766 PRE SBN70-0626 | aa-af | 8 |
| 520A | A218-12A | • BOLT K7766 POST SBN70-0626 | ag-ah | 8 |
| 532 | SP154A | • WASHER K7766 POST SBN70-0626 | ag-ah | 8 |
| 535 | 380AS003M1203A2 | • • BACKSHELL 51563 PRE SBN70-0098 | aa-ac | 1 |
| 535A | 387AS008M1203A2 | • • BACKSHELL 06324 POST SBN70-0098 | aa-ah | 1 |
| 550 | BSK17E12-03PD | • • CONNECTOR 51563 PRE SBN70-0289 | aa-ae | 1 |
| 550A | ESC10KE01203PN | • • CONNECTOR U1653 POST SBN70-0289 PRE SBN70-0745 | aa-ah | 1 |
| 550B | ESC10KE01203PN0 | • • • CONNECTOR U1653 POST SBN70-0745 | aa-ah | 1 |
| 570 | 380AS003M1606A3 | • • BACKSHELL 51563 PRE SBN70-0098 | aa-ac | 1 |
| 570A | 387AS008M1606A3 | • • BACKSHELL 06324 POST SBN70-0098 | aa-ah | 1 |
| 580 | BSK17E1610PD | • • RECEPTACLE 49367 PRE SBN70-0289 | aa-ae | 1 |
| 580A | ESC10KE01610PN0 | • • CONNECTOR POST SBN70-0289 PRE SBN70-0745 | aa-ah | 1 |
| 580B | ESC10KE01610PN0 | • • • CONNECTOR POST SBN70-0745 | aa-ah | 1 |
| 590 | 380AA003M1606A | • • BACKSHELL 51563 PRE SBE71-0350 | aa-ah | 1 |
| 590A | 4W7004 | • • BACKSHELL VENDOR PN (380AA003M1606A-98Z) POST SBE71-0350 | ai | 1 |
| 610 | BSK12F16-10SD | • • CONNECTOR 49367 PRE SBN70-0289 | aa-ae | 1 |
| 610A | ESC10SE61610SN | • • CONNECTOR U1653 POST SBN70-0289 PRE SBN70-0745 | aa-ah | 1 |
| 610B | ESC10SE61610SN0 | • • • CONNECTOR U1653 POST SBN70-0745 | aa-ah | 1 |
| 630 | BA14016-36LD | • • PIN - CONTACT U1901 | aa-ah | 1 |
| 635 | BA4120-36LD | • • CONTACT - SOCKET 49367 | aa-ah | 1 |
| 637 | EJS25529 | • • CABLE | aa-ah | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

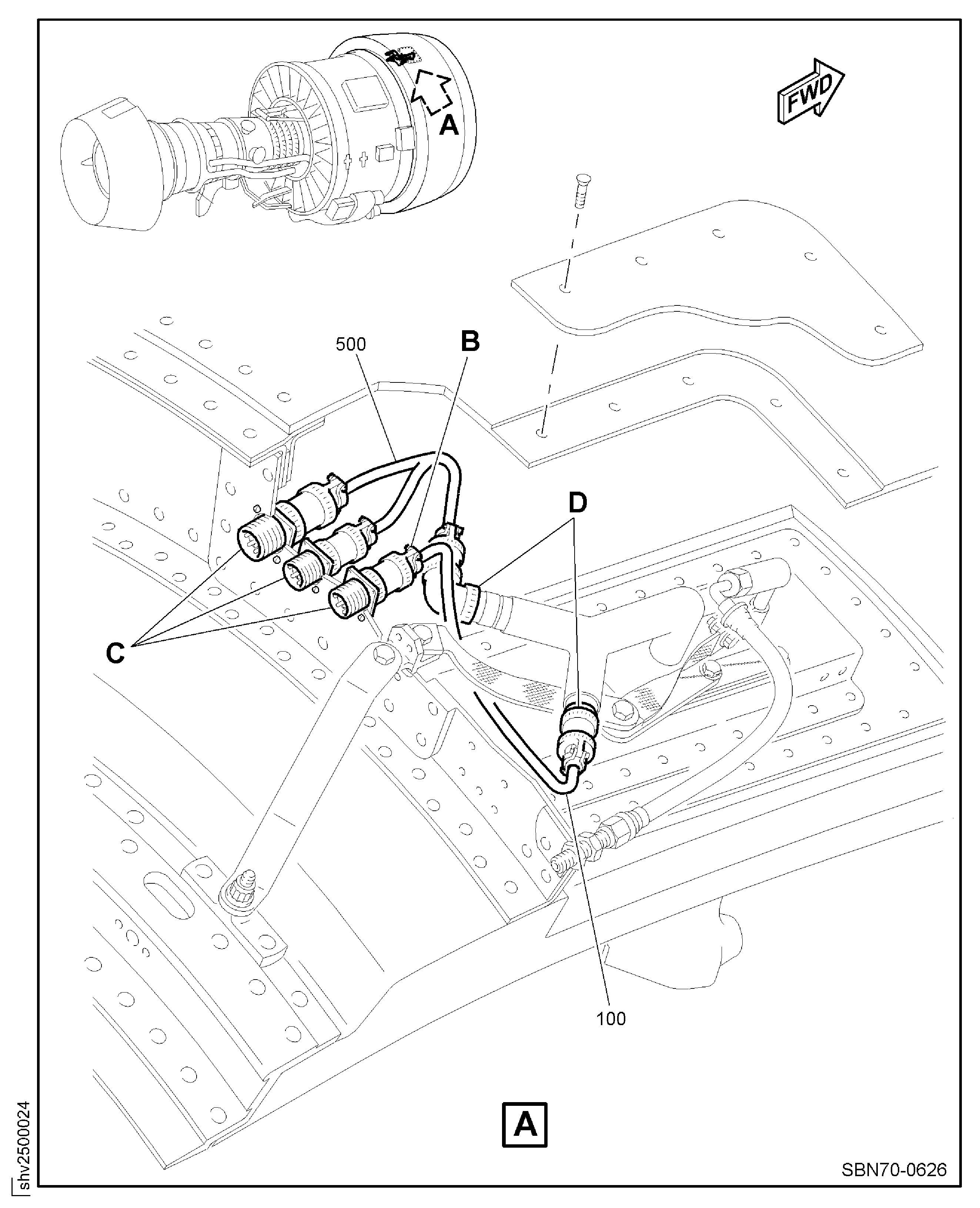

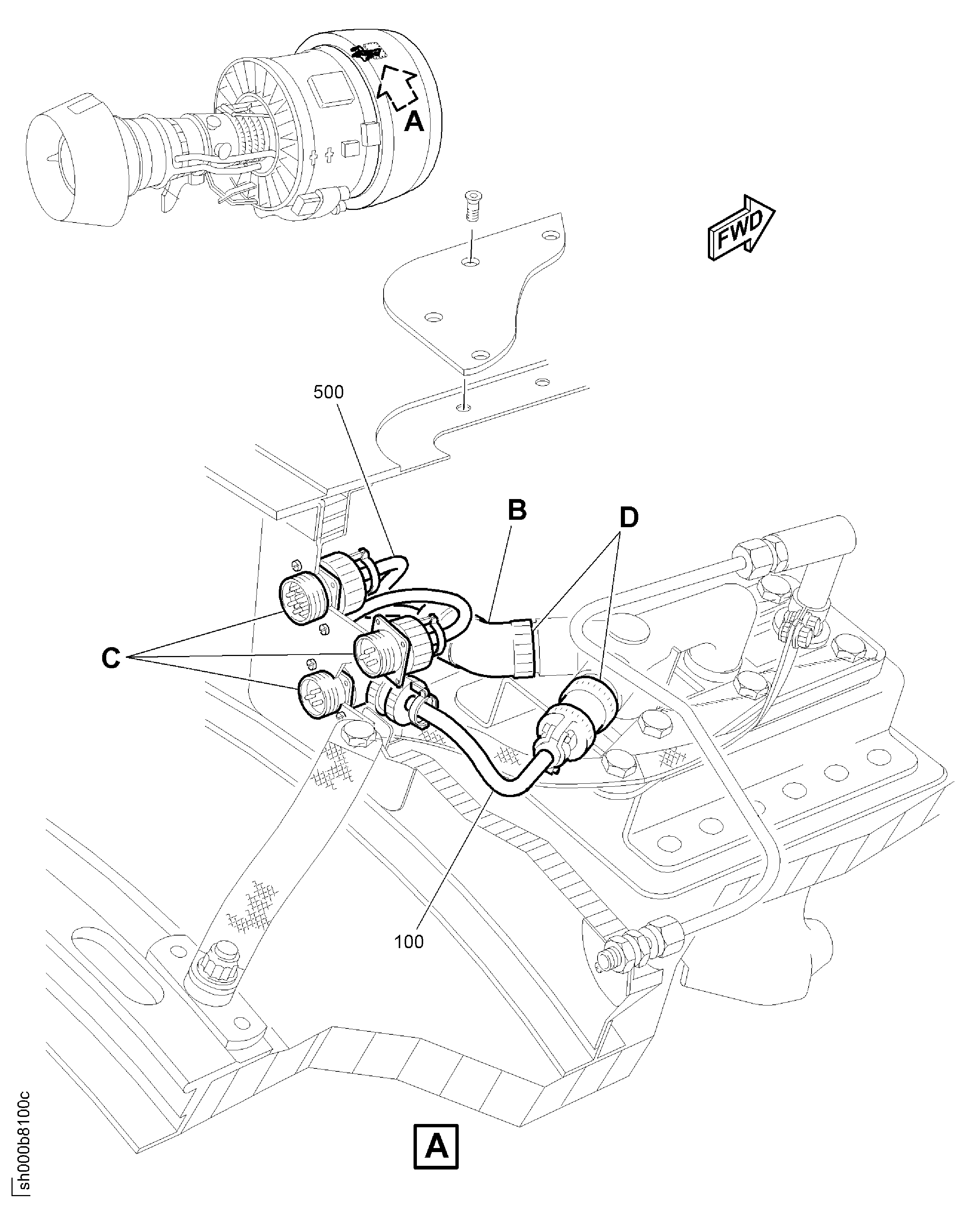

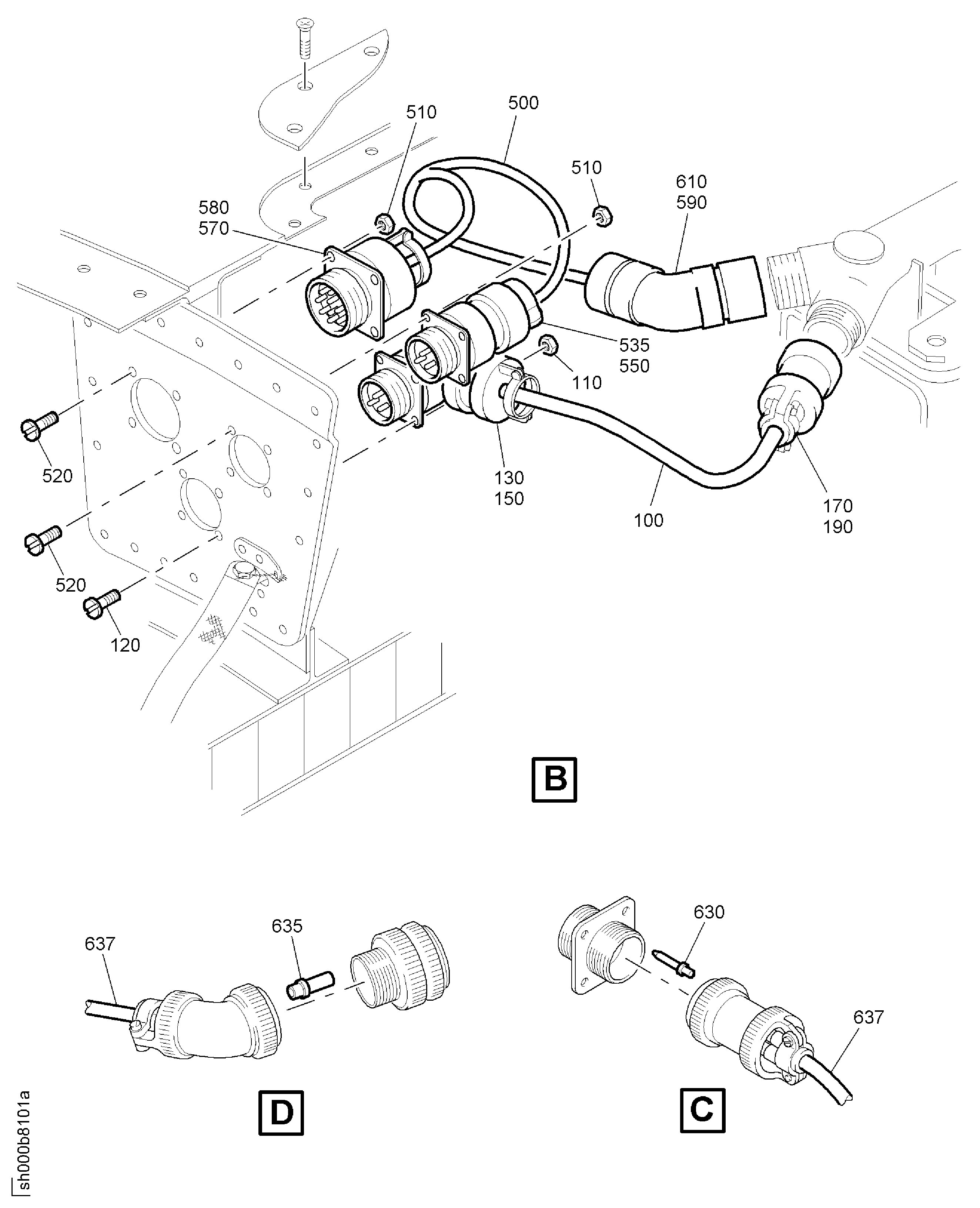

Figure: POWER PLANT-AIR INTAKE COWL HARNESS
ELECTRICS INSTL P2/T2
ELECTRICS INSTL P2/T2
ELECTRICS INSTL P2/T2
ELECTRICS INSTL P2/T2
