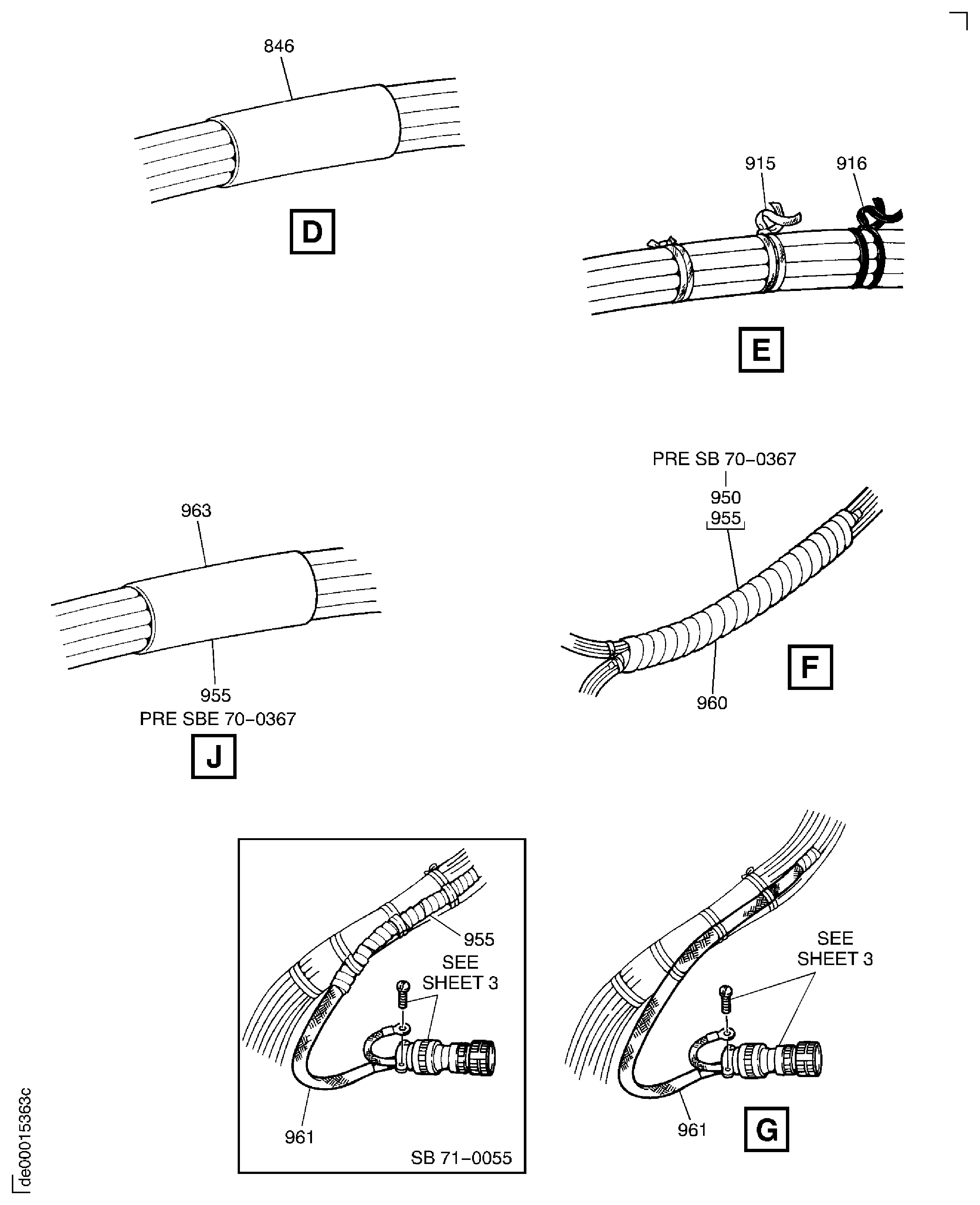

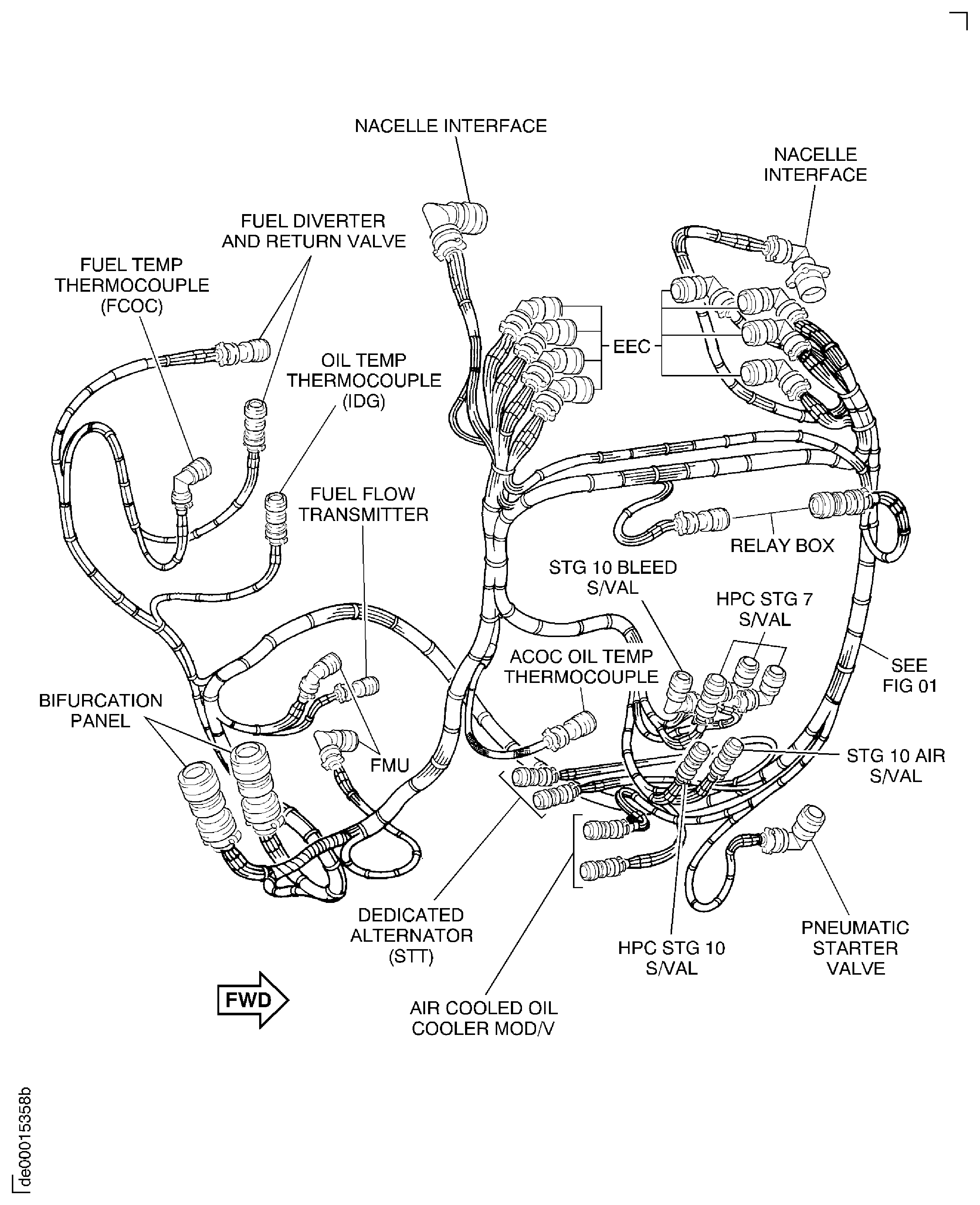

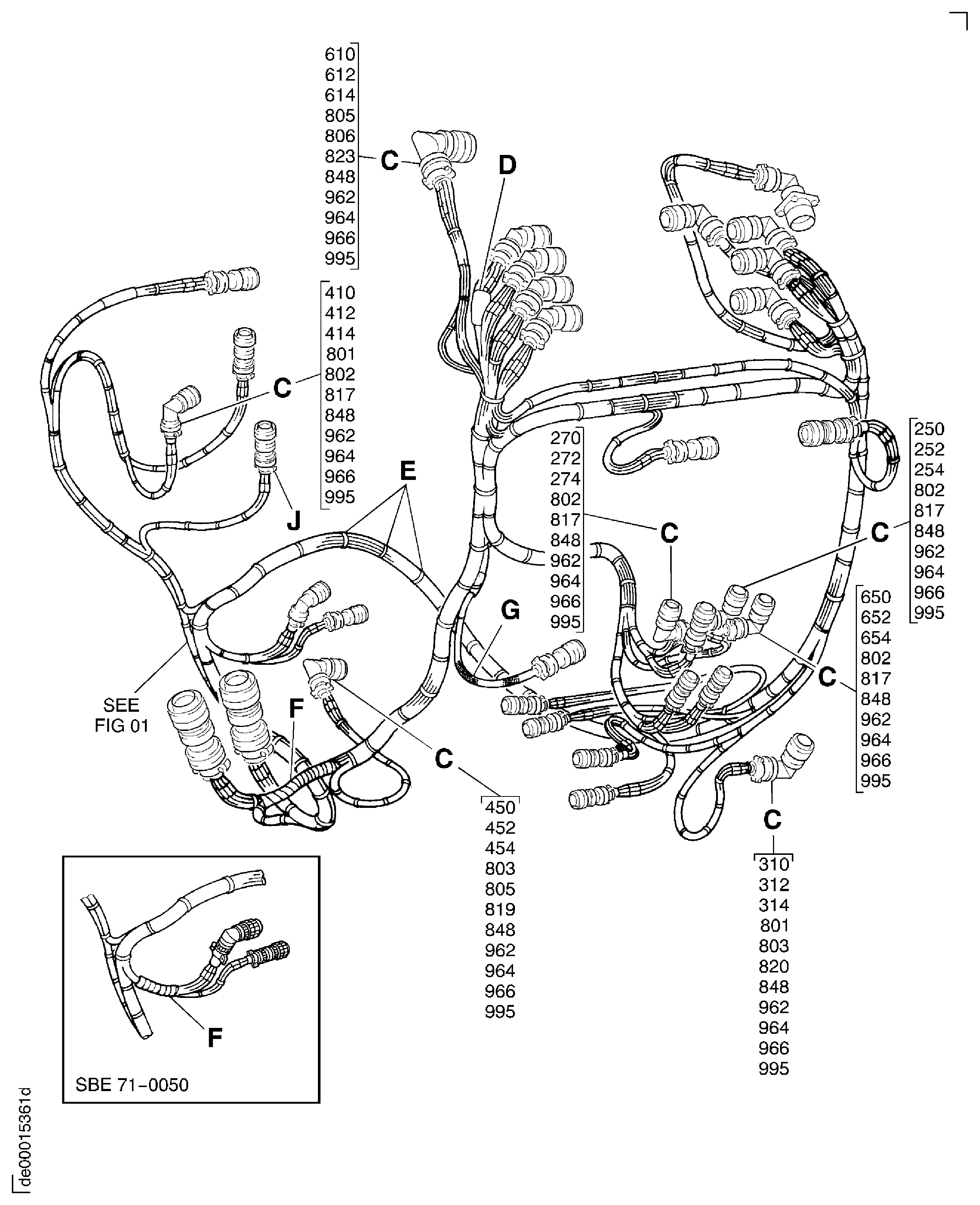

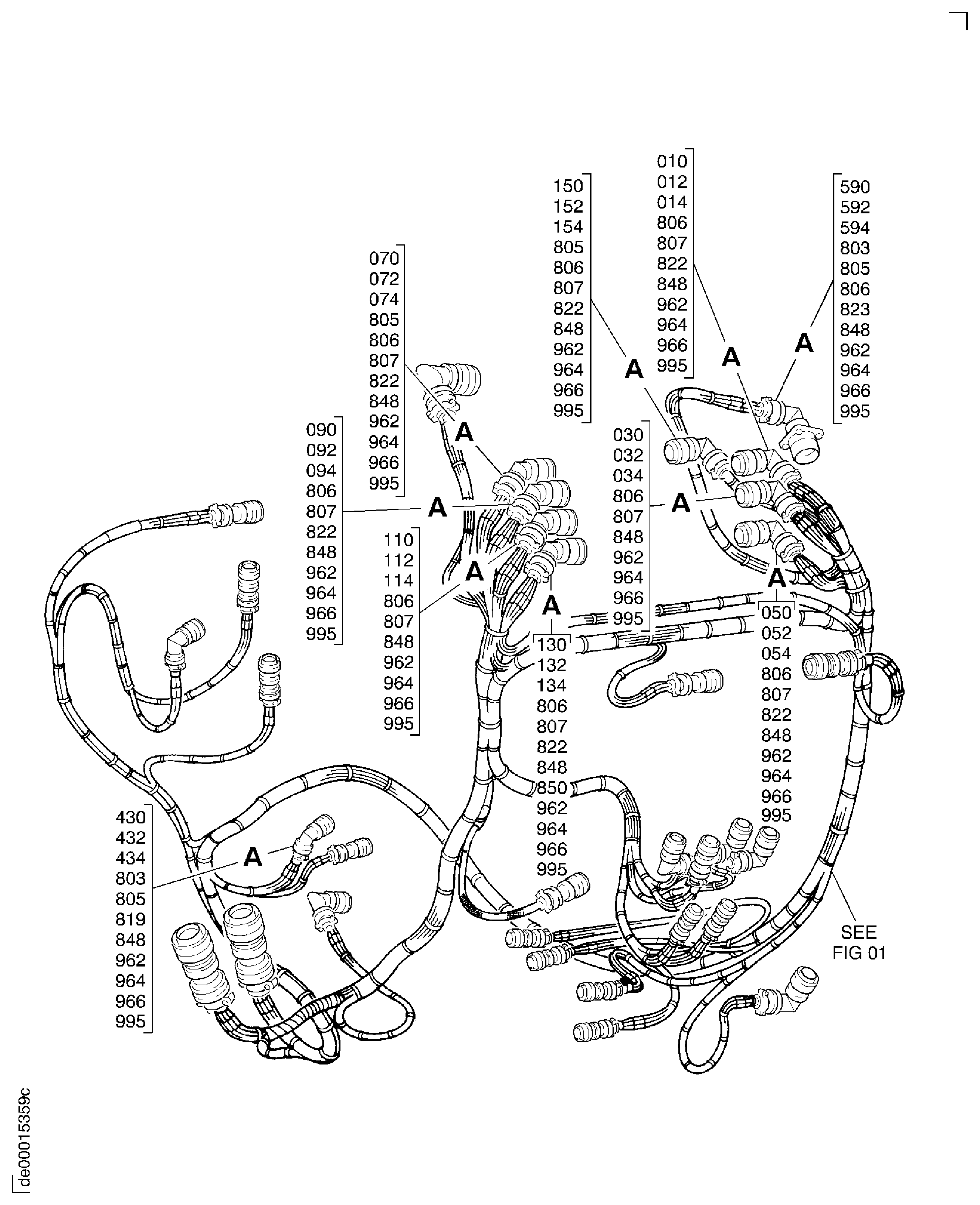

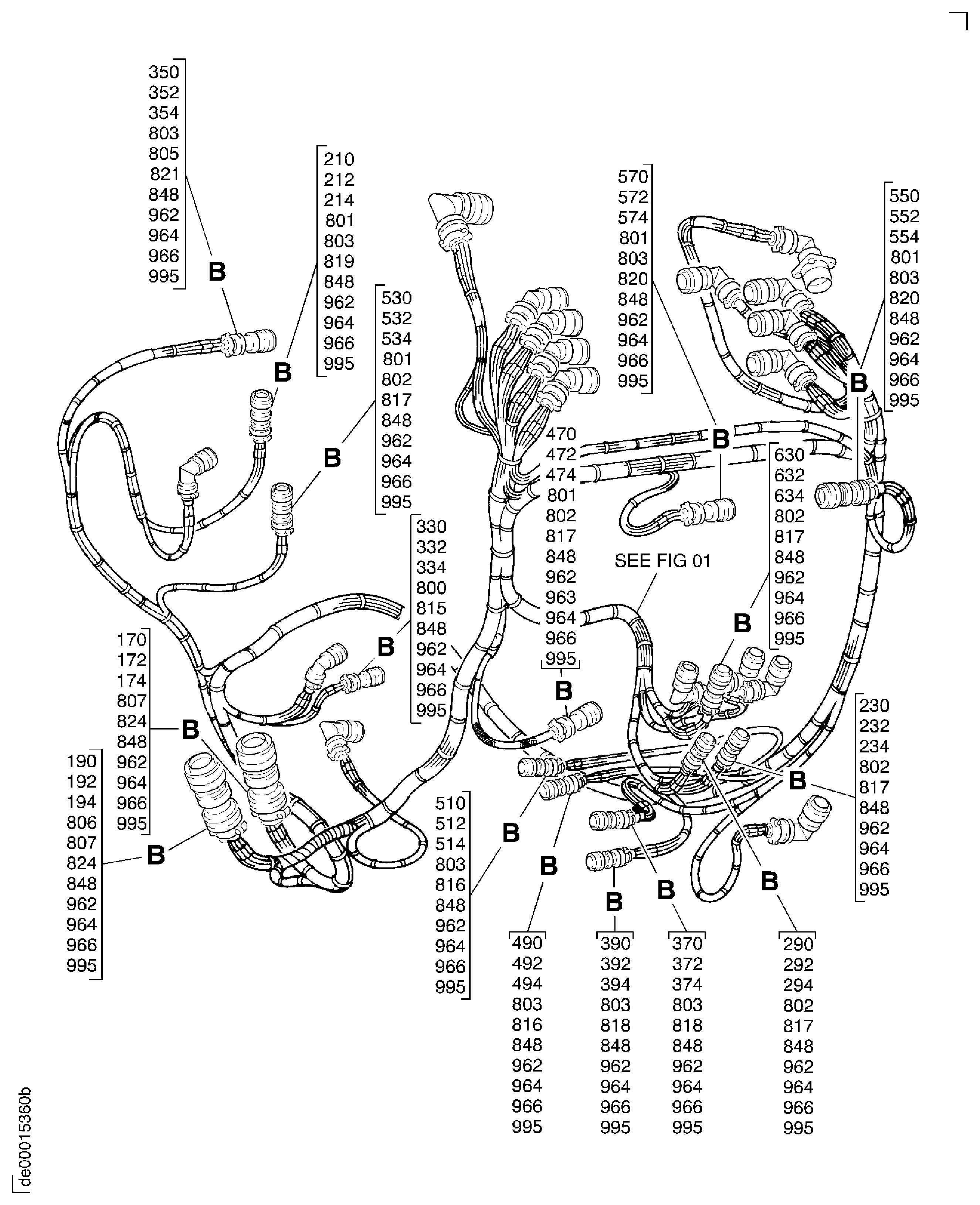

POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN

DMC:V2500-A1-71-51-41-03A-941A-D|Issue No:002.00|Issue Date:2014-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
03
000B71514103POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0055aa
000SBE0055-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0050ab
000SBE0050-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0157ac
000SBE0157-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0107ad
000SBE0107-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0367ae
000SBE0367-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0109af
000SBE0109-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0638ag
000SBE0638-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0642ah
000SBE0642-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0219ai
000SBE0219-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0221aj
000SBE0221-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0721ak
000SBE0721-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FANal

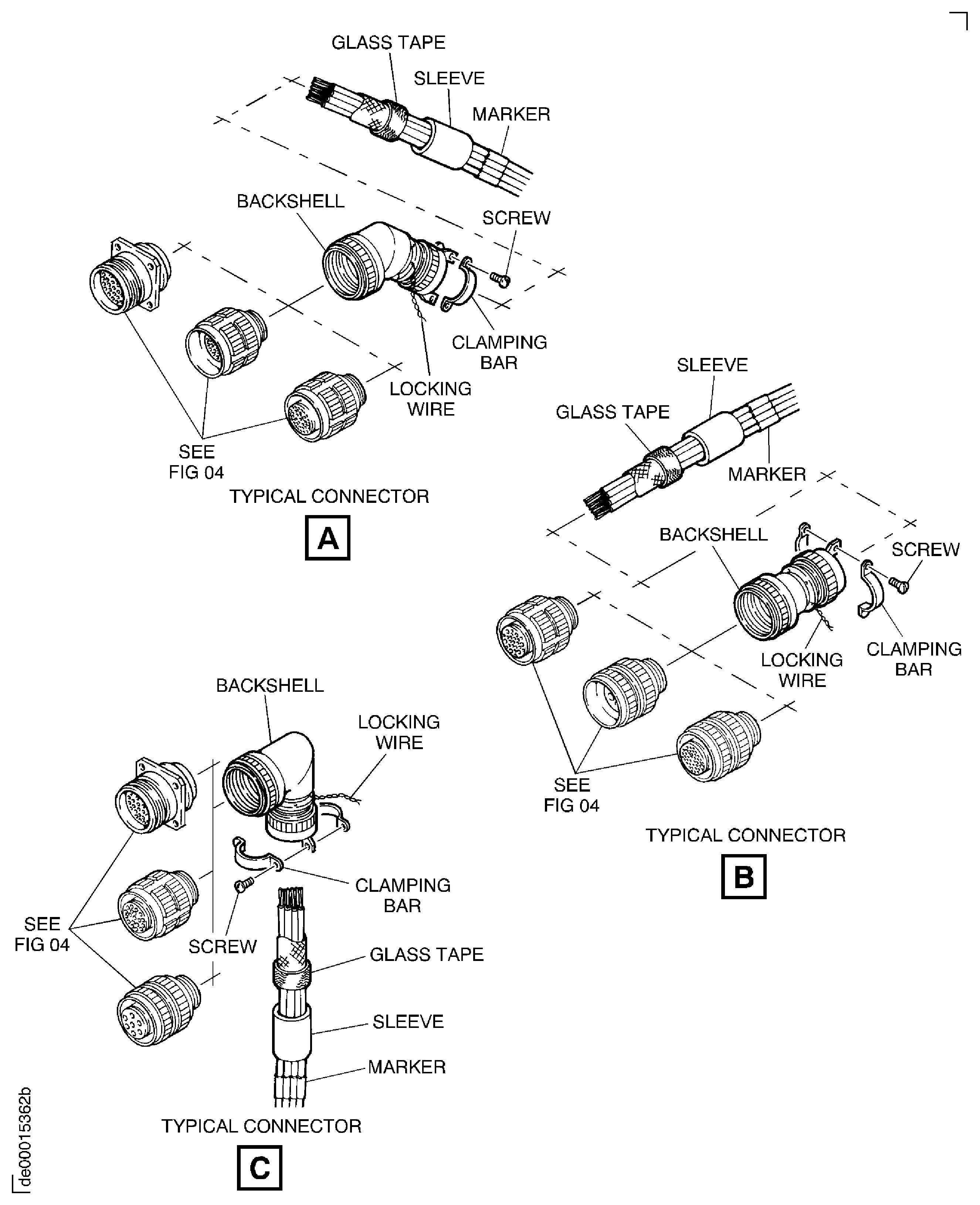

0100105A9217• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
010010A92H2-21-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HJ104E21
POST SBE70-0367		aa-al1
-010010B388HJ104E21• • CLAMP - BACKSHELL ASSY
U0419
ALT 274E21
POST SBE70-0367		af-alREF
-010010C274E21• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H2-21-8JCCAD
POST SBE70-0367		af-alREF
01201220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
01401420-91400-24• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
0300305A9217• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
030030A92H2-21-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HJ104E21
POST SBE70-0367		aa-al1
-030030B388HJ104E21• • CLAMP - BACKSHELL ASSY
U0419
ALT 274E21
POST SBE70-0367		af-alREF
-030030C274E21• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H2-21-8JCCAD
POST SBE70-0367		af-alREF
03203220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
03403420-91400-24• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
0500505A9217• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
050050A92H2-21-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HJ104E21
POST SBE70-0367		aa-al1
-050050B388HJ104E21• • CLAMP - BACKSHELL ASSY
U0419
ALT 274E21
POST SBE70-0367		af-alREF
-050050C274E21• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H2-21-8JCCAD
POST SBE70-0367		af-alREF
05205220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
05405420-91400-24• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
0700705A9217• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
070070A92H2-21-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HJ104E21
POST SBE70-0367		aa-al1
-070070B388HJ104E21• • CLAMP - BACKSHELL ASSY
U0419
ALT 274E21
POST SBE70-0367		af-alREF
-070070C274E21• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H2-21-8JCCAD
POST SBE70-0367		af-alREF
07207220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
07407420-91400-24• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
0900905A9217• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
090090A92H2-21-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HJ104E21
POST SBE70-0367		aa-al1
-090090B388HJ104E21• • CLAMP - BACKSHELL ASSY
U0419
ALT 274E21
POST SBE70-0367		af-alREF
-090090C274E21• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H2-21-8JCCAD
POST SBE70-0367		af-alREF
09209220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
09409420-91400-24• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
1101105A9217• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
110110A92H2-21-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HJ104E21
POST SBE70-0367		aa-al1
-110110B388HJ104E21• • CLAMP - BACKSHELL ASSY
U0419
ALT 274E21
POST SBE70-0367		af-alREF
-110110C274E21• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H2-21-8JCCAD
POST SBE70-0367		af-alREF
11211220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
11411420-91400-24• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
1301305A9217• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
130130A92H2-21-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HJ104E21
POST SBE70-0367		aa-al1
-130130B388HJ104E21• • CLAMP - BACKSHELL ASSY
U0419
ALT 274E21
POST SBE70-0367		af-alREF
-130130C274E21• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H2-21-8JCCAD
POST SBE70-0367		af-alREF
13213220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
13413420-91400-24• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
1501505A9217• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
150150A92H2-21-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HJ104E21
POST SBE70-0367		aa-al1
-150150B388HJ104E21• • CLAMP - BACKSHELL ASSY
U0419
ALT 274E21
POST SBE70-0367		af-alREF
-150150C274E21• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H2-21-8JCCAD
POST SBE70-0367		af-alREF
15215220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
15415420-91400-24• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
1701705A9224• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
170170A1018876• • CLAMP - BACKSHELL ASSY
ALT 388AS167Z128-07
POST SBE70-0367		aa-al1
-170170B388AS167Z128-07• • CLAMP - BACKSHELL ASSY
U0419
ALT 559-1-00388E
POST SBE70-0367		af-alREF
-170170C559-1-00388E• • CLAMP - BACKSHELL ASSY
K743R
ALT 1018876
POST SBE70-0367		af-alREF
17217220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
17417420-91400-24• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
1901905A9224• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
190190A1018876• • CLAMP - BACKSHELL ASSY
ALT 559-1-00388E
POST SBE70-0367		aa-al1
-190190B559-1-00388E• • CLAMP - BACKSHELL ASSY
K743R
ALT 388AS167Z128-07
POST SBE70-0367		af-alREF
-190190C388AS167Z128-07• • CLAMP - BACKSHELL ASSY
U0419
ALT 1018876
POST SBE70-0367		af-alREF
19219220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
19419420-91400-24• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
2102105A9227• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
210210A388HS104E15• • CLAMP - BACKSHELL ASSY
U0419
ALT 272E15
POST SBE70-0367		aa-al1
-210210B272E15• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H1-15-8JCCAD
POST SBE70-0367		af-alREF
-210210C92H1-15-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HS104E15
POST SBE70-0367		af-alREF
21221220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
21421420-91400-12• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
2302305A9221• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
230230AESC65E14• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		af-al1
23223220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
23423420-91400-10• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
2502505A9230• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
250250AESC66E14• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
25225220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
25425420-91400-10• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
2702705A9230• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
270270AESC66E14• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
27227220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
27427420-91400-10• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
2902905A9221• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
290290AESC65E14• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
29229220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
29429420-91400-10• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
3103105A9231• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
310310AESC66E16• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
31231220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
31431420-91400-12• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
3303305A9220• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
330330AESC65E12• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
33233220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
33433420-91400-8• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
3503505A9228• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
350350A92H1-17-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HS104E17
POST SBE70-0367		aa-al1
-350350B388HS104E17• • CLAMP - BACKSHELL ASSY
U0419
ALT 272E17
POST SBE70-0367		af-alREF
-350350C272E17• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H1-17-8JCCAD
POST SBE70-0367		af-alREF
35235220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
35435420-91400-16• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
3703705A9222• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
370370AESC65E14• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
37237220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
37437420-91400-12• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
3903905A9222• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
390390AESC65E14• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
39239220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
39439420-91400-12• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
4104105A9230• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
410410AESC66E14• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
41241220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
41441420-91400-10• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
4304305A9218• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
430430A92H2-15-8JCCAD• • CLAMP - BACK SHELL
PM77R
ALT 388HJ104E15
POST SBE70-0367		aa-al1
-430430B388HJ104E15• • CLAMP - BACKSHELL
U0419
ALT 274E15
POST SBE70-0367		af-alREF
-430430C274E15• • CLAMP - BACKSHELL
K743R
ALT 92H2-15-8JCCAD
POST SBE70-0367		af-alREF
43243220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
43443420-91400-16• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
4504505A9235• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
450450A92H3-15-8JCCAD• • CLAMP - BACK SHELL
PM77R
ALT 388HH104E15
POST SBE70-0367		aa-al1
-450450B388HH104E15• • CLAMP - BACKSHELL
U0419
ALT 273E15
POST SBE70-0367		af-alREF
-450450C273E15• • CLAMP - BACKSHELL
K743R
ALT 388HH104E15
POST SBE70-0367		af-alREF
45245220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
45445420-91400-16• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
4704705A9221• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
470470AESC65E14• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
47247220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
47447420-91400-10• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
4904905A9226• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
490490A92H1-13-8JCCAD• • CLAMP - BACKSHELL ASSY
PM77R
ALT 388HS104E13
POST SBE70-0367
PRE SBE71-0221		aa-aj1
-490490B388HS104E13• • CLAMP - BACKSHELL ASSY
U0419
ALT 272E13
POST SBE70-0367
PRE SBE71-0221		af-ajREF
-490490C272E13• • CLAMP - BACKSHELL ASSY
K743R
ALT 92H1-13-8JCCAD
POST SBE70-0367
PRE SBE71-0221		af-ajREF
490490DESC65E12• • CLAMP - BACKSHELL
U1653
POST SBE71-0219		aj-al1
490490EESC65E12• • CLAMP - BACKSHELL
U1653
POST SBE71-0221		ak-al1
49249220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
49449420-91400-12• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
5105105A9226• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
510510A92H1-13-8JCCAD• • CLAMP - BACKSHELL ASSY
U5792
ALT 272E13
POST SBE70-0367
PRE SBE71-0221		aa-aj1
-510510B272E13• • CLAMP - BACKSHELL ASSY
K743R
ALT 388HS104E13
POST SBE70-0367
PRE SBE71-0221		af-ajREF
-510510C388HS104E13• • CLAMP - BACKSHELL ASSY
U0419
ALT 92H1-13-8JCCAD
POST SBE70-0367
PRE SBE71-0221		af-ajREF
510510DESC65E12• • CLAMP - BACKSHELL
U1653
POST SBE71-0219		aj-al1
510510EESC65E12• • CLAMP - BACKSHELL
U1653
POST SBE71-0221		ak-al1
51251220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
51451420-91400-12• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
5305305A9221• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
530530AESC65E14• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
53253220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
53453420-91400-10• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
5505505A9301• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
550550AESC65E16• • CLAMP - BACKSHELL
POST SBE70-0367		aa-al1
55255220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
55455420-91400-12• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
5705705A9301• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
570570AESC65E16• • CLAMP - BACKSHELL
POST SBE70-0367		aa-al1
57257220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
57457420-91400-12• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
5905905A9219• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
590590AESC67E24• • CLAMP - BACKSHELL
POST SBE70-0367		aa-al1
59259220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
59459420-91400-20• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
6106105A9233• • CONNECTR - ASSY,BACKSHELL
PRE SBE70-0367		aa-ae1
610610AESC66E24• • CLAMP - BACKSHELL
POST SBE70-0367		aa-al1
61261220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
61461420-91400-22• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
6306305A9221• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
630630AESC65E14• • CLAMP - BACKSHELL
U1653
POST SBE70-0367		aa-al1
63263220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
63463420-91400-10• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
6506505A9230• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ae1
650650AESC66E14• • CLAMP - BACKSHELL ASSY
POST SBE70-0367		aa-al1
65265220-91460-608• • • SCREW
0ABG9
PRE SBE70-0367		aa-ae2
65465420-91400-10• • • CLAMPING - BAR
0ABG9
PRE SBE70-0367		aa-ae2
8008005A9200• • SLEEVE - 9,5 DIA
PRE SBE70-0157		aa-ae1
800800ART1146-3-8• • TUBING - HEAT SHRINKABLE, SIZE 3/8" DIA.
81349
POST SBE70-0157
PRE SBE70-0367		aa-ae1
800800BU323943• • SLEEVING - WHITE-WIRE IDENT, .375 DIA
ALT HS095WE
POST SBE70-0367		aa-al1
-800800CHS095WE• • SLEEVE - IDENT WHITE WIRE
K1860
ALT HS095WE
POST SBE70-0367		af-alREF
8018015A9201• • SLEEVE - 12,7 DIA
PRE SBE70-0157		aa-ae1
801801ART1146-1-2• • TUBING - HEAT SHRINKABLE, SIZE 1/2" DIA.
81349
POST SBE70-0157
PRE SBE70-0367		aa-ae1
801801BU323944• • SLEEVING - WHITE-CONNECTOR ID, .500 DIA
ALT HS127WE
POST SBE70-0367		aa-al1
-801801CHS127WE• • SLEEVE - IDENT WHITE
K1860
ALT HS127WE
POST SBE70-0367		af-alREF
8028025A9202• • SLEEVE - 15,9 DIA
PRE SBE70-0157		aa-ae1
802802ART1146-5-8• • TUBING - HEAT SHRINKABLE, SIZE 5/8" DIA.
81349
POST SBE70-0157
PRE SBE70-0367		aa-ae1
8038035A9203• • SLEEVE - 19,1 DIA
PRE SBE70-0157		aa-ae1
803803ART1146-3-4• • TUBING - HEAT SHRINKABLE, SIZE 3/4" DIA.
81349
POST SBE70-0157
PRE SBE70-0367		aa-ae1
803803BHS190WE• • SLEEVE - IDENT WHITE CONNECTOR
K1860
ALT U323945
POST SBE70-0367		aa-al1
803803CU323945• • SLEEVING - WHITE-CONNECTOR ID, .750 DIA
ALT U323945
POST SBE70-0367		af-al1
8058055A9205• • SLEEVE - 25,4 DIA
PRE SBE70-0157		aa-ae1
805805ART1146-1• • TUBING - HEAT SHRINKABLE, SIZE 1" DIA.
81349
POST SBE70-0157
PRE SBE70-0367		aa-ae1
8068065A9206• • SLEEVE - 31,8 DIA
PRE SBE70-0157		aa-ae1
806806ART1146-1-1-4• • TUBING - HEAT SHRINKABLE, SIZE 1.1/4" DIA
81349
POST SBE70-0157
PRE SBE70-0367		aa-ae1
8078075A9207• • SLEEVE - 38,1 DIA
PRE SBE70-0157		aa-ae1
807807ART1146-1-1-2• • TUBING - HEAT SHRINKABLE, SIZE 1.1/2" DIA.
81349
POST SBE70-0157
PRE SBE70-0367		aa-ae1
807807BU323097• • SLEEVING - COLOUR WHITE CONNE
ALT HS381WE
POST SBE70-0367		aa-al1
-807807CHS381WE• • SLEEVE - IDENT WHITE
K1860
POST SBE70-0367		af-alREF
815815ESC53-25• • BUSH
U1653
POST SBE70-0367
PRE SBE70-0642		af-al1
815815ASF11• • BUSH
K7823
ALT ESC53-25
POST SBE70-0642		af-al1
815815BESC53-25• • BUSH
U1653
ALT SF11
POST SBE70-0642		af-al1
816816ESC53-27• • BUSH
U1653
POST SBE70-0367
PRE SBE70-0642		af-al2
816816ASF13• • BUSH
K7823
ALT ESC53-27
POST SBE70-0642		af-al2
816816BESC53-27• • BUSH
U1653
ALT SF13
POST SBE70-0642		af-al2
817817ESC53-28• • BUSH
U1653
POST SBE70-0367
PRE SBE70-0642		af-al9
817817ASF15• • BUSH
K7823
ALT ESC53-28
POST SBE70-0642		af-al9
817817BESC53-28• • BUSH
U1653
ALT SF15
POST SBE70-0642		af-al9
818818ESC53-30• • BUSH
U1653
POST SBE70-0367
PRE SBE70-0642		af-al2
818818ASF16• • BUSH
K7823
ALT ESC53-30
POST SBE70-0642		af-al2
818818BESC53-30• • BUSH
U1653
ALT SF16
POST SBE70-0642		af-al2
819819ESC53-31• • BUSH
U1653
POST SBE70-0367
PRE SBE70-0642		af-al3
819819ASF13• • BUSH
K7823
ALT ESC53-31
POST SBE70-0642		af-al3
819819BESC53-31• • BUSH
U1653
ALT SF13
POST SBE70-0642		af-al3
820820ESC53-32• • BUSH
U1653
POST SBE70-0367
PRE SBE70-0642		af-al3
820820ASF56• • BUSH
K7823
ALT ESC53-32
POST SBE70-0642		af-al3
820820BESC53-32• • BUSH
U1653
ALT SF56
POST SBE70-0642		af-al3
821821ESC53-33• • BUSH
U1653
POST SBE70-0367
PRE SBE70-0642		af-al1
821821ASF58• • BUSH
K7823
ALT ESC53-33
POST SBE70-0642		af-al1
821821BESC53-33• • BUSH
U1653
ALT SF58
POST SBE70-0642		af-al1
822822ESC53-38• • BUSH
U1653
POST SBE70-0367
PRE SBE70-0642		af-al8
822822ASF62• • BUSH
K7823
ALT ESC53-38
POST SBE70-0642		af-al8
822822BESC53-38• • BUSH
U1653
ALT SF62
POST SBE70-0642		af-al8
823823ESC53-39• • BUSH
U1653
POST SBE70-0367
PRE SBE70-0642		af-al2
823823ASF24• • BUSH
K7823
ALT ESC53-39
POST SBE70-0642		af-al2
823823BESC53-39• • BUSH
U1653
ALT SF24
POST SBE70-0642		af-al2
824824ESC53-40• • BUSH
U1653
POST SBE70-0367
PRE SBE70-0642		af-al2
824824ASF25• • BUSH
K7823
ALT ESC53-40
POST SBE70-0642		af-al2
824824BESC53-40• • BUSH
U1653
ALT SF25
POST SBE70-0642		af-al2
8468465A9246• • MARKER - NAME PLATE)aa-al1
846846AU323097• • SLEEVING - COLOUR WHITE CONNE
ALT HS381WE
POST SBE70-0367		af-al1
-846846BHS381WE• • SLEEVE - IDENT WHITE
K1860
ALT U323097
POST SBE70-0367		af-alREF
8488485A9248• • MARKER - 3/8
PRE SBE70-0367		aa-ae1
850850U323097• • SLEEVING - COLOUR WHITE CONNE
ALT HS381WE
POST SBE70-0367		af-al1
-850850AHS381WE• • SLEEVE - IDENT WHITE
K1860
ALT HS381WE
POST SBE70-0367		af-alREF
9159155A9215• • TAPE - LACING (WHITE)
PRE SBE70-0367		aa-ae1
915915A718G• • TAPE - LACING (SPARE IS U440198)
K7F94
POST SBE70-0367
PRE SBE70-0642		aa-ah1
915915BU440036• • TAPE - 33ME,108FT REEL
ALT U322742
(BULK STOCK U322742)		ai-al1
-915915CU322742• • TAPE - WHITE - 0.500 WIDE
ALT U440198
(SPARE IS U440036)		ai-alREF
915915DU440198• • TAPE - 457ME,1500FT REEL
ALT 718G
(BULK STOCK 718G)		ai-al1
-915915E718G• • TAPE - LACING (SPARE IS U440198)
K7F94
ALT U440036
POST SBE70-0642		ai-alREF
9169165A9216• • TAPE - LACING (BLACK)aa-al1
-916916A3100631• • BRAID
(SPARE IS U440068)		af-ahREF
916916BU440068• • BRAID - 100ME,330FT REEL
ALT 3100631
POST SBE70-0638
PRE SBE70-0642		af-ah1
-916916C3100631• • BRAID
ALT U440068
(SPARE IS U440068)		af-ahREF
-916916DESW1900• • TAPE - LACING (SPARE IS U440254)
U1653
ALT 3100631
POST SBE70-0642		ahREF
-916916E3100631• • BRAID
ALT U440068
(SPARE IS U440068)		ai-alREF
916916FU440068• • BRAID - 100ME,330FT REEL
ALT U440254
POST SBE70-0642		ai-al1
916916GU440254• • TAPE - 450ME,1500FT REEL
ALT ESW1900
(BULK STOCK ESW1900)		ah1
9509505A0276• • WRAPPING - SPIRAL
PRE SBE71-0050		aa-ae1
950950A5A0276• • WRAPPING - SPIRAL
POST SBE71-0050
PRE SBE70-0367		aa-ae1
9559555A9202• • SLEEVE - 15,9 DIA
ALT 5A0277
POST SBE71-0055
PRE SBE70-0157		ab-ac1
-955955A5A0277• • WRAPPING - SPIRAL
ALT RT1146-5-8
POST SBE71-0055
PRE SBE70-0157		ab-acREF
955955BRT1146-5-8• • TUBING - HEAT SHRINKABLE, SIZE 5/8" DIA.
81349
ALT 5A0277
POST SBE70-0157
PRE SBE70-0367		ab-ac1
-955955C5A0277• • WRAPPING - SPIRAL
ALT 5A9202
POST SBE70-0157
PRE SBE70-0367		ab-acREF
-9609603302698• • SLEEVING - SPIRATEMP 2P
POST SBE71-0107
PRE SBE70-0367		ae1
960960ASPIRATEMP2P• • SLEEVING - SPIRAL
K7766
POST SBE70-0367		ae-al1
9619615A9361• • BRAID - ASSYaa-al1
96296269-3-4• • GLASS - TAPE
77445
PRE SBE70-0088		*****1
963963U322769• • TUBING TO RK6014
ALT SVT127
TO RK6014
POST SBE70-0367
(SEE ---01-230)		af-al1
-963963ASVT127• • SLEEVE - SHRINK
K1793
ALT U322769
POST SBE70-0367		af-alREF
964964U440239• • TAPE - 18ME,60FT REEL
ALT 1019412
(BULK STOCK 1019412)		al1
-964964A1019412• • TAPE - ELECTRICAL INSULATION
ALT 3105002
POST SBE70-0721		alREF
964964B3105002• • TAPE - .750 WIDE X .010 THI
ALT U440250
POST SBE70-0721		al1
964964CU440250• • TAPE - 30ME,100FT REEL
ALT 100P323
(BULK STOCK 100P323)		al1
-964964D100P323• • TAPE
PM77R
ALT U440248
POST SBE70-0721		alREF
964964EU440248• • TAPE - 30ME,100FT REEL
ALT RL6000SA
(BULK STOCK RL6000SA)		al1
-964964FRL6000SA• • TAPE - COLOUR - ORANGE
81349
ALT U440239
POST SBE70-0721		alREF
966966U440030• • TAPE - 32ME,105FT REEL
ALT U320585
(BULK STOCK U320585)		al1
-966966AU320585• • TAPE - WHITE-1.000 WIDE X 0
ALT U440030
POST SBE70-0721		alREF
970970718G• TAPE - LACING (SPARE IS U440198)
K7F94
POST SBE71-0109
PRE SBE70-0642		ag-ah1
970970AU440036• TAPE - 33ME,108FT REEL
ALT U322742
(BULK STOCK U322742)		ai-al1
-970970BU322742• TAPE - WHITE - 0.500 WIDE
ALT U440198
(SPARE IS U440036)		ai-alREF
970970CU440198• TAPE - 457ME,1500FT REEL
ALT 718G
(BULK STOCK 718G)		ai-al1
-970970D718G• TAPE - LACING (SPARE IS U440198)
K2319
ALT U440036
POST SBE70-0642		ai-alREF
995995MS20995C20• • WIRE - LOCKING
96906
PRE SBE70-0367		aa-ae1
995995AAS44725-1• • WIRE - LOCKING, 0.5 MM DIA
U1653
POST SBE70-0367		aa-al1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN

EEC HARNESS FAN

EEC HARNESS FAN

EEC HARNESS FAN

EEC HARNESS FAN

EEC HARNESS FAN

EEC HARNESS FAN

Manufacturer Code:0ABG9
Enterprise Name:YOKOKAWA AVIATION CO LTD
BU Name:YOKOKAWA AVIATION CO LTD
Street:KAGIYAMA
City:IRUMA CITY
State:SAITAMA
Zip Code:3-11-16
Country:JAPAN
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Manufacturer Code:81349
Enterprise Name:DELETED, SEE CAGE CODE 81348
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K0720
Enterprise Name:HELLERMANN INSULOID
BU Name:NULL
Street:LEESTONE ROAD
City:WYTHENSHAWE
State:MANCHESTER
Zip Code:M22 4RH
Country:ENGLAND
Manufacturer Code:K1010
Enterprise Name:RAYCHEM LTD
BU Name:RAYCHEM LTD
Street:FARADAY ROAD
City:SWINDON
State:WILTS
Province:DORCAN
Zip Code:SN3 5HH
Country:ENGLAND
Manufacturer Code:K1860
Enterprise Name:CRITCHLEY LTD
BU Name:CRITCHLEY LTD
Building:WELLINGTON HOUSE
Street:BATH ROAD
City:WOODCHESTER
State:GLOUCESTERSHIRE
Zip Code:GL5 5EY
Country:ENGLAND
Manufacturer Code:K743R
Enterprise Name:Default Enterprise Name
Manufacturer Code:K7823
Enterprise Name:DELETED
BU Name:DELETED,SEE SUPPLIER CODE IAE521
Manufacturer Code:PM77R
Enterprise Name:Default Enterprise Name
Manufacturer Code:U0419
Enterprise Name:GLENAIR INTERNATIONAL
BU Name:GLENAIR INTERNATIONAL
Street:40 LOWER OAKUM WAY,OAKUM
City:NOTTINGHAM
State:MANSFIELD
Zip Code:NG18 5BY
Country:GREAT BRITAIN
Phone Number:44-1623-638100
Fax Number:44-1623-638111
Internet:www.glenair.com
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Manufacturer Code:U2824
Enterprise Name:KEMBREY WIRING SYSTEMS
BU Name:KEMBREY WIRING SYSTEMS
Street:KEMBREY STREET
City:SWINDON
State:WILTSHIRE
Province:CROWDYS HILL ESTATE
Zip Code:SN2 6BJ
Country:ENGLAND
Manufacturer Code:U5792
Enterprise Name:POLAMCO LTD
BU Name:POLAMCO LTD
Building:WESTON LOCK
Street:LOWER BRISTOL ROAD
City:BATH
State:VIRGINIA
Zip Code:BA2 1EP
Country:NULL
Part Number:100P323
Part Name:TAPE
Manufacturer Code:PM77R
Part Number:1018876
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
388AS167Z128-07CLAMP - BACKSHELL ASSYU0419
559-1-00388ECLAMP - BACKSHELL, ASSEMBLY OFCLAMP - BACKSHELL ASSYU2824
Part Number:1019412
Part Name:TAPE - ELECTRICAL
Manufacturer Code:0AM53
Part Number:20-91400-10
Part Name:CLAMPING - BAR
Manufacturer Code:0ABG9
Part Number:20-91400-12
Part Name:CLAMPING - BAR
Manufacturer Code:0ABG9
Part Number:20-91400-16
Part Name:CLAMPING - BAR
Manufacturer Code:0ABG9
Part Number:20-91400-20
Part Name:CLAMPING - BAR
Manufacturer Code:0ABG9
Part Number:20-91400-22
Part Name:CLAMPING - BAR
Manufacturer Code:0ABG9
Part Number:20-91400-24
Part Name:CLAMPING - BAR
Manufacturer Code:0ABG9
Part Number:20-91400-8
Part Name:CLAMPING - BAR
Manufacturer Code:0ABG9
Part Number:20-91460-608
Part Name:SCREW
Manufacturer Code:0ABG9
Part Number:272E13
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:K743R
Part Number:272E15
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:K743R
Part Number:272E15
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U2824
Optional Parts
Part NumberPart NameManufacturer
92H1-15-8JCCADCLAMP - BACKSHELL, ASSEMBLY OFCLAMP - BACKSHELL ASSYU5792
Part Number:272E17
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:K743R
Part Number:272E17
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U2824
Optional Parts
Part NumberPart NameManufacturer
92H1-17-8JCCADCLAMP - BACKSHELL, ASSEMBLY OFCLAMP - BACKSHELL ASSYU5792
Part Number:273E15
Part Name:CLAMP - BACKSHELL
Manufacturer Code:K743R
Part Number:273E15
Part Name:CLAMP - BACKSHELL
Manufacturer Code:U2824
Optional Parts
Part NumberPart NameManufacturer
92H3-15-8JCCADCLAMP - BACK SHELLCLAMP - BACKSHELLU5792
Part Number:274E15
Part Name:CLAMP - BACKSHELL
Manufacturer Code:K743R
Part Number:274E15
Part Name:CLAMP - BACKSHELL
Manufacturer Code:U2824
Optional Parts
Part NumberPart NameManufacturer
92H2-15-8JCCADCLAMP - BACKSHELL, ASSEMBLY OFCLAMP - BACKSHELLU5792
Part Number:274E21
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:K743R
Part Number:274E21
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U2824
Optional Parts
Part NumberPart NameManufacturer
92H2-21-8JCCADCLAMP - BACKSHELL, ASSEMBLY OFCLAMP - BACKSHELL ASSYU5792
Link not Found
Link not Found
Link not Found
Part Number:388AS167Z128-07
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U0419
Optional Parts
Part NumberPart NameManufacturer
1018876CLAMP - BACKSHELL, ASSEMBLY OF0AM53
559-1-00388ECLAMP - BACKSHELL, ASSEMBLY OFCLAMP - BACKSHELL ASSYU2824
Part Number:388HH104E15
Part Name:CLAMP - BACKSHELL
Manufacturer Code:U0419
Optional Parts
Part NumberPart NameManufacturer
273E15CLAMP - BACKSHELLCLAMP - BACKSHELLU2824
Part Number:388HJ104E15
Part Name:CLAMP - BACKSHELL
Manufacturer Code:U0419
Optional Parts
Part NumberPart NameManufacturer
274E15CLAMP - BACKSHELLCLAMP - BACKSHELLU2824
Link not Found
Part Number:388HJ104E21
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U0419
Optional Parts
Part NumberPart NameManufacturer
274E21CLAMP - BACKSHELL, ASSEMBLY OFCLAMP - BACKSHELL ASSYU2824
Link not Found
Part Number:388HS104E13
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:U0419
Part Number:388HS104E15
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U0419
Optional Parts
Part NumberPart NameManufacturer
272E15CLAMP - BACKSHELL, ASSEMBLY OFCLAMP - BACKSHELL ASSYU2824
Part Number:388HS104E17
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U0419
Optional Parts
Part NumberPart NameManufacturer
272E17CLAMP - BACKSHELL, ASSEMBLY OFCLAMP - BACKSHELL ASSYU2824
Part Number:559-1-00388E
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:K743R
Part Number:559-1-00388E
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U2824
Optional Parts
Part NumberPart NameManufacturer
1018876CLAMP - BACKSHELL, ASSEMBLY OF0AM53
388AS167Z128-07CLAMP - BACKSHELL ASSYU0419
Part Number:5A0276
Part Name:WRAPPING - SPIRAL
Manufacturer Code:0AM53
Part Number:5A0277
Part Name:WRAPPING - SPIRAL
Manufacturer Code:0AM53
Part Number:5A9200
Part Name:SLEEVE - 9,5 DIA
Manufacturer Code:0AM53
Part Number:5A9201
Part Name:SLEEVE - 12,7 DIA
Manufacturer Code:0AM53
Part Number:5A9202
Part Name:SLEEVE - 15.9 DIA
Manufacturer Code:0AM53
Part Number:5A9203
Part Name:SLEEVE - 19,1 DIA
Manufacturer Code:0AM53
Part Number:5A9205
Part Name:SLEEVE - 25.4 DIA
Manufacturer Code:0AM53
Part Number:5A9206
Part Name:SLEEVE - 31.8 DIA
Manufacturer Code:0AM53
Part Number:5A9207
Part Name:SLEEVE - 38.1 DIA
Manufacturer Code:0AM53
Part Number:5A9215
Part Name:TAPE - LACING (WHITE)
Manufacturer Code:0AM53
Part Number:5A9216
Part Name:TAPE - LACING (BLACK)
Manufacturer Code:0AM53
Part Number:5A9217
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9218
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9219
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9220
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9221
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9222
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9224
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9226
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9227
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9228
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9230
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9231
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9233
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9235
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9246
Part Name:MARKER - NAMEPLATE
Manufacturer Code:0AM53
Part Number:5A9248
Part Name:MARKER - 3/8
Manufacturer Code:0AM53
Part Number:5A9301
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9361
Part Name:BRAID - ASSEMBLY
Manufacturer Code:0AM53
Part Number:69-3-4
Part Name:TAPE - GLASS
Manufacturer Code:77445
Link not Found
Link not Found
Link not Found
Part Number:92H1-13-8JCCAD
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:U5792
Part Number:92H1-15-8JCCAD
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:PM77R
Part Number:92H1-15-8JCCAD
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U5792
Optional Parts
Part NumberPart NameManufacturer
388HS104E15CLAMP - BACKSHELL ASSYU0419
Part Number:92H1-17-8JCCAD
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:PM77R
Part Number:92H1-17-8JCCAD
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U5792
Optional Parts
Part NumberPart NameManufacturer
388HS104E17CLAMP - BACKSHELL ASSYU0419
Part Number:92H2-15-8JCCAD
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:PM77R
Part Number:92H2-15-8JCCAD
Part Name:CLAMP - BACKSHELL
Manufacturer Code:U5792
Optional Parts
Part NumberPart NameManufacturer
388HJ104E15CLAMP - BACKSHELLU0419
Part Number:92H2-21-8JCCAD
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:PM77R
Part Number:92H2-21-8JCCAD
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U5792
Optional Parts
Part NumberPart NameManufacturer
388HJ104E21CLAMP - BACKSHELL ASSYU0419
Part Number:92H3-15-8JCCAD
Part Name:CLAMP - BACK SHELL
Manufacturer Code:PM77R
Part Number:92H3-15-8JCCAD
Part Name:CLAMP - BACKSHELL
Manufacturer Code:U5792
Optional Parts
Part NumberPart NameManufacturer
388HH104E15CLAMP - BACKSHELLU0419
Part Number:AS44725-1
Part Name:WIRE - LOCKING
Manufacturer Code:U1653
Link not Found
Part Number:ESC53-25
Part Name:BUSHING
Manufacturer Code:U1653
Link not Found
Part Number:ESC53-27
Part Name:BUSHING
Manufacturer Code:U1653
Part Number:ESC53-28
Part Name:BUSH
Manufacturer Code:U1653
Link not Found
Part Number:ESC53-30
Part Name:BUSHING
Manufacturer Code:U1653
Link not Found
Part Number:ESC53-31
Part Name:BUSHING
Manufacturer Code:U1653
Link not Found
Part Number:ESC53-32
Part Name:BUSHING
Manufacturer Code:U1653
Link not Found
Part Number:ESC53-33
Part Name:BUSHING
Manufacturer Code:U1653
Link not Found
Part Number:ESC53-38
Part Name:BUSHING
Manufacturer Code:U1653
Link not Found
Part Number:ESC53-39
Part Name:BUSHING
Manufacturer Code:U1653
Link not Found
Part Number:ESC53-40
Part Name:BUSHING
Manufacturer Code:U1653
Part Number:ESC65E12
Part Name:CLAMP - BACKSHELL
Manufacturer Code:U1653
Part Number:ESC65E14
Part Name:CLAMP - BACKSHELL
Manufacturer Code:U1653
Link not Found
Part Number:ESC66E14
Part Name:CLAMP - BACKSHELL, ASSY
Manufacturer Code:0AM53
Part Number:ESC66E14
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:U1653
Part Number:ESC66E16
Part Name:CLAMP - BACKSHELL
Manufacturer Code:U1653
Link not Found
Link not Found
Part Number:ESW1900
Part Name:TAPE
Manufacturer Code:U1653
Link not Found
Part Number:HS095WE
Part Name:SLEEVE - IDENTIFICATION, WHITE, WIRE
Manufacturer Code:K1860
Link not Found
Part Number:HS127WE
Part Name:SLEEVE - IDENTIFICATION, WHITE
Manufacturer Code:K1860
Part Number:HS190WE
Part Name:SLEEVE - IDENT WHITE CONNECTOR
Manufacturer Code:K1860
Optional Parts
Part NumberPart NameManufacturer
U323945SLEEVING - WHITE, CONNECTOR, ID, 0.750 DIASLEEVING - WHITE, CONNECTOR, ID, 0.750 DIA0AM53
Part Number:HS381WE
Part Name:SLEEVE - IDENT WHITE
Manufacturer Code:K1860
Optional Parts
Part NumberPart NameManufacturer
TMSSCE1-8-2-0-9SLEEVE - SHRINK, IDENT SLEEVE - SHRINK, WHITE 3.18 MM DIA0AM53
U323097SLEEVING - COLOUR WHITE CONNE0AM53
Part Number:MS20995C20
Part Name:WIRE - LOCKING
Manufacturer Code:96906
Part Number:RL6000SA
Part Name:TAPE - COLOR - ORANGE
Manufacturer Code:81349
Part Number:RT1146-1-1-2
Part Name:TUBING - HEAT SHRINKABLE, SIZE 1.1/2 DIA.
Manufacturer Code:81349
Part Number:RT1146-1-1-4
Part Name:TUBING - HEAT SHRINKABLE, SIZE 1.1/4 DIA
Manufacturer Code:81349
Part Number:RT1146-1-2
Part Name:TUBING - HEAT SHRINKABLE, SIZE 1/2 DIA.
Manufacturer Code:81349
Part Number:RT1146-1
Part Name:TUBING - HEAT SHRINKABLE, SIZE 1 DIA.
Manufacturer Code:81349
Part Number:RT1146-3-4
Part Name:TUBING - HEAT SHRINKABLE, SIZE 3/4 DIA.
Manufacturer Code:81349
Part Number:RT1146-3-8
Part Name:TUBING - HEAT SHRINKABLE, SIZE 3/8 DIA.
Manufacturer Code:81349
Part Number:RT1146-5-8
Part Name:TUBING - HEAT SHRINKABLE, SIZE 5/8 DIA.
Manufacturer Code:81349
Part Number:SF11
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-25BUSHING0AM53
Part Number:SF13
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-27BUSHING0AM53
ESC53-31BUSHING0AM53
Part Number:SF15
Part Name:BUSHING
Manufacturer Code:K7823
Part Number:SF16
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-30BUSHING0AM53
Part Number:SF24
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-39BUSHING0AM53
Part Number:SF25
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-40BUSHING0AM53
Part Number:SF56
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-32BUSHING0AM53
Part Number:SF58
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-33BUSHING0AM53
Part Number:SF62
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-38BUSHING0AM53
Link not Found
Link not Found
Link not Found
Part Number:TMSSCE1-8-2-0-9
Part Name:SLEEVE - SHRINK, IDENT
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
HS381WESLEEVE - IDENT WHITEK1860
U323097SLEEVING - COLOUR WHITE CONNE0AM53
U323940SLEEVE - .125 DIA INDEF0AM53
Part Number:TMSSCE3-4-2-0-9
Part Name:SLEEVE - SHRINK, IDENT 19.05MM DIA
Manufacturer Code:K1010
Optional Parts
Part NumberPart NameManufacturer
HS190WESLEEVE - IDENT WHITE CONNECTORK1860
Part Number:U320585
Part Name:TAPE - CUT FROM U440030, WHITE - 1.000 WIDE X 0.006
Manufacturer Code:0AM53
Part Number:U322742
Part Name:TAPE - WHITE, 0.500 WIDE
Manufacturer Code:0AM53
Part Number:U322769
Part Name:TUBING
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
SVT127K0720
Part Number:U323097
Part Name:SLEEVING - COLOUR WHITE CONNE
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
HS381WESLEEVE - IDENT WHITEK1860
TMSSCE1-8-2-0-9SLEEVE - SHRINK, IDENT SLEEVE - SHRINK, WHITE 3.18 MM DIA0AM53
Part Number:U323940
Part Name:SLEEVE - .125 DIA INDEF
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
HS032WESLEEVEK1860
Part Number:U323943
Part Name:SLEEVING - WHITE, WIRE IDENTIFICATION, 0.375 DIA
Manufacturer Code:0AM53
Part Number:U323944
Part Name:SLEEVING - WHITE, CONNECTOR ID, 0.500 DIA
Manufacturer Code:0AM53
Part Number:U323945
Part Name:SLEEVING - WHITE, CONNECTOR, ID, 0.750 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
TMSSCE3-4-2-0-9SLEEVE - SHRINK, IDENT 19.05MM DIAK1010
Part Number:U440030
Part Name:TAPE
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U320585TAPE - CUT FROM U440030, WHITE - 1.000 WIDE X 0.0060AM53
Part Number:U440036
Part Name:TAPE - 33ME,108FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U322742TAPE - WHITE, 0.500 WIDE0AM53
U440198TAPE - 457ME,1500FT REEL0AM53
Part Number:U440068
Part Name:BRAID - 100ME,330FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440254TAPE - 450ME,1500FT REEL0AM53
Part Number:U440198
Part Name:TAPE - 457ME,1500FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440036TAPE - 33ME,108FT REEL0AM53
Part Number:U440239
Part Name:TAPE
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
3105002TAPE - 0.750 WIDE X .010 THICK0AM53
Part Number:U440248
Part Name:TAPE
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440239TAPE0AM53
Part Number:U440250
Part Name:TAPE
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440248TAPE0AM53
Part Number:U440254
Part Name:TAPE - 450ME,1500FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440068BRAID - 100ME,330FT REEL0AM53
