ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

DMC:V2500-A1-71-51-43-05A-941A-D|Issue No:005.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
05
000B71514305ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESS, PRE SBE75-0010aa
000SBE0010-01ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESS, PRE SBE71-0131ab
000SBE0131-01ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESS, PRE SBN29-0001ac
000SBN0001-01ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESS, PRE SBE71-0110ad
000SBE0110-01ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESS, PRE SBE70-0290ae
000SBE0290-01ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESS, PRE SBE70-0302af
000SBE0302-01ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESS, PRE SBE70-0370ag
000SBE0370-01ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESS, PRE SBN29-0263ah
000SBN0263-01ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESS, PRE SBN71-0166ai
000SBN0166-01ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESS, PRE SBE72-0503aj
000SBE0503-01ELECTRICAL HARNESS - LIGHT DUTY - GEN SERVICES HARNESSak
-005005740-5966-503• HARNESS - GENERAL SERVICES
51563		aa-akREF
-005005A740-5966-521• HARNESS - GENERAL SERVICES
51563
POST SBN29-0001
PRE SBE70-0290		ad-aeREF
-005005B740-5966-523• HARNESS - GENERAL SERVICES
51563
POST SBE70-0290
PRE SBE70-0370		af-agREF
-005005C740-5966-525• HARNESS - GENERAL SERVICES
51563
POST SBE70-0370		ah-akREF
780780740-5613-503• ANGLE, ATTACHMENT
51563
POST SBN29-0001		ad-ak1
782782740-5923-501• PACKING, PIECE
51563
POST SBN29-0001		ad-ak1
784784NAS7204U6• BOLT, CSK
80205
POST SBN29-0001		ad-ak2
785785SP155E• WASHER
K7766
POST SBN29-0001		ad-ak2
786786NAS1291C4M• NUT
80205
ALT H42-4
POST SBN29-0001		ad-ak2
-786786AH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M
POST SBN29-0001		ad-akREF
800800740-5492-501• BRACKET
51563
POST SBE75-0010
PRE SBN29-0001		ab-ac4
800800A740-5492-501• BRACKET
51563
POST SBN29-0001		ad-ak3
8018014W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
Optional Part
AS20625
POST SBE75-0010		ab-ak2
8048044W0164• BOLT OPTION - .250 DIA X .625
Optional Part
AS21510
POST SBE75-0010		ab-ak4
820820740-5420-501• BRACKET
51563
PRE SBN71-0166		aa-ai1
820820A740-5420-501• BRACKET
51563
POST SBN71-0166		aj-ak2
821821NAS1291C4M• NUT
80205		aa-ak2
821821AH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M		aa-ak2
821821BNAS1291C4M• NUT
80205
ALT H42-4
PRE SBN71-0166		aa-ak2
821821CH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M
PRE SBN71-0166		aa-ak2
821821DNAS1291C4M• NUT
80205
ALT H42-4
POST SBN71-0166		aa-ak4
821821EH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M
POST SBN71-0166		aa-ak4
822822SP155E• WASHER
K7766
PRE SBN71-0166		aa-ai2
822822ASP155E• WASHER
K7766
POST SBN71-0166		aj-ak4
823823740-5923-501• PACKING, PIECE
51563
PRE SBN71-0166		aa-ai1
823823A740-5923-501• PACKING, PIECE
51563
POST SBN71-0166		aj-ak2
824824NAS7204U6• BOLT, CSK
80205
PRE SBN71-0166		aa-ai2
824824ANAS7204U6• BOLT, CSK
80205
POST SBN71-0166		aj-ak4
830830740-5429-501• BRACKET
51563		aa-ak1
8318314W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-ak2
8348344W0164• BOLT OPTION - .250 DIA X .625aa-ak2
840840740-5606-501• ANGLE - ATTACHMENT
51563		aa-ak1
850850740-5620-503• ANGLE - ATTACHMENT
51563
PRE SBE71-0110		aa-ad1
8518514W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
PRE SBE71-0110		aa-ad1
8548544W0164• BOLT OPTION - .250 DIA X .625
PRE SBE71-0110		aa-ad1
860860740-5612-501• ANGLE - ATTACHMENT
51563		aa-ak1
861861NAS1291C4M• NUT
80205		aa-ak2
861861AH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M		aa-ak2
861861BNAS1291C4M• NUT
80205
ALT H42-4		aa-ak2
861861CH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M		aa-ak2
8648644W0164• BOLT OPTION - .250 DIA X .625aa-ak2
866866740-5235-501• RAFT, ASSEMBLY
51563
POST SBN29-0001		ad-ak1
8688684W0162• BOLT, MACHINE DOUBLE HEX - .250 DIA X .500
Optional Part
AS21508
POST SBN29-0001		ad-ak4
870870740-5780-501• ANGLE - ATTACHMENT
51563		aa-ak1
871871AS20625• NUT, SELF LOCKING, BIHEX, .250 DIA
U1653
PRE SBE75-0010		aa1
872872SP155E• WASHER
K7766		aa-ak1
872872ASP155E• WASHER
K7766
PRE SBE75-0010		aa1
874874AS21512• BOLT - 0.25 DIA X 0.750
U1653
PRE SBE75-0010		aa1
874874AAS22515• BOLT - 0.25 DIA X 0.938
U1653
POST SBE72-0503		ak1
875875745-5165-501• BRACKET- SUPPORT
51563
POST SBN29-0263		ai-ak1
876876AS21010• BOLT - .250 DIA X .625
U1653
POST SBN29-0263		ai-ak2
876876AAS21010• BOLT - .250 DIA X .625
U1653
ALT MS9557-08		ai-ak2
-876876BMS9557-08• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625
96906
ALT AS21010		aa-akREF
877877XNAS1149C0463R• WASHER
80205
POST SBN29-0263		ai-ak2
878878AS20625• NUT, SELF LOCKING, BIHEX, .250 DIA
U1653
POST SBN29-0263		ai-ak2
880880740-5799-501• ANGLE - ATTACHMENT
51563		aa-ak1
8818814W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-ak2
882882SP155E• WASHER
K7766		aa-ak2
884884AS21511• BOLT - 0.25 DIA X 0.688
U1653		aa-ak2
884884AAS21511• BOLT - 0.25 DIA X 0.688
U1653
PRE SBE71-0131		aa-ak2
884884B4W0166• BOLT - MACHINE, DOUBLE HEXAGON, .250 DIA X .750
POST SBE71-0131		aa-ak2
890890740-5772-503• BRACKET
51563		aa-ak1
900900740-5421-501• BRACKET
51563
PRE SBN71-0166		aa-ai2
900900A740-5421-501• BRACKET
51563
POST SBN71-0166		aj-ak1
910910740-5420-501• BRACKET
51563		aa-ak1
911911NAS1291C4M• NUT
80205		aa-ak2
911911AH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M		aa-ak2
911911BNAS1291C4M• NUT
80205
ALT H42-4		aa-ak2
911911CH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M		aa-ak2
912912SP155E• WASHER
K7766		aa-ak2
913913740-5923-501• PACKING, PIECE
51563		aa-ak1
914914NAS7204U6• BOLT, CSK
80205		aa-ak2
920920740-5422-505• BRACKET
51563		aa-ak1
921921NAS1291C4M• NUT
80205		aa-ak2
921921AH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M		aa-ak2
921921BNAS1291C4M• NUT
80205
ALT H42-4		aa-ak2
921921CH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M		aa-ak2
922922SP155E• WASHER
K7766		aa-ak2
923923740-5955-503• PACKER
51563		aa-ak1
924924NAS7204U6• BOLT, CSK
80205		aa-ak2
930930740-5180-503• BRACKET
51563
(SEE ---01-940)		aa-ak1
930930A740-5180-505• BRACKET - ASSEMBLY OF
51563		aa-ak1
931931NAS1291C4M• NUT
80205		aa-ak2
931931AH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M		aa-ak2
931931BNAS1291C4M• NUT
80205
ALT H42-4		aa-ak2
932932SP155E• WASHER
K7766		aa-ak2
933933740-5923-501• PACKING, PIECE
51563		aa-ak1
934934NAS7204U6• BOLT, CSK
80205		aa-ak2
940940740-5423-503• BRACKET
51563		aa-ak1
941941NAS1291C4M• NUT
80205
ALT H42-4		aa-ak2
941941AH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M		aa-ak2
942942SP155E• WASHER
K7766		aa-ak2
943943740-5923-501• PACKING, PIECE
51563		aa-ak1
944944NAS7204U6• BOLT, CSK
80205		aa-ak2
950950740-5050-503• RAFT - ASSEMBLY OF
51563		aa-ak1
9529524W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-ak1
9549544W0164• BOLT OPTION - .250 DIA X .625aa-ak2
955955AS21515• BOLT - 0.25 DIA X 0.938
U1653		aa-ak1
955955A4W0164• BOLT OPTION - .250 DIA X .625aa-ak1
960960740-5428-503• BRACKET
51563		aa-ak1
9619614W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-ak2
9649644W0164• BOLT OPTION - .250 DIA X .625aa-ak2
970970740-5425-505• BRACKET
51563		aa-ak12
970970A740-5425-505• BRACKET
51563
PRE SBE75-0010		aa11
970970B740-5425-505• BRACKET
51563
POST SBE75-0010
PRE SBE71-0110		ab-ad7
970970C740-5425-505• BRACKET
51563
POST SBE71-0110		ae-ak6
971971AS20625• NUT, SELF LOCKING, BIHEX, .250 DIA
U1653		aa-ak16
971971AAS20625• NUT, SELF LOCKING, BIHEX, .250 DIA
U1653
PRE SBE75-0010		aa14
971971B4W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
POST SBE75-0010
PRE SBE71-0110		ab-ad12
971971C4W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
POST SBE71-0110		ae-ak10
974974AS21510• BOLT - 0.25 DIA X 0.625
U1653		aa-ak18
974974AAS21510• BOLT - 0.25 DIA X 0.625
U1653
PRE SBE75-0010		aa-ad16
974974B4W0164• BOLT OPTION - .250 DIA X .625
POST SBE75-0010
PRE SBE71-0110		aa-ad12
974974C4W0164• BOLT OPTION - .250 DIA X .625
POST SBE71-0110
PRE SBE70-0302		ae-af10
974974D4W0164• BOLT OPTION - .250 DIA X .625
POST SBE70-0302		ag-ak8
9759754W0167• BOLT, MACHINE DOUBLE HEX - .250 DIA X .812
Optional Part
AS21513
POST SBE70-0302		ag-ak2
980980740-5427-503• BRACKET
51563		aa-ak1
9819814W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-ak2
9849844W0164• BOLT OPTION - .250 DIA X .625aa-ak2
990990740-5773-503• RAFT - ASSEMBLY OF
51563		aa-ak1
990990A740-5773-9503• BRACKET - ASSEMBLY, RAFT
51563
POST SBE72-0503		ak1
992992NAS1149C0463R• WASHER
80205
POST SBE72-0503		ak2
9949944W0163• BOLT, MACHINE DOUBLE HEX - .250 DIA X .562aa-ak4
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

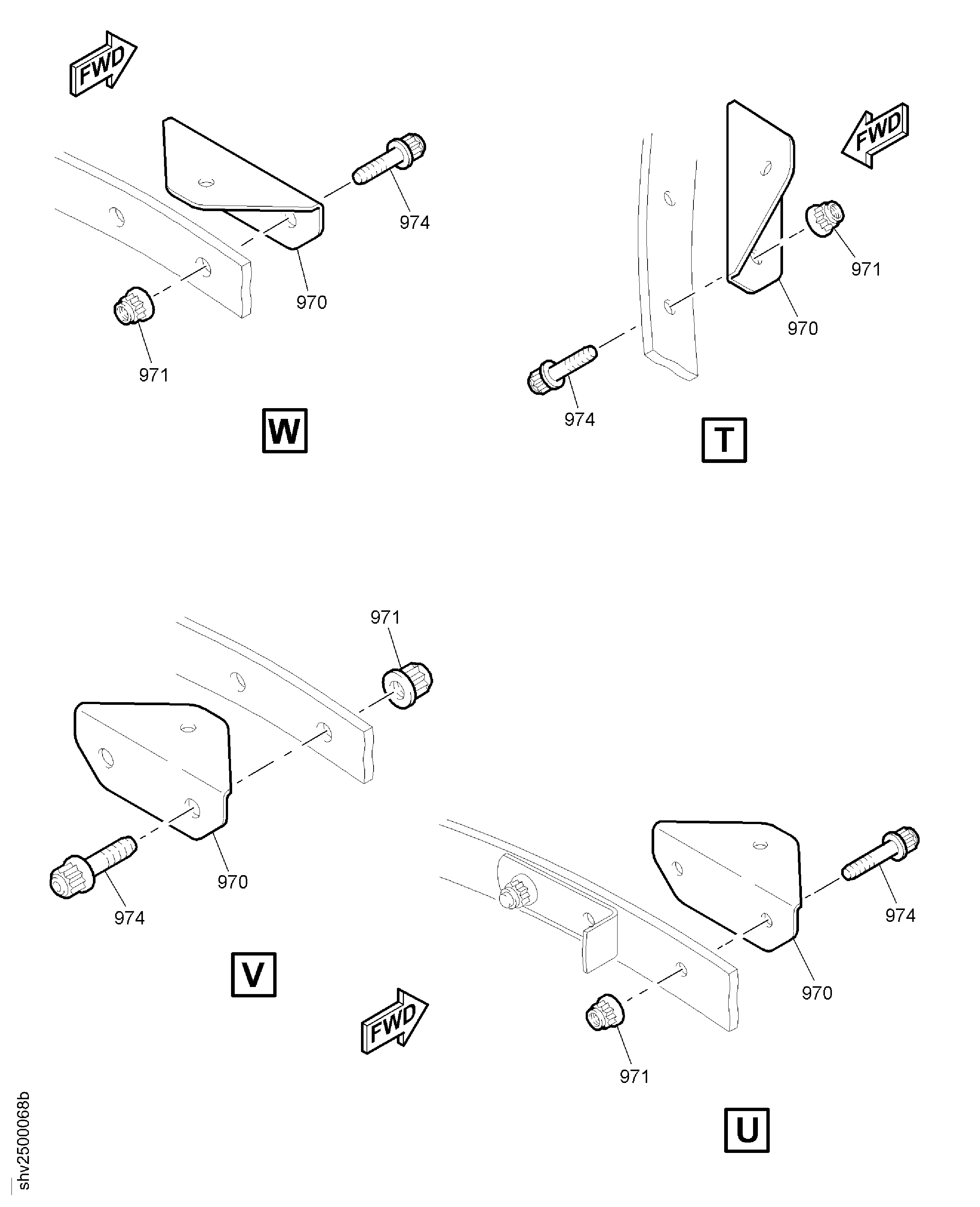

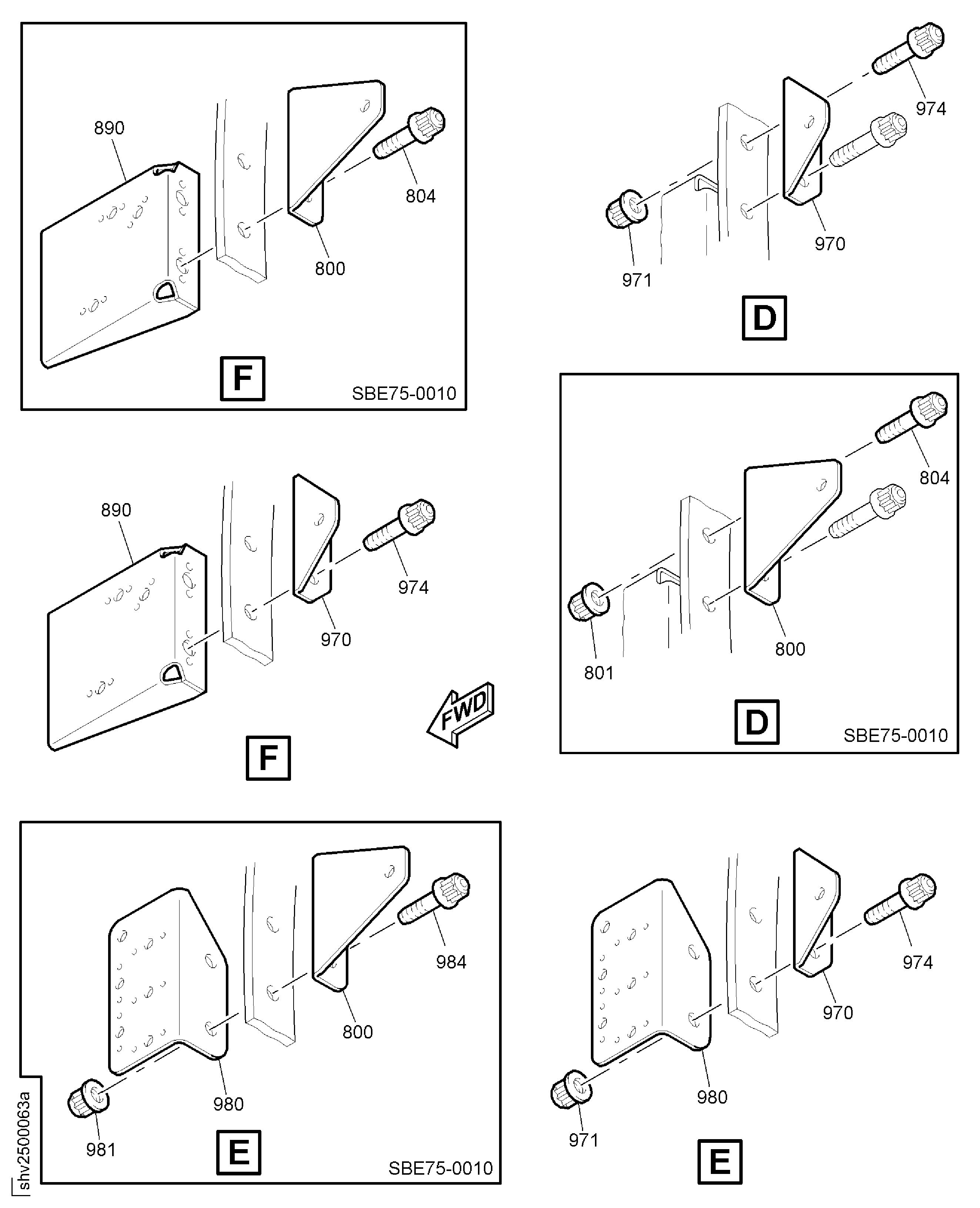

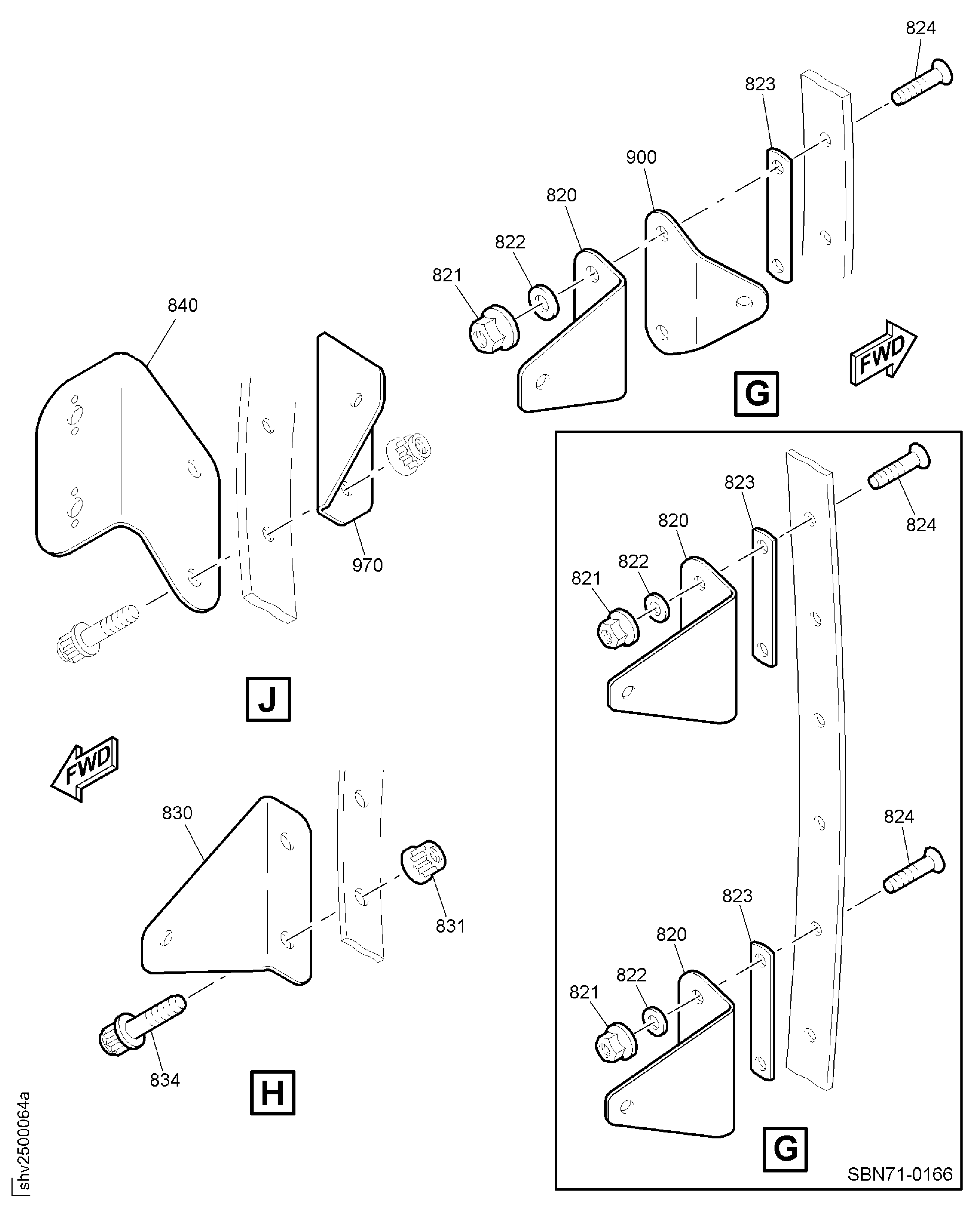

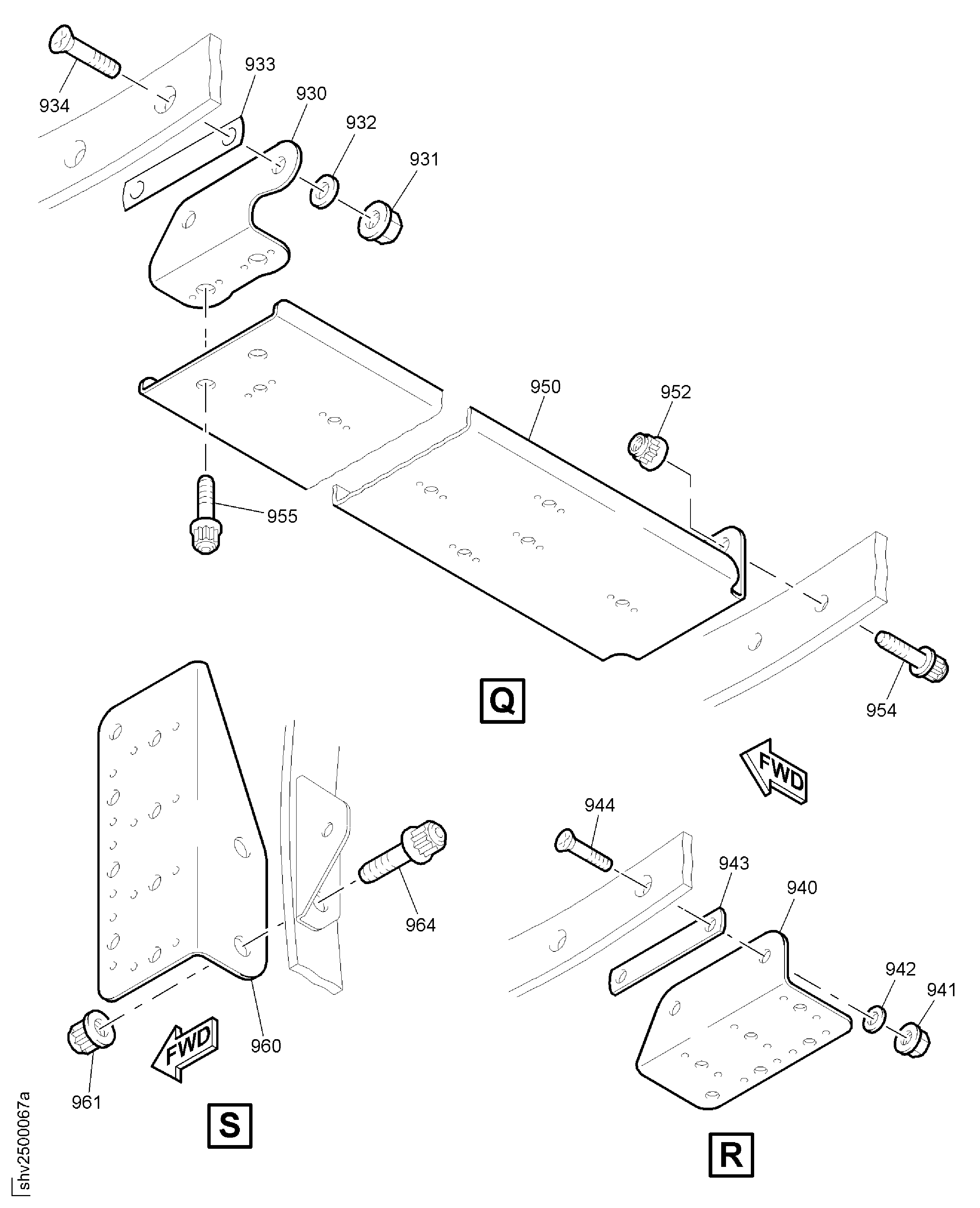

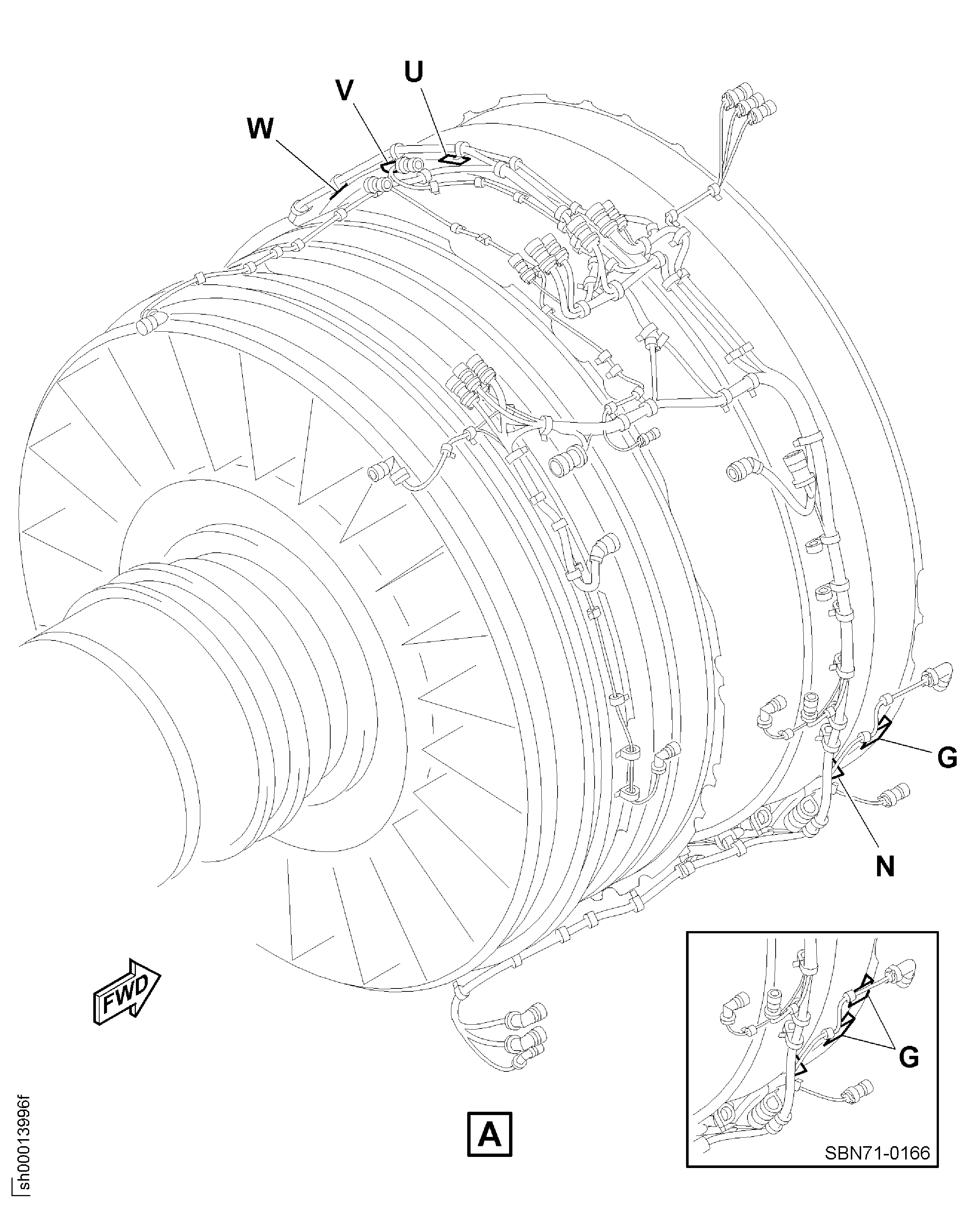

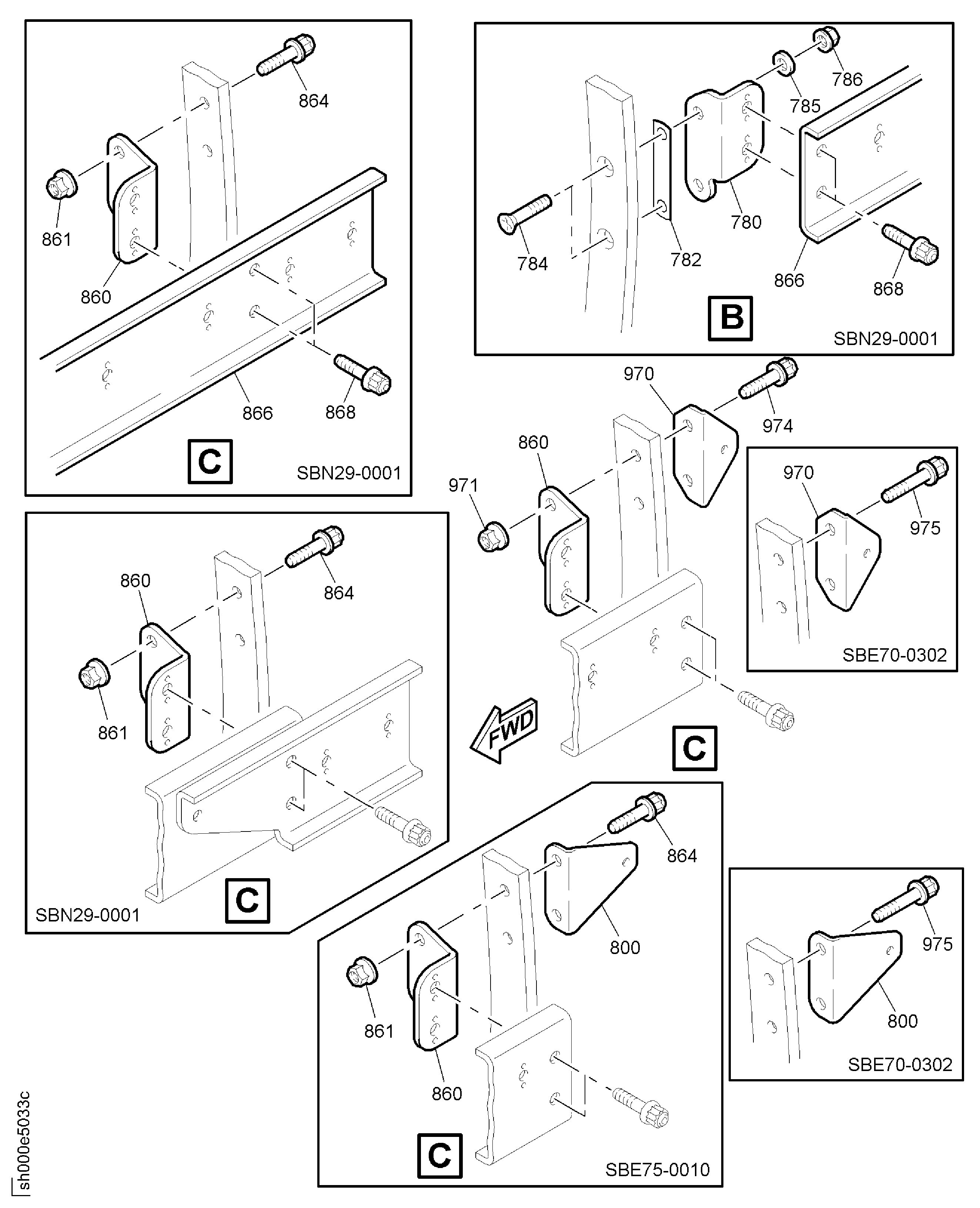

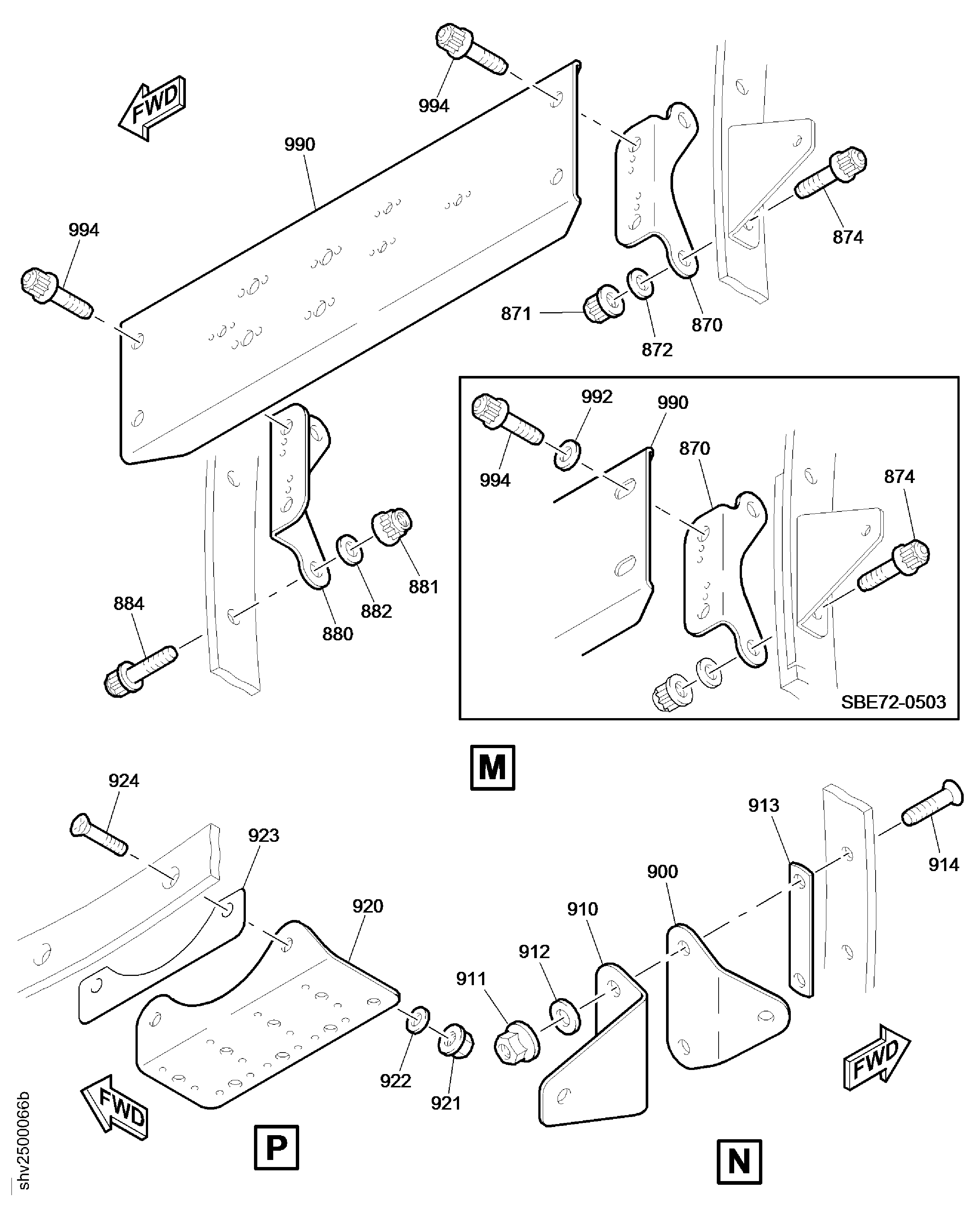

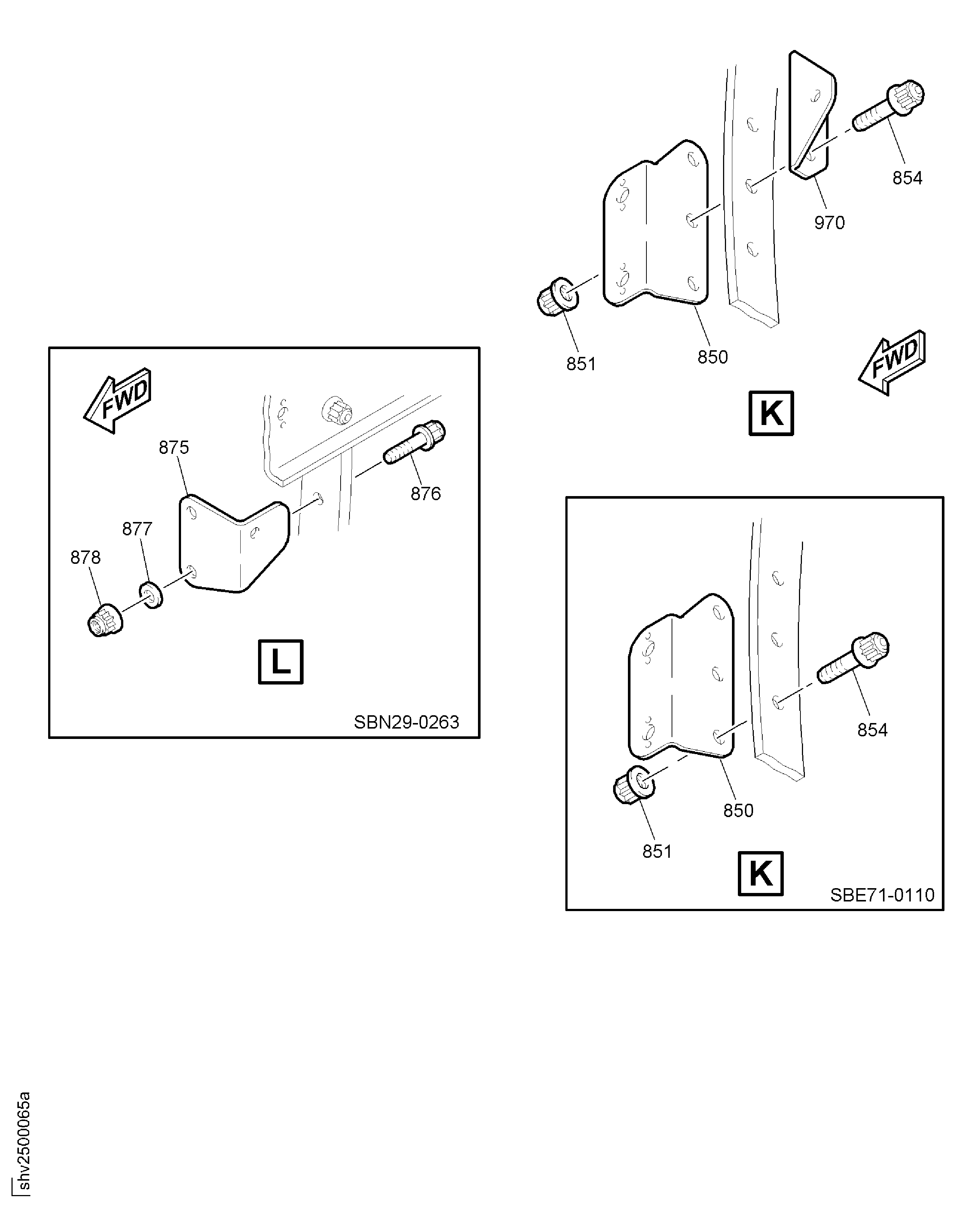

Figure: ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS

Change Type:

Deleted Incorrect SB Reference And Corrected Effectivity.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:15653
Enterprise Name:ALCOA FASTENING SYSTEMS
BU Name:ALCOA FASTENING SYSTEMS
Department:FULLERTON OPERATIONS PLANT 1
Street:800 S.STATE COLLEGE BOULEVARD
City:FULLERTON
State:CA
Zip Code:92831
Country:USA
Phone Number:1-714-871-1550
Fax Number:1-714-680-0175
Internet:www.alcoa.com
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:80205
Enterprise Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0162
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .500
Manufacturer Code:0AM53
Part Number:4W0163
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .562
Manufacturer Code:0AM53
Part Number:4W0164
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21510BOLT - .250 DIA X .625U1653
Part Number:4W0166
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .750
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21512BOLT - 0.25 DIA X 0.750U1653
Part Number:4W0167
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .812
Manufacturer Code:0AM53
Part Number:740-5050-503
Part Name:RAFT - ASSY
Manufacturer Code:51563
Part Number:740-5180-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5180-505
Part Name:BRACKET - ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5235-501
Part Name:RAFT, ASSEMBLY
Manufacturer Code:51563
Part Number:740-5420-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5421-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5422-505
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5423-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5425-505
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5427-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5428-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5429-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5492-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5606-501
Part Name:ANGLE - ATTACHMENT SEE 71-51-43
Manufacturer Code:51563
Part Number:740-5612-501
Part Name:ANGLE - ATTACHMENT SEE 71-51-43
Manufacturer Code:51563
Part Number:740-5613-503
Part Name:ANGLE, ATTACHMENT
Manufacturer Code:51563
Part Number:740-5620-503
Part Name:ANGLE - ATTACHMENT
Manufacturer Code:51563
Part Number:740-5772-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5773-503
Part Name:RAFT - ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5773-9503
Part Name:BRACKET - ASSEMBLY, RAFT
Manufacturer Code:51563
Part Number:740-5780-501
Part Name:ANGLE - ATTACHMENT
Manufacturer Code:51563
Part Number:740-5799-501
Part Name:ANGLE - ATTACHMENT
Manufacturer Code:51563
Part Number:740-5923-501
Part Name:PACKING
Manufacturer Code:51563
Part Number:740-5955-503
Part Name:PACKER
Manufacturer Code:51563
Part Number:740-5966-503
Part Name:HARNESS - GENERAL SERVICES
Manufacturer Code:51563
Part Number:740-5966-521
Part Name:HARNESS - GENERAL SERVICES
Manufacturer Code:51563
Part Number:740-5966-523
Part Name:HARNESS - GENERAL SERVICES
Manufacturer Code:51563
Part Number:740-5966-525
Part Name:HARNESS - GENERAL SERVICES
Manufacturer Code:51563
Part Number:745-5165-501
Part Name:BRACKET- SUPPORT
Manufacturer Code:51563
Unit Of Issue:EA
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21010
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9557-08BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.62596906
Part Number:AS21508
Part Name:BOLT - BIHEX HD, .250 DIA X .500
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-06BOLT - DOUBLE HEXAGON96906
Part Number:AS21510
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-08BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.62596906
Part Number:AS21511
Part Name:BOLT- MACHINE DOUBLE HEX, .250 DIA X .688
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-09BOLT, MACHINE DOUBLE HEX96906
Part Number:AS21512
Part Name:BOLT - 0.25 DIA X 0.750
Manufacturer Code:U1653
Part Number:AS21513
Part Name:BOLT - .250 DIA X .812
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-11BOLT96906
Part Number:AS21515
Part Name:BOLT - 0.25 DIA X 0.938
Manufacturer Code:U1653
Part Number:AS22515
Part Name:BOLT - 0.25 DIA X 0.938
Manufacturer Code:U1653
Part Number:H42-4
Part Name:NUT - .250 DIA
Manufacturer Code:15653
Optional Parts
Part NumberPart NameManufacturer
NAS1291C4MNUT80205
Part Number:MS9557-06
Part Name:BOLT - DOUBLE HEXAGON
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21508BOLT - BIHEX HD, .250 DIA X .500U1653
Part Number:MS9557-08
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21010BOLT - .250 DIA X .625U1653
AS21510BOLT - .250 DIA X .625U1653
Part Number:MS9557-09
Part Name:BOLT, MACHINE DOUBLE HEX
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
Part Number:MS9557-11
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21513BOLT - .250 DIA X .812U1653
Part Number:NAS1149C0463R
Part Name:WASHER
Manufacturer Code:80205
Part Number:NAS1291C4M
Part Name:NUT
Manufacturer Code:80205
Optional Parts
Part NumberPart NameManufacturer
H42-4NUT - .250 DIA15653
Part Number:NAS7204U6
Part Name:BOLT - CSK
Manufacturer Code:80205
Part Number:SP155E
Part Name:WASHER
Manufacturer Code:K7766
