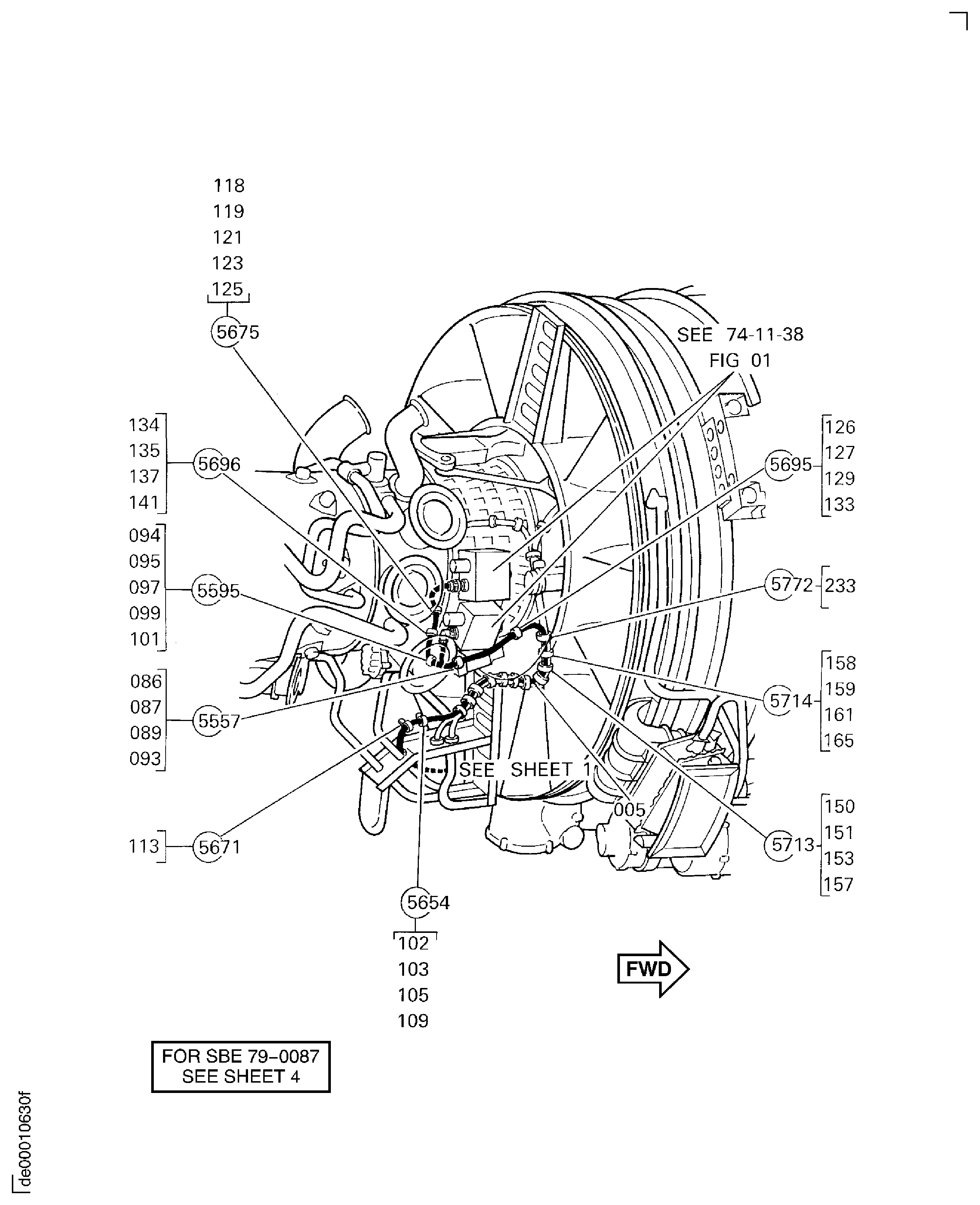

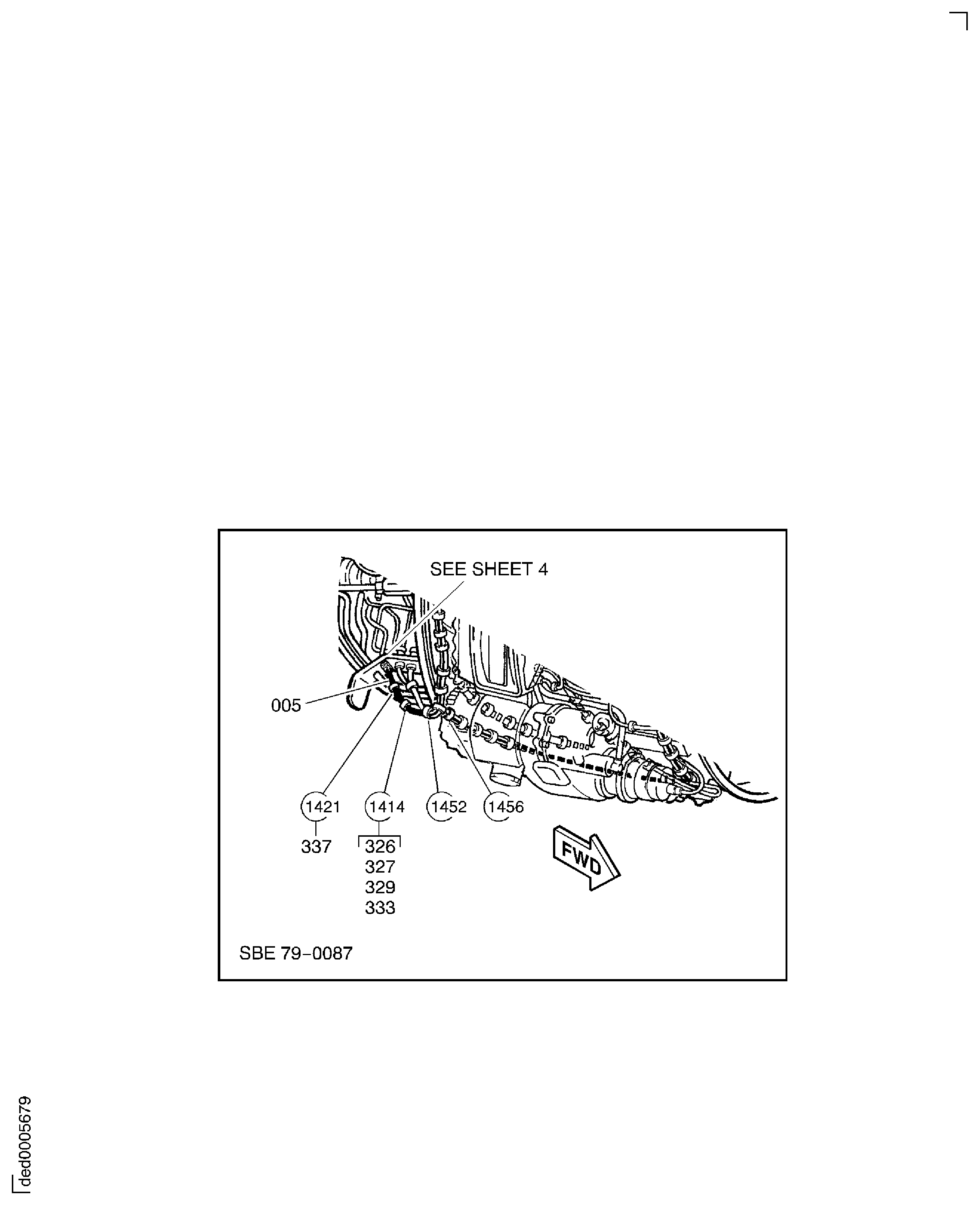

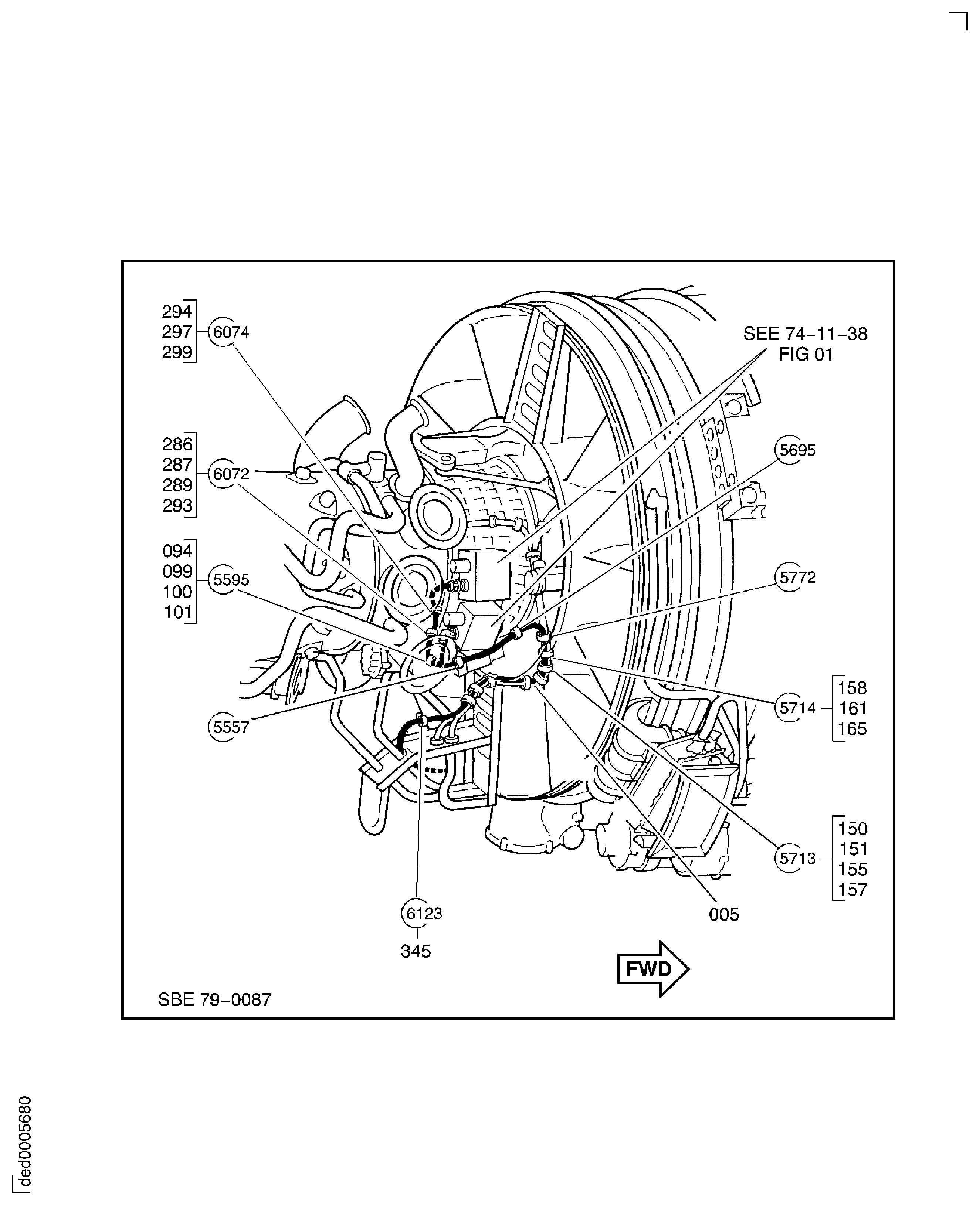

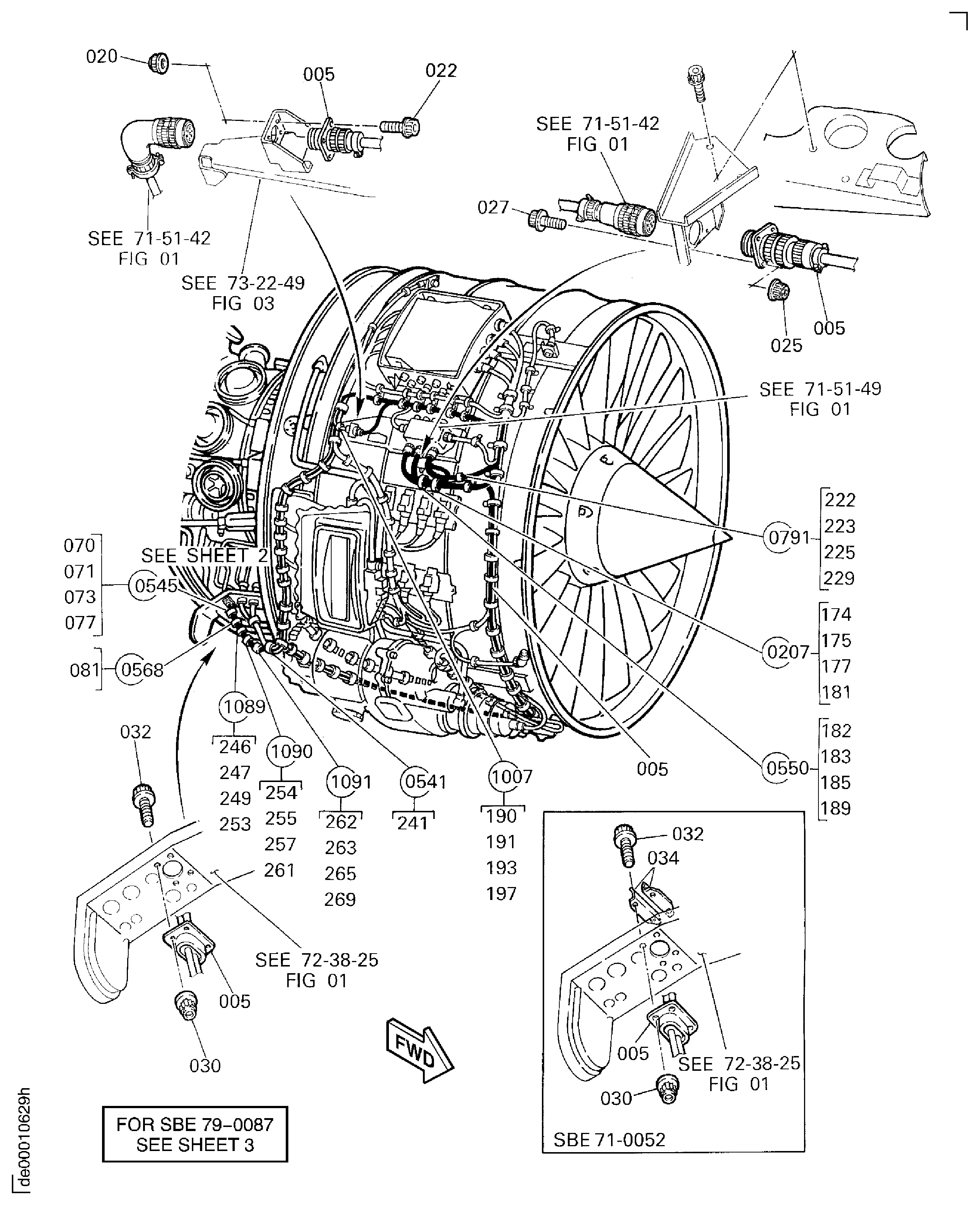

ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS

DMC:V2500-A1-71-51-44-01A-941A-D|Issue No:002.00|Issue Date:2014-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B71514401ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0022aa
000SBE0022-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE71-0052ab
000SBE0052-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE71-0062ac
000SBE0062-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0158ad
000SBE0158-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE71-0067ae
000SBE0067-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE71-0107af
000SBE0107-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0101ag
000SBE0101-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0156ah
000SBE0156-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0324ai
000SBE0324-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0367aj
000SBE0367-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE71-0109ak
000SBE0109-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE73-0140al
000SBE0140-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE79-0087am
000SBE0087-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESSan
0050055A0279• HARNESS - ASSY AC115V
PRE SBE71-0107		aa-af1
005005A6A4395• HARNESS - ASSY (REWORK FROM 5A0178)
POST SBE71-0107
PRE SBE70-0156		aa-an1
005005B6A4716• HARNESS - ASSY AC115V
POST SBE70-0156
PRE SBE70-0324		aa-an1
005005C6A4716• HARNESS - ASSY AC115V
POST SBE70-0324
PRE SBE70-0367		aa-an1
005005D6A5668• HARNESS - ASSY FANCASE AND CO
POST SBE70-0367		aa-an1
020020AS27830• NUT - .1120-40UNJC
U1653		aa-an4
022022AS36506• SCREW - .112 DIA X .375
U1653		aa-an4
025025AS27830• NUT - .1120-40UNJC
U1653		aa-an4
027027AS36506• SCREW - .112 DIA X .375
U1653		aa-an4
0300304W0001• NUT - .190 DIAaa-an4
0320324W0103• BOLT - .190 DIA X .500aa-an4
0340345A0368• BRACKET
POST SBE71-0052		ac-an2
0700704W0103• BOLT - .190 DIA X .500
PRE SBE79-0087		aa-am1
0710715W1086• WASHER
PRE SBE79-0087		aa-am1
073073JM44LC39H102RG• CLAMP
22175
PRE SBE71-0067		aa-am1
073073ATA025074-03• CLAMP - .188 DIA
84971
ALT AS61933
POST SBE71-0067
PRE SBE79-0087		aa-am1
-073073BAS61933• CLAMP - 4.78 MM (.188)
U1653
ALT TA025074-03
POST SBE71-0067
PRE SBE79-0087		aa-amREF
0770774W0001• NUT - .190 DIA
PRE SBE79-0087		aa-am1
081081JM44LC39H102RG• CLAMP
22175
PRE SBE71-0067		aa-am1
081081ATA025074-03• CLAMP - .188 DIA
84971
ALT AS61933
POST SBE71-0067
PRE SBE79-0087		aa-am1
-081081BAS61933• CLAMP - 4.78 MM (.188)
U1653
ALT TA025074-03
POST SBE71-0067
PRE SBE79-0087		aa-amREF
0860864W0102• BOLT - .190 DIA X .438aa-an1
0870875W1086• WASHERaa-an1
089089JM44LC39H102RG• CLAMP
22175
PRE SBE71-0067		aa-an1
089089ATA025074-03• CLAMP - .188 DIA
84971
ALT AS61933
POST SBE71-0067		aa-an1
-089089BAS61933• CLAMP - 4.78 MM (.188)
U1653
ALT TA025074-03
POST SBE71-0067		aa-anREF
0930934W0043• NUT - .190 DIAaa-an1
0940944W0119• BOLT -.190 DIA X 1.500aa-an1
0950955W1086• WASHER
PRE SBE79-0087		aa-am1
097097JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-am1
097097ATA025074-01• CLAMP - .062 DIA
84971
ALT AS61931
PRE SBE79-0087
POST SBE71-0067		aa-am1
-097097BAS61931• CLAMP - 1.58 MM (.062)
U1653
ALT AS62501
PRE SBE79-0087
POST SBE71-0067		aa-amREF
097097CAS62501• CLAMP - 1.57 MM (0.062)
U1653
ALT TA025074-01
POST SBE79-0087		af-am1
0990995W1033• SPACER - (25MM)
PRE SBE79-0087		aa-am1
099099ALK42781• SPACER
POST SBE79-0087		an1
100100LK68463• SPACER
POST SBE79-0087		an1
1011014W0001• NUT - .190 DIAaa-an1
1021024W0104• BOLT - .190 DIA X .562
PRE SBE79-0087		aa-am1
1031035W1086• WASHER
PRE SBE79-0087		aa-am2
105105JM44LC39H102RG• CLAMP
22175
PRE SBE70-0158		aa-am1
105105AJM44LC39H104RG• CLAMP
22175
POST SBE70-0158
PRE SBE71-0067		aa-am1
105105BTA025074-04• CLAMP - .250 DIA
84971
ALT AS61902
POST SBE71-0067
PRE SBE79-0087		aa-am1
-105105CAS61902• CLAMP - 6.35 MM (0.250)
U1653
ALT TA025074-04
POST SBE71-0067
PRE SBE79-0087		aa-amREF
1091094W0001• NUT - .190 DIA
PRE SBE79-0087		aa-am1
113113JM44LC39H102RG• CLAMP
22175
PRE SBE70-0158		aa-ad1
113113AJM44LC39H104RG• CLAMP
22175
POST SBE70-0158
PRE SBE71-0067		ae-am1
113113BTA025074-04• CLAMP - .250 DIA
84971
ALT AS61902
POST SBE71-0067
PRE SBE79-0087		ae-am1
-113113CAS61902• CLAMP - 6.35 MM (0.250)
U1653
ALT TA025074-04
POST SBE71-0067
PRE SBE79-0087		ae-amREF
1181184W0113• BOLT - .190 DIA X 1.125
PRE SBE71–0062		aa-ac1
118118A4W0115• BOLT - .190 DIA X 1.250
POST SBE71-0062
PRE SBE79-0087		aa-am1
1191195W1086• WASHER
PRE SBE79-0087		aa-am1
121121JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-am1
121121ATA025074-01• CLAMP - .062 DIA
84971
ALT AS61931
POST SBE71-0067
PRE SBE79-0087		aa-am1
-121121BAS61931• CLAMP - 1.58 MM (.062)
U1653
ALT TA025074-01
POST SBE71-0067
PRE SBE79-0087		aa-amREF
1231235W1031• SPACER - (15MM)
PRE SBE79-0087		aa-am1
1251254W0043• NUT - .190 DIA
PRE SBE79-0087		aa-am1
1261264W0102• BOLT - .190 DIA X .438aa-an1
1271275W1086• WASHERaa-an1
129129JM44LC39H102RG• CLAMP
22175
PRE SBE71-0067		aa-an1
129129ATA025074-03• CLAMP - .188 DIA
84971
ALT AS61933
POST SBE71-0067		aa-an1
-129129BAS61933• CLAMP - 4.78 MM (.188)
U1653
ALT TA025074-03
POST SBE71-0067		aa-anREF
1331334W0043• NUT - .190 DIAaa-an1
1341344W0102• BOLT - .190 DIA X .438
PRE SBE79-0087		aa-am1
1351355W1086• WASHER
PRE SBE79-0087		aa-am1
137137JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-am1
137137ATA025074-01• CLAMP - .062 DIA
84971
ALT AS61931
POST SBE71-0067
PRE SBE79-0087		aa-am1
-137137BAS61931• CLAMP - 1.58 MM (.062)
U1653
ALT TA025074-01
POST SBE71-0067
PRE SBE79-0087		aa-amREF
1411414W0043• NUT - .190 DIA
PRE SBE79-0087		aa-am1
1501504W0105• BOLT - .190 DIA X .625
PRE SBE79-0087		aa-am1
150150A4W0106• BOLT - .190 DIA X .688
POST SBE79-0087		an1
151151AN960XC10L• WASHER
PRE SBE70-0022		aa-am2
151151A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-am2
153153JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-am1
153153ATA025074-09• CLAMP - .562 DIA
84971
ALT AS61907
POST SBE71-0067
PRE SBE79-0087		aa-am1
-153153BAS61907• CLAMP - 14.27 MM (O.562)
U1653
ALT AS62508
POST SBE71-0067
PRE SBE79-0087		aa-amREF
153153CAS62508• CLAMP - 12.70 MM (0.500)
U1653
ALT TA025074-09
POST SBE79-0087		af-am1
155155LK64582• SPACER
POST SBE79-0087		an1
1571574W0001• NUT - .190 DIAaa-an1
1581584W0109• BOLT - .190 DIA X .875
PRE SBE79-0087		aa-am1
158158A4W0103• BOLT - .190 DIA X .500
POST SBE79-0087		an1
159159AN960XC10L• WASHER
PRE SBE70-0022		aa-am2
159159A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-am2
161161JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-am1
161161ATA025074-09• CLAMP - .562 DIA
84971
ALT AS61907
POST SBE71-0067
PRE SBE79-0087		aa-am1
-161161BAS61907• CLAMP - 14.27 MM (O.562)
U1653
ALT AS62509
POST SBE71-0067
PRE SBE79-0087		aa-amREF
161161CAS62509• CLAMP - 14.27 MM (0.562)
U1653
ALT TA025074-09
POST SBE79-0087		af-am1
1651654W0001• NUT - .190 DIAaa-an1
1741744W0103• BOLT - .190 DIA X .500aa-an1
1751755W1086• WASHERaa-an1
177177JM44LC39H103RG• CLAMP
22175
PRE SBE71-0067		aa-an1
177177ATA025074-04• CLAMP - .250 DIA
84971
ALT AS61902
POST SBE71-0067		aa-an1
-177177BAS61902• CLAMP - 6.35 MM (0.250)
U1653
ALT TA025074-04
POST SBE71-0067		aa-anREF
1811814W0043• NUT - .190 DIAaa-an1
1821824W0103• BOLT - .190 DIA X .500aa-an1
1831835W1086• WASHERaa-an1
185185JM44LC39H103RG• CLAMP
22175
PRE SBE71-0067		aa-an1
185185ATA025074-04• CLAMP - .250 DIA
84971
ALT AS61902
POST SBE71-0067		aa-an1
-185185BAS61902• CLAMP - 6.35 MM (0.250)
U1653
ALT TA025074-04
POST SBE71-0067		aa-anREF
1891894W0001• NUT - .190 DIAaa-an1
1901904W0102• BOLT - .190 DIA X .438
PRE SBE70-0101		aa-ag1
190190A4W0103• BOLT - .190 DIA X .500
POST SBE70-0101		ah-an1
1911915W1086• WASHER
PRE SBE73-0140		aa-al1
191191A4W2621• WASHER
POST SBE73-0140		am-an1
193193JM44LC39H102RG• CLAMP
22175
PRE SBE71-0067		aa-an1
193193ATA025074-01• CLAMP - .062 DIA
84971
ALT AS61931
POST SBE71-0067
PRE SBE73-0140		aa-an1
-193193BAS61931• CLAMP - 1.58 MM (.062)
U1653
ALT TA025074-01
POST SBE71-0067
PRE SBE73-0140		aa-alREF
193193CAS62501• CLAMP - 1.57 MM (0.062)
U1653
POST SBE73-0140		aa-an1
1971974W0043• NUT - .190 DIA
PRE SBE70-0101		aa-ag1
197197A4W0001• NUT - .190 DIA
POST SBE73-0140		am-an1
2222224W0105• BOLT - .190 DIA X .625aa-an1
2232235W1086• WASHERaa-an1
225225JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-an1
225225ATA025074-02• CLAMP - .125 DIA
84971
ALT AS61932
POST SBE71-0067		aa-an1
-225225BAS61932• CLAMP - 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0067		aa-anREF
2292294W0001• NUT - .190 DIAaa-an1
233233JM44LC39H102RG• CLAMP
22175
PRE SBE71-0067		aa-an1
233233ATA025074-03• CLAMP - .188 DIA
84971
ALT AS61933
POST SBE71-0067		aa-an1
-233233BAS61933• CLAMP - 4.78 MM (.188)
U1653
ALT TA025074-03
POST SBE71-0067		aa-anREF
241241JM44LC39H101RG• CLAMP
22175
PRE SBE71-0067		aa-ak1
241241ATA025074-01• CLAMP - LOOP STYLE,CUSHION, .062 DIA
84971
ALT AS61931
POST SBE71-0067
PRE SBE71-0109		aa-ak1
-241241BAS61931• CLAMP - LOOP STYLE,CUSHION, 1.58 MM (.062)
U1653
ALT TA025074-01
POST SBE71-0067
PRE SBE71-0109		aa-akREF
2462464W0104• BOLT - .190 DIA X .562
PRE SBE71-0109		aa-ak1
246246A4W0103• BOLT - .190 DIA X .500
POST SBE71-0109
PRE SBE79-0087		al-am1
2472475W1086• WASHERaa-an2
247247A5W1086• WASHER
POST SBE71-0109
PRE SBE79-0087		al-am1
249249JM44LC39H102RG• CLAMP
22175
PRE SBE71-0067		aa-ak1
249249ATA025074-01• CLAMP - LOOP STYLE,CUSHION, .062 DIA
84971
ALT AS61931
POST SBE71-0067
PRE SBE71-0109		aa-ak1
-249249BAS61931• CLAMP - LOOP STYLE,CUSHION, 1.58 MM (.062)
U1653
ALT TA025074-01
POST SBE71-0067
PRE SBE71-0109		aa-akREF
249249CTA025074-16• CLAMP - LOOP STYLE,CUSHION, 1.000 DIA
84971
ALT AS61914
POST SBE71-0109
PRE SBE79-0087		al-am1
-249249DAS61914• CLAMP - LOOP STYLE,CUSHION, 25.40 MM (1.000)
U1653
ALT TA025074-16
POST SBE71-0109
PRE SBE79-0087		al-amREF
2532534W0001• NUT - .190 DIA
Optional Part
AS20624
PRE SBE79-0087		aa-am1
2542544W0104• BOLT - .190 DIA X .562
PRE SBE71-0109		aa-ak1
254254A4W0103• BOLT - .190 DIA X .500
POST SBE71-0109
PRE SBE79-0087		al-am1
2552555W1086• WASHER
PRE SBE71-0109		aa-ak2
255255A5W1086• WASHER
POST SBE71-0109
PRE SBE79-0087		al-am1
257257JM44LC39H102RG• CLAMP
22175
PRE SBE71-0067		aa-ak1
257257ATA025074-01• CLAMP - LOOP STYLE,CUSHION, .062 DIA
84971
ALT AS61931
POST SBE71-0067
PRE SBE71-0109		aa-ak1
-257257BAS61931• CLAMP - LOOP STYLE,CUSHION, 1.58 MM (.062)
U1653
ALT TA025074-01
POST SBE71-0067
PRE SBE71-0109		aa-akREF
257257CTA025074-16• CLAMP - LOOP STYLE,CUSHION, 1.000 DIA
84971
POST SBE71-0109
PRE SBE79-0087		al-am1
-257257DAS61914• CLAMP - LOOP STYLE,CUSHION, 25.40 MM (1.000)
U1653
POST SBE71-0109
PRE SBE79-0087		al-amREF
2612614W0001• NUT - .190 DIA
Optional Part
AS20624
PRE SBE79-0087		aa-am1
2622624W0104• BOLT - .190 DIA X .562
Optional Part
AS21409
PRE SBE71-0109		aa-ak1
2632635W1086• WASHER
PRE SBE71-0109		aa-ak2
265265JM44LC39H102RG• CLAMP
22175
PRE SBE71-0067		aa-ak1
265265ATA025074-01• CLAMP - LOOP STYLE,CUSHION, .062 DIA
84971
ALT AS61931
POST SBE71-0067
PRE SBE71-0109		aa-ak1
-265265BAS61931• CLAMP - LOOP STYLE,CUSHION, 1.58 MM (.062)
U1653
ALT TA025074-01
POST SBE71-0067
PRE SBE71-0109		aa-akREF
2692694W0001• NUT - .190 DIA
Optional Part
AS20624
PRE SBE71-0109		aa-ak1
2862864W0102• BOLT - .190 DIA X .438
Optional Part
AS21407
POST SBE79-0087		an1
2872875W1086• WASHER
POST SBE79-0087		an1
289289AS62501• CLAMP - LOOP ASSY ELEC HARNES, 1.57 MM (0.062)
U1653
POST SBE79-0087		an1
2932934W0001• NUT - .190 DIA
Optional Part
AS20624
POST SBE79-0087		an1
2942944W0113• BOLT - .190 DIA X 1.125
Optional Part
AS48018
POST SBE79-0087		an1
297297AS62501• CLAMP - LOOP ASSY ELEC HARNES, 1.57 MM (0.062)
U1653
POST SBE79-0087		an1
299299LK42781• SPACER
POST SBE79-0087		an1
3263264W0103• BOLT - .190 DIA X .500
POST SBE79-0087		an1
327327K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		an1
329329AS62503• CLAMP - LOOP,STYLE,CUSHION, 4.77 MM (0.188)
U1653
POST SBE79-0087		an1
3333334W0001• NUT - .190 DIA
POST SBE79-0087		an1
337337AS62503• CLAMP - 4.77 MM (0.188)
U1653
POST SBE79-0087		an1
345345AS62507• CLAMP - 11.13 MM (0.438)
U1653
POST SBE79-0087		an1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS

Ignition Supply Harness

Ignition Supply Harness

Ignition Supply Harness

Ignition Supply Harness

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:22175
Enterprise Name:J AND M PRODUCTS INC
BU Name:J AND M PRODUCTS INC
Street:2435 N NAOMI STREET
City:BURBANK
State:CA
Zip Code:91504-3425
Country:USA
Manufacturer Code:84971
Enterprise Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:TA MFG LTD
Street:28065 WEST FRANKLIN PARKWAY,VALENCIA
City:SANTA CLARITA
State:CALIFORNIA
Zip Code:GL1 2BS
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0043
Part Name:NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS41104NUT - 0.19 DIAU1653
Part Number:4W0102
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0342BOLT - .190 DIA X .4380AM53
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:4W0104
Part Name:BOLT - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0344BOLT , BIHEX HD - .190 DIA X .5620AM53
Part Number:4W0105
Part Name:BOLT - MACHINE DOUBLE HEX, .190 DIA X .625
Manufacturer Code:0AM53
Part Number:4W0106
Part Name:BOLT - .190 DIA X .688
Manufacturer Code:0AM53
Part Number:4W0109
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .875
Manufacturer Code:0AM53
Part Number:4W0113
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.125
Manufacturer Code:0AM53
Part Number:4W0115
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.250
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0355BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.2500AM53
Part Number:4W0119
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.500
Manufacturer Code:0AM53
Part Number:4W0342
Part Name:BOLT - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0102BOLT, MACHINE DOUBLE HEX - .190 DIA X .4380AM53
Part Number:4W0344
Part Name:BOLT , BIHEX HD - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0104BOLT - .190 DIA X .5620AM53
Part Number:4W0355
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.250
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0115BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.2500AM53
Part Number:4W2621
Part Name:WASHER
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS12943WASHER - FLAT U1653
Part Number:5A0279
Part Name:HARNESS - AC115V, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0368
Part Name:BRACKET
Manufacturer Code:0AM53
Part Number:5W1031
Part Name:SPACER, SLEEVE - (15MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10480SPACER - 15MM0AM53
Part Number:5W1033
Part Name:SPACER, SLEEVE - (25MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10482SPACER, 25 MM0AM53
Part Number:5W1086
Part Name:WASHER
Manufacturer Code:0AM53
Part Number:6A4395
Part Name:HARNESS - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A4716
Part Name:HARNESS - AC115V, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A5668
Part Name:HARNESS - FAN CASE AND CO, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:AS12943
Part Name:WASHER - FLAT
Manufacturer Code:U1653
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS21407
Part Name:BOLT - 0.19 DIA X 0.438
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-05BOLT96906
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21409
Part Name:BOLT - 0.190 DIA X 0.562
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-07BOLT - MACHINE, DOUBLE HEXAGON, EXTERNAL WASHER HEAD, 0.190 - 32 X 0.56296906
Part Number:AS27830
Part Name:NUT, ASSEMBLED WASHER - .1120-40UNJC
Manufacturer Code:U1653
Part Number:AS36506
Part Name:SCREW - 0.112 DIA X 0.375
Manufacturer Code:U1653
Part Number:AS41104
Part Name:NUT - 0.19 DIA
Manufacturer Code:U1653
Part Number:AS48018
Part Name:BOLT - MACHINE, DOUBLE HEXAGON
Manufacturer Code:U1653
Part Number:AS61902
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-04CLAMP - LOOP, CUSHION, 6.35 MM (0.250)84971
Part Number:AS61907
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61914
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61931
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-01CLAMP - 0.062 DIA84971
Link not Found
Part Number:AS61932
Part Name:CLAMP - LOOP 3.18 MM (.125)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-02CLAMP - 0.125 DIA84971
Part Number:AS61933
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-03CLAMP - LOOP, CUSHION, 4.78 MM (0.188)84971
Part Number:AS62501
Part Name:CLAMP - 1.57 MM (0.062)
Manufacturer Code:U1653
Part Number:AS62503
Part Name:CLAMP - LOOP, CUSHION, 4.77 MM (0.188)
Manufacturer Code:U1653
Part Number:AS62507
Part Name:CLAMP - LOOP, CUSHION, 11.13 MM (0.438)
Manufacturer Code:U1653
Part Number:AS62508
Part Name:CLAMP - 12.70 MM (0.500)
Manufacturer Code:U1653
Part Number:AS62509
Part Name:CLAMP - 14.27 MM (0.562)
Manufacturer Code:U1653
Part Number:JM44LC39H101RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H102RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H103RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H104RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H107RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:K8831
Part Name:WASHER - .190 DIA X 0.51 THK
Manufacturer Code:0AM53
Part Number:LK42781
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:LK64582
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:LK68463
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:MS9556-05
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9556-07
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTERNAL WASHER HEAD, 0.190 - 32 X 0.562
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21409BOLT - 0.190 DIA X 0.562U1653
Part Number:TA025074-01
Part Name:CLAMP - 0.062 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61931CLAMP - LOOP, CUSHIONU1653
Part Number:TA025074-02
Part Name:CLAMP - 0.125 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61932CLAMP - LOOP 3.18 MM (.125)84971
AS61932CLAMP - LOOP 3.18 MM (.125)U1653
Part Number:TA025074-03
Part Name:CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61933CLAMP - LOOP, CUSHIONU1653
Part Number:TA025074-04
Part Name:CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61902CLAMP - LOOP, CUSHIONU1653
Part Number:TA025074-09
Part Name:CLAMP - 0.562 DIA
Manufacturer Code:84971
Part Number:TA025074-16
Part Name:CLAMP - LOOP, CUSHION, 1.000 DIA
Manufacturer Code:84971
Part Number:UP10480
Part Name:SPACER - 15MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1031SPACER, SLEEVE - (15MM)0AM53
Part Number:UP10482
Part Name:SPACER, 25 MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1033SPACER, SLEEVE - (25MM)0AM53
