ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS

DMC:V2500-A1-71-51-44-03A-941A-D|Issue No:002.00|Issue Date:2014-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
03
000B71514403ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0157aa
000SBE0157-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE71-0107ab
000SBE0107-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0367ac
000SBE0367-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0638ad
000SBE0638-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0642ae
000SBE0642-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0982af
000SBE0982-01ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESSag
0100105A9220• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ac1
010010AESC65E12• • CLAMP - BACKSHELL
POST SBE70-0367		aa-ag1
01201220-91460-608• • • SCREW
0ABG9		aa-ag2
01401420-91400-8• • • CLAMPING - BAR
0ABG9		aa-ag2
0300305A9220• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ac1
030030AESC65E12• • CLAMP - BACKSHELL
POST SBE70-0367		aa-ag1
03203220-91460-608• • • SCREW
0ABG9		aa-ag2
03403420-91400-8• • • CLAMPING - BAR
0ABG9		aa-ag2
0500505A9222• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ac1
050050AESC65E14• • CLAMP - BACKSHELL
POST SBE70-0367		aa-ag1
05205220-91460-608• • • SCREW
0ABG9		aa-ag2
05405420-91400-12• • • CLAMPING - BAR
0ABG9		aa-ag2
0700705A9222• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ac1
070070AESC65E14• • CLAMP - BACKSHELL
POST SBE70-0367		aa-ag1
07207220-91460-608• • • SCREW
0ABG9		aa-ag2
07407420-91400-12• • • CLAMPING - BAR
0ABG9		aa-ag2
0900905A9220• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ac1
090090AESC65E12• • CLAMP - BACKSHELL
POST SBE70-0367		aa-ag1
09209220-91460-608• • • SCREW
0ABG9		aa-ag2
09409420-91400-8• • • CLAMPING - BAR
0ABG9		aa-ag2
1101105A9229• • BACKSHLL - ASSY
PRE SBE70-0367		aa-ac1
110110AESC66E12• • CLAMP - BACKSHELL
POST SBE70-0367		aa-ag1
11211220-91460-608• • • SCREW
0ABG9		aa-ag2
11411420-91400-8• • • CLAMPING - BAR
0ABG9		aa-ag2
6006005A9294• • FUME - & FIRE SEALaa-ag1
6046045A9295• • • FIRE - FIRE SEALaa-ag2
6066065A9296• • • FUMESEALaa-ag1
6106105A9322• • • MOUNTING - PLATEaa-ag1
6156155A9297• • • HOUSING - ASSYaa-ag1
8008005A9200• • SLEEVE - 9,5 DIA
PRE SBE70-0157		aa-ac1
800800ART1146-3-8• • TUBING - HEAT SHRINKABLE, SIZE 3/8" DIA.
K1010
POST SBE70-0157
PRE SBE70-0367		aa-ac1
800800BU323943• • SLEEVING - WHITE-WIRE IDENT, .375 DIA
POST SBE70-0367
PRE SBE70-0982		aa-ag1
-800800CHS095WE• • SLEEVE - IDENT WHITE
K1860
POST SBE70-0367
PRE SBE70-0982		aa-agREF
800800DU323943• • SLEEVING - .375 DIA
POST SBE70-0982		aa-ag1
-800800EHS095WE• • SLEEVE - IDENT WHITE
K1860
POST SBE70-0982		aa-agREF
-800800FTMSSCE3-8-2-0-9• • SLEEVE - IDENT
K1010
POST SBE70-0982		ad-afREF
8018015A9201• • SLEEVE - 12,7 DIA
PRE SBE70-0157		aa-ac1
801801ART1146-1-2• • TUBING - HEAT SHRINKABLE, SIZE 1/2" DIA.
K1010
POST SBE70-0157
PRE SBE70-0367		aa-ac1
801801BU323944• • SLEEVING - WHITE-CONNECTOR ID, .500 DIA
POST SBE70-0367
PRE SBE70-0982		aa-af1
-801801CHS127WE• • SLEEVE - IDENT WHITE CONNECTO
K1860
POST SBE70-0367
PRE SBE70-0982		ad-agREF
801801DU323944• • SLEEVING - .500 DIA
POST SBE70-0982		ad-ag1
-801801EHS127WE• • SLEEVE - IDENT WHITE
K1860
POST SBE70-0982		ad-agREF
-801801FTMSSCE1-2-2-0-9• • SLEEVE - SHRINK, WHITE - 12.70 MM DIA
K1010
POST SBE70-0982		ad-afREF
802802U323090• • SLEEVE - .375 DIA
POST SBE70-0982		ad-af1
802802AU323090• • SLEEVE - .375 DIA
POST SBE70-0982		ag1
-802802BHTSCE3-8-2-0-9• • SLEEVE - SHRINK
K1010
POST SBE70-0982		agREF
8038035A9203• • SLEEVE - 19,1 DIA
PRE SBE70-0157		aa-ac1
803803ART1146-3-4• • TUBING - HEAT SHRINKABLE, SIZE 3/4" DIA.
K1010
POST SBE70-0157
PRE SBE70-0367		aa-ac1
804804U322768• • TUBING
TO RK6014
POST SBE70-0367
(SEE ---01-230)		ad-ag1
-804804ASVT95• • SLEEVE - SHRINK
K0720
POST SBE70-0367		ad-agREF
815815ESC53-25• • BUSH
POST SBE70-0367
PRE SBE70-0642		ad-ag4
815815ASF11• • BUSH
K7823
POST SBE70-0642		ad-ag4
815815BESC53-25• • BUSH
POST SBE70-0642		ad-ag4
817817ESC53-28• • BUSH
POST SBE70-0367
PRE SBE70-0642		ad-ag2
817817ASF15• • BUSH
K7823
POST SBE70-0642		ad-ag2
817817BESC53-28• • BUSH
POST SBE70-0642		ad-ag2
8408405A9240• • MARKING - TUBEaa-ag1
8488485A9248• • MARKER - 3/8
PRE SBE70-0367		aa-ac1
9159155A9215• • TAPE - LACING (WHITE)
PRE SBE70-0367		aa-ac1
915915A718G• • TAPE - LACING (SPARE IS U440198)
K7F94
POST SBE70-0367
PRE SBE70-0642		aa-ae1
915915BU440036• • TAPE - 33ME,108FT REEL
(BULK STOCK U322742)
POST SBE70-0642		af-ag1
-915915CU322742• • TAPE - WHITE - 0.500 WIDE
(SPARE IS U440036)
POST SBE70-0642		af-agREF
915915DU440198• • TAPE - 457ME,1500FT REEL
(BULK STOCK 718G)
POST SBE70-0642		af-ag1
-915915E718G• • TAPE - LACING (SPARE IS U440198)
K7F94
POST SBE70-0642		af-agREF
9169165A9216• • TAPE - LACING (BLACK)
PRE SBE70-0367		aa-ac1
-916916A3100631• • BRAID
(SPARE IS U440068)
POST SBE70-0367
PRE SBE70-0638		aa-aeREF
916916BU440068• • BRAID - 100ME,330FT REEL
POST SBE70-0638
PRE SBE70-0642		aa-ae1
-916916C3100631• • BRAID
(SPARE IS U440068)
POST SBE70-0638
PRE SBE70-0642		aa-agREF
916916DU440254• • TAPE - 450ME,1500FT REEL
(BULK STOCK ESW1900)
POST SBE70-0642		aa-ag1
-916916EESW1900• • TAPE
POST SBE70-0642		aa-agREF
916916FU440068• • BRAID - 100ME,330FT REEL
(BULK T085/3100631)
POST SBE70-0642		aa-ag1
-916916G3100631• • BRAID
POST SBE70-0642		aa-agREF
9509505A0277• • WRAPPING - SPIRAL
PRE SBE70-0367		aa-ac1
950950ASPIRATEMP2P• • SLEEVING - SPIRAL
K0720
POST SBE70-0367		aa-ag1
960960SPIRATEMP1P• • SLEEVING - SPIRAL
K0720
POST SBE71-0107
PRE SBE70-0367		ac1
960960ASPIRATEMP2P• • SLEEVING - SPIRAL
K0720
POST SBE70-0367		ac-ag1
995995MS20995C20• • WIRE - LOCKING
96906
PRE SBE70-0367		aa-ac1
995995AAS44725-1• • WIRE - LOCKING, 0.5 MM DIA
U1653
POST SBE70-0367		aa-ag1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

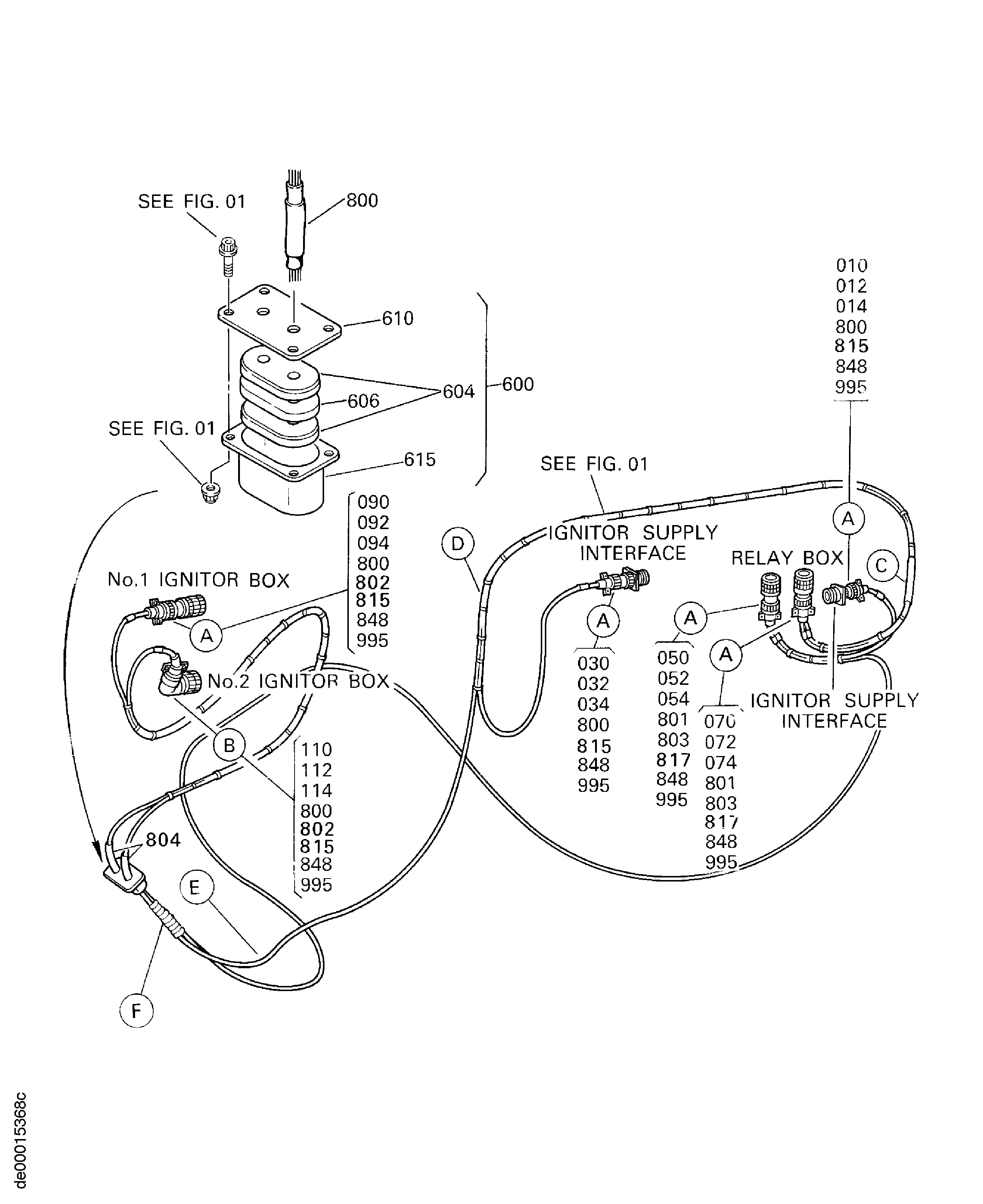

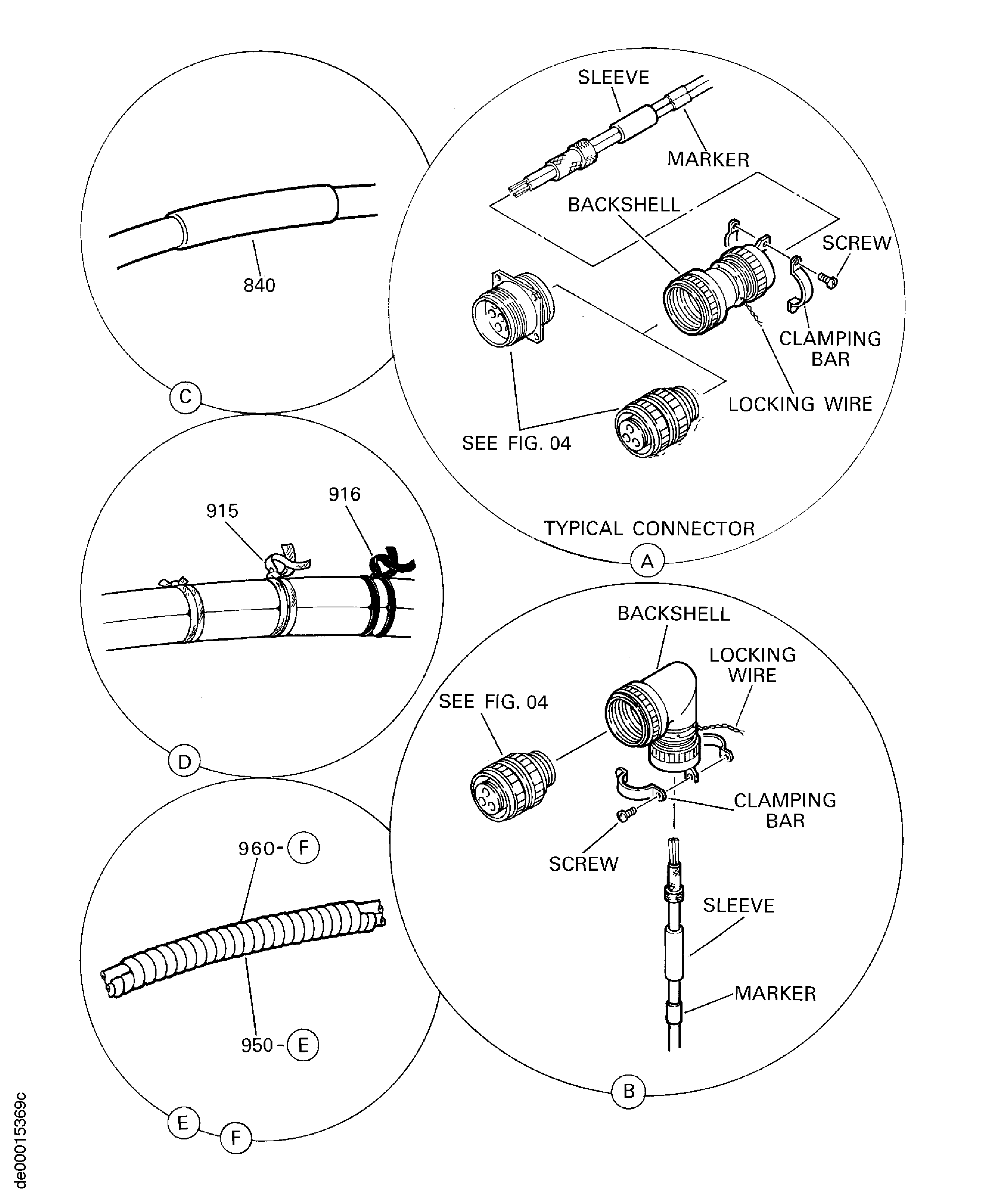

Figure: ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS

Ignition Supply Harness

Ignition Supply Harness

Manufacturer Code:0ABG9
Enterprise Name:YOKOKAWA AVIATION CO LTD
BU Name:YOKOKAWA AVIATION CO LTD
Street:KAGIYAMA
City:IRUMA CITY
State:SAITAMA
Zip Code:3-11-16
Country:JAPAN
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K1010
Enterprise Name:RAYCHEM LTD
BU Name:RAYCHEM LTD
Street:FARADAY ROAD
City:SWINDON
State:WILTS
Province:DORCAN
Zip Code:SN3 5HH
Country:ENGLAND
Manufacturer Code:K1860
Enterprise Name:CRITCHLEY LTD
BU Name:CRITCHLEY LTD
Building:WELLINGTON HOUSE
Street:BATH ROAD
City:WOODCHESTER
State:GLOUCESTERSHIRE
Zip Code:GL5 5EY
Country:ENGLAND
Manufacturer Code:K7823
Enterprise Name:DELETED
BU Name:DELETED,SEE SUPPLIER CODE IAE521
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:20-91400-12
Part Name:CLAMPING - BAR
Manufacturer Code:0ABG9
Part Number:20-91400-8
Part Name:CLAMPING - BAR
Manufacturer Code:0ABG9
Part Number:20-91460-608
Part Name:SCREW
Manufacturer Code:0ABG9
Link not Found
Part Number:5A0277
Part Name:WRAPPING - SPIRAL
Manufacturer Code:0AM53
Part Number:5A9200
Part Name:SLEEVE - 9,5 DIA
Manufacturer Code:0AM53
Part Number:5A9201
Part Name:SLEEVE - 12,7 DIA
Manufacturer Code:0AM53
Part Number:5A9203
Part Name:SLEEVE - 19,1 DIA
Manufacturer Code:0AM53
Part Number:5A9215
Part Name:TAPE - LACING (WHITE)
Manufacturer Code:0AM53
Part Number:5A9216
Part Name:TAPE - LACING (BLACK)
Manufacturer Code:0AM53
Part Number:5A9220
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9222
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9229
Part Name:BACKSHELL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9240
Part Name:MARKING - TUBE
Manufacturer Code:0AM53
Part Number:5A9248
Part Name:MARKER - 3/8
Manufacturer Code:0AM53
Part Number:5A9294
Part Name:FUME - FIRE SEAL
Manufacturer Code:0AM53
Part Number:5A9295
Part Name:FIRE - FIRE SEAL
Manufacturer Code:0AM53
Part Number:5A9296
Part Name:FUMESEAL
Manufacturer Code:0AM53
Part Number:5A9297
Part Name:HOUSING - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9322
Part Name:MOUNTING - PLATE
Manufacturer Code:0AM53
Link not Found
Part Number:AS44725-1
Part Name:WIRE - LOCKING
Manufacturer Code:U1653
Link not Found
Link not Found
Part Number:ESC65E12
Part Name:CLAMP - BACKSHELL
Manufacturer Code:0AM53
Part Number:ESC65E14
Part Name:CLAMP - BACKSHELL
Manufacturer Code:0AM53
Part Number:ESC66E12
Part Name:CLAMP - BACKSHELL
Manufacturer Code:0AM53
Part Number:ESW1900
Part Name:TAPE
Manufacturer Code:0AM53
Part Number:HS095WE
Part Name:SLEEVE - IDENTIFICATION, WHITE, WIRE
Manufacturer Code:K1860
Part Number:HS127WE
Part Name:SLEEVE - IDENTIFICATION, WHITE
Manufacturer Code:K1860
Part Number:HTSCE3-8-2-0-9
Part Name:SLEEVE - SHRINK
Manufacturer Code:K1010
Optional Parts
Part NumberPart NameManufacturer
U323090SLEEVE - .375 DIA0AM53
Part Number:MS20995C20
Part Name:WIRE - LOCKING
Manufacturer Code:96906
Link not Found
Link not Found
Link not Found
Part Number:SF11
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-25BUSHING0AM53
Part Number:SF15
Part Name:BUSHING
Manufacturer Code:K7823
Link not Found
Link not Found
Link not Found
Part Number:TMSSCE1-2-2-0-9
Part Name:SLEEVE - SHRINK, WHITE - 12.70 MM DIA
Manufacturer Code:K1010
Part Number:TMSSCE3-8-2-0-9
Part Name:SLEEVE - IDENT
Manufacturer Code:K1010
Part Number:U322742
Part Name:TAPE - WHITE, 0.500 WIDE
Manufacturer Code:0AM53
Part Number:U322768
Part Name:TUBING
Manufacturer Code:0AM53
Part Number:U323090
Part Name:SLEEVE - .375 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
HTSCE3-8-2-0-9SLEEVE - SHRINKSLEEVE - SHRINKK1010
Part Number:U323943
Part Name:SLEEVING - WHITE, WIRE IDENTIFICATION, 0.375 DIA
Manufacturer Code:0AM53
Part Number:U323944
Part Name:SLEEVING - WHITE, CONNECTOR ID, 0.500 DIA
Manufacturer Code:0AM53
Part Number:U440036
Part Name:TAPE - 33ME,108FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U322742TAPE - WHITE, 0.500 WIDE0AM53
U440198TAPE - 457ME,1500FT REEL0AM53
Part Number:U440068
Part Name:BRAID - 100ME,330FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440254TAPE - 450ME,1500FT REEL0AM53
Part Number:U440198
Part Name:TAPE - 457ME,1500FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440036TAPE - 33ME,108FT REEL0AM53
Part Number:U440254
Part Name:TAPE - 450ME,1500FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440068BRAID - 100ME,330FT REEL0AM53
