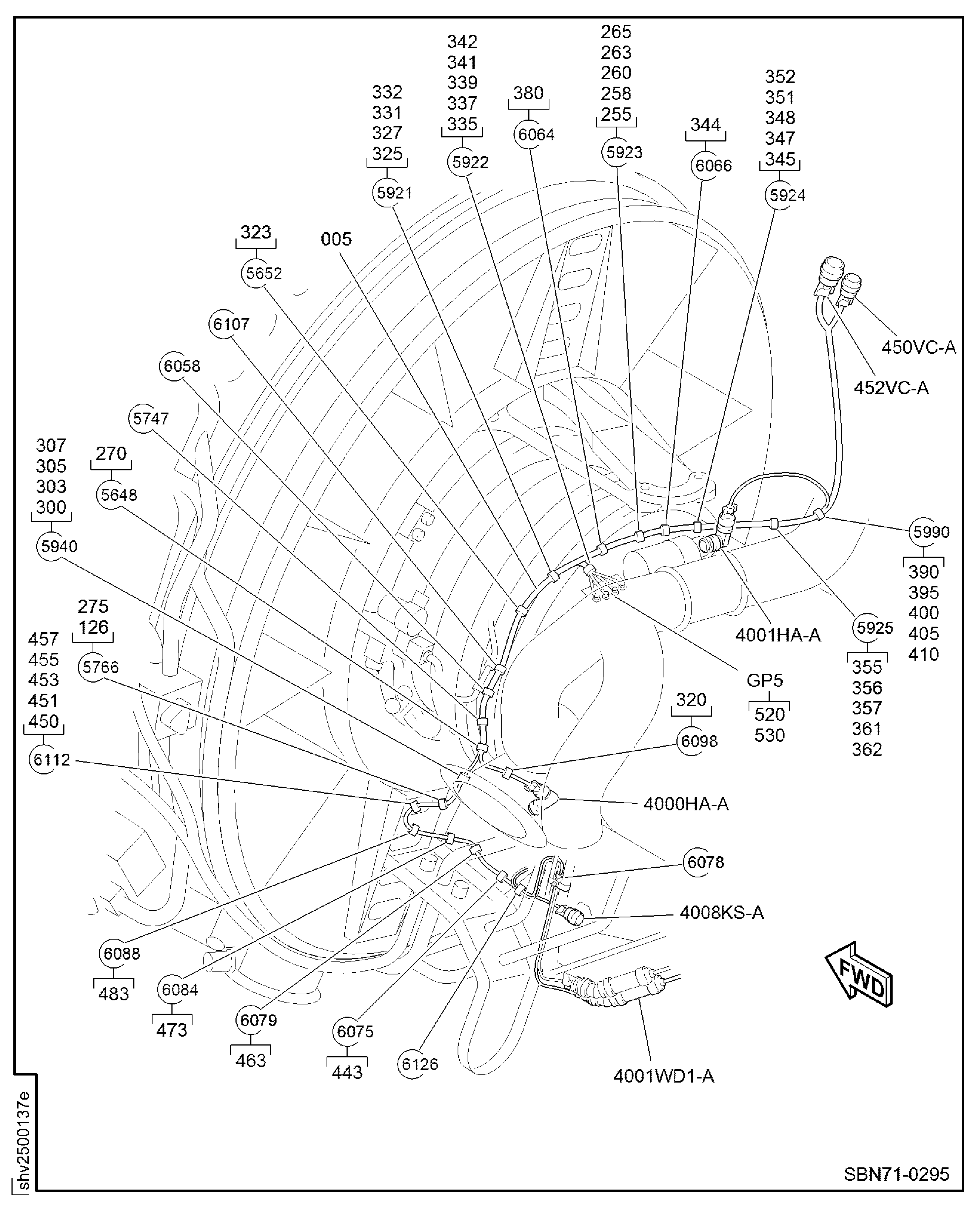

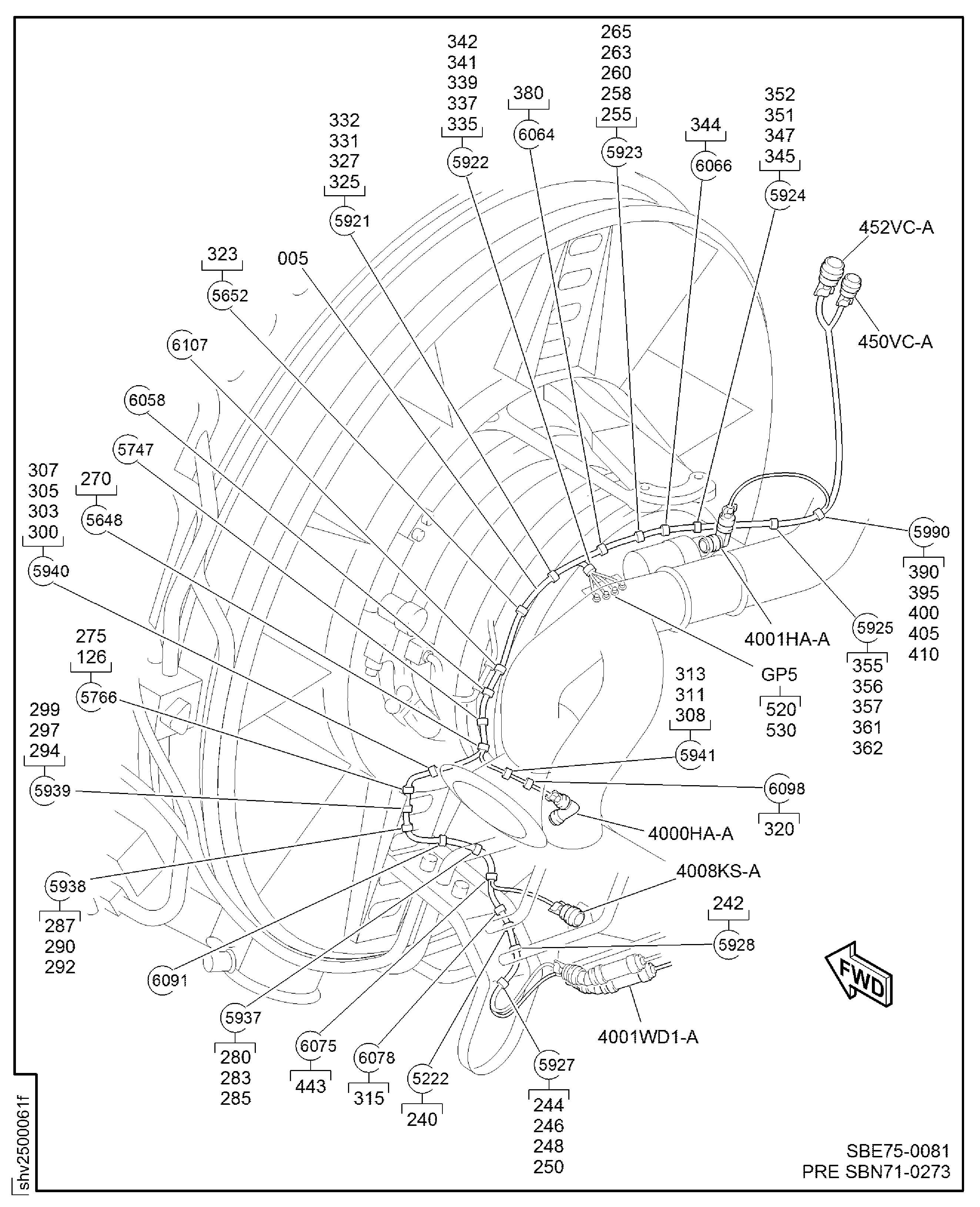

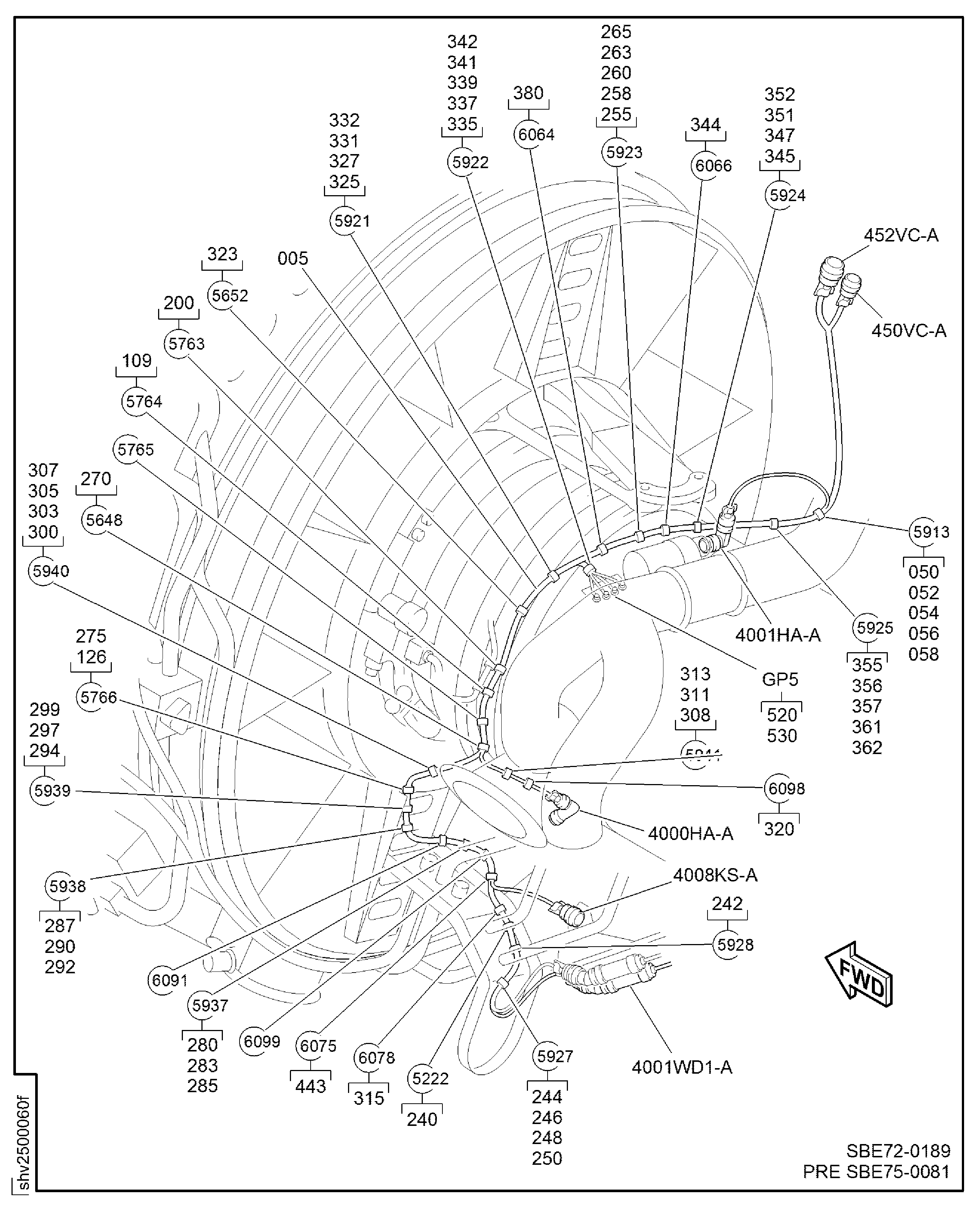

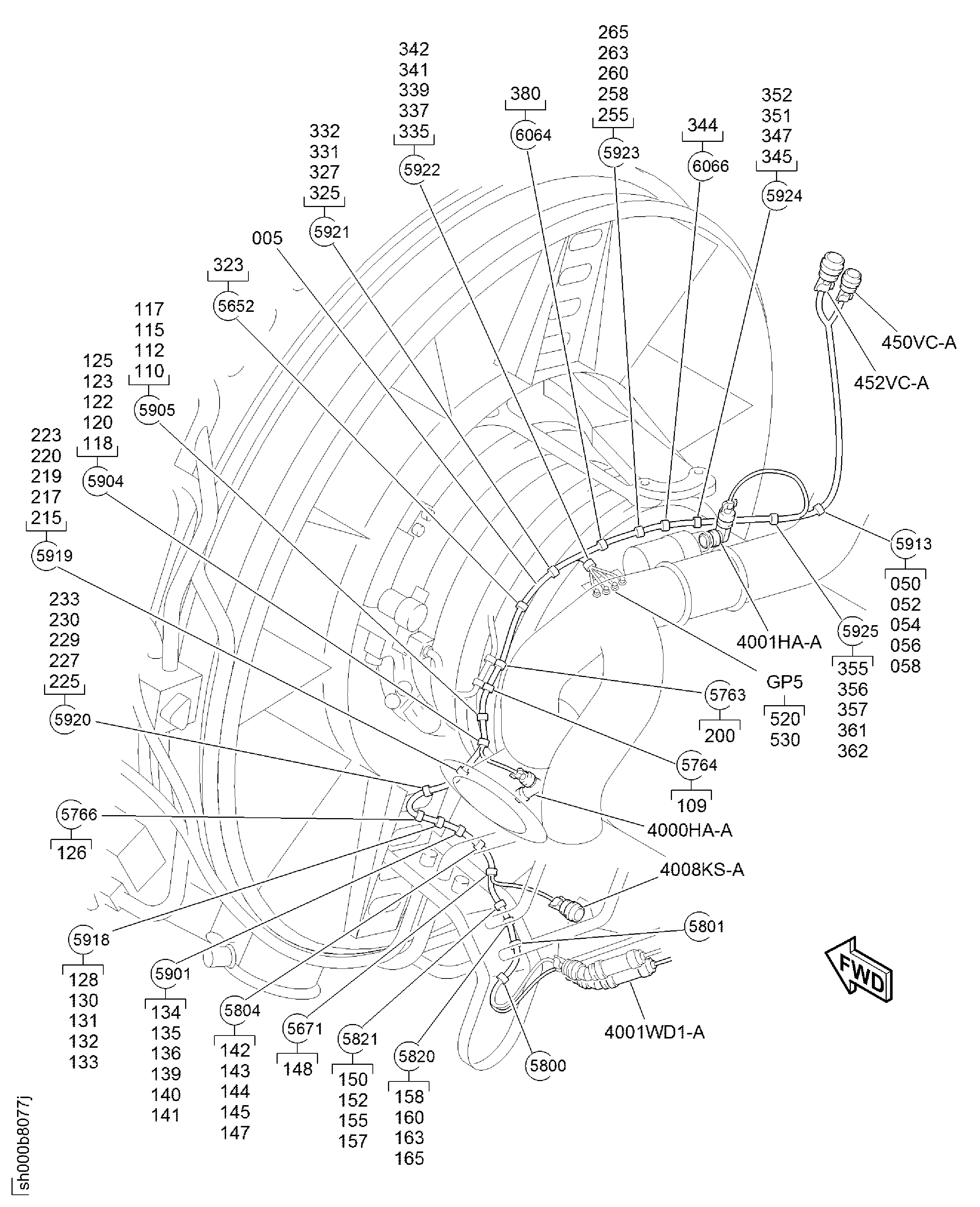

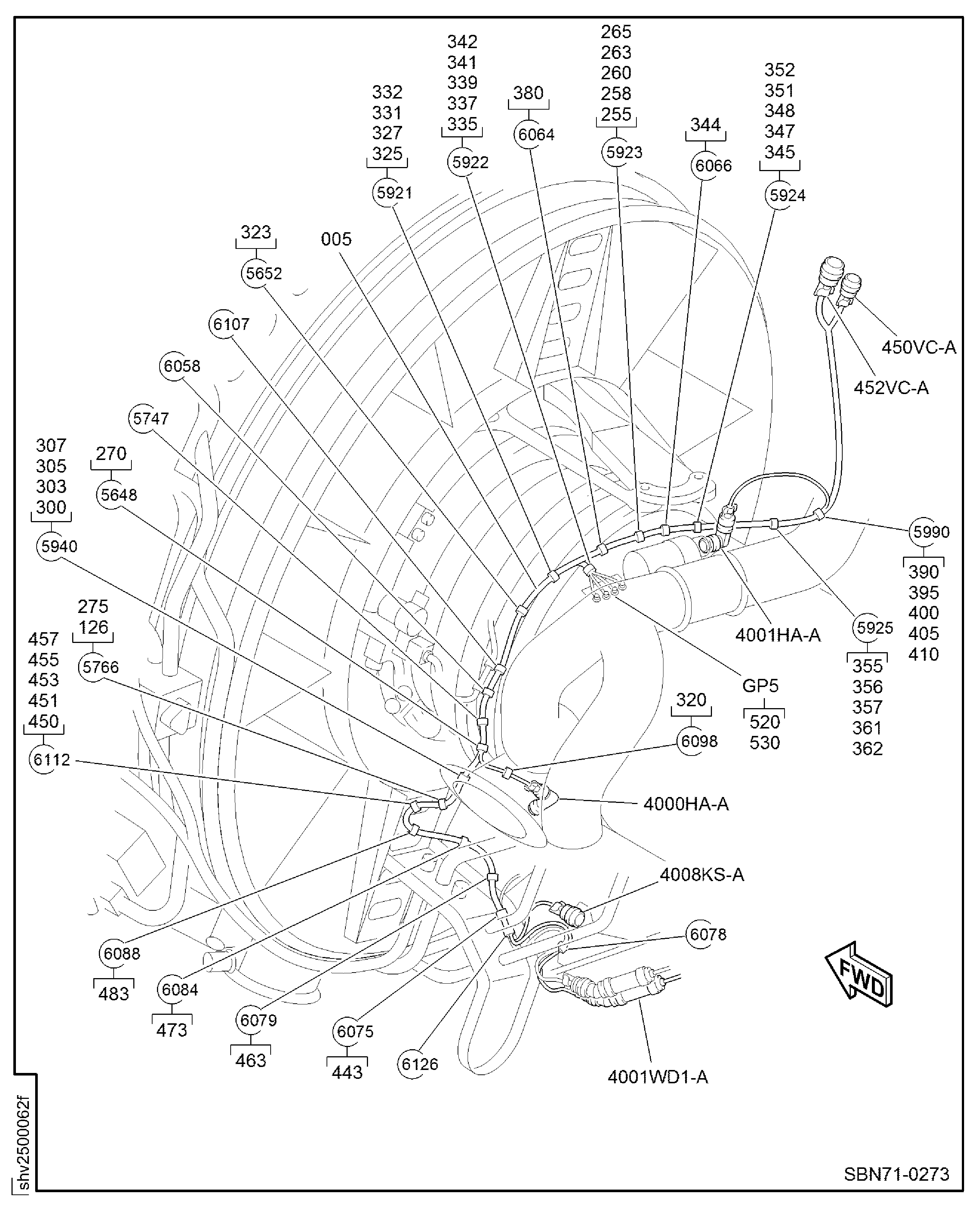

Fire Detection (System A) And Core Services Harness

DMC:V2500-A1-71-52-41-01A-941A-D|Issue No:005.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B71524101ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN71-0011aa
000SBN0011-01ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0094ab
000SBN0094-01ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBE70-0136ac
000SBE0136-01ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBE71-0067ad
000SBE0067-01ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN71-0065ae
000SBN0065-01ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBE79-0035af
000SBE0035-01ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0097ag
000SBN0097-01ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0289ah
000SBN0289-01ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN71-0145ai
000SBN0145-01ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN71-0272aj
000SBN0272-01ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICEak
-002002740-5409-505ARRANGEMENT - CORE ELECTRICALRICS
51563		aa-akREF
005005740-5967-501• HARNESS - CORE SERVICES
51563		aa-ak1
005005A740-5967-511• HARNESS - CORE SERVICES
51563
PRE SBE70-0136		aa-ag1
005005B740-5967-513• HARNESS - CORE SERVICES
51563
POST SBE70-0136
PRE SBN70-0097		aa-ag1
005005C740-5967-517• HARNESS - CORE SERVICES
51563
POST SBN70-0097
PRE SBN70-0289		aa-ah1
005005D740-5967-519• HARNESS - CORE SERVICES
51563
POST SBN70-0289
PRE SBN71-0272		aa-aj1
005005E740-5967-523• HARNESS - CORE SERVICES
51563
POST SBN71-0272		ak1
020020740-5861-501• HARNESS - FIRE DETECT (SYS A)
51563		aa-ak1
020020A740-5861-503• HARNESS - FIRE DETECT (SYS A)
51563
PRE SBN70-0094		aa-ak1
020020B740-5861-511• HARNESS - FIRE DETECT (SYS A)
51563
POST SBN70-0094		aa-ak1
030030740-5863-501• HARNESS - CABIN SERVICES
51563		aa-ak1
030030A740-5863-507• HARNESS - CABIN SERVICES
51563		aa-ak1
038038AS21408• BOLT - .190 DIA X .500
U1653		aa-ak1
038038AAS21407• BOLT - .190 DIA X .500
U1653		aa-ak1
040040SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
042042JM44LC39H101RG• CLAMP - LOOP
22175		aa-ak1
042042ATA025017FT06• CLIP
84971
PRE SBE71-0067		aa-ak1
042042BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ak1
-042042CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ae-akREF
045045AS41104• NUT - 0.19 DIA
U1653		aa-ak1
045045AAS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
046046AS21407• BOLT - .190 DIA X .500
U1653		aa-ak1
047047SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
048048JM44LC39H101RG• CLAMP - LOOP
22175		aa-ak1
048048ATA025017FT06• CLIP
84971
PRE SBE71-0067		aa-ak1
048048BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ak1
-048048CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ae-akREF
049049AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
050050AS21407• BOLT - .190 DIA X .500
U1653		aa-ak1
052052SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
054054TA027000PH03WC• CLIP
84971
PRE SBE71-0067		aa-ak1
054054ATA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067		aa-ak1
-054054BAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067		ae-akREF
056056JM44LC39H103RG• CLAMP - LOOP
22175		aa-ak1
056056ATA027000PH07WC• CLIP
84971
PRE SBE71-0067		aa-ak1
056056BTA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067		aa-ak1
-056056CAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067		ae-akREF
058058AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
062062AS21408• BOLT - .190 DIA X .500
U1653		aa-ak1
062062AAS21407• BOLT - .190 DIA X .500
U1653
PRE SBN71-0011		aa1
064064SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
064064ASP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0011		aa1
067067JM44LC39H103RG• CLAMP - LOOP
22175		aa-ak1
067067ATA027000PH07WC• CLIP
84971
PRE SBN71-0011		aa1
069069AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
069069AAS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0011		aa1
070070AS21407• BOLT - .190 DIA X .500
U1653		aa-ak1
071071SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
072072JM44LC39H103RG• CLAMP - LOOP
22175		aa-ak1
072072ATA027000PH07WC• CLIP
84971
PRE SBE71-0067		aa-ak1
072072BTA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067		aa-ak1
-072072CAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067		ae-akREF
074074AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
078078AS21407• BOLT - .190 DIA X .500
U1653
PRE SBN71-0011		aa1
078078AAS21411• BOLT, .190 DIA X .688
U1653
POST SBN71-0011		ab-ak1
080080SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
081081ST1698D47• SPACER (5MM)
K4585
POST SBN71-0011		ab-ak1
083083JM44LC39H101RG• CLAMP - LOOP
22175		aa-ak1
083083ATA027000PH05WC• CLIP
84971
PRE SBE71-0067		aa-ak1
083083BTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067		aa-ak1
-083083CAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE71-0067		ae-akREF
085085AS41104• NUT - 0.19 DIA
U1653		aa-ak1
085085AAS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
086086AS21408• BOLT - .190 DIA X .500
U1653		aa-ak1
086086AAS21407• BOLT - .190 DIA X .500
U1653		aa-ak1
088088SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
091091JM44LC39H103RG• CLAMP - LOOP
22175		aa-ak1
091091ATA027000PH07WC• CLIP
84971
PRE SBE71-0067		aa-ak1
091091BTA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067		aa-ak1
-091091CAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067		ae-akREF
093093AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
094094AS21408• BOLT - .190 DIA X .500
U1653		aa-ak1
094094AAS21407• BOLT - .190 DIA X .500
U1653		aa-ak1
096096SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
099099JM44LC39H103RG• CLAMP - LOOP
22175		aa-ak1
099099ATA027000PH07WC• CLIP
84971
PRE SBE71-0067		aa-ak1
099099BTA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067		aa-ak1
-099099CAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067		ae-akREF
101101AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
102102AS21408• BOLT - .190 DIA X .500
U1653		aa-ak1
102102AAS21414• BOLT - .190 DIA x.875
U1653		aa-ak1
104104SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
106106ST1698D48• SPACER (10MM)
K4585		aa-ak1
107107JM44LC39H103RG• CLAMP - LOOP
22175		aa-ak1
107107ATA027000PH07WC• CLIP
84971
PRE SBE71-0067		aa-ak1
107107BTA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067		aa-ak1
-107107CAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067		ae-akREF
108108AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
109109AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
109109ATA027000PH05WC• CLIP
84971		aa-ak1
109109BTA027000PH07WC• CLIP
84971
PRE SBE71-0067		aa-aj1
109109CTA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-109109DAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
110110AS21408• BOLT - .190 DIA X .500
U1653		aa-ak1
110110AAS21407• BOLT - .190 DIA X .500
U1653
PRE SBN71-0272		aa-aj1
112112SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0272		aa-aj1
115115JM44LC39H103RG• CLAMP - LOOP
22175		aa-ak1
115115ATA027000PH07WC• CLIP
84971
PRE SBE71-0067		aa-aj1
115115BTA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-115115CAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
117117AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0272		aa-aj1
118118AS21408• BOLT - .190 DIA X .500
U1653
PRE SBN71-0272		aa-aj1
120120SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0272		aa-aj1
122122TA027000PH02WC• CLIP
84971
PRE SBE71-0067		aa-aj1
122122ATA025074-01• CLAMP - 0.062 DIA
84971
ALT AS61931
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-122122BAS61931• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-01
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
123123JM44LC39H103RG• CLAMP - LOOP
22175		aa-ak1
123123ATA027000PH05WC• CLIP
84971
PRE SBE71-0067		aa-aj1
123123BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-123123CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
125125AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0272		aa-aj1
126126AS21407• BOLT - .190 DIA X .500
U1653		aa-ak1
126126ATA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
PRE SBN71-0272		aa-aj1
126126BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
POST SBN71-0272		ak1
128128SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
128128AAS21407• BOLT - .190 DIA X .500
U1653
PRE SBN71-0272		aa-aj1
130130SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0272		aa-aj1
131131TA027000PH03WC• CLIP
84971
PRE SBE71-0067		aa-aj1
131131ATA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971		aa-ak1
131131BAS61933• CLAMP - LOOP, CUSHION
U1653		aa-ak1
131131CTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-131131DAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
132132400WSS4• CLIP
83930
PRE SBN71-0272		aa-aj1
133133AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
133133AAS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0272		aa-aj1
134134AS21415• BOLT - BIHEX HD,.190 DIA X .938
U1653
PRE SBN71-0272		aa-aj1
135135ST1698D48• SPACER (10MM)
K4585
PRE SBN71-0272		aa-aj1
136136SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0272		aa-aj1
139139JM44LC39H101RG• CLAMP - LOOP
22175		aa-ak1
139139ATA027000PH03WC• CLIP
84971
PRE SBE71-0067		aa-aj1
139139BTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-139139CAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
141141AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0272		aa-aj1
142142AS21420• BOLT - 0.19 DIA X 1.250
U1653
PRE SBN71-0272		aa-aj1
143143SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0272		aa-aj1
144144ST1698D40• SPACER
77445
PRE SBN71-0272		aa-aj1
145145JM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-aj1
145145ATA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-145145BAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
147147AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0272		aa-aj1
148148TA027000PH03WC• CLIP
84971
PRE SBE71-0067		aa-aj1
148148ATA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-148148BAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
150150AS21408• BOLT - .190 DIA X .500
U1653		aa-ak1
150150AAS21407• BOLT - .190 DIA X .500
U1653
PRE SBN71-0272		aa-aj1
152152SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0272		aa-aj1
154154JM44LC39H101RG• CLAMP - LOOP
22175		aa-ak1
155155JM44LC39H101RG• CLAMP - LOOP
22175		aa-ak1
155155ATA027000PH03WC• CLIP
84971
PRE SBE71-0067		aa-aj1
155155BTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-155155CAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
157157AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
157157AAS41104• NUT - 0.19 DIA
U1653
PRE SBN71-0272		aa-aj1
158158AS21408• BOLT - .190 DIA X .500
U1653		aa-ak1
158158AAS21407• BOLT - .190 DIA X .500
U1653
PRE SBN71-0272		aa-aj1
160160SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0272		aa-aj1
163163JM44LC39H102RG• CLAMP - LOOP
22175		aa-ak1
163163ATA027000PH03WC• CLIP
84971
PRE SBE71-0067		aa-aj1
163163BTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-163163CAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
165165AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0272		aa-aj1
166166AS21408• BOLT - .190 DIA X .500
U1653
PRE SBN71-0065		aa-ae1
166166AAS21408• BOLT - .190 DIA X .500
U1653		aa-ak1
166166BAS21411• BOLT, .190 DIA X .688
U1653
POST SBN71-0065
PRE SBN71-0145		af-ai1
168168SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0145		aa-ai1
169169ST1698D47• SPACER (5MM)
K4585
POST SBN71-0065
PRE SBN71-0145		af-ai1
171171JM44LC39H102RG• CLAMP - LOOP
22175		aa-ak1
171171ATA027000PH03WC• CLIP
84971
PRE SBE71-0067		aa-ai1
171171BTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067
PRE SBN71-0145		aa-ai1
-171171CAS61933• CLAMP - LOOP, CUSHION
U1653
POST SBE71-0067
PRE SBN71-0145		ae-aiREF
173173AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0145		aa-ai1
173173AAS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0145		aa-ai1
174174AS21408• BOLT - .190 DIA X .500
U1653
PRE SBN71-0145		aa-ai1
174174AAS21408• BOLT - .190 DIA X .500
U1653
PRE SBN71-0145		aa-ai1
176176SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0145		aa-ai1
176176ASP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0145		aa-ai1
179179JM44LC39H102RG• CLAMP - LOOP
22175		aa-ak1
179179ATA027000PH03WC• CLIP
84971
PRE SBE71-0067		aa-ai1
179179BTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067
PRE SBN71-0145		aa-ai1
-179179CAS61933• CLAMP - LOOP, CUSHION
U1653
POST SBE71-0067
PRE SBN71-0145		ae-aiREF
181181AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0145		aa-ai1
184184AS21407• BOLT - .190 DIA X .500
U1653		aa-ak1
186186SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
188188TA027000PH05WC• CLIP
84971
PRE SBE71-0067		aa-ak1
188188ATA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971		aa-ak1
188188BAS61933• CLAMP - LOOP, CUSHION
U1653		aa-ak1
188188CTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067		aa-ak1
-188188DAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE71-0067		ae-akREF
190190AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ak1
192192AS21411• BOLT, .190 DIA X .688
U1653		aa-ak1
194194SP154D• WASHER - 0.190 DIA
K7766		aa-ak1
196196ST1698D47• SPACER (5MM)
K4585		aa-ak1
197197TA027000PH05WC• CLIP
84971
PRE SBE71-0067		aa-ak1
197197ATA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067		aa-ak1
-197197BAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE71-0067		ae-akREF
198198AS20625• NUT, SELF LOCKING, BIHEX, .250 DIA
U1653		aa-ak1
200200TA027000PH07WC• CLIP
84971
PRE SBE71-0067		aa-aj1
200200ATA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-200200BAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067
PRE SBN71-0272		ae-ajREF
205205AS21407• BOLT - .190 DIA X .500
U1653
PRE SBN71-0272		aa-aj1
205205AAS21411• BOLT, .190 DIA X .688
U1653
POST SBN71-0272		ak1
207207SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0272		aa-aj1
210210TA027000PH07WC• CLIP
84971
PRE SBE71-0067		aa-aj1
210210ATA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067
PRE SBN71-0272		aa-aj1
-210210BAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067
PRE SBE71-0067		ae-ajREF
210210CTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
POST SBN71-0272		ak1
211211ST1698D50• SPACER
K4585
POST SBN71-0272		ak1
212212AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0272		aa-aj1
212212A4W0001• NUT, OPTION - .190 DIA
POST SBN71-0272		ak1
215215AS21407• BOLT - .190 DIA X .500
U1653
PRE SBN71-0272		aa-aj1
217217TA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
PRE SBN71-0272		aa-aj1
-217217AAS61933• CLAMP - LOOP, CUSHION
U1653
PRE SBN71-0272		aa-ajREF
219219400WSS4• CLIP
83930
PRE SBN71-0272		aa-aj1
220220SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0272		aa-aj1
223223AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0272		aa-aj1
225225AS21407• BOLT - .190 DIA X .500
U1653
PRE SBN71-0272		aa-aj1
227227TA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
PRE SBN71-0272		aa-aj1
229229400WSS4• CLIP
83930
PRE SBN71-0272		aa-aj1
230230SP154D• WASHER - 0.190 DIA
K7766
PRE SBN71-0272		aa-aj1
233233AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
PRE SBN71-0272		aa-aj1
240240TA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE79-0035
PRE SBE79-0087		*****1
-240240AAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE79-0035
PRE SBE79-0087		*****REF
-242242TA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBN71-0145		aj-akREF
-242242AAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBN71-0145		aj-akREF
2442444W0103• BOLT - .190 DIA X .500
POST SBN71-0145
PRE SBN71-0272		aj1
246246SP154D• WASHER - 0.190 DIA
K7766
POST SBN71-0145
PRE SBN71-0272		aj1
2482484W0001• NUT, OPTION - .190 DIA
Optional Part
4W0001
POST SBN71-0145
PRE SBN71-0272		aj1
250250TA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBN71-0145
PRE SBN71-0272		aj1
-250250AAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBN71-0145
PRE SBN71-0272		ajREF
300300AS21415• BOLT - BIHEX HD,.190 DIA X .938
U1653
POST SBN71-0272		ak1
300300AAS21415• BOLT - BIHEX HD,.190 DIA X .938
U1653
ALT MS9556-13		aa-ak1
-300300BMS9556-13• BOLT - MACHINE DOUBLE HEXAGON
96906
ALT AS21415		aa-akREF
303303ST1698D48• SPACER (10MM)
K4585
POST SBN71-0272		ak1
305305TA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBN71-0272		ak1
-305305AAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBN71-0272		akREF
3073074W0001• NUT, OPTION - .190 DIA
POST SBN71-0272		ak1
435435TA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
POST SBN71-0272		ak1
443443TA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
POST SBN71-0272		ak1
450450AS21414• BOLT - .190 DIA x.875
U1653
POST SBN71-0272		ak1
450450AAS21414• BOLT - .190 DIA x.875
U1653		aa-ak1
-450450BMS9556-12• BOLT
96906
ALT AS21414		aa-akREF
451451SP154D• WASHER - 0.190 DIA
K7766
POST SBN71-0272		ak1
453453TA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
POST SBN71-0272		ak1
455455ST1698D48• SPACER (10MM)
K4585
POST SBN71-0272		ak1
4574574W0001• NUT, OPTION - .190 DIA
Optional Part
4W0001
POST SBN71-0272		ak1
463463TA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
POST SBN71-0272		ak1
473473TA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
POST SBN71-0272		ak1
483483TA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
POST SBN71-0272		ak1
493493TA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
POST SBN71-0272		ak1
503503TA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
POST SBN71-0272		ak1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: Fire Detection (System A) And Core Services Harness

HARNESS CORE SERVICES FIRE (SYS A) NAC TEMP AND

HARNESS CORE SERVICES FIRE (SYS A) NAC TEMP AND

HARNESS CORE SERVICES FIRE (SYS A) NAC TEMP AND

HARNESS CORE SERVICES FIRE (SYS A) NAC TEMP AND

HARNESS CORE SERVICES FIRE (SYS A) NAC TEMP AND

Change Type:

Deleted Incorrect SB Reference And Corrected Effectivity.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:22175
Enterprise Name:J AND M PRODUCTS INC
BU Name:J AND M PRODUCTS INC
Street:2435 N NAOMI STREET
City:BURBANK
State:CA
Zip Code:91504-3425
Country:USA
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:84971
Enterprise Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:TA MFG LTD
Street:28065 WEST FRANKLIN PARKWAY,VALENCIA
City:SANTA CLARITA
State:CALIFORNIA
Zip Code:GL1 2BS
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K4585
Enterprise Name:SHORT BROS PLC
BU Name:NULL
Street:AIRPORT ROAD
P.O. Box:PO BOX 241 BT3
City:QUEENS ISLAND
State:BELFAST
Zip Code:9DZ
Country:UNITED KINGDOM
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:400WSS4
Part Name:CLIP
Manufacturer Code:83930
Optional Parts
Part NumberPart NameManufacturer
AS62404CLIP - 6.35 MM (0.250)U1653
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:740-5409-505
Part Name:ARRANGEMENT - CORE ELECTRICALRICS
Manufacturer Code:51563
Part Number:740-5861-501
Part Name:HARNESS - FIRE DETECT (SYS A)
Manufacturer Code:51563
Part Number:740-5861-503
Part Name:HARNESS - FIRE DETECT (SYS A)
Manufacturer Code:51563
Part Number:740-5861-511
Part Name:HARNESS - FIRE DETECT (SYS A)
Manufacturer Code:51563
Part Number:740-5863-501
Part Name:HARNESS - CABIN SERVICES
Manufacturer Code:51563
Part Number:740-5863-507
Part Name:HARNESS - CABIN SERVICES
Manufacturer Code:51563
Part Number:740-5967-501
Part Name:HARNESS - CORE SERVICES
Manufacturer Code:51563
Part Number:740-5967-511
Part Name:HARNESS - CORE SERVICES
Manufacturer Code:51563
Part Number:740-5967-513
Part Name:HARNESS - CORE SERVICES
Manufacturer Code:51563
Part Number:740-5967-517
Part Name:HARNESS - CORE SERVICES
Manufacturer Code:51563
Part Number:740-5967-519
Part Name:HARNESS - CORE SERVICES
Manufacturer Code:51563
Part Number:740-5967-523
Part Name:HARNESS - CORE SERVICES
Manufacturer Code:51563
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21407
Part Name:BOLT - 0.19 DIA X 0.438
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-05BOLT96906
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21411
Part Name:BOLT - 0.19 DIA X 0.688
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-09BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.68896906
Part Number:AS21414
Part Name:BOLT - .190 DIA x.875
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-12BOLT96906
Part Number:AS21415
Part Name:BOLT - BIHEX HD,.190 DIA X .938
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-13BOLT - MACHINE DOUBLE HEXAGON96906
Part Number:AS21420
Part Name:BOLT, 0.19 DIA X 1.250
Manufacturer Code:U1653
Part Number:AS41104
Part Name:NUT - 0.19 DIA
Manufacturer Code:U1653
Part Number:AS61902
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-04CLAMP - LOOP, CUSHION, 6.35 MM (0.250)84971
Part Number:AS61903
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-05CLAMP - LOOP, CUSHION, 0.313 DIA84971
Part Number:AS61931
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-01CLAMP - 0.062 DIA84971
Part Number:AS61933
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-03CLAMP - LOOP, CUSHION, 4.78 MM (0.188)84971
Part Number:AS62404
Part Name:CLIP - 6.35 MM (0.250)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
400WSS4CLIP83930
Part Number:JM44LC39H101RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H102RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H103RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:MS9556-05
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9556-09
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.688
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21411BOLT - 0.19 DIA X 0.688U1653
Part Number:MS9556-12
Part Name:BOLT
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21414BOLT - .190 DIA x.875U1653
Part Number:MS9556-13
Part Name:BOLT - MACHINE DOUBLE HEXAGON
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21415BOLT - BIHEX HD,.190 DIA X .938U1653
Part Number:SP154D
Part Name:WASHER - 0.190 DIA
Manufacturer Code:K7766
Part Number:ST1698D40
Part Name:SPACER
Manufacturer Code:77445
Part Number:ST1698D47
Part Name:SPACER (5MM)
Manufacturer Code:K4585
Part Number:ST1698D48
Part Name:SPACER (10MM)
Manufacturer Code:K4585
Link not Found
Part Number:TA025017FT06
Part Name:CLIP
Manufacturer Code:84971
Part Number:TA025074-01
Part Name:CLAMP - 0.062 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61931CLAMP - LOOP, CUSHIONU1653
Part Number:TA025074-03
Part Name:CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61933CLAMP - LOOP, CUSHIONU1653
Part Number:TA025074-04
Part Name:CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61902CLAMP - LOOP, CUSHIONU1653
Part Number:TA025074-05
Part Name:CLAMP - LOOP, CUSHION, 0.313 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61903CLAMP - LOOP, CUSHIONU1653
Part Number:TA027000PH02WC
Part Name:CLIP
Manufacturer Code:84971
Part Number:TA027000PH03WC
Part Name:CLIP
Manufacturer Code:84971
Part Number:TA027000PH05WC
Part Name:CLIP
Manufacturer Code:84971
Part Number:TA027000PH07WC
Part Name:CLIP
Manufacturer Code:84971
