DMC:V2500-A1-71-52-41-02A-941A-DIssue No:003.00Issue Date:2020-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B71524102 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0098 | aa | ||
| SBN0098-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0097 | ab | ||
| SBN0097-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0289 | ac | ||
| SBN0289-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0664 | ad | ||
| SBN0664-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN71-0272 | ae | ||
| SBN0272-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0745 | af | ||
| SBN0745-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE | ag | ||
| -001 | 740-5967-513 | HARNESS - CORE SERVICES 51563 POST SBN70-0098 PRE SBN70-0097 | ab-ac | REF |
| -001A | 740-5967-517 | HARNESS - CORE SERVICES 51563 POST SBN70-0097 PRE SBN70-0289 | ab-ac | REF |
| -001B | 740-5967-519 | HARNESS - CORE SERVICES 51563 POST SBN70-0289 PRE SBN71-0272 | ad-ae | REF |
| -001C | 740-5967-523 | HARNESS - CORE SERVICES 51563 POST SBN71-0272 | af-ag | REF |
| -010 | 740-5861-513 | • HARNESS - FIRE DETECT (SYS A) 51563 POST SBN70-0098 PRE SBN70-0097 | ab-ac | REF |
| -010A | 740-5861-515 | • HARNESS - FIRE DETECT 51563 POST SBN70-0097 PRE SBN70-0289 | ab-ac | REF |
| -010B | 740-5861-517 | • HARNESS - FIRE DETECT (SYS A) 51563 POST SBN70-0289 PRE SBN71-0272 | ad-ae | REF |
| -010C | 740-5861-519 | • HARNESS - FIRE DETECT (SYS A) 51563 POST SBN71-0272 | af-ag | REF |
| 015 | 380AS003M1204A2 | • • BACKSHELL 51563 PRE SBN70-0098 | aa | 1 |
| 015A | 387AS008M1204A2 | • • BACKSHELL 06324 (FIN 4001WD1) POST SBN70-0098 PRE SBN70-0664 | aa-ad | 1 |
| 015B | ESC77E14 | • • CLAMP - BACKSHELL U1653 POST SBN70-0664 | ae-ag | 1 |
| 030 | 892-26K14S5SN | • • CONNECTOR F0225 (FIN 4001WD1) PRE SBN70-0664 | aa-ad | 1 |
| 030A | MS3459KS14S5S | • • CONNECTOR - ELECTRICAL 96906 POST SBN70-0664 | ae-ag | 1 |
| -035 | 8950-4778 | • • SOCKET - CONTACT F0225 POST SBN70-0181 | ***** | 16 |
| 050 | 380AS003M1204A2 | • • BACKSHELL 51563 PRE SBN70-0098 | aa | 1 |
| 050A | 387AS008M1204A2 | • • BACKSHELL 06324 (FIN 4008KS) POST SBN70-0098 | aa-ag | 1 |
| 065 | BSK12F1203SD | • • CONNECTR 51563 (FIN 4008KS) PRE SBN70-0289 | aa-ac | 1 |
| 065A | ESC10SE61203SN | • • CONNECTOR U1653 POST SBN70-0289 PRE SBN70-0745 | aa-ag | 1 |
| 065B | ESC10SE61203SN0 | • • CONNECTOR U1653 POST SBN70-0745 | aa-ag | 1 |
| -070 | BA4120-36LD | • • CONTACT - SOCKET 49367 | ***** | 16 |
| 085 | 380AS003M1406A2 | • • BACKSHELL 51563 PRE SBN70-0098 | aa | 1 |
| 085A | 387AS008M1406A2 | • • BACKSHELL 06324 (FIN 452VC) POST SBN70-0098 | aa-ag | 1 |
| 100 | E0442SE14-07P8 | • • CONNECTOR F0225 | aa-ag | 1 |
| -105 | 8522-1007 | • • PIN - CONTACT F0225 POST SBN70-0181 | ***** | 16 |
| -105A | 5000-270-1616 | • • PIN - CONTACT 14283 | ***** | REF |
| 120 | 323161 | • • TERMINAL - LUG EARTH K1636 | aa-ag | 2 |
| -200 | 740-5863-509 | • HARNESS - CABIN SERVICES 51563 POST SBN70-0098 PRE SBN70-0097 | ab-ag | REF |
| -200A | 740-5863-513 | • HARNESS - CABIN SERVICES 51563 POST SBN70-0097 | ab-ag | REF |
| 210 | 380AA003M1004A | • • BACKSHELL 51563 PRE SBN70-0098 | aa | 1 |
| 210A | 387AJ008M1004A | • • BACKSHELL 06324 (FIN 4000HA) POST SBN70-0098 | aa-ag | 1 |
| 225 | E0442SE10-05SN | • • CONNECTOR F0225 (FIN 4000HA) | aa-ag | 1 |
| -230 | 8533-1001 | • • SOCKET - CONTACT F0225 POST SBN70-0181 | ***** | 20 |
| -230A | 5100-427-2018 | • • SOCKET - CONTACT 14283 | ***** | REF |
| 240 | 4W7000 | • • BACKSHELL (FIN 4001HA) VENDOR PN (387AS008M1006A2-63) POST SBN70-0098 PRE SBN70-0097 | ab-ag | 1 |
| 240A | 4W7000 | • • BACKSHELL (FIN 4001HA) VENDOR PN (387AS008M1006A2-63) POST SBN70-0097 | ab-ag | 1 |
| 255 | E0442SE10-05S6 | • • CONNECTOR F0225 (FIN 4001HA) | aa-ag | 1 |
| -260 | 8533-1001 | • • SOCKET - CONTACT F0225 POST SBN70-0181 | ***** | 20 |
| -260A | 5100-427-2018 | • • SOCKET - CONTACT 14283 | ***** | REF |
| 275 | 380AS003M1206A2 | • • BACKSHELL 51563 PRE SBN70-0098 | aa | 1 |
| 275A | 387AS008M1206A2 | • • BACKSHELL 06324 (FIN 450VC) POST SBN70-0098 | aa-ag | 1 |
| 290 | E0442SE12-12PN | • • CONNECTOR F0225 (FIN 450VC) | aa-ag | 1 |
| 310 | 323161 | • • TERMINAL - LUG EARTH K1636 | aa-ag | 2 |
| -312 | HTMS1-4-4B | • • SLEEVE 00779 | ***** | 1 |
| -350 | RTS71445 | • • CABLE 81349 | ***** | 1 |
| -360 | EJS26012 | • • CABLE 51563 | ***** | 1 |
| -370 | EJS25529 | • • CABLE | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

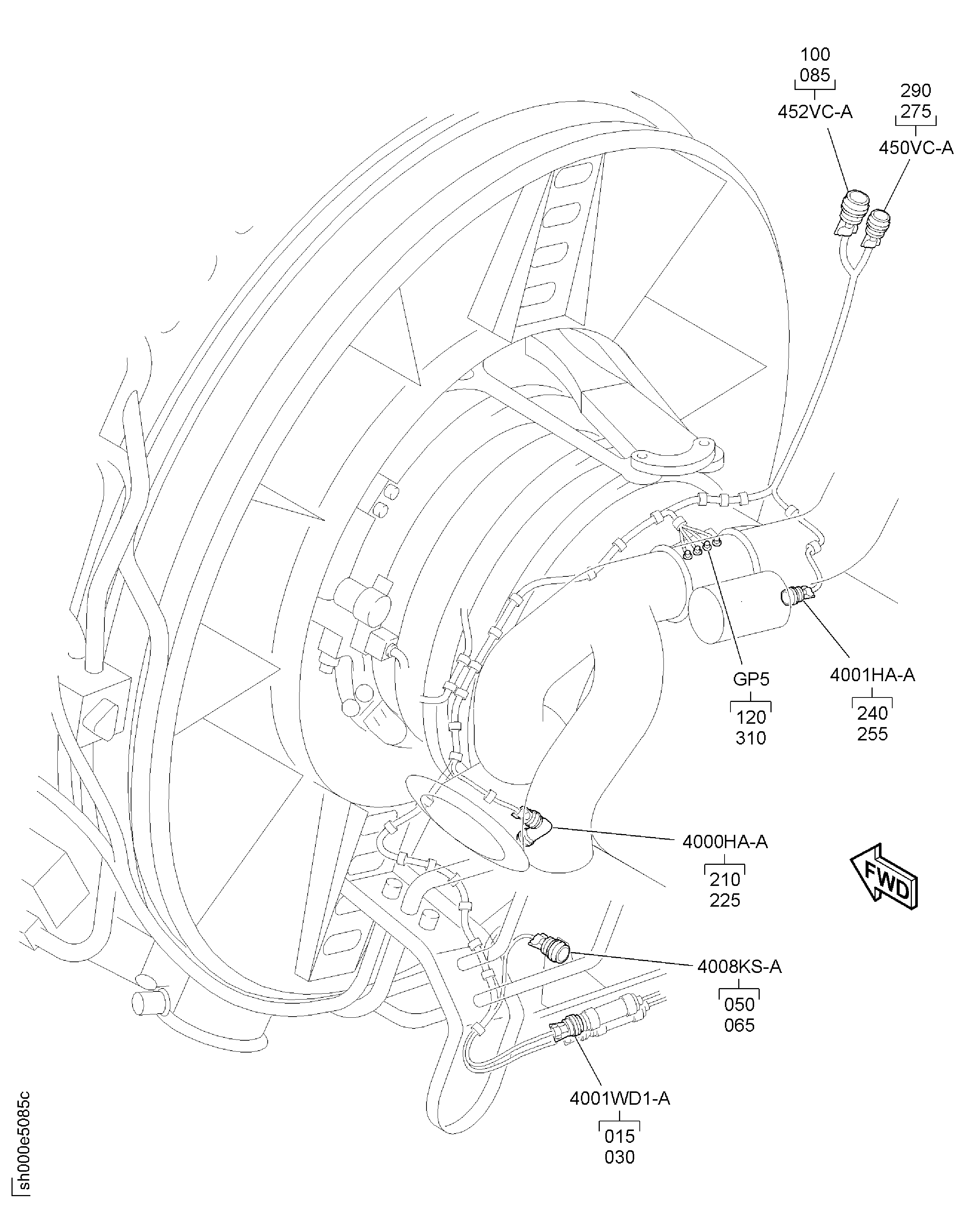

Figure: ELECT HARNESS-FIRE DETECTION (A) & CABIN SERVICE
Harness Core Services
