ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE

DMC:V2500-A1-71-52-43-02A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
02
000B71524302ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-COREaa
500500AS27832• NUT
U1653
PRE SBE72-0023		*****2
505505AS27832• NUT
U1653
PRE SBE72-0023		*****2
510510AS27831• NUT - .138 DIA
U1653
PRE SBE72-0023		*****2
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

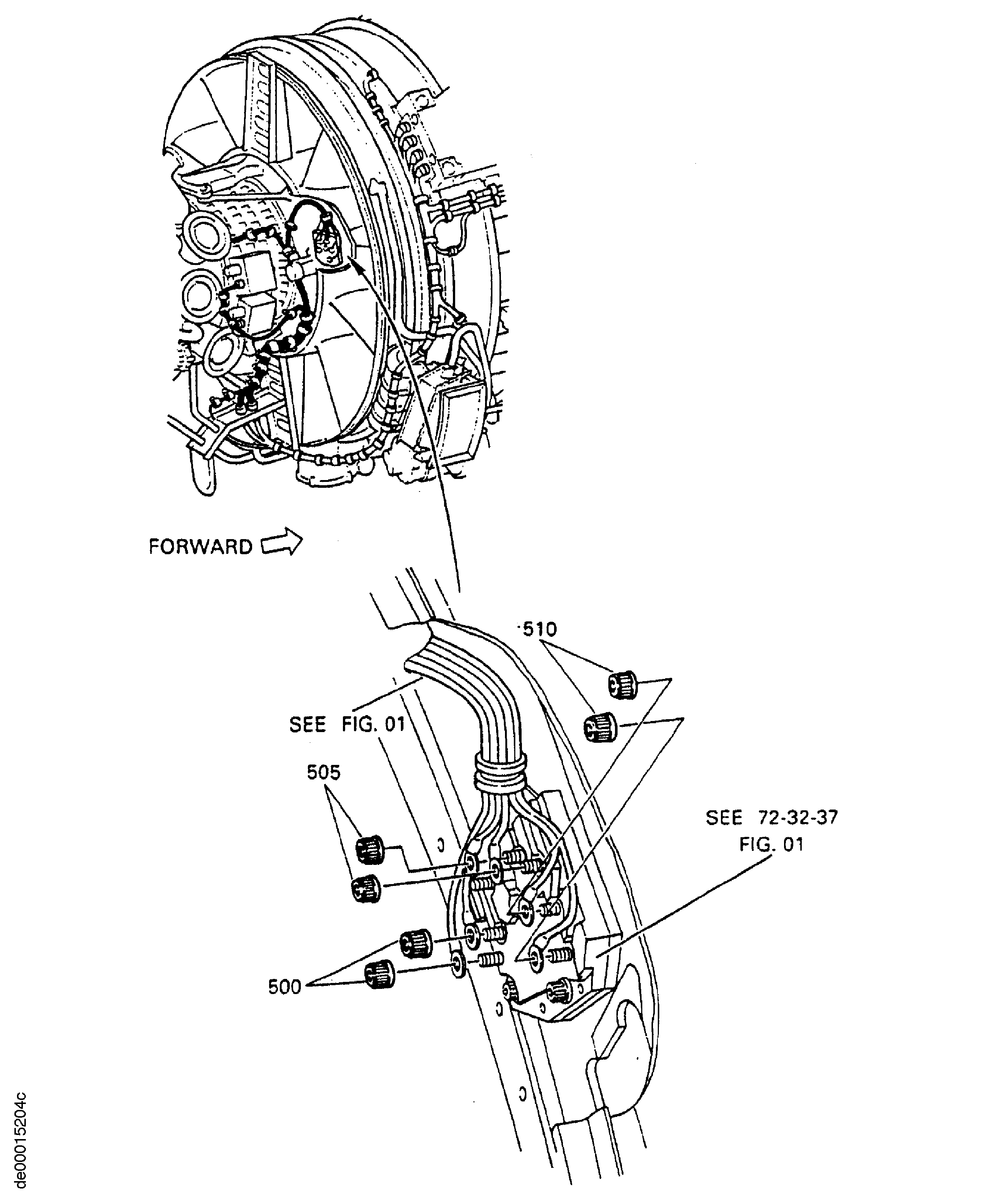

Figure: ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE

EEC HARNESS CORE

Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:AS27831
Part Name:NUT - 0.138 DIA
Manufacturer Code:U1653
Part Number:AS27832
Part Name:NUT - WASHER, ASSEMBLED
Manufacturer Code:U1653
