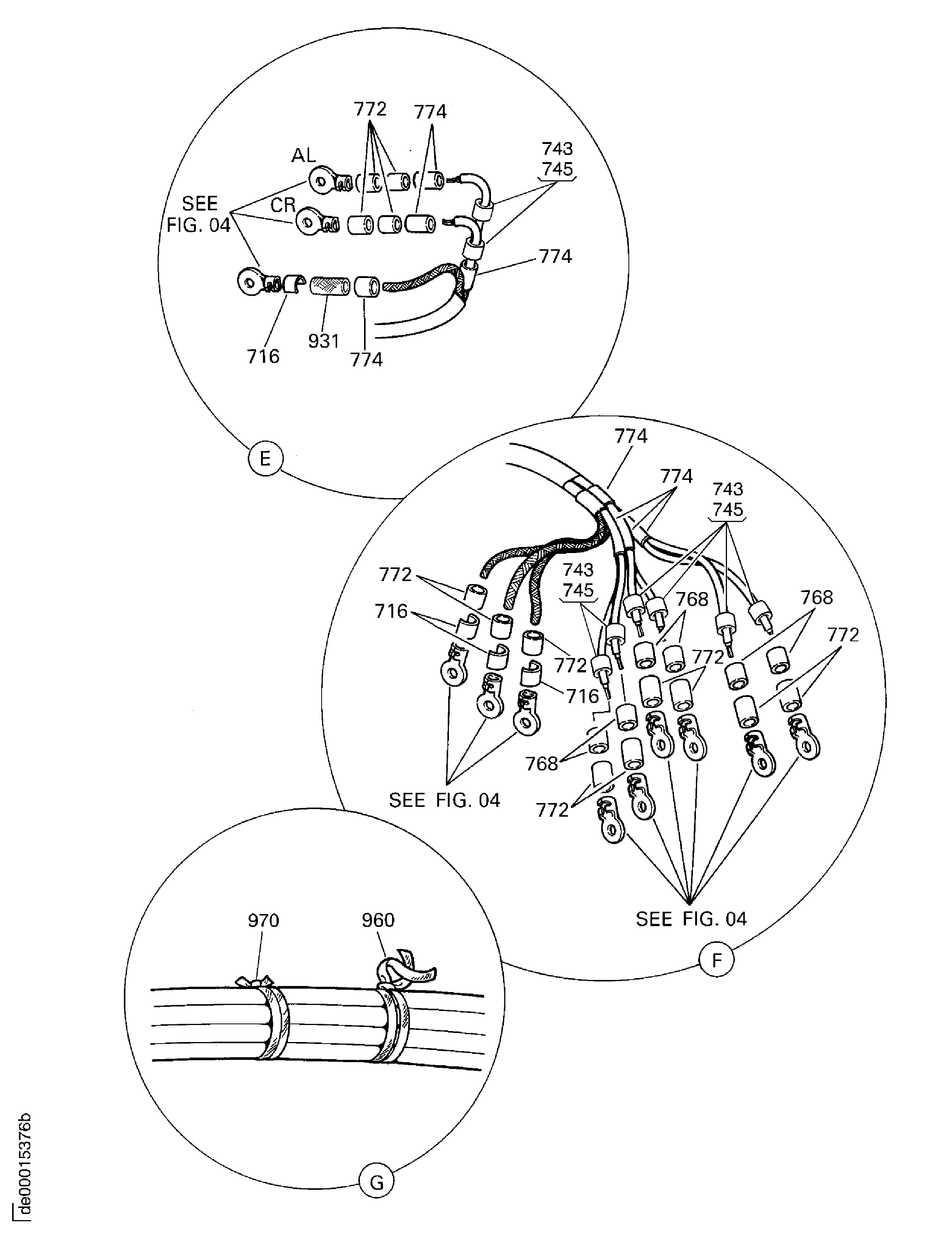

ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE

DMC:V2500-A1-71-52-43-03A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
03
000B71524303ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0083aa
000SBE0083-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0157ab
000SBE0157-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0270ac
000SBE0270-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0374ad
000SBE0374-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0638ae
000SBE0638-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0642af
000SBE0642-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0277ag
000SBE0277-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0978ah
000SBE0978-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0982ai
000SBE0982-01ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-COREaj
010010G9312S28BNFD3• • BACKSHLL
U0419
PRE SBE70-0374		aa-aj1
010010AESC65E28• • CLAMP - BACKSHELL
POST SBE70-0374		aa-aj1
030030G9312S28BNFD3• • BACKSHLL
U0419
PRE SBE70-0374		aa-aj1
030030AESC65E28• • CLAMP - BACKSHELL
POST SBE70-0374		aa-aj1
050050G9312A22BNFD• • BACKSHLL
U0419
PRE SBE70-0374		aa-aj1
050050AESC66E22• • CLAMP - BACKSHELL ASSY
POST SBE70-0374		aa-aj1
070070G9311A13BNFD• • BACKSHLL
U0419
PRE SBE70-0374		aa-aj1
070070A92H3-13-8JCCAD• • CLAMP - BACKSHELL ASSY
U5792
ALT 388HH104E13
POST SBE70-0374		aa-aj1
-070070B388HH104E13• • CLAMP - BACKSHELL ASSY
U0419
ALT 273E13
POST SBE70-0374		ae-ajREF
-070070C273E13• • CLAMP - BACKSHELL ASSY
U2824
ALT 92H3-13-8JCCAD
POST SBE70-0374		ae-ajREF
090090G9311S11BNFD3• • BACKSHLL
U0419
PRE SBE70-0374		aa-aj1
090090A92H1-11-8JCCAD• • CLAMP - BACKSHELL ASSY
U5792
ALT 388HS104E11
POST SBE70-0374		aa-aj1
-090090B388HS104E11• • CLAMP - BACKSHELL ASSY
U0419
ALT 272E11
POST SBE70-0374		ae-ajREF
-090090C272E11• • CLAMP - BACKSHELL ASSY
U2824
ALT 92H1-11-8JCCAD
POST SBE70-0374		ae-ajREF
110110G9311A11BNFD• • BACKSHLL
U0419
PRE SBE70-0374		aa-ad1
110110A92H3-11-8JCCAD• • CLAMP - BACKSHELL ASSY
U5792
ALT 388HH104E11
POST SBE70-0374
PRE SBE70-0978		ae-ah1
-110110B388HH104E11• • CLAMP - BACKSHELL ASSY
U0419
ALT 273E11
POST SBE70-0374
PRE SBE70-0978		ae-ahREF
-110110C273E11• • CLAMP - BACKSHELL ASSY
U2824
ALT 92H3-11-8JCCAD
POST SBE70-0374
PRE SBE70-0374		ae-ahREF
110110D92H3-11-8JCCAD• • CLAMP - BACKSHELL ASSY
U5792
POST SBE70-0978		ae-ah1
110110E388HH104E11• • CLAMP - BACKSHELL ASSY
U0419
ALT 273E11
POST SBE70-0978		ae-ah1
110110FRRGH3-11-8J• • CLAMP - BACKSHELL
U5792
ALT 92H3-11-8JCCAD
POST SBE70-0978		ae-ah1
130130G9311A11BNFD• • BACKSHLL
U0419
PRE SBE70-0374		aa-ah1
130130A92H3-11-8JCCAD• • CLAMP - BACKSHELL ASSY
U5792
ALT 388HH104E11
POST SBE70-0374
PRE SBE70-0978		aa-ah1
-130130B388HH104E11• • CLAMP - BACKSHELL ASSY
U0419
ALT 273E11
POST SBE70-0374
PRE SBE70-0978		ae-ahREF
-130130C273E11• • CLAMP - BACKSHELL ASSY
U2824
ALT 92H3-11-8JCCAD
POST SBE70-0374
PRE SBE70-0978		ae-ahREF
130130D92H3-11-8JCCAD• • CLAMP - BACKSHELL ASSY
U5792
POST SBE70-0978		ae-ah1
130130E388HH104E11• • CLAMP - BACKSHELL ASSY
U0419
ALT 273E11
POST SBE70-0978		ae-ah1
130130F273E11• • CLAMP - BACKSHELL ASSY
U2824
ALT 388HH104E11
POST SBE70-0978		ae-ah1
130130GRRGH3-11-8J• • CLAMP - BACKSHELL
U5792
POST SBE70-0978		ai-aj1
150150G9311A09ANFD• • BACKSHLL
U0419
PRE SBE70-0374		aa-aj1
150150A1018897• • CLAMP - BACKSHELL ASSY
ALT G9311A09AMD98Z
92H3-09-8JCCADLP
POST SBE70-0374		aa-aj1
-150150BG9311A09AMD98Z• • CLAMP - BACKSHELL ASSY
U0419
ALT 1018897
POST SBE70-0374		ae-ajREF
170170G9311A09ANFD• • BACKSHLL
U0419
PRE SBE70-0374		aa-aj1
170170A92H3-09-8JCCAD• • CLAMP - BACKSHELL ASSY
U5792
ALT 388HH104E09
POST SBE70-0374		aa-aj1
-170170B388HH104E09• • CLAMP - BACKSHELL ASSY
U0419
ALT 273E09
POST SBE70-0374		ae-ajREF
-170170C273E09• • CLAMP - BACKSHELL ASSY
U2824
ALT 92H3-09-8JCCAD
POST SBE70-0374		ae-ajREF
190190G9312S16BNFD3• • BACKSHLL
U0419
PRE SBE70-0374		aa-aj1
190190AESC65E16• • CLAMP - BACKSHELL
POST SBE70-0374		aa-aj1
210210G9312A14BNFD• • BACKSHLL
U0419
PRE SBE70-0374		aa-aj1
210210AESC66E14• • CLAMP - BACKSHELL
POST SBE70-0374		aa-aj1
7167162A1416-3• • HOLD - BAND
77445		aa-aj4
743743U322766• • TUBING
ALT SVT48
(SPARE IS U440344)
POST SBE70–0374
PRE SBE70–0277		ae-ag1
-743743ASVT48• • SLEEVE - SHRINK (SPARE IS U440345)
K0720
ALT U322766
POST SBE70-0374
PRE SBE70-0277		ae-agREF
743743BU440344• • TUBING - 50ME,164FT REEL
ALT U322766
(BULK STOCK U322766)
POST SBE70–0277		ah-aj1
-743743CU322766• • TUBING
ALT U440345
POST SBE70-0277		ah-ajREF
743743DU440345• • SLEEVE - 50ME,164FT REEL
ALT SVT48
(BULK STOCK SVT48)
POST SBE70–0277		ah-aj1
-743743ESVT48• • SLEEVE
K0720
ALT U440344
POST SBE70-0277		ah-ajREF
745745U322768• • TUBING
ALT SVT95
TO RK6014
POST SBE70-0374
(SEE ---01-230)		ae-aj1
-745745ASVT95• • SLEEVE - SHRINK
K0720
ALT U322768
POST SBE70-0374		ae-ajREF
768768RT1146• • TUBE - HEAT SHRINKABLE
81349
PRE SBE70-0083		aa-ad1
768768A2A1505-01• • TUBE - HEAT SHRINKABLE
POST SBE70-0083
PRE SBE70-0157		aa-ad1
768768BRT1146-1-8• • TUBING - HEAT SHRINKABLE, SIZE 1/8" DIA.
81349
POST SBE70-0157
PRE SBE70-0374		aa-ad1
772772RT1146• • TUBE - HEAT SHRINKABLE
81349
PRE SBE70-0083		aa-aj1
772772A2A1505-04• • TUBE - HEAT SHRINKABLE
POST SBE70-0083
PRE SBE70-0157		aa-aj1
772772BRT1146-3-8• • TUBING - HEAT SHRINKABLE, SIZE 3/8" DIA.
81349
POST SBE70-0157
PRE SBE70-0374		aa-aj1
772772CU323090• • SLEEVE - .375 DIA
POST SBE70-0374
PRE SBE70-0982		aa-aj1
772772DU323090• • SLEEVE - .375 DIA
POST SBE70-0982		aa-aj1
-772772EHTSCE3-8-2-0-9• • SLEEVE - SHRINK
K1010
POST SBE70-0982		ajREF
774774RT1146• • TUBE - HEAT SHRINKABLE
81349
PRE SBE70-0083		aa-ad1
774774A2A1505-03• • TUBE - HEAT SHRINKABLE
POST SBE70-0083
PRE SBE70-0157		aa-ad1
774774BRT1146-1-4• • TUBING - HEAT SHRINKABLE, SIZE 1/4" DIA.
81349
POST SBE70-0157
PRE SBE70-0374		aa-ad1
776776RT1146• • TUBE - HEAT SHRINKABLE
81349
PRE SBE70-0083		aa-aj1
776776A2A1505-05• • TUBE - HEAT SHRINKABLE
POST SBE70-0083
PRE SBE70-0157		aa-aj1
776776BRT1146-1-2• • TUBING - HEAT SHRINKABLE, SIZE 1/2" DIA.
81349
POST SBE70-0157
PRE SBE70-0374		aa-aj1
776776CU323094• • SLEEVE - IDENT, .500 DIA
POST SBE70-0374
PRE SBE70-0982		aa-aj1
776776DU323094• • SLEEVE - IDENT, .500 DIA
POST SBE70-0982		aa-aj1
-776776EHTSCE1-2-2-0-9• • SLEEVE - SHRINK
K1010
POST SBE70-0982		ajREF
778778RT1146• • TUBE - HEAT SHRINKABLE
81349
PRE SBE70-0083		aa-aj1
778778A2A1505-07• • TUBE - HEAT SHRINKABLE
POST SBE70-0083
PRE SBE70-0157		aa-aj1
778778BRT1146-3-4• • TUBING - HEAT SHRINKABLE, SIZE 3/4" DIA.
81349
POST SBE70-0157
PRE SBE70-0374		aa-aj1
778778CU323095• • SLEEVE - IDENT, .750 DIA
POST SBE70-0374
PRE SBE70-0982		aa-aj1
778778DU323095• • SLEEVE - IDENT, .750 DIA
POST SBE70-0982		aa-aj1
-778778EHTSCE3-4-2-0-9• • SLEEVE - SHRINK
K1010
POST SBE70-0982		ajREF
780780RT1146• • TUBE - HEAT SHRINKABLE
81349
PRE SBE70-0083		aa1
780780A2A1505-09• • TUBE - HEAT SHRINKABLE
POST SBE70-0083
PRE SBE70-0157		ab1
780780BRT1146-1• • TUBING - HEAT SHRINKABLE, SIZE 1" DIA.
81349
POST SBE70-0157
PRE SBE70-0374		ac-ad1
781781RT1146• TUBE - HEAT SHRINKABLE
81349
PRE SBE70-0083		aa-ad1
781781A2A1505-10• TUBE - HEAT SHRINKABLE
POST SBE70-0083
PRE SBE70-0157		aa-ad1
781781BRT1146-1-1-4• TUBING - HEAT SHRINKABLE, SIZE 1.1/4" DIA
81349
POST SBE70-0157
PRE SBE70-0374		aa-ad1
782782RT1146• • TUBE - HEAT SHRINKABLE
81349
PRE SBE70-0083		aa-aj1
782782A2A1505-11• • TUBE - HEAT SHRINKABLE
POST SBE70-0083
PRE SBE70-0157		aa-aj1
782782BRT1146-1-1-2• • TUBING - HEAT SHRINKABLE, SIZE 1.1/2" DIA.
81349
POST SBE70-0157
PRE SBE70-0374		aa-aj1
782782CU323097• • SLEEVING - COLOUR WHITE CONNE, TMS 1.1/2 (1.500)
POST SBE70-0374
PRE SBE70-0982		aa-aj1
782782DU323097• • SLEEVING - COLOUR WHITE CONNE, TMS 1.1/2 (1.500)
POST SBE70-0982		aa-aj1
-782782ETMSSCE1-8-2-0-9• • SLEEVE - SHRINK, WHITE 3.18MM DIA
K1010
POST SBE70-0982		ajREF
815815ESC53-20• • BUSH
POST SBE70-0374
PRE SBE70-0642		ae-aj1
815815ASF1• • BUSH
K7823
ALT ESC53-20
POST SBE70-0642		ae-aj1
815815BESC53-20• • BUSH
ALT SF1
POST SBE70-0642		ae-aj1
816816ESC53-21• • BUSH
POST SBE70-0374
PRE SBE70-0642		ae-aj1
816816ASF1• • BUSH
K7823
ALT ESC53-21
POST SBE70-0642		ae-aj1
816816BESC53-21• • BUSH
ALT SF1
POST SBE70-0642		ae-aj1
818818ESC53-23• • BUSH
POST SBE70-0374
PRE SBE70-0642		ae-aj3
818818ASF51• • BUSH
K7823
ALT ESC53-23
POST SBE70-0642		ae-aj3
818818BESC53-23• • BUSH
ALT SF51
POST SBE70-0642		ae-aj3
819819ESC53-27• • BUSH
POST SBE70-0374
PRE SBE70-0642		ae-aj1
819819ASF13• • BUSH
K7823
ALT ESC53-27
POST SBE70-0642		ae-aj1
819819BESC53-27• • BUSH
ALT SF13
POST SBE70-0642		ae-aj1
820820ESC53-28• • BUSH
POST SBE70-0374
PRE SBE70-0642		ae-aj1
820820ASF15• • BUSH
K7823
ALT ESC53-28
POST SBE70-0642		ae-aj1
820820BESC53-28• • BUSH
ALT SF15
POST SBE70-0642		ae-aj1
821821ESC53-32• • BUSH
POST SBE70-0374
PRE SBE70-0642		ae-aj1
821821ASF56• • BUSH
K7823
ALT ESC53-32
POST SBE70-0642		ae-aj1
821821BESC53-32• • BUSH
ALT SF56
POST SBE70-0642		ae-aj1
822822ESC53-36• • BUSH
POST SBE70-0374
PRE SBE70-0642		ae-aj1
822822ASF20• • BUSH
K7823
ALT ESC53-36
POST SBE70-0642		ae-aj1
822822BESC53-36• • BUSH
ALT SF20
POST SBE70-0642		ae-aj1
823823ESC53-43• • BUSH
POST SBE70-0374
PRE SBE70-0642		ae-aj2
823823ASF29• • BUSH
K7823
ALT ESC53-43
POST SBE70-0642		ae-aj2
823823BESC53-43• • BUSH
ALT SF29
POST SBE70-0642		ae-aj2
931931S792• • TUBE - GLASS FABRIC
77445
PRE SBE70-0270		aa-ad1
931931AS792• • TUBE - GLASS FABRIC
77445
ALT MILI18746
POST SBE70-0270
PRE SBE70-0374		aa-ad1
931931BMILI18746• • TAPE - GLASS
81349
ALT S792
POST SBE70-0270
PRE SBE70-0374		ad-aj1
931931CMILI18746• • TAPE - GLASS
81349
POST SBE70-0374		ad-aj1
9409403M62• • TAPE - PTFE
K8767
PRE SBE70-0270		aa-ac1
960960AIRTEX360• • TAPE - LACING
K7766
PRE SBE70-0270		aa-af1
960960AMILT43435TYPEIV• • TAPE
81349
POST SBE70-0270
PRE SBE70-0374		aa-af1
-960960B3100631• • BRAID
(SPARE IS U440068)
POST SBE70-0374
PRE SBE70-0638		aa-afREF
960960CU440068• • BRAID - 100ME,330FT REEL
ALT 3100631
POST SBE70-0638
PRE SBE70-0642		aa-af1
-960960D3100631• • BRAID
ALT U440068
(SPARE IS U440068)
POST SBE70-0638
PRE SBE70-0642		aa-afREF
960960EU440254• • TAPE - 450ME,1500FT REEL
ALT ESW1900
(BULK STOCK ESW1900)		ag-aj1
-960960FESW1900• • TAPE
ALT U440068
POST SBE70-0642		ag-ajREF
960960GU440068• • BRAID - 100ME,330FT REEL
ALT 3100631
(BULK T085/3100631)
POST SBE70-0642		ag-aj1
-960960H3100631• • BRAID
ALT U440254
POST SBE70-0642		ag-ajREF
970970718G• • TAPE - LACING (SPARE IS U440198)
K7F94
POST SBE70-0374
PRE SBE70-0642		ae-af1
970970AU440036• • TAPE - 33ME,108FT REEL
ALT U322742
(BULK STOCK U322742)
POST SBE70-0642		ag-aj1
-970970BU322742• • TAPE - WHITE - 0.500 WIDE
ALT U440198
(SPARE IS U440036)		ag-ajREF
970970CU440198• • TAPE - 457ME,1500FT REEL
ALT 718G
POST SBE70-0642		ag-aj1
-970970D718G• • TAPE - LACING (SPARE IS U440198)
K7F94
ALT U440036
POST SBE70-0642		ag-ajREF
995995MS20995C20• • WIRE - LOCKING
96906
PRE SBE70-0083		aa1
995995AAS44725-1• • WIRE - LOCKING, 0.5 MM DIA
U1653
POST SBE70-0374		ae-aj1
997997MS20995C32• • WIRE - LOCKING
96906
PRE SBE70-0083		aa1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE

EEC HARNESS CORE

EEC HARNESS CORE

EEC HARNESS CORE

EEC HARNESS CORE

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Manufacturer Code:81349
Enterprise Name:DELETED, SEE CAGE CODE 81348
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K1010
Enterprise Name:RAYCHEM LTD
BU Name:RAYCHEM LTD
Street:FARADAY ROAD
City:SWINDON
State:WILTS
Province:DORCAN
Zip Code:SN3 5HH
Country:ENGLAND
Manufacturer Code:K1860
Enterprise Name:CRITCHLEY LTD
BU Name:CRITCHLEY LTD
Building:WELLINGTON HOUSE
Street:BATH ROAD
City:WOODCHESTER
State:GLOUCESTERSHIRE
Zip Code:GL5 5EY
Country:ENGLAND
Manufacturer Code:K7823
Enterprise Name:DELETED
BU Name:DELETED,SEE SUPPLIER CODE IAE521
Manufacturer Code:U0419
Enterprise Name:GLENAIR INTERNATIONAL
BU Name:GLENAIR INTERNATIONAL
Street:40 LOWER OAKUM WAY,OAKUM
City:NOTTINGHAM
State:MANSFIELD
Zip Code:NG18 5BY
Country:GREAT BRITAIN
Phone Number:44-1623-638100
Fax Number:44-1623-638111
Internet:www.glenair.com
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Manufacturer Code:U2824
Enterprise Name:KEMBREY WIRING SYSTEMS
BU Name:KEMBREY WIRING SYSTEMS
Street:KEMBREY STREET
City:SWINDON
State:WILTSHIRE
Province:CROWDYS HILL ESTATE
Zip Code:SN2 6BJ
Country:ENGLAND
Manufacturer Code:U5792
Enterprise Name:POLAMCO LTD
BU Name:POLAMCO LTD
Building:WESTON LOCK
Street:LOWER BRISTOL ROAD
City:BATH
State:VIRGINIA
Zip Code:BA2 1EP
Country:NULL
Part Number:1018897
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:272E11
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:272E11
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U2824
Link not Found
Link not Found
Part Number:273E11
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:0AM53
Part Number:273E11
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:U2824
Link not Found
Part Number:273E13
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:U2824
Link not Found
Part Number:2A1505-01
Part Name:TUBE - HEAT SHRINKABLE
Manufacturer Code:0AM53
Part Number:2A1505-03
Part Name:TUBE - HEAT SHRINKABLE
Manufacturer Code:0AM53
Part Number:2A1505-04
Part Name:TUBE - HEAT SHRINKABLE
Manufacturer Code:0AM53
Part Number:2A1505-05
Part Name:TUBE - HEAT SHRINKABLE
Manufacturer Code:0AM53
Part Number:2A1505-07
Part Name:TUBE - HEAT SHRINKABLE
Manufacturer Code:0AM53
Part Number:2A1505-09
Part Name:TUBE - HEAT SHRINKABLE
Manufacturer Code:0AM53
Part Number:2A1505-10
Part Name:TUBE - HEAT SHRINKABLE
Manufacturer Code:0AM53
Part Number:2A1505-11
Part Name:TUBE - HEAT SHRINKABLE
Manufacturer Code:0AM53
Link not Found
Part Number:388HH104E09
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:0AM53
Part Number:388HH104E09
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:U0419
Part Number:388HH104E11
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:0AM53
Part Number:388HH104E11
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:U0419
Part Number:388HH104E13
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:0AM53
Part Number:388HH104E13
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:U0419
Part Number:388HS104E11
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:0AM53
Part Number:388HS104E11
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:U0419
Link not Found
Part Number:718G
Part Name:TAPE - LACING
Manufacturer Code:0AM53
Link not Found
Link not Found
Part Number:92H1-11-8JCCAD
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U5792
Link not Found
Part Number:92H3-09-8JCCAD
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U5792
Link not Found
Part Number:92H3-11-8JCCAD
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U5792
Link not Found
Part Number:92H3-13-8JCCAD
Part Name:CLAMP - BACKSHELL ASSY
Manufacturer Code:U5792
Link not Found
Part Number:AS44725-1
Part Name:WIRE - LOCKING
Manufacturer Code:U1653
Link not Found
Link not Found
Link not Found
Link not Found
Link not Found
Link not Found
Link not Found
Link not Found
Link not Found
Link not Found
Link not Found
Part Number:ESC66E14
Part Name:CLAMP - BACKSHELL, ASSY
Manufacturer Code:0AM53
Link not Found
Part Number:ESW1900
Part Name:TAPE
Manufacturer Code:0AM53
Link not Found
Part Number:G9311A09AMD98Z
Part Name:CLAMP - BACKSHELL, ASSEMBLY OF
Manufacturer Code:U0419
Part Number:G9311A09ANFD
Part Name:BACKSHELL
Manufacturer Code:U0419
Part Number:G9311A11BNFD
Part Name:BACKSHELL
Manufacturer Code:U0419
Part Number:G9311A13BNFD
Part Name:BACKSHELL
Manufacturer Code:U0419
Part Number:G9311S11BNFD3
Part Name:BACKSHELL
Manufacturer Code:U0419
Part Number:G9312A14BNFD
Part Name:BACKSHELL
Manufacturer Code:U0419
Part Number:G9312A22BNFD
Part Name:BACKSHELL
Manufacturer Code:U0419
Part Number:G9312S16BNFD3
Part Name:BACKSHELL
Manufacturer Code:U0419
Part Number:G9312S28BNFD3
Part Name:BACKSHELL
Manufacturer Code:U0419
Part Number:HS381WE
Part Name:SLEEVE - IDENT WHITE
Manufacturer Code:K1860
Optional Parts
Part NumberPart NameManufacturer
TMSSCE1-8-2-0-9SLEEVE - SHRINK, IDENT SLEEVE - SHRINK, WHITE 3.18 MM DIA0AM53
U323097SLEEVING - COLOUR WHITE CONNE0AM53
Part Number:HTSCE1-2-2-0-9
Part Name:SLEEVE - SHRINK
Manufacturer Code:K1010
Part Number:HTSCE3-4-2-0-9
Part Name:SLEEVE - SHRINK
Manufacturer Code:K1010
Part Number:HTSCE3-8-2-0-9
Part Name:SLEEVE - SHRINK
Manufacturer Code:K1010
Optional Parts
Part NumberPart NameManufacturer
U323090SLEEVE - .375 DIA0AM53
Part Number:MILI18746
Part Name:TAPE - GLASS
Manufacturer Code:81349
Part Number:MILT43435TYPEIV
Part Name:TAPE
Manufacturer Code:81349
Part Number:MS20995C20
Part Name:WIRE - LOCKING
Manufacturer Code:96906
Part Number:MS20995C32
Part Name:WIRE - LOCKING
Manufacturer Code:96906
Link not Found
Part Number:RT1146-1-1-2
Part Name:TUBING - HEAT SHRINKABLE, SIZE 1.1/2 DIA.
Manufacturer Code:81349
Part Number:RT1146-1-1-4
Part Name:TUBING - HEAT SHRINKABLE, SIZE 1.1/4 DIA
Manufacturer Code:81349
Part Number:RT1146-1-2
Part Name:TUBING - HEAT SHRINKABLE, SIZE 1/2 DIA.
Manufacturer Code:81349
Part Number:RT1146-1-4
Part Name:TUBING - HEAT SHRINKABLE, SIZE 1/4 DIA.
Manufacturer Code:81349
Part Number:RT1146-1-8
Part Name:TUBING - HEAT SHRINKABLE, SIZE 1/8 DIA.
Manufacturer Code:81349
Part Number:RT1146-1
Part Name:TUBING - HEAT SHRINKABLE, SIZE 1 DIA.
Manufacturer Code:81349
Part Number:RT1146-3-4
Part Name:TUBING - HEAT SHRINKABLE, SIZE 3/4 DIA.
Manufacturer Code:81349
Part Number:RT1146-3-8
Part Name:TUBING - HEAT SHRINKABLE, SIZE 3/8 DIA.
Manufacturer Code:81349
Part Number:RT1146
Part Name:TUBE - HEAT SHRINKABLE
Manufacturer Code:81349
Part Number:S792
Part Name:TUBE - GLASS FABRIC
Manufacturer Code:0AM53
Part Number:S792
Part Name:TUBE - GLASS FABRIC
Manufacturer Code:77445
Link not Found
Part Number:SF13
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-27BUSHING0AM53
ESC53-31BUSHING0AM53
Link not Found
Part Number:SF15
Part Name:BUSHING
Manufacturer Code:K7823
Link not Found
Part Number:SF1
Part Name:BUSHING
Manufacturer Code:K7823
Link not Found
Part Number:SF20
Part Name:BUSHING
Manufacturer Code:K7823
Link not Found
Part Number:SF29
Part Name:BUSHING
Manufacturer Code:K7823
Link not Found
Part Number:SF51
Part Name:BUSHING
Manufacturer Code:K7823
Link not Found
Part Number:SF56
Part Name:BUSHING
Manufacturer Code:K7823
Optional Parts
Part NumberPart NameManufacturer
ESC53-32BUSHING0AM53
Link not Found
Link not Found
Link not Found
Link not Found
Part Number:TMSSCE1-8-2-0-9
Part Name:SLEEVE - SHRINK, IDENT
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
HS381WESLEEVE - IDENT WHITEK1860
U323097SLEEVING - COLOUR WHITE CONNE0AM53
U323940SLEEVE - .125 DIA INDEF0AM53
Part Number:TMSSCE1-8-2-0-9
Part Name:SLEEVE - SHRINK, WHITE 3.18 MM DIA
Manufacturer Code:K1010
Part Number:U322742
Part Name:TAPE - WHITE, 0.500 WIDE
Manufacturer Code:0AM53
Part Number:U322766
Part Name:TUBING
Manufacturer Code:0AM53
Part Number:U322768
Part Name:TUBING
Manufacturer Code:0AM53
Part Number:U323090
Part Name:SLEEVE - .375 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
HTSCE3-8-2-0-9SLEEVE - SHRINKSLEEVE - SHRINKK1010
Part Number:U323094
Part Name:SLEEVE - IDENTIFICATION, 0.500 DIA
Manufacturer Code:0AM53
Part Number:U323095
Part Name:SLEEVE - IDENTIFICATION, 0.750 DIA
Manufacturer Code:0AM53
Part Number:U323097
Part Name:SLEEVING - COLOUR WHITE CONNE
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
HS381WESLEEVE - IDENT WHITEK1860
TMSSCE1-8-2-0-9SLEEVE - SHRINK, IDENT SLEEVE - SHRINK, WHITE 3.18 MM DIA0AM53
Part Number:U323940
Part Name:SLEEVE - .125 DIA INDEF
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
HS032WESLEEVEK1860
Part Number:U440036
Part Name:TAPE - 33ME,108FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U322742TAPE - WHITE, 0.500 WIDE0AM53
U440198TAPE - 457ME,1500FT REEL0AM53
Part Number:U440068
Part Name:BRAID - 100ME,330FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440254TAPE - 450ME,1500FT REEL0AM53
Part Number:U440198
Part Name:TAPE - 457ME,1500FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440036TAPE - 33ME,108FT REEL0AM53
Part Number:U440254
Part Name:TAPE - 450ME,1500FT REEL
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
U440068BRAID - 100ME,330FT REEL0AM53
Part Number:U440344
Part Name:TUBING - 50 ME, 164 FT REEL
Manufacturer Code:0AM53
Part Number:U440345
Part Name:SLEEVE - 50 ME, 164 FT REEL
Manufacturer Code:0AM53
