ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE

DMC:V2500-A1-71-52-43-04A-941A-D|Issue No:002.00|Issue Date:2020-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
04
000B71524304ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE, PRE SBE70-0083aa
000SBE0083-01ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE, PRE SBE70-0156ab
000SBE0156-01ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE, PRE SBE71-0111ac
000SBE0111-01ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE, PRE SBE70-0374ad
000SBE0374-01ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE, PRE SBE70-0638ae
000SBE0638-01ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - CORE, PRE SBE73-0250af
000SBE0250-01ELECTRICAL HARNESS - LIGHT DUTY - EEC HARNESS - COREag
010010BSK17E2842PD• • RECEPTACLE
U0425
(FIN 4008VC)
PRE SBE70-0156		aa-af1
010010AESC10KE02842PN0• • CONNECTOR
(FIN 4008VC)		aa-af1
015015BA4016-36LD• • CONTACT - PIN
U0425
PRE SBE70-0156		aa-ab38
015015AESC30P16BC• • CONTACT - PLUG
U1653
POST SBE70-0156		ac-af38
027027BA4016-10P• • CONTACT - PIN CHROMEL
U0425
PRE SBE70-0156		aa-ab2
027027AESC30P16NC• • CONTACT
U1653
POST SBE70-0156		ac-af2
028028BA4016-10R• • CONTACT - PIN ALUMEL
U0425
PRE SBE70-0156		aa-ab2
028028AESC30P16NA• • CONTACT
U1653
POST SBE70-0156		ac-af2
029029MS27488-16• • PLUG - SEALING
96906		aa-af16
030030BSK17E2842PD06• • RECEPTACLE
49367
(FIN 4009VC)
PRE SBE70-0156		aa-af1
030030AESC10KE02842P60• • CONNECTR
U1653
(FIN 4009VC)
POST SBE70-0156		aa-af1
035035BA4016-36LD• • CONTACT - PIN
U0425
PRE SBE70-0156		aa-ab36
035035AESC30P16BC• • CONTACT - PLUG
U1653
POST SBE70-0156		ac-af36
047047BA4016-10P• • CONTACT - PIN CHROMEL
U0425
PRE SBE70-0156		aa-ab3
047047AESC30P16NC• • CONTACT
U1653
POST SBE70-0156		ac-af3
048048BA4016-10R• • CONTACT - PIN ALUMEL
U0425
PRE SBE70-0156		aa-ab3
048048AESC30P16NA• • CONTACT
U1653
POST SBE70-0156		ac-af3
049049MS27488-16• • PLUG - SEALING
96906		aa-af12
050050BSK12F2219SD• • PLUG
U0425
(FIN 4027KS-A)
PRE SBE70-0156		aa-af1
050050AESC10SE62219SN0• • CONNECTOR
U1653
(FIN 4027KS-A)
POST SBE70-0156		aa-af1
055055BA4116-36LD• • CONTACT - SOCKET
U0425
PRE SBE70-0083		aa10
055055ABA4116-36LD• • CONTACT - SOCKET
U0425
POST SBE70-0083
PRE SBE70-0156		ab19
055055BESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ac-af19
069069MS27488-16• • PLUG - SEALING
96906		aa-af7
070070T3K1213-98SN• • PLUG
U0425
(FIN 4021KS-A)
PRE SBE70-0156		aa-af1
070070AT3K1213-98SN• • PLUG
U0425
ALT MT938T13K98SN
(FIN 4021KS-A)
POST SBE70-0156		aa-af1
-070070BMT938T13K98SN• • CONNECTOR
14283
ALT T3K1213-98SN
POST SBE70-0156		ac-afREF
075075T3-4120-36LD• • CONTACT - SOCKET
U0425
PRE SBE70-0156		aa-ab10
075075AT3-4120-36LD• • CONTACT - SOCKET
U0425
ALT 5100-101-0120
POST SBE70-0156		ac-af10
075075B5100-101-0120• • CONTACT - SOCKET
14283		REF
075075CXT3-4120-36LD• • CONTACT - SOCKET
49367
ALT M39029-56-351
PRE SBE73-0250		aa-af10
-075075DM39029-56-351• • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		agREF
089089MS27488-20• • PLUG - SEALING
96906		aa-af2
090090T3K1211-98SN• • PLUG
U0425
(FIN 4021KS-B)
PRE SBE70-0156		aa-af1
090090AT3K1211-98SN• • PLUG
U0425
ALT MT938T11K98SN
(FIN 4021KS-B)
POST SBE70-0156		aa-af1
-090090BMT938T11K98SN• • CONNECTOR - ASSEMBLY OF
14283
ALT T3K1211-98SN
(FIN 4021KS-B)
PRE SBE70-0156		ac-afREF
095095T3-4120-36LD• • CONTACT - SOCKET
U0425
PRE SBE70-0156		aa-ab6
095095AT3-4120-36LD• • • CONTACT - SOCKET
U0425
ALT 5100-101-0120
POST SBE70-0156		ac-af6
-095095B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156		ac-afREF
095095CXT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT M39029-56-351
PRE SBE73-0250		aa-af6
-095095DM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		agREF
109109MS27488-20• • PLUG - SEALING
96906		aa-af2
110110T3K1211-98SB• • PLUG
U0425
PRE SBE70-0156		aa-ac1
110110AT3K1211-98SB• • PLUG
U0425
ALT MT938T11K98SB
POST SBE70-0156
PRE SBE71-0111		aa-ac1
-110110BMT938T11K98SB• • PLUG - ASSEMBLY OF
14283
ALT T3K1211-98SB
POST SBE70-0156
PRE SBE71-0111		acREF
110110CT3K121198SB1259• • CONNECTOR - ASSEMBLY OF
U0425
ALT 1017687
POST SBE71-0111		aa-af1
-110110D1017687• • CONNECTOR - ASSEMBLY OF
ALT T3K121198SB1259
ALT MT938T11K98SB901
POST SBE71-0111		ac-afREF
115115T3-4120-36LD• • CONTACT - SOCKET
U0425
PRE SBE70-0156		aa-ab6
115115AT3-4120-36LD• • • CONTACT - SOCKET
U0425
ALT 5100-101-0120
POST SBE70-0156		ac-af1
-115115B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156		ac-afREF
115115CXT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT M39029-56-351
PRE SBE73-0250		aa-af6
-115115DM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		agREF
129129MS27488-20• • PLUG - SEALING
96906		aa-af2
130130T3K1211-98SA• • PLUG
U0425
PRE SBE70-0156		aa-ac1
130130AT3K1211-98SA• • PLUG
U0425
ALT MT938T11K98SA
POST SBE70-0156
PRE SBE71-0111		aa-ac1
-130130BMT938T11K98SA• • PLUG - ASSEMBLY OF
14283
ALT T3K1211-98SA
POST SBE70-0156
PRE SBE71-0111		acREF
130130CT3K121198SA1259• • CONNECTOR - ASSEMBLY OF
U0425
ALT 1017685
POST SBE71-0111		aa-af1
-130130D1017685• • CONNECTOR - ASSEMBLY OF
ALT T3K121198SA1259
ALT MT938T11K98SB90
POST SBE71-0111		ac-afREF
135135T3-4120-36LD• • CONTACT - SOCKET
U0425
PRE SBE70-0156		aa-ab6
135135AT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0156		ac-af6
-135135B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156		ac-afREF
135135CXT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT M39029-56-351
PRE SBE73-0250		aa-af6
-135135DM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		agREF
145145MS27488-20• • PLUG - SEALING
96906		aa-af2
150150T3K1209-98SN• • PLUG
U0425
PRE SBE70-0156		aa-ac1
150150AT3K1209-98SN• • PLUG
U0425
ALT MT938T09K98SN
POST SBE70-0156
PRE SBE71-0111		aa-ac1
-150150BMT938T09K98SN• • CONNECTOR
14283
ALT T3K1209-98SN
POST SBE70-0156
PRE SBE71-0111		acREF
150150CT3K120998SN1259• • CONNECTOR - ASSEMBLY OF
U0425
ALT MT938T09K98S901
POST SBE71-0111		aa-af1
-150150DMT938T09K98S901• • CONNECTOR - ASSEMBLY OF
14283
ALT T3K120998SN1259
POST SBE71-0111		ac-afREF
155155T3-4120-36LD• • CONTACT - SOCKET
U0425
PRE SBE70-0156		aa-ab3
155155AT3-4120-36LD• • • CONTACT - SOCKET
U0425
ALT 5100-101-0120
POST SBE70-0156		ac-af1
-155155B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156		ac-afREF
155155CXT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT M39029-56-351
PRE SBE73-0250		aa-af3
-155155DM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		agREF
169169MS27488-20• • PLUG - SEALING
96906		aa-af1
170170T3K1209-98SA• • PLUG
U0425
PRE SBE70-0156		aa-ac1
170170AT3K1209-98SA• • PLUG
U0425
ALT MT938T09K98SA
POST SBE70-0156
PRE SBE71-0111		aa-ac1
-170170BMT938T09K98SA• • PLUG - ASSEMBLY OF
14283
ALT T3K1209-98SA
POST SBE70-0156
PRE SBE71-0111		acREF
170170CT3K120998SA1259• • CONNECTOR - ASSEMBLY OF
U0425
ALT 1017684
POST SBE71-0111		aa-af1
-170170D1017684• • CONNECTOR - ASSEMBLY OF
ALT T3K120998SA1259
POST SBE71-0111		ac-afREF
175175T3-4120-36LD• • CONTACT - SOCKET
U0425
PRE SBE70-0156		aa-ab3
175175AT3-4120-36LD• • • CONTACT - SOCKET
U0425
ALT 5100-101-0120
POST SBE70-0156		ac-af1
-175175B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156		ac-afREF
175175CXT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT M39029-56-351
PRE SBE73-0250		aa-af3
-175175DM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		agREF
189189MS27488-20• • PLUG - SEALING
96906		aa-af1
190190BSK12F1610SD• • PLUG
U0425
PRE SBE70-0156		aa-af1
190190AESC10SE61610SN0• • CONNECTOR
U1653
POST SBE70-0156		aa-af1
195195BA4116-36LD• • CONTACT - SOCKET
U0425
PRE SBE70-0156		aa-ab6
195195AESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ac-af6
207207BA4116-10P• • CONTACT - SOCKET, CHROMEL
U0425
PRE SBE70-0156		aa-ab2
207207AESC30S16NC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ac-af2
208208BA4116-10R• • CONTACT - SOCKET, ALUMEL
U0425
PRE SBE70-0156		aa-ab2
208208AESC30S16NA• • CONTACT - SOCKET
U1653
POST SBE70-0156		ac-af2
209209MS27488-16• • PLUG - SEALING
96906		aa-af2
210210BSK12F1407SD• • PLUG
U0425
PRE SBE70-0156		aa-af1
210210AESC10SE61407SN0• • CONNECTOR
U1653
(FIN 4007VC-A)
POST SBE70-0156		aa-af1
215215BA4116-36LD• • CONTACT - SOCKET
U0425
PRE SBE70-0156		aa-ab3
215215AESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ac-af3
227227BA4116-10P• • CONTACT - SOCKET, CHROMEL
U0425
PRE SBE70-0156		aa-ab2
227227AESC30S16NC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ac-af2
228228BA4116-10R• • CONTACT - SOCKET, ALUMEL
U0425
PRE SBE70-0156		aa-ab2
228228AESC30S16NA• • CONTACT - SOCKET
U1653
POST SBE70-0156		ac-af2
229229MS27488-16• • PLUG - SEALING
96906		aa-af3
7407402A1440• • TERMINAL - CRaa-af1
7417412A1441• • TERMINAL - ALaa-af1
750750323750• • TERMINAL
K1636		aa-af4
760760321893• • TERMINAL - NO. 8
59364		aa-af4
761761322873• • TERMINAL - NO. 6
K1636		aa-af2
8648642A0764• • CABLE
PRE SBE70-0374		aa-af1
-864864AESW1202-022-006• • CABLE - ELECTRICAL
U1653
POST SBE70-0374
PRE SBE70-0638		aa-afREF
864864BU440176• • CABLE
ALT ESW1202-022-006
(BLK ESW1202-022-006)		aa-af1
-864864CESW1202-022-006• • CABLE - ELECTRICAL
U1653
ALT U440176
POST SBE70-0638		aa-afREF
8668662A0766• • CABLE - AL CR
PRE SBE70-0374		aa-af1
866866AESW1602-022-010• • CABLE - ELECTRICAL
U1653
POST SBE70-0374		aa-af1
8838832A1463• • WIRE - STEEL, 18 - 8aa-af1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

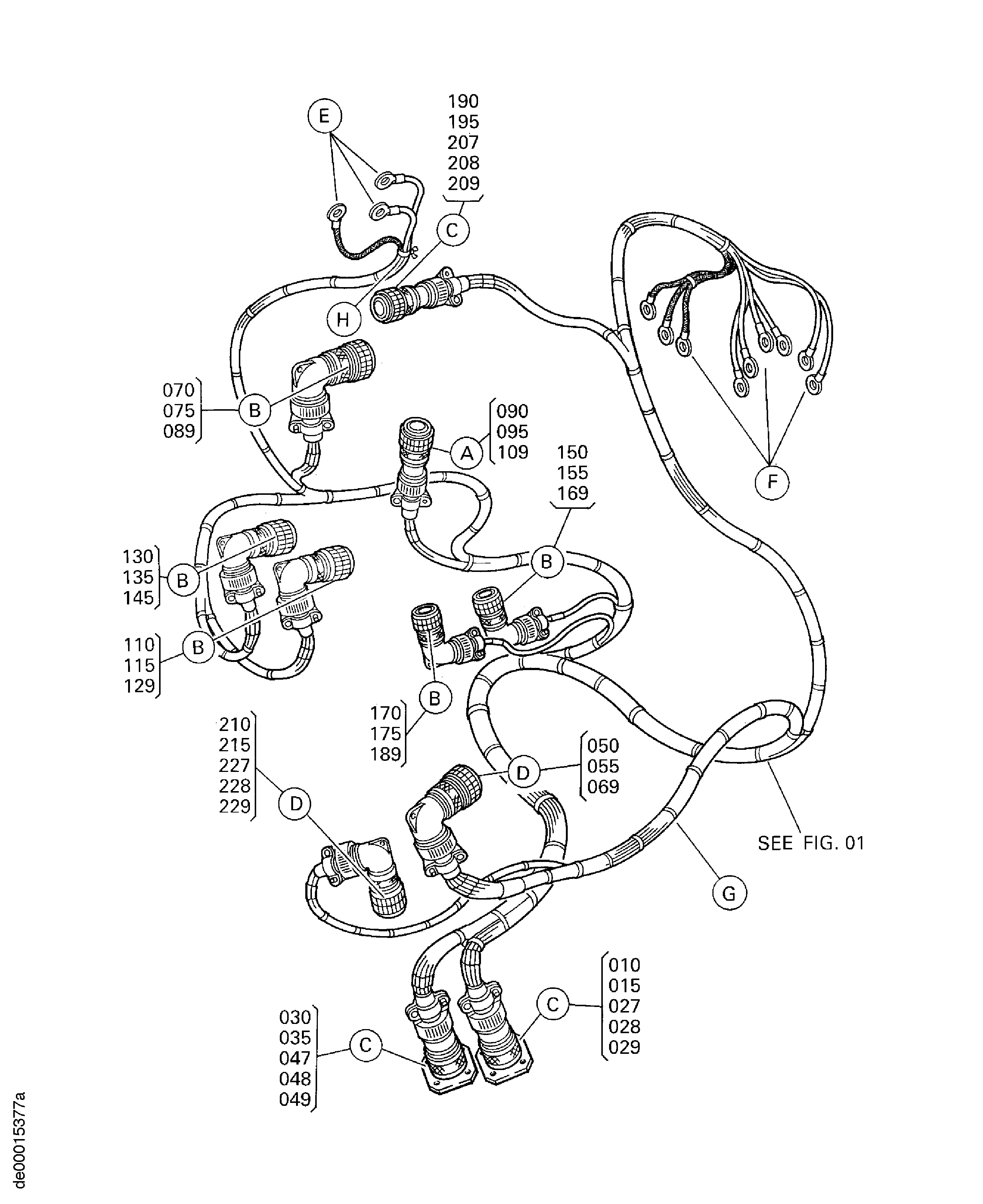

Figure: ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE

EEC HARNESS CORE

EEC HARNESS CORE

EEC HARNESS CORE

Change Type:

Incorporated SBE 73-0250.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:14283
Enterprise Name:MATRIX SCIENCE CORP
BU Name:MATRIX SCIENCE CORP
Street:455 MAPLE AVENUE
City:TORRANCE
State:CA
Zip Code:90503-3807
Country:USA
Manufacturer Code:49367
Enterprise Name:PYLE NATIONAL CONNECTORS
BU Name:PYLE NATIONAL CONNECTORS
Street:40-60 DELAWARE AVENUE
City:SIDNEY
State:N.Y
Zip Code:13838-1395
Country:USA
Manufacturer Code:59364
Enterprise Name:HONEYWELL INTERNATIONAL INC
BU Name:HONEYWELL INTERNATIONAL INC
Department:ENG SYSTEMS AND ACCESSORIES
Street:1300 W WARNER ROAD
P.O. Box:22200
City:TEMPE
State:ARIZONA
Zip Code:85284-2896
Country:USA
Manufacturer Code:81349
Enterprise Name:DELETED, SEE CAGE CODE 81348
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K1636
Enterprise Name:AMP OF GB LTD
BU Name:AMP OF GB LTD
Street:MERRION AVENUE
P.O. Box:PO BOX 3608
City:STANMORE
State:MIDDLESEX
Zip Code:HA7 4RS
Country:ENGLAND
Manufacturer Code:U0425
Enterprise Name:Default Enterprise Name
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:1017684
Part Name:CONNECTOR, ASSEMBLY
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
T3K120998SA1259CONNECTOR - ASSEMBLY OFCONNECTR - ASSY (FIN 4022KS-B)49367
Part Number:1017685
Part Name:CONNECTOR, ASSEMBLY
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
T3K121198SA1259CONNECTOR - ASSEMBLY OFCONNECTR - ASSY (FIN 4022KS-D)49367
Part Number:1017687
Part Name:CONNECTOR, ASSEMBLY
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
T3K121198SB1259CONNECTOR - ASSEMBLY OFCONNECTR - ASSY (FIN 4022KS-A)49367
Part Number:2A0764
Part Name:CABLE
Manufacturer Code:0AM53
Part Number:2A0766
Part Name:CABLE - AL CR
Manufacturer Code:0AM53
Part Number:2A1440
Part Name:TERMINAL, CR
Manufacturer Code:0AM53
Part Number:2A1441
Part Name:TERMINAL, AL
Manufacturer Code:0AM53
Part Number:2A1463
Part Name:WIRE, STEEL, 18 - 8
Manufacturer Code:0AM53
Part Number:321893
Part Name:TERMINAL, NO. 08
Manufacturer Code:59364
Part Number:322873
Part Name:TERMINAL - NO.6 (NI)
Manufacturer Code:K1636
Part Number:323750
Part Name:TERMINAL
Manufacturer Code:K1636
Part Number:5100-101-0120
Part Name:CONTACT - SOCKET
Manufacturer Code:14283
Optional Parts
Part NumberPart NameManufacturer
T3-4120-36LDCONTACT - SOCKETCONTACT, SOCKET49367
Part Number:BA4016-10P
Part Name:CONTACT - PIN CHROMEL
Manufacturer Code:U0425
Part Number:BA4016-10R
Part Name:CONTACT - PIN ALUMEL
Manufacturer Code:U0425
Part Number:BA4016-36LD
Part Name:CONTACT - PIN
Manufacturer Code:U0425
Part Number:BA4116-10P
Part Name:CONTACT - SOCKET, CHROMEL
Manufacturer Code:U0425
Part Number:BA4116-10R
Part Name:CONTACT - SOCKET, ALUMEL
Manufacturer Code:U0425
Part Number:BA4116-36LD
Part Name:CONTACT - SOCKET
Manufacturer Code:U0425
Part Number:BSK12F1407SD
Part Name:PLUG
Manufacturer Code:U0425
Part Number:BSK12F1610SD
Part Name:PLUG
Manufacturer Code:U0425
Part Number:BSK12F2219SD
Part Name:PLUG
Manufacturer Code:U0425
Part Number:BSK17E2842PD06
Part Name:RECEPTACLE
Manufacturer Code:49367
Part Number:BSK17E2842PD
Part Name:RECEPTACLE
Manufacturer Code:U0425
Part Number:ESC10KE02842P60
Part Name:CONNECTR
Manufacturer Code:U1653
Part Number:ESC10KE02842PN0
Part Name:CONNECTR
Manufacturer Code:0AM53
Part Number:ESC10SE61407SN0
Part Name:CONNECTOR
Manufacturer Code:U1653
Part Number:ESC10SE61610SN0
Part Name:CONNECTOR
Manufacturer Code:U1653
Part Number:ESC10SE62219SN0
Part Name:CONNECTOR
Manufacturer Code:U1653
Part Number:ESC30P16BC
Part Name:CONTACT - PLUG
Manufacturer Code:U1653
Part Number:ESC30P16NA
Part Name:CONTACT
Manufacturer Code:U1653
Part Number:ESC30P16NC
Part Name:CONTACT
Manufacturer Code:U1653
Part Number:ESC30S16BC
Part Name:CONTACT - SOCKET
Manufacturer Code:U1653
Part Number:ESC30S16NA
Part Name:CONTACT - SOCKET
Manufacturer Code:U1653
Part Number:ESC30S16NC
Part Name:CONTACT - SOCKET
Manufacturer Code:U1653
Part Number:ESW1202-022-006
Part Name:CABLE - ELECTRICAL
Manufacturer Code:U1653
Part Number:ESW1602-022-010
Part Name:CABLE - ELECTRICAL
Manufacturer Code:U1653
Part Number:M39029-56-351
Part Name:CONTACT - SOCKET
Manufacturer Code:81349
Part Number:MS27488-16
Part Name:PLUG, SEALING
Manufacturer Code:96906
Unit Of Issue:EA
Part Number:MS27488-20
Part Name:PLUG, SEALING
Manufacturer Code:96906
Unit Of Issue:EA
Part Number:MT938T09K98S901
Part Name:CONNECTR - ASSY (FIN 4022KS-C)
Manufacturer Code:14283
Optional Parts
Part NumberPart NameManufacturer
T3K120998SN1259CONNECTOR - ASSEMBLY OFCONNECTR - ASSY (FIN 4022KS-C)49367
Part Number:MT938T09K98SA
Part Name:PLUG - ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T09K98SN
Part Name:CONNECTOR
Manufacturer Code:14283
Part Number:MT938T11K98SA
Part Name:PLUG - ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T11K98SB901
Part Name:CONNECTOR - ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T11K98SB90
Part Name:CONNECTOR - ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T11K98SB
Part Name:PLUG - ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T11K98SN
Part Name:CONNECTR
Manufacturer Code:14283
Optional Parts
Part NumberPart NameManufacturer
T3K1211-98SNPLUGPLUG49367
Part Number:MT938T13K98SN
Part Name:CONNECTR
Manufacturer Code:14283
Optional Parts
Part NumberPart NameManufacturer
T3K1213-98SNPLUGPLUG49367
Part Number:T3-4120-36LD
Part Name:CONTACT, SOCKET
Manufacturer Code:49367
Optional Parts
Part NumberPart NameManufacturer
5100-101-0120CONTACT - SOCKET14283
Part Number:T3-4120-36LD
Part Name:CONTACT - SOCKET
Manufacturer Code:U0425
Part Number:T3K1209-98SA
Part Name:PLUG
Manufacturer Code:U0425
Part Number:T3K1209-98SN
Part Name:PLUG
Manufacturer Code:U0425
Part Number:T3K120998SA1259
Part Name:CONNECTR - ASSY (FIN 4022KS-B)
Manufacturer Code:49367
Optional Parts
Part NumberPart NameManufacturer
1017684CONNECTOR, ASSEMBLY0AM53
Part Number:T3K120998SA1259
Part Name:CONNECTOR - ASSEMBLY OF
Manufacturer Code:U0425
Part Number:T3K120998SN1259
Part Name:CONNECTR - ASSY (FIN 4022KS-C)
Manufacturer Code:49367
Optional Parts
Part NumberPart NameManufacturer
MT938T09K98S901CONNECTR - ASSY (FIN 4022KS-C)14283
Part Number:T3K120998SN1259
Part Name:CONNECTOR - ASSEMBLY OF
Manufacturer Code:U0425
Part Number:T3K1211-98SA
Part Name:PLUG
Manufacturer Code:U0425
Part Number:T3K1211-98SB
Part Name:PLUG
Manufacturer Code:U0425
Part Number:T3K1211-98SN
Part Name:PLUG
Manufacturer Code:49367
Optional Parts
Part NumberPart NameManufacturer
MT938T11K98SNCONNECTR14283
Part Number:T3K1211-98SN
Part Name:PLUG
Manufacturer Code:U0425
Part Number:T3K121198SA1259
Part Name:CONNECTR - ASSY (FIN 4022KS-D)
Manufacturer Code:49367
Optional Parts
Part NumberPart NameManufacturer
1017685CONNECTOR, ASSEMBLY0AM53
Part Number:T3K121198SA1259
Part Name:CONNECTOR - ASSEMBLY OF
Manufacturer Code:U0425
Part Number:T3K121198SB1259
Part Name:CONNECTR - ASSY (FIN 4022KS-A)
Manufacturer Code:49367
Optional Parts
Part NumberPart NameManufacturer
1017687CONNECTOR, ASSEMBLY0AM53
Part Number:T3K121198SB1259
Part Name:CONNECTOR - ASSEMBLY OF
Manufacturer Code:U0425
Part Number:T3K1213-98SN
Part Name:PLUG
Manufacturer Code:49367
Optional Parts
Part NumberPart NameManufacturer
MT938T13K98SNCONNECTR14283
Part Number:T3K1213-98SN
Part Name:PLUG
Manufacturer Code:U0425
Part Number:U440176
Part Name:CABLE
Manufacturer Code:0AM53
