DMC:V2500-A1-71-52-44-04A-941A-DIssue No:002.00Issue Date:2020-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA | |
|---|---|---|---|---|---|
| 04 | |||||
| B71524404 | ELECTRICAL HARNESS - LIGHT DUTY - EEC LINK HARNESS-CORE, PRE SBE70-0156 | aa | |||
| SBE0156-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC LINK HARNESS-CORE, PRE SBE70-0374 | ab | |||
| SBE0374-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC LINK HARNESS-CORE, PRE SBE73-0250 | ac | |||
| SBE0250-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC LINK HARNESS-CORE | ad | |||
| 010 | BSK17E1610PD | • • RECEPTACLE 49367 PRE SBE70-0156 | aa-ac | 1 | |
| 010A | ESC10KE01610PN0 | • • CONNECTOR (FIN 4006VC) | aa-ac | 1 | |
| 015 | BA4016-36LD | • • CONTACT - PIN U0425 PRE SBE70-0156 | aa | 6 | |
| 015A | ESC30P16BC | • • CONTACT - PLUG U1653 POST SBE70-0156 | ab-ac | 6 | |
| 027 | BA4016-10P | • • CONTACT - PIN CHROMEL 49367 PRE SBE70-0156 | aa | 2 | |
| 027A | ESC30P16NC | • • CONTACT U1653 POST SBE70-0156 | ab-ac | 2 | |
| 028 | BA4016-10R | • • CONTACT - PIN ALUMEL U0425 PRE SBE70-0156 | aa | 2 | |
| 028A | ESC30P16NA | • • CONTACT U1653 POST SBE70-0156 | ab-ac | 2 | |
| 029 | MS27488-16 | • • PLUG - SEALING 96906 | aa-ac | 2 | |
| 030 | T3K1211-98SN | • • PLUG 49367 (FIN 4025KS-A) | aa-ac | 1 | |
| 030A | T3K1211-98SN | • • PLUG 49367 ALT MT938T11K98S (FIN 4025KS-A) POST SBE70-0156 | aa-ac | 1 | |
| -030B | MT938T11K98S | • • PLUG - ASSEMBLY OF 14283 ALT T3K1211-98SN POST SBE70-0156 | ab-ac | REF | |
| 035 | T3-4120-36LD | • • CONTACT - SOCKET 49367 PRE SBE70-0156 | aa-ac | 6 | |
| 035A | T3-4120-36LD | • • CONTACT - SOCKET 49367 ALT 5100-101-0120 POST SBE70-0156 | aa-ac | 6 | |
| -035B | 5100-101-0120 | • • CONTACT - SOCKET 14283 ALT T3-4120-36LD POST SBE70-0156 | ab-ac | REF | |
| 035C | X | T3-4120-36LD | • • CONTACT - SOCKET 49367 ALT M39029-56-351 PRE SBE73-0250 | aa-ac | 6 |
| -035D | M39029-56-351 | • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ad | REF | |
| 049 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ac | 2 | |
| 740 | 2A1440 | • • TERMINAL - CR | aa-ac | 2 | |
| 741 | 2A1441 | • • TERMINAL - AL | aa-ac | 2 | |
| 750 | 323750 | • • TERMINAL K1636 | aa-ac | 2 | |
| 865 | 2A0765 | • • CABLE PRE SBE70-0374 | aa-ab | 1 | |
| 865A | 2A0765 | • • CABLE POST SBE70-0374 | ac | 1 | |
| 867 | 2A0767 | • • CABLE - AL CR PRE SBE70-0374 | aa-ab | 1 | |
| 867A | 2A0767 | • • CABLE - AL CR POST SBE70-0374 | ac | 1 | |
| 883 | 2A1463 | • • WIRE - STEEL, 18 - 8 | aa-ac | 1 | |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | |||||

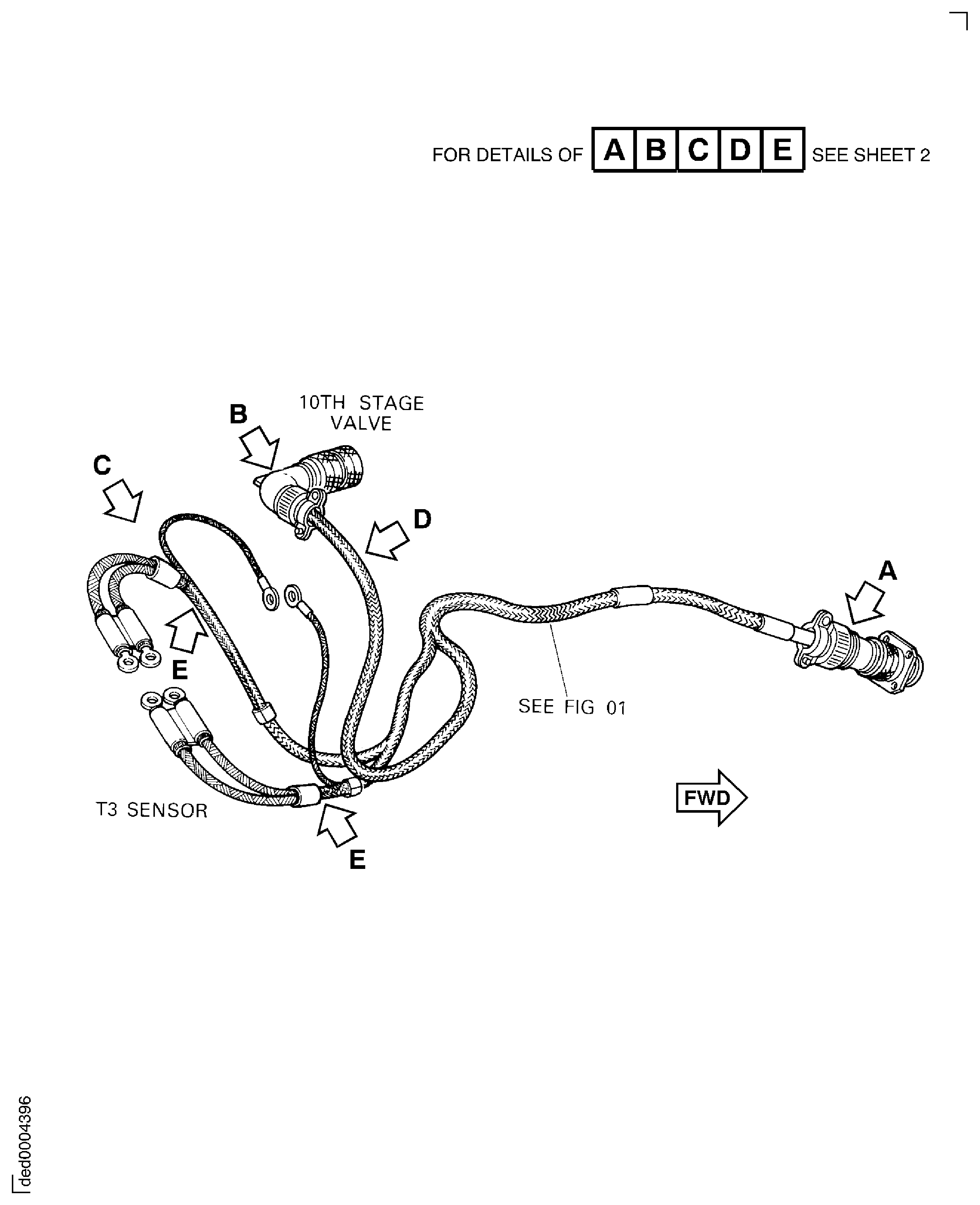

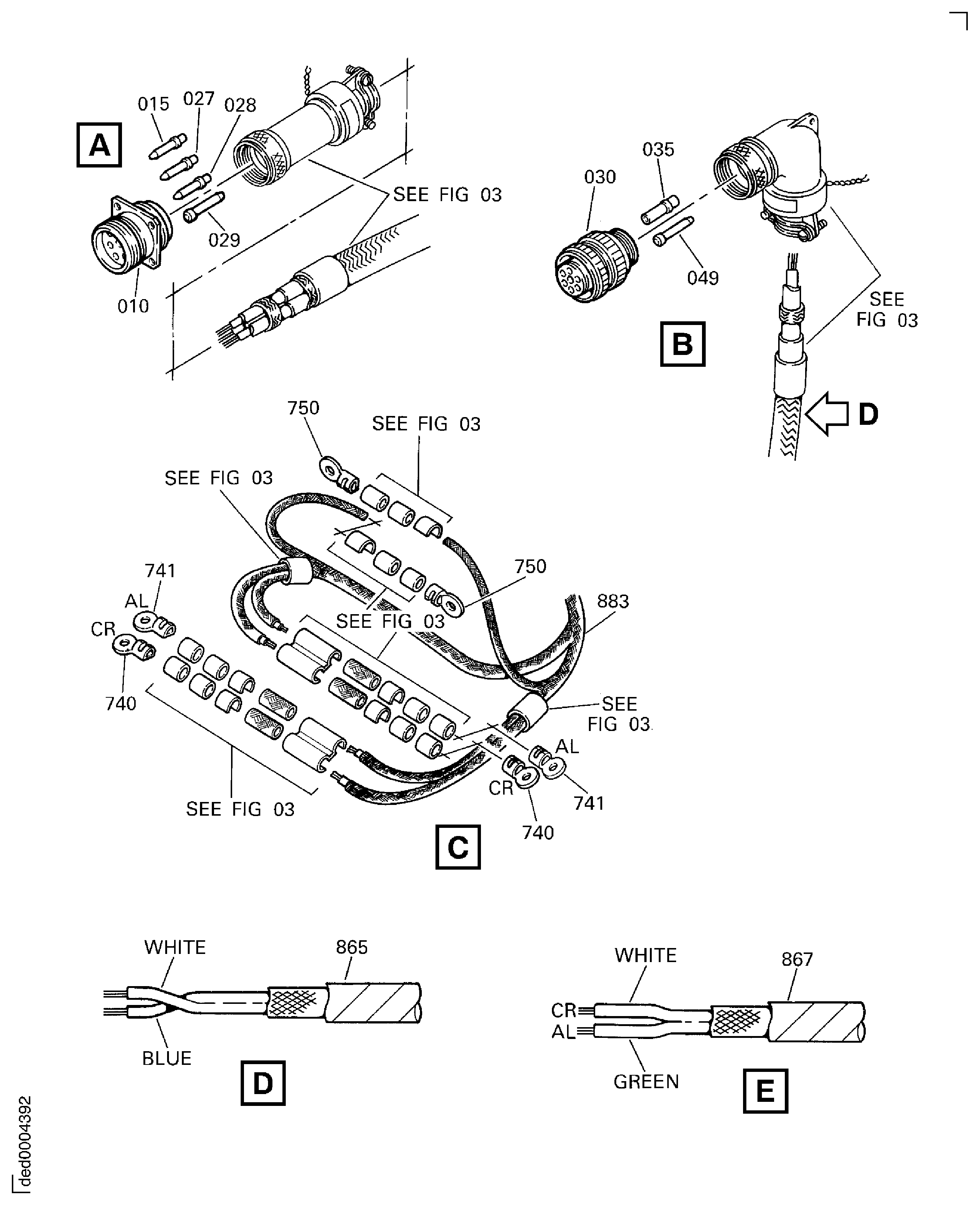

Figure: ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE
EEC LINK HARNESS CORE
EEC LINK HARNESS CORE
