| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71714201 | POWER PLANT-DRAIN TUBE MAST, PRE SBN71-0017 | aa | ||
| SBN0017-01 | POWER PLANT-DRAIN TUBE MAST, PRE SBN71-0076 | ab | ||
| SBN0076-01 | POWER PLANT-DRAIN TUBE MAST, PRE SBE71-0107 | ac | ||
| SBE0107-01 | POWER PLANT-DRAIN TUBE MAST, PRE SBN71-0147 | ad | ||
| SBN0147-01 | POWER PLANT-DRAIN TUBE MAST, PRE SBN71-0078 | ae | ||
| SBN0078-01 | POWER PLANT-DRAIN TUBE MAST | af | ||
| -002 | 740-5017-505 | ARRGT - DRAIN SYSTEM 51563 | aa-af | REF |
| 010 | 740-5676-503 | • MAST - DRAINS 51563 | aa-af | 1 |
| 010A | 740-5725-501 | • MAST - DRAINS 51563 | aa-af | 1 |
| 010B | 740-5284-501 | • MAST - DRAINS 51563 POST SBN71-0076 | ac-af | 1 |
| 020 | A114-2E | • SCREW - .250 DIA X .800 K7766 PRE SBN71-0017 | aa | 4 |
| 020A | A114-2E | • SCREW - .250 DIA X .800 K7766 PRE SBN71-0017 | aa | 4 |
| 020B | NAS7204A5 | • SCREW 80205 POST SBN71-0017 | ab-af | 4 |
| -030 | 740-5709-507 | • BRACKET 51563 Optional Part 740-5709-507 | aa-af | REF |
| -030A | 740-5709-509 | • BRACKET 51563 Optional Part 740-5709-509 | aa-af | REF |
| -030B | 740-5709-511 | • BRACKET 51563 POST SBE71-0107 | ad-af | REF |
| -040 | 740-5716-505 | • BRACKET 51563 Optional Part 740-5716-505 PRE SBN71-0078 | aa-ae | REF |
| -040A | 740-5716-507 | • BRACKET 51563 POST SBN71-0078 | af | REF |
| 050 | 740-5682-501 | • PLATE - ASSY COLLECTOR 51563 | aa-af | 1 |
| 050A | 740-5682-503 | • PLATE - ASSY COLLECTOR 51563 PRE SBN71-0147 | aa-ad | 1 |
| 050B | 740-5682-505 | • PLATE - ASSY,COLLECTOR 51563 POST SBN71-0147 | ae-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

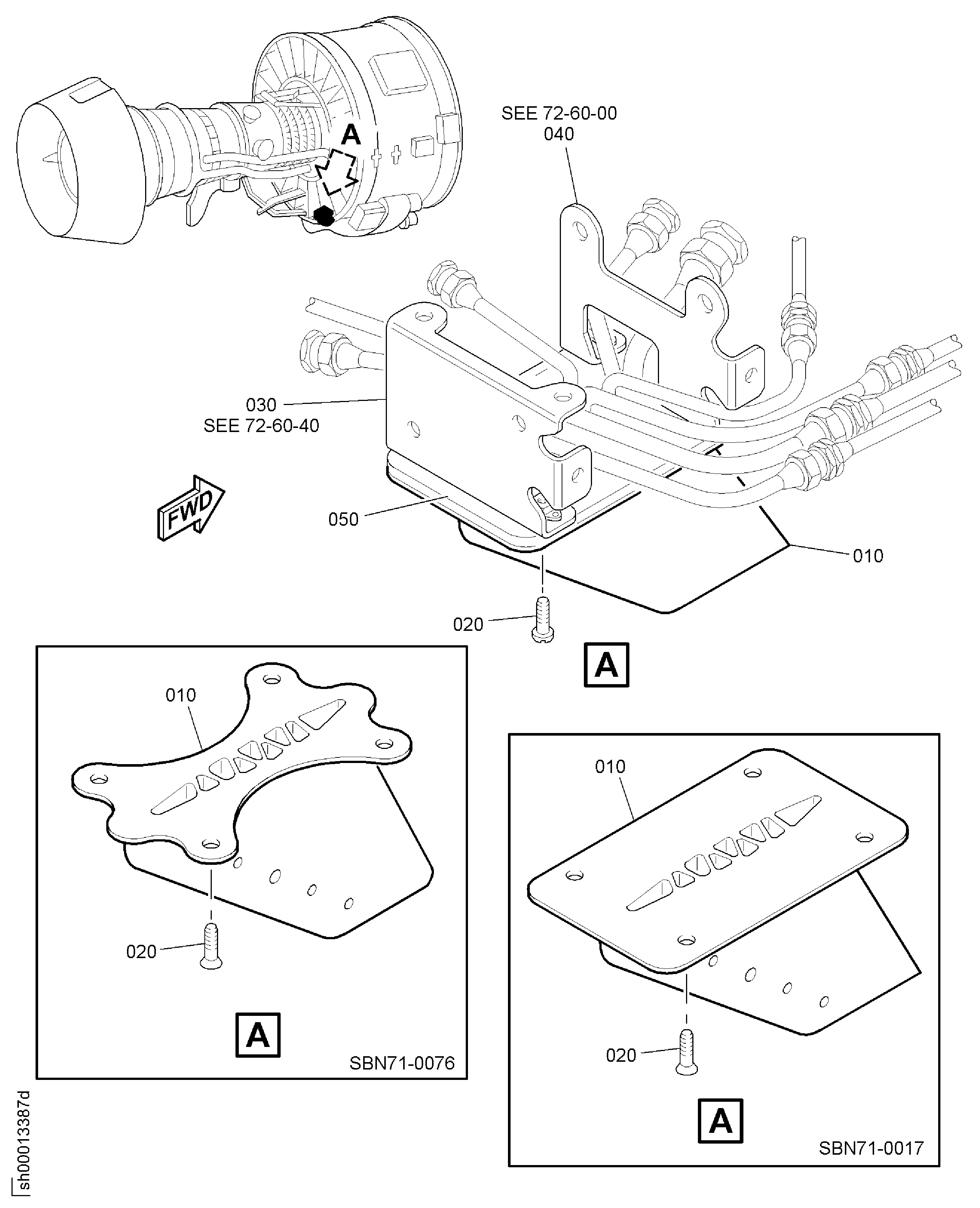

Figure: POWER PLANT-DRAIN TUBE MAST
MAST DRAINS
