DMC:V2500-A1-71-71-48-01A-941A-DIssue No:002.00Issue Date:2021-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71714801 | POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBE71-0004 | aa | ||
| SBE0004-01 | POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBN70-0143 | ab | ||
| SBN0143-01 | POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBN71-0147 | ac | ||
| SBN0147-01 | POWER PLANT - FUEL DRAIN TUBES - POWER PLANT | ad | ||
| -002 | 740-5017-505 | ARRANGEMENT - DRAIN SYSTEM 51563 | aa-ad | REF |
| 100 | 740-5790-503 | • TUBE - DRAIN, ASSEMBLY OF 51563 PRE SBN70-0143 | aa-ac | 1 |
| 100A | 740-5790-505 | • TUBE - DRAIN, ASSEMBLY OF 51563 POST SBN70-0143 PRE SBN71-0147 | aa-ac | 1 |
| 100B | 740-5790-507 | • TUBE - DRAIN, ASSEMBLY OF 51563 POST SBN71-0147 | aa-ad | 1 |
| 125 | AS21411 | • BOLT, .190 DIA X .688 U1653 PRE SBN71-0147 | aa-ac | 1 |
| 125A | AS21421 | • BOLT - 0.19 DIA X 1.312 U1653 POST SBN71-0147 | ad | 1 |
| 125B | AS21421 | • BOLT - 0.19 DIA X 1.312 U1653 ALT MS9556-19 | aa-ad | 1 |
| -125C | MS9556-19 | • BOLT 96906 ALT AS21421 | aa-ad | REF |
| 127 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 128 | ST1698D40 | • SPACER 77445 PRE SBN71-0147 | aa-ac | 1 |
| 128A | ST1698D50 | • SPACER 77445 POST SBN71-0147 | aa-ad | 1 |
| 129 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ad | 1 |
| 131 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-ad | 1 |
| 133 | AS21408 | • BOLT - .190 DIA X .500 U1653 POST SBE71-0004 | ab-ad | 1 |
| 133A | AS21408 | • BOLT - .190 DIA X .500 U1653 ALT MS9556-06 | aa-ad | 1 |
| -133B | MS9556-06 | • BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408 | aa-ad | REF |
| 135 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 136 | 400WSS16 | • CLIP 83930 POST SBE71-0004 | ab-ad | 1 |
| 137 | SP154D | • WASHER - 0.190 DIA K7766 POST SBE71-0004 PRE SBN71-0147 | ab-ac | 1 |
| 139 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 POST SBE71-0004 PRE SBN71-0147 | ab-ac | 1 |
| 141 | AS21411 | • BOLT, .190 DIA X .688 U1653 PRE SBN71-0147 | aa-ac | 1 |
| 143 | ST1698D47 | • SPACER (5MM) K4585 PRE SBN71-0147 | aa-ac | 1 |
| 145 | 400WSS4 | • CLIP 83930 PRE SBN71-0147 | aa-ac | 1 |
| 147 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ad | 1 |
| 148 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-ad | 1 |
| 150 | AS21409 | • BOLT - 0.190 DIA X 0.562 U1653 | aa-ad | 1 |
| 151 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 153 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ad | 1 |
| 155 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-ad | 1 |
| 500 | 740-5791-503 | • TUBE - DRAIN, ASSEMBLY OF 51563 PRE SBN71-0147 | aa-ac | 1 |
| 500A | 740-5791-505 | • TUBE - DRAIN, ASSEMBLY OF 51563 POST SBN71-0147 | aa-ad | 1 |
| 527 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 535 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 543 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa-ad | 1 |
| 543A | AS21408 | • BOLT - .190 DIA X .500 U1653 ALT MS9556-06 | aa-ad | 1 |
| -543B | MS9556-06 | • BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408 | aa-ad | REF |
| 545 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 547 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ad | 1 |
| 549 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-ad | 1 |
| 550 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa-ad | 1 |
| 551 | 400WSS4 | • CLIP 83930 | aa-ad | 1 |
| 553 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ad | 1 |
| 557 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

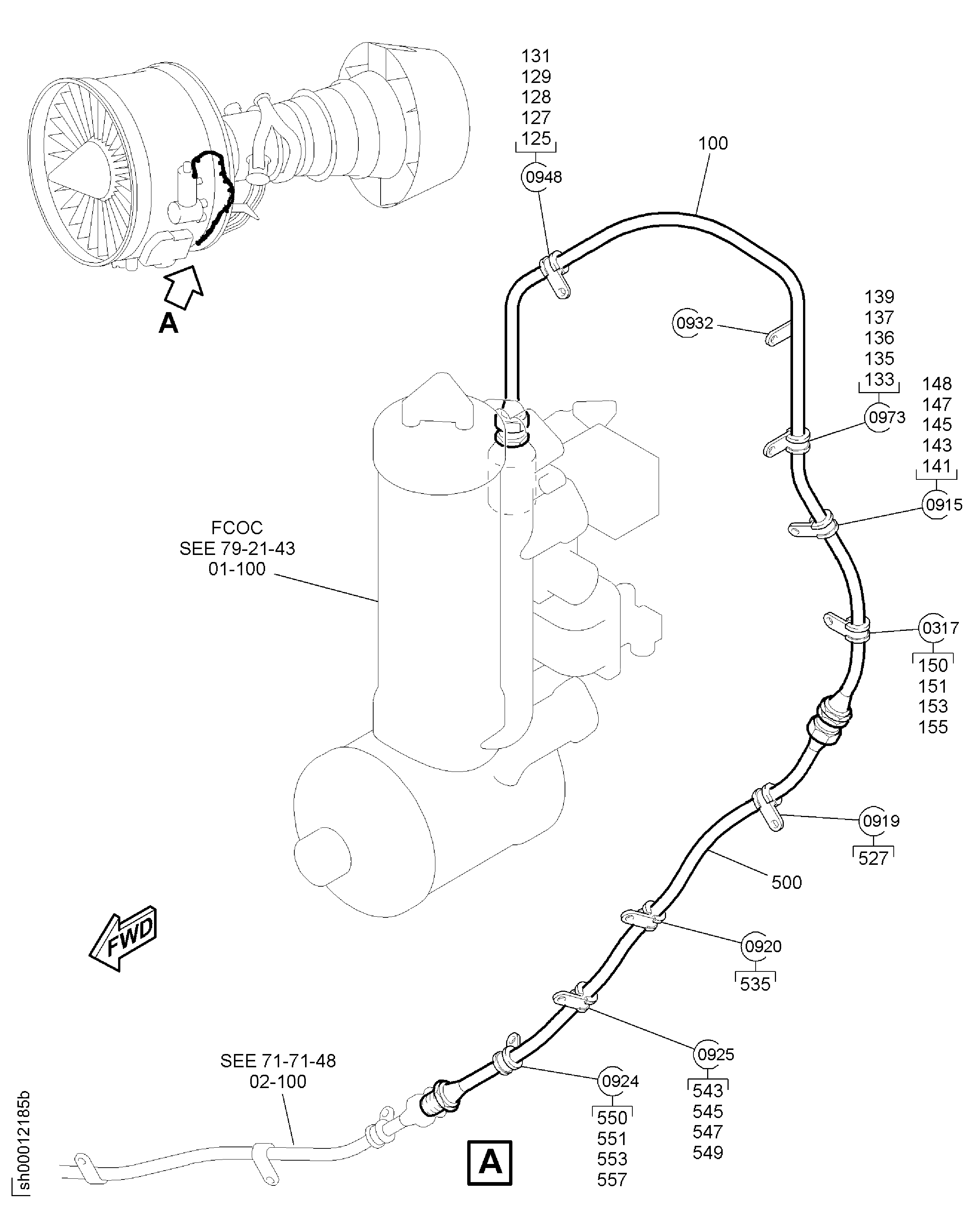

Figure: POWER PLANT-FUEL DRAIN TUBES-POWER PLANT
TUBES FUEL DRAIN
