OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT

DMC:V2500-A1-71-73-48-03A-941A-D|Issue No:002.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
03
000B71734803OIL - HYDRAULIC AND WATER DRAIN TUBES - POWER PLANT, PRE SBN71-0147aa
000SBN0147-01OIL - HYDRAULIC AND WATER DRAIN TUBES - POWER PLANTab
-002002740-5017-505ARRANGEMENT - DRAIN SYSTEM
51563		aa-abREF
100100740-5265-505• TUBE - DRAIN ACOC ACTUATOR, ASSEMBLY OF
51563		aa-ab1
500500740-5267-507• TUBE - DRAIN, ASSEMBLY OF
51563		aa-ab1
500500A740-5267-505• TUBE - DRAIN, ASSEMBLY OF
51563
PRE SBN71-0147		aa1
500500B740-5267-507• TUBE - DRAIN, ASSEMBLY OF
51563
POST SBN71-0147		aa-ab1
525525AS21408• BOLT - .190 DIA X .500
U1653		aa-ab1
525525AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ab1
-525525BMS9556-06• BOLT
96906
ALT AS21408		abREF
527527400WSS4• CLIP
83930		aa-ab1
529529SP154D• WASHER - 0.190 DIA
K7766		aa-ab1
531531AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ab1
533533AS21408• BOLT - .190 DIA X .500
U1653		aa-ab1
533533AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ab1
-533533BMS9556-06• BOLT
96906
ALT AS21408		abREF
535535400WSS4• CLIP
83930		aa-ab1
537537SP154D• WASHER - 0.190 DIA
K7766		aa-ab1
539539AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ab1
541541AS21408• BOLT - .190 DIA X .500
U1653		aa-ab1
541541AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa-ab1
-541541BMS9556-06• BOLT
96906
ALT AS21408		abREF
543543400WSS4• CLIP
83930		aa-ab1
545545SP154D• WASHER - 0.190 DIA
K7766		aa-ab1
547547AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ab1
549549AS21408• BOLT - .190 DIA X .500
U1653		aa-ab1
551551400WSS4• CLIP
83930		aa-ab1
553553SP154D• WASHER - 0.190 DIA
K7766		aa-ab1
-555555740-5713-503• BRACKET
51563		aa-abREF
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

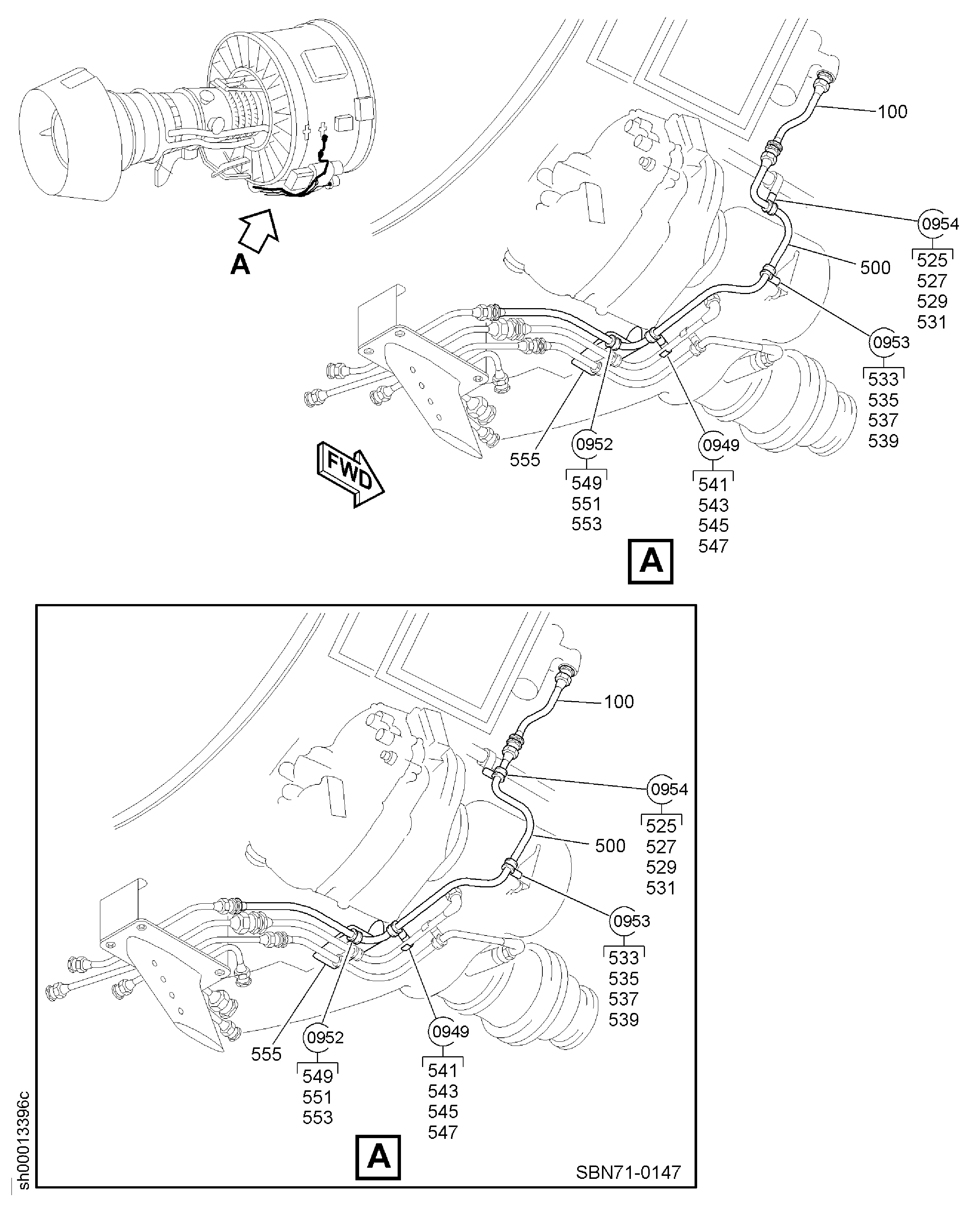

Figure: OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT
