DMC:V2500-A1-72-00-50-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72005001 | ENGINE-ATTACH PARTS & FITTINGS-LP TURBINE MODULE, PRE SBE70-0087 | aa | ||
| SBE0087-01 | ENGINE-ATTACH PARTS & FITTINGS-LP TURBINE MODULE, PRE SBE75-0013 | ab | ||
| SBE0013-01 | ENGINE-ATTACH PARTS & FITTINGS-LP TURBINE MODULE, PRE SBE70-0295 | ac | ||
| SBE0295-01 | ENGINE-ATTACH PARTS & FITTINGS-LP TURBINE MODULE, PRE SBE70-0320 | ad | ||
| SBE0320-01 | ENGINE-ATTACH PARTS & FITTINGS-LP TURBINE MODULE, PRE SBE70-0574 | ae | ||
| SBE0574-01 | ENGINE-ATTACH PARTS & FITTINGS-LP TURBINE MODULE, PRE SBE70-0719 | af | ||
| SBE0719-01 | ENGINE-ATTACH PARTS & FITTINGS-LP TURBINE MODULE, PRE SBE70-0825 | ag | ||
| SBE0825-01 | ENGINE-ATTACH PARTS & FITTINGS-LP TURBINE MODULE | ah | ||
| 100 | RR375 | • RING - RETAINING INT, 3.750 DIA 80756 | aa-ah | 1 |
| 120 | 5A0057 | • CAP - LOCKING | aa-ah | 1 |
| 140 | 5A0378 | • NUT - LOCK FRONT | aa-ah | 1 |
| 300 | 5A0371 | • RING - ADJUST, THK .5906 IN PRE SBE70-0320 | aa-ah | 1 |
| 300A | 5A0996 | • RING - ADJUST, THK .5906 INS POST SBE70-0320 | aa-ah | 1 |
| 303 | 5A0344 | • RING - ADJUST, THK 0.4823 IN POST SBE70-0087 PRE SBE70-0320 | ab-ah | 1 |
| 303A | 5A0997 | • RING - ADJUST, THK .4823 IN POST SBE70-0320 | ab-ah | 1 |
| 304 | 5A0345 | • RING - ADJUST, THK .4872 IN POST SBE70-0087 PRE SBE70-0320 | ab-ah | 1 |
| 304A | 5A0998 | • RING - ADJUST, THK .4872 IN POST SBE70-0320 | ab-ah | 1 |
| 305 | 5A0346 | • RING - ADJUST, THK .4921 IN POST SBE70-0087 PRE SBE70-0320 | ab-ah | 1 |
| 305A | 5A0999 | • RING - ADJUST, THK .4921 IN POST SBE70-0320 | ab-ah | 1 |
| 306 | 5A0414 | • RING - ADJUST, 0.497INS (12.625 MM) POST SBE70-0087 PRE SBE70-0320 | ab-ah | 1 |
| 306A | 5A1036 | • RING - ADJUST, THK .4970 IN POST SBE70-0320 | ab-ah | 1 |
| 307 | 5A0415 | • RING - ADJUST, 0.502INS (12.750 MM) POST SBE70-0087 PRE SBE70-0320 | ab-ah | 1 |
| 307A | 5A1037 | • RING - ADJUST, THK .5020 IN POST SBE70-0320 | ab-ah | 1 |
| 308 | 5A0416 | • RING - ADJUST, THK .5069 IN POST SBE70-0087 PRE SBE70-0320 | ab-ah | 1 |
| 308A | 5A1038 | • RING - ADJUST, THK .5069 IN POST SBE70-0320 | ab-ah | 1 |
| 309 | 5A1839 | • RING - ADJUST POST SBE70-0719 | ag-ah | 1 |
| 315 | 5A1881 | • RING - ADJUSTING, .4675" THICK POST SBE70-0825 | ah | 1 |
| 316 | 5A1882 | • RING - ADJUSTING, .4724" THICK POST SBE70-0825 | ah | 1 |
| 317 | 5A1883 | • RING - ADJUSTING, .4774" THICK POST SBE70-0825 | ah | 1 |
| 330 | 5T8123 | • BRACKET ALT 5T8100 PRE SBE70-0574 | aa-ae | 1 |
| -330A | 5T8100 | • BRACKET ALT 5T8123 PRE SBE70-0574 | aa-ah | REF |
| 330B | 6A6594 | • BRACKET ALT 5T8100 POST SBE70-0574 | aa-ah | 1 |
| 330C | 5T8100 | • BRACKET ALT 5T8123 POST SBE70-0574 | aa-ah | 1 |
| 330D | 5T8123 | • BRACKET ALT 6A6594 POST SBE70-0574 | aa-ae | 1 |
| 350 | 4W0935 | • BOLT - .3125 DIA X 1.000 Optional Part 4W0935 | aa-ah | 84 |
| 370 | ST1353-08 | • BOLT - MACHINE, .3125-24 77445 | aa-ah | 16 |
| 390 | 793423 | • NUT - PLAIN ROUND, .3125-24 X .2 77445 | aa-ah | 16 |
| 410 | 4W0003 | • NUT - .3125 DIA Optional Part 4W0003 | aa-ah | 84 |
| 430 | 2A0292 | • BRACKET - MANIFOLD SUPPORT | aa-ah | 4 |
| 435 | MS20427M3-4 | • • RIVET - 100 DEGREE C/S 96906 PRE SBE70-0295 | aa-ac | 2 |
| 435A | MS20427M3-3 | • • RIVET - 100 DEGREE C/S 96906 POST SBE70-0295 | ad-ah | 2 |
| 440 | MS21048-3 | • • NUT - ANCHOR TWO-LUG 96906 | aa-ah | 1 |
| 450 | 2A0296 | • BRACKET - MANIFOLD SUPPORT PRE SBE75-0013 | aa-ab | 1 |
| 450A | 2A1581 | • BRACKET - A/O TCC.MANF POST SBE75-0013 | ac-ah | 1 |
| 455 | MS20427M3-4 | • • RIVET - 100 DEGREE C/S 96906 PRE SBE75-0013 | aa-ab | 4 |
| 455A | MS20427M3-4 | • • RIVET - 100 DEGREE C/S 96906 POST SBE75-0013 PRE SBE70-0295 | ac | 2 |
| 455B | MS20427M3-3 | • • RIVET - 100 DEGREE C/S 96906 POST SBE70-0295 | ad-ah | 2 |
| 460 | MS21048-3 | • • NUT - ANCHOR TWO-LUG 96906 PRE SBE75-0013 | aa-ab | 2 |
| 460A | MS21048-3 | • • NUT - ANCHOR TWO-LUG PLATE 96906 POST SBE75-0013 | ac-ah | 1 |
| 470 | 2A0294 | • BRACKET - MANIFOLD SUPPORT PRE SBE75-0013 | aa-ab | 1 |
| 470A | 2A1579 | • BRACKET - A/O TCC.MANF POST SBE75-0013 | ac-ah | 1 |
| 475 | MS20427M3-4 | • • RIVET - 100 DEGREE C/S 96906 PRE SBE75-0013 | aa-ab | 4 |
| 475A | MS20427M3-4 | • • RIVET - 100 DEGREE C/S 96906 POST SBE75-0013 PRE SBE70-0295 | ac | 2 |
| 475B | MS20427M3-3 | • • RIVET - 100 DEGREE C/S 96906 POST SBE70-0295 | ad-ah | 2 |
| 480 | MS21048-3 | • • NUT - ANCHOR TWO-LUG 96906 PRE SBE75-0013 | aa-ab | 2 |
| 480A | MS21048-3 | • • NUT - ANCHOR TWO-LUG PLATE 96906 POST SBE75-0013 | ac-ah | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

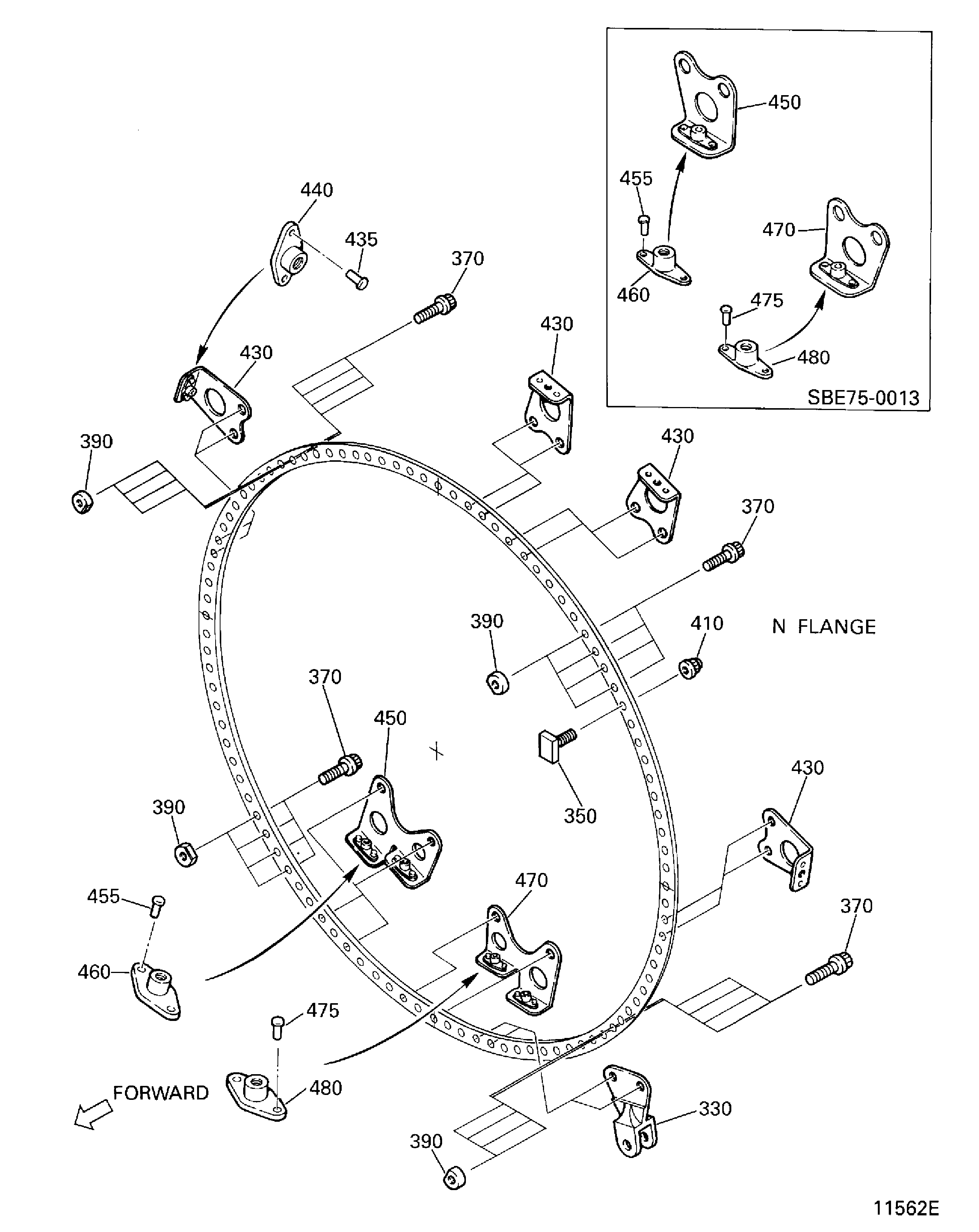

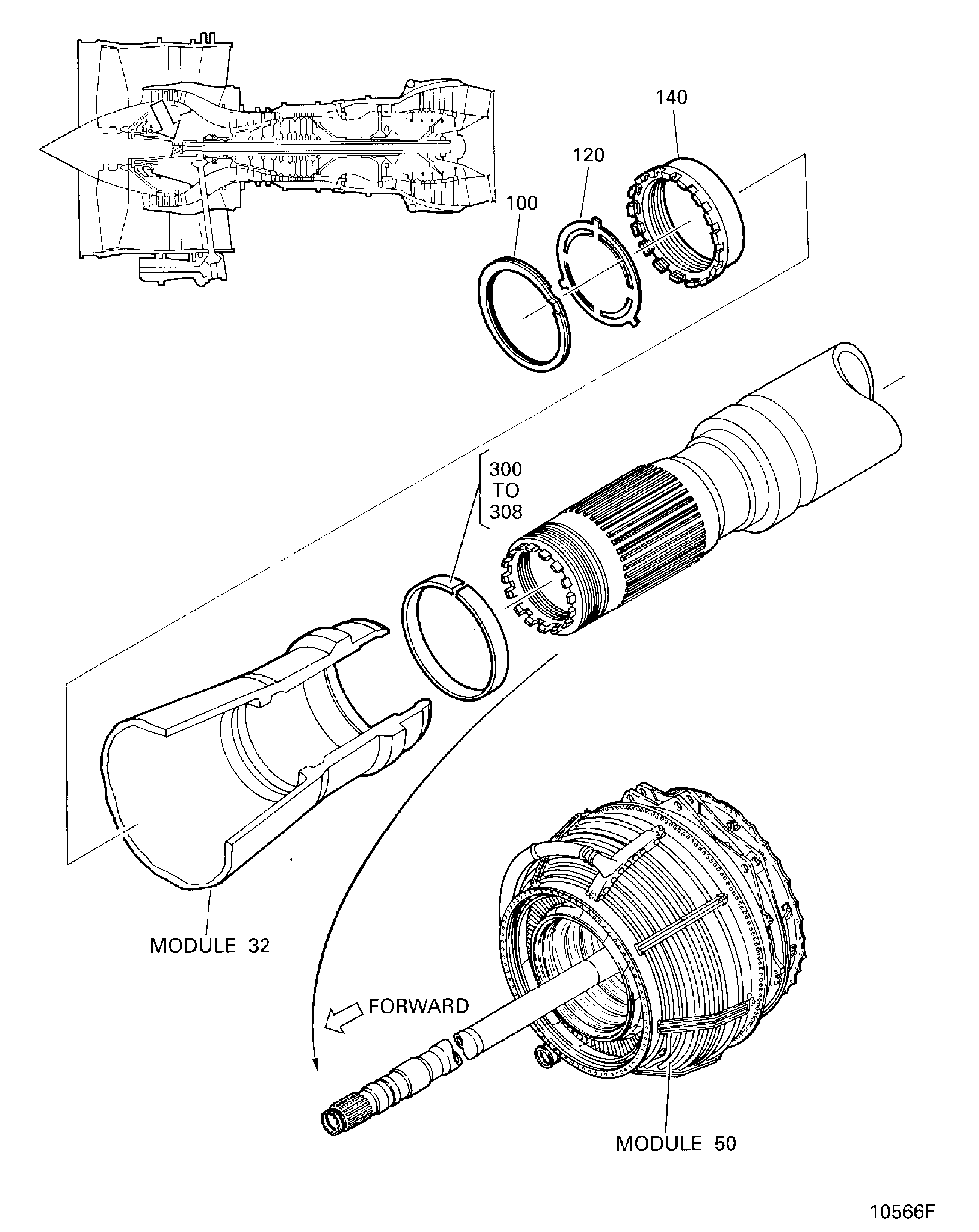

Figure: ENGINE-ATTACH PARTS & FITTINGS-LP TURBINE MODULE
LP TURBINE MODULE
LP TURBINE MODULE
