DMC:V2500-A1-72-00-60-01A-941A-DIssue No:002.00Issue Date:2015-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72006001 | ENGINE-ATTACH PARTS & FITTINGS-HS GEARBOX MODULE, PRE SBE70-0228 | aa | ||
| SBE0228-01 | ENGINE-ATTACH PARTS & FITTINGS-HS GEARBOX MODULE, PRE SBE70-0447 | ab | ||
| SBE0447-01 | ENGINE-ATTACH PARTS & FITTINGS-HS GEARBOX MODULE, PRE SBE70-0992 | ac | ||
| SBE0992-01 | ENGINE-ATTACH PARTS & FITTINGS-HS GEARBOX MODULE | ad | ||
| 080 | 4B0112 | • LINK - A/O GEARBOX FRONT PRE SBE70-0447 | aa-ab | 3 |
| 080A | 4B0112 | • LINK - A/O GEARBOX FRONT POST SBE70-0447 | ac-ad | 3 |
| 120 | 4T0132 | • • BEARING - SPHERICAL PRE SBE70-0447 | aa-ab | 2 |
| 120A | 4T0130 | • • BEARING - SPHERICAL ALT 4T0131 POST SBE70-0447 | ac-ad | 2 |
| -120B | 4T0131 | • • BEARING - SPHERICAL ALT 4T0132 POST SBE70-0447 | ac-ad | REF |
| -120C | 4T0132 | • • BEARING - SPHERICAL ALT 4T0130 POST SBE70-0447 | ac-ad | REF |
| 140 | 4P0220 | • PIN | aa-ad | 3 |
| 160 | 4P0223 | • PIN | aa-ad | 3 |
| 162 | 4T0229 | • STRAP - BONDING A3460 PRE SBE70-0992 | aa-ac | 2 |
| 162A | 4T0229 | • STRAP - BONDING A3460 ALT 4T0320 POST SBE70-0992 | ad | 2 |
| -162B | 4T0320 | • STRAP - BONDING A3460 ALT 4T0229 POST SBE70-0992 | ad | REF |
| 180 | 4W0164 | • BOLT - .250 DIA X .625 | aa-ad | 6 |
| 200 | 4B0031 | • LINK - A/O GEARBOX REAR | aa-ad | 1 |
| 240 | 4T0142 | • • BEARING - SPHERICAL | aa-ad | 2 |
| 260 | 4P0219 | • PIN | aa-ad | 1 |
| 280 | 4P0249 | • PIN PRE SBE70-0228 | aa-ad | 1 |
| 280A | 4P0299 | • PIN POST SBE70-0228 | aa-ad | 1 |
| 300 | 4P0250 | • BOLT | aa-ad | 1 |
| 320 | MS9321-10 | • WASHER 96906 | aa-ad | 1 |
| 400 | 5R0482 | • BRACKET - A/O - A2 G/B MOUNT ALT 5R0483 | aa-ad | 2 |
| 400A | 5R0483 | • BRACKET - A/O A2 G/B MOUNT ALT 5R0482 | aa-ad | 2 |
| 405 | 4W0004 | • NUT - .375 DIA | aa-ad | 2 |
| 410 | 5R0477 | • WASHER | aa-ad | 2 |
| 415 | MS9726-14 | • BOLT 96906 | aa-ad | 2 |
| 435 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ad | 1 |
| 550 | 5R0480 | • BRACKET - A/O A1 G/BOX MOUNT | aa-ad | 4 |
| 555 | 4W0004 | • NUT - .375 DIA | aa-ad | 4 |
| 560 | 5R0477 | • WASHER | aa-ad | 4 |
| 565 | MS9726-14 | • BOLT 96906 | aa-ad | 4 |
| 585 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ad | 2 |
| 700 | 5R0479 | • BRACKET - A/O A3 G/B MOUNT | aa-ad | 2 |
| 705 | 4W0003 | • NUT - .3125 DIA | aa-ad | 2 |
| 710 | 5R0478 | • WASHER | aa-ad | 2 |
| 715 | MS9725-10 | • BOLT 96906 | aa-ad | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

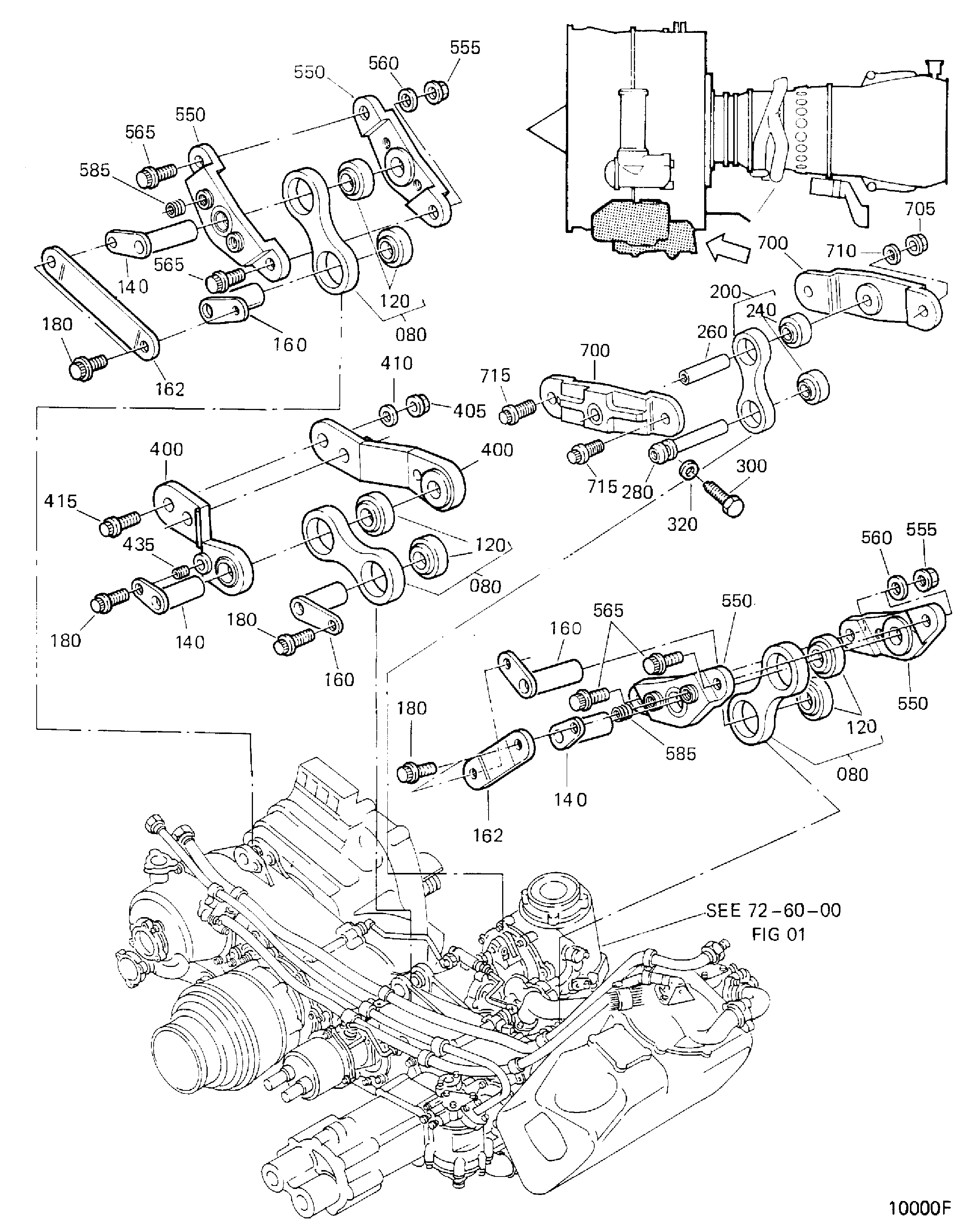

Figure: ENGINE-ATTACH PARTS & FITTINGS-HS GEARBOX MODULE
EXTERNAL GEARBOX MODULE
