DMC:V2500-A1-72-31-12-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72311201 | ENGINE-LP COMPRESSOR DISC AND LOCATION RINGS, PRE SBE70-0070 | aa | ||
| SBE0070-01 | ENGINE-LP COMPRESSOR DISC AND LOCATION RINGS, PRE SBE70-0712 | ab | ||
| SBE0712-01 | ENGINE-LP COMPRESSOR DISC AND LOCATION RINGS, PRE SBE70-0999 | ac | ||
| SBE0999-01 | ENGINE-LP COMPRESSOR DISC AND LOCATION RINGS, PRE SBE70-1001 | ad | ||
| SBE1001-01 | ENGINE-LP COMPRESSOR DISC AND LOCATION RINGS | ae | ||
| 100 | 5A0211 | • RING - RETAINING BLADE REAR | aa-ae | 1 |
| 120 | AS21118 | • BOLT - .3125 DIA X 1.125 U1653 | aa-ae | 22 |
| 200 | 5A0269 | • DISC - A/O STG.1 FAN PRE SBE70-0070 | aa-ae | 1 |
| 200A | 5A0337 | • DISC - A/O STG.1 FAN POST SBE70-0070 PRE SBE70-0712 | aa-ae | 1 |
| 200B | 5A1757 | • DISC - A/O STG.1 FAN POST SBE70-0712 PRE SBE70-1001 | aa-ae | 1 |
| 200C | 5A1757 | • DISC - A/O STG.1 FAN ALT 5A1948 POST SBE70-1001 | aa-ae | 1 |
| -200D | 5A1948 | • DISC - A/O STAGE 1 FAN ALT 5A1757 POST SBE70-1001 | aa-ae | REF |
| 220 | 5A0118 | • • WASHER - PLATE | aa-ae | 3 |
| 225 | 5A0119 | • • RAMP - REAR PRE SBE70-0999 | aa-ae | 22 |
| 225A | 5A0119 | • • RAMP - REAR ALT 5A1947 POST SBE70-0999 | aa-ae | 22 |
| -225B | 5A1947 | • • PLATE - RAMP,REAR ALT 5A0119 POST SBE70-0999 | aa-ae | REF |
| -240 | 5A0270 | • • DISC - ASSY STG.1 FAN PRE SBE70-0070 | aa | REF |
| 250 | 5A0095 | • • • PIN - JACKING PAD PRE SBE70-0070 | aa-ab | 10 |
| 250A | 5A0095 | • • PIN - JACKING PAD POST SBE70-0070 PRE SBE70-0712 | aa-ab | 10 |
| 250B | 5A1823 | • • PIN - JACKING PAD POST SBE70-0712 | ac-ae | 10 |
| 260 | AS27870 | • • • NUT - SELF LOCKING SHANK, .3125 DIA U1653 PRE SBE70-0070 | aa | 36 |
| 260A | AS27870 | • • NUT - SELF LOCKING SHANK, .3125 DIA U1653 POST SBE70-0070 | ab-ae | 36 |
| 260B | AS27870 | • • NUT - SELF LOCKING SHANK, .3125 DIA U1653 POST SBE70-0712 | ac-ae | 36 |
| 262 | AS55202-2 | • • NUT - SELF LOCKING, 2.05 LB/100 U1653 POST SBE70-0712 | ac-ae | 36 |
| 264 | AS55202-5 | • • NUT - SELF LOCKING, 2.71 LB/100 U1653 POST SBE70-0712 | ac-ae | 36 |
| 266 | AS55202-8 | • • NUT - SELF LOCKING, 3.37 LB/100 U1653 POST SBE70-0712 | ac-ae | 36 |
| 270 | AS27870 | • • • NUT - SELF LOCKING SHANK, .3125 DIA U1653 PRE SBE70-0070 | aa-ab | 22 |
| 270A | AS27870 | • • • NUT - SELF LOCKING SHANK, .3125 DIA U1653 POST SBE70-0070 PRE SBE70-0712 | aa-ab | 22 |
| 270B | AS27870 | • • • NUT - SELF LOCKING SHANK, .3125 DIA U1653 POST SBE70-0712 | ac-ae | 22 |
| 272 | AS55202-2 | • • NUT - SELF LOCKING, 2.05 LB/100 U1653 POST SBE70-0712 | ac-ae | 22 |
| 274 | AS55202-5 | • • NUT - SELF LOCKING, 2.71 LB/100 U1653 POST SBE70-0712 | ac-ae | 22 |
| 276 | AS55202-8 | • • NUT - SELF LOCKING, 3.37 LB/100 U1653 POST SBE70-0712 | ac-ae | 22 |
| 280 | AS44809 | • • • PIN - SHOULDER,HEADLESS U1653 PRE SBE70-0070 | aa-ab | 7 |
| 208A | AS44809 | • • PIN - SHOULDER,HEADLESS U1653 POST SBE70-0070 PRE SBE70-0712 | aa-ab | 7 |
| 208B | 5A1822 | • • PIN - SHOULDER HEADLESS POST SBE70-0712 | ac-ae | 7 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

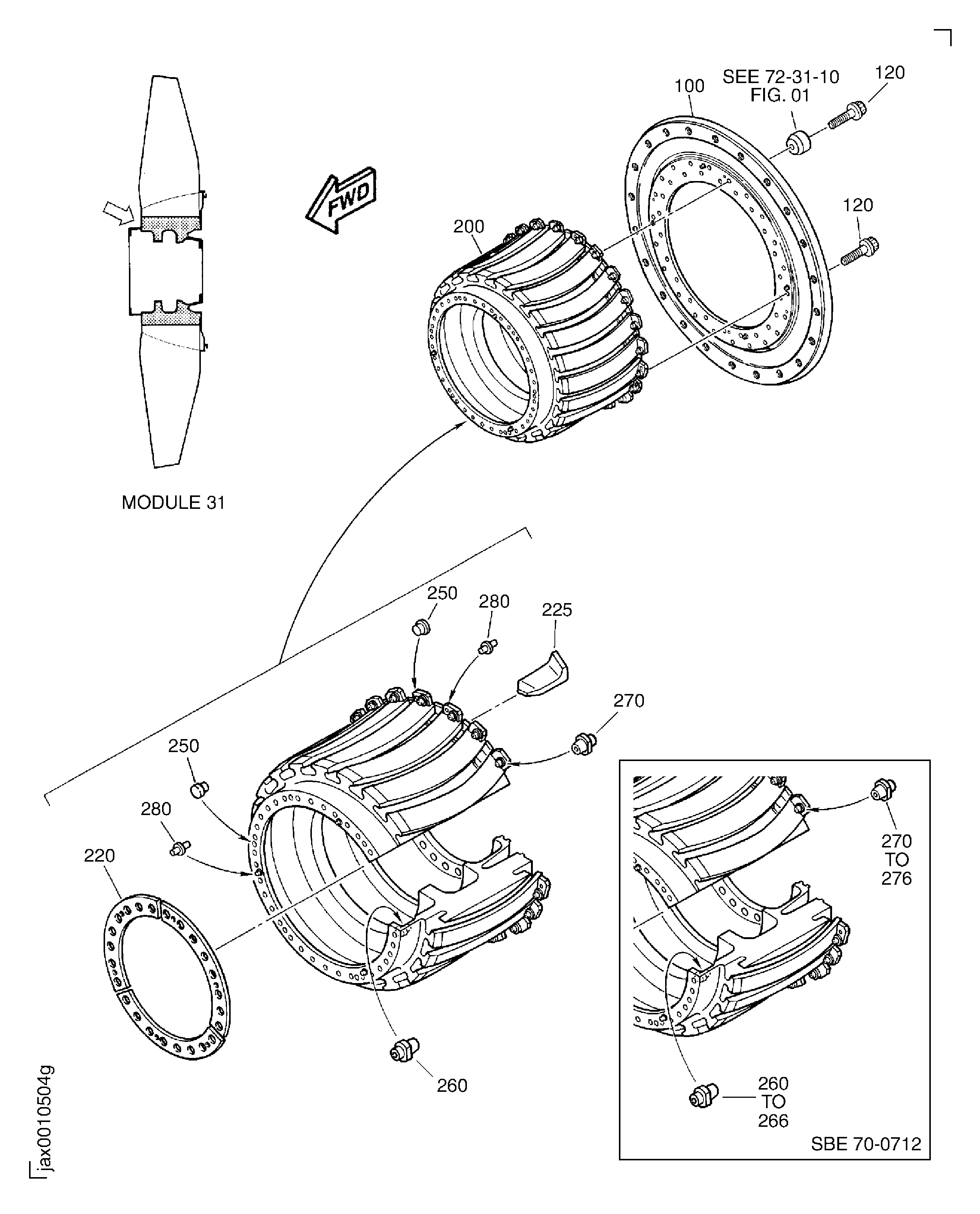

Figure: ENGINE-LP COMPRESSOR DISC AND LOCATION RINGS
LP COMPRESSOR DISK AND LOCATION RING
