DMC:V2500-A1-72-32-17-01A-941A-DIssue No:003.00Issue Date:2019-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72321701 | ENGINE - NO.2 BEARING SUPPORT AND PROBE BRACKETS, PRE SBE72-0047 | aa | ||
| SBE0047-01 | ENGINE - NO.2 BEARING SUPPORT AND PROBE BRACKETS, PRE SBE70-0261 | ab | ||
| SBE0261-01 | ENGINE - NO.2 BEARING SUPPORT AND PROBE BRACKETS, PRE SBE70-0503 | ac | ||
| SBE0503-01 | ENGINE - NO.2 BEARING SUPPORT AND PROBE BRACKETS, PRE SBE72-0462 | ad | ||
| SBE0462-01 | ENGINE - NO.2 BEARING SUPPORT AND PROBE BRACKETS, PRE SBE70-0859 | ae | ||
| SBE0859-01 | ENGINE - NO.2 BEARING SUPPORT AND PROBE BRACKETS, PRE SBE72-0647 | af | ||
| SBE0647-01 | ENGINE - NO.2 BEARING SUPPORT AND PROBE BRACKETS | ag | ||
| 050 | 5A0142 | • BRACKET PRE SBE70-0261 | aa-af | 1 |
| 050A | 5A1493 | • BRACKET - NF B POST SBE70-0261 | aa-af | 1 |
| 100 | 5A5409 | • BRACKET - MOUNTING, B PRE SBE70-0859 | aa-af | 1 |
| 100A | 5A1903 | • BRACKET - MOUNTING POST SBE70-0859 PRE SBE72-0647 | aa-af | 1 |
| 100B | 5A2197 | • BRACKET - MOUNTING B POST SBE72-0647 | ag | 1 |
| 110 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA | aa-af | 2 |
| 115 | 4W0173 | • BOLT - 0.250 DIA X 1.188 | aa-af | 2 |
| 120 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA | aa-af | 1 |
| 125 | 4W0171 | • BOLT - 0.250 DIA X 1.062 ALT AS21517 | aa-af | 1 |
| -125A | AS21517 | • BOLT - 0.25 DIA X 1.062 U1653 ALT 4W0171 | aa-af | REF |
| 195 | 5A0141 | • BRACKET PRE SBE70-0261 | aa-af | 1 |
| 195A | 5A1492 | • BRACKET - NF A POST SBE70-0261 | aa-af | 1 |
| 200 | 5A5408 | • BRACKET - MOUNTING, ASSEMBLY OF PRE SBE70-0859 | aa-af | 1 |
| 200A | 5A1902 | • BRACKET - MOUNTING POST SBE70-0859 PRE SBE72-0647 | aa-af | 1 |
| 200B | 5A2196 | • BRACKET - MOUNTING A POST SBE72-0647 | ag | 1 |
| 210 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA | aa-af | 2 |
| 215 | 4W0173 | • BOLT - 0.250 DIA X 1.188 | aa-af | 2 |
| 220 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA | aa-af | 1 |
| 225 | 4W0171 | • BOLT - 0.250 DIA X 1.062 ALT AS21517 | aa-af | 1 |
| -225A | AS21517 | • BOLT - 0.25 DIA X 1.062 U1653 ALT 4W0171 | aa-af | REF |
| 300 | 5W2110 | • RETAINER - NO. 2 BEARING | aa-af | 1 |
| 310 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA | aa-af | 3 |
| 320 | 4W0167 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .812 | aa-af | 3 |
| 330 | 4W0165 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 | aa-af | 2 |
| 400 | 5A5385 | • JET - OIL, TOWER SHAFT, ASSEMBLY OF PRE SBE70-0503 | aa-ac | 1 |
| 400A | 5A1701 | • JET - OIL, TOWER SHAFT, ASSEMBLY OF POST SBE70-0503 | ad-af | 1 |
| 410 | 4W0103 | • BOLT - .190 DIA X .500 | aa-af | 2 |
| 420 | AS43013-110 | • RING - SEAL, 9.19 MM ID X 2.62 MM U1653 | aa-af | 1 |
| 430 | AS43013-115 | • RING - SEALING, TOROIDAL U1653 | aa-af | 1 |
| 460 | 5R0572 | • STRAINER - OIL, JET, ASSEMBLY OF | aa-af | 1 |
| 500 | 5A5348 | • OIL JET - BEVEL GEAR, ASSEMBLY OF PRE SBE70-0503 | aa-af | 1 |
| 500A | 5A1643 | • JET - OIL, BEVEL GEAR, ASSEMBLY OF POST SBE70-0503 | aa-af | 1 |
| 510 | 4W0103 | • BOLT - .190 DIA X .500 | aa-af | 1 |
| 520 | AS43013-110 | • RING - SEAL, 9.19 MM ID X 2.62 MM U1653 | aa-af | 1 |
| 530 | AS43013-115 | • RING - SEALING, TOROIDAL U1653 | aa-af | 1 |
| 560 | 5R0572 | • STRAINER - OIL, JET, ASSEMBLY OF | aa-af | 1 |
| 600 | 5R0581 | • JET - OIL, NO. 3 BEARING, ASSEMBLY OF | aa-af | 1 |
| 610 | 4W0103 | • BOLT - .190 DIA X .500 | aa-af | 1 |
| 620 | AS43013-112 | • RING - 12.37 MM ID X 2.62 MM U1653 | aa-af | 1 |
| 630 | AS43013-115 | • RING - SEALING, TOROIDAL U1653 | aa-af | 1 |
| 660 | 5R0580 | • STRAINER - OIL, JET, ASSEMBLY OF | aa-af | 1 |
| 700 | 5R0574 | • JET - OIL, NO. 2 BEARING, ASSEMBLY OF PRE SBE72-0047 | aa-ad | 1 |
| 700A | 5R0071 | • JET - OIL, NO.2 BEARING, ASSEMBLY OF POST SBE72-0047 PRE SBE72-0462 | aa-ad | 1 |
| 700B | 5R0293 | • JET - OIL, NO. 2 BEARING, ASSEMBLY OF POST SBE72-0462 | aa-af | 1 |
| 710 | 4W0103 | • BOLT - .190 DIA X .500 | aa-af | 1 |
| 720 | AS43013-110 | • RING - SEAL, 9.19 MM ID X 2.62 MM U1653 | aa-af | 1 |
| 730 | AS43013-115 | • RING - SEALING, TOROIDAL U1653 | aa-af | 1 |
| 760 | 5R0577 | • STRAINER - ASSEMBLY OF | aa-af | 1 |
| 850 | 5W2046 | • SUPPORT - NO. 2 BEARING, ASSEMBLY OF | aa-af | 1 |
| 855 | AS44808 | • • PIN - SHOULDER, HEADLESS U1653 | aa-af | 2 |
| 860 | AS44805 | • • PIN - STRAIGHT, HEADLESS U1653 | aa-af | 2 |
| 865 | 5W2122 | • • PIN | aa-af | 2 |
| 870 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-af | 13 |
| 875 | AGS3731 | • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 | aa-af | 5 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

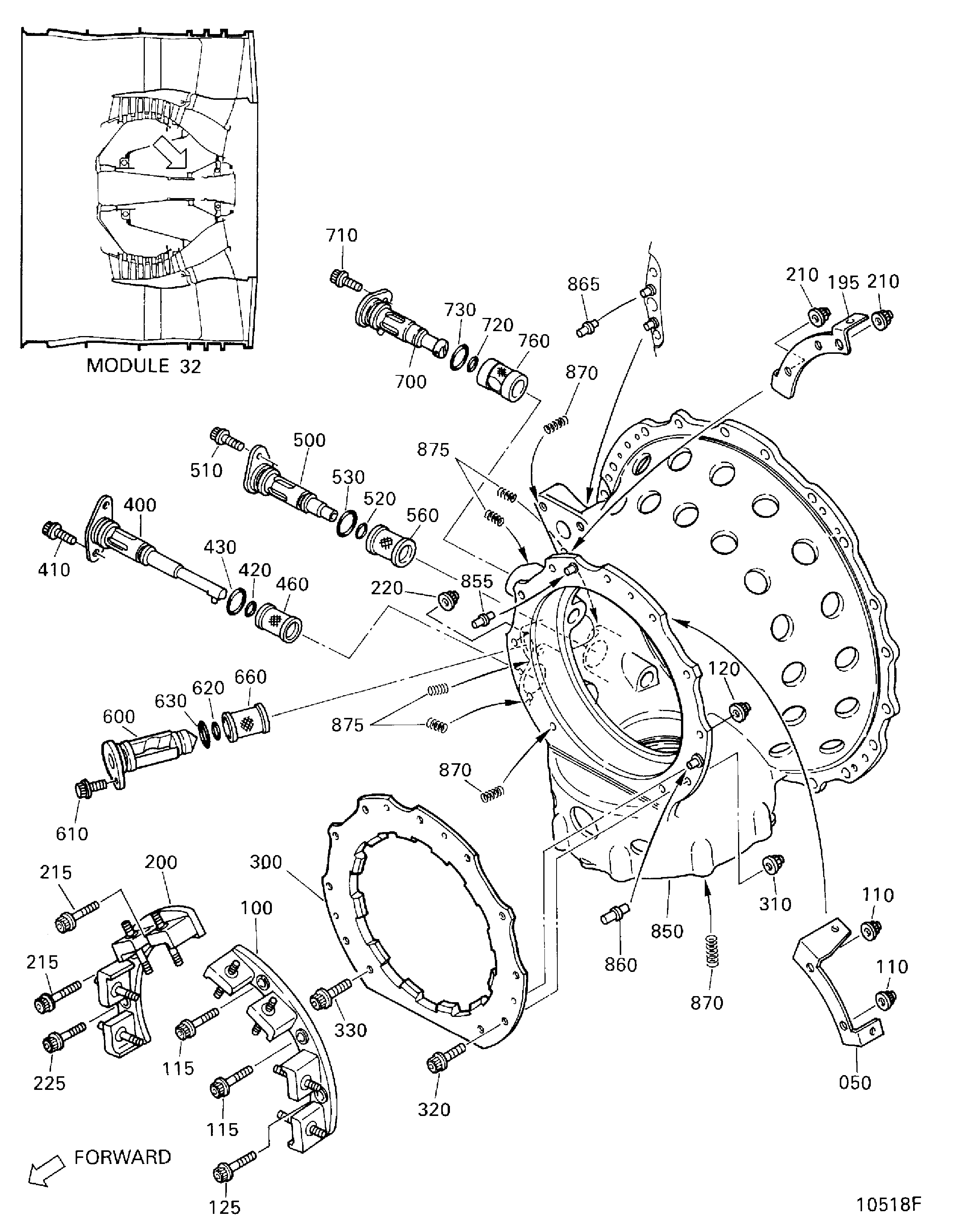

Figure: ENGINE-NO.2 BEARING SUPPORT AND PROBE BRACKETS
NO.2 BEARING SUPPORT AND PROBE BRACKETS
