DMC:V2500-A1-72-32-21-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72322101 | ENGINE-NO.3 BEARING HOUSING, PRE SBE72-0059 | aa | ||
| SBE0059-01 | ENGINE-NO.3 BEARING HOUSING, PRE SBE72-0093 | ab | ||
| SBE0093-01 | ENGINE-NO.3 BEARING HOUSING, PRE SBE70-0481 | ac | ||
| SBE0481-01 | ENGINE-NO.3 BEARING HOUSING, PRE SBE70-0822 | ad | ||
| SBE0822-01 | ENGINE-NO.3 BEARING HOUSING | ae | ||
| 010 | 2A0425 | • SEAL - RING PRE SBE70-0822 | aa-ad | 2 |
| 010A | 2A3803 | • RING - SEAL POST SBE70-0822 | ae | 2 |
| 011 | 2A3803P10 | • RING - SEAL POST SBE70-0822 | ae | 2 |
| 012 | 2A3803P20 | • RING - SEAL POST SBE70-0822 | ae | 2 |
| 013 | 2A3803P30 | • RING - SEAL POST SBE70-0822 | ae | 2 |
| 020 | 2A0424 | • HOUSING - ASSY, NO.3 BRG PRE SBE72-0093 | aa-ae | 1 |
| 020A | 2A2204 | • HOUSING - ASSY NO.3 BRG POST SBE72-0093 | aa-ae | 1 |
| 040 | 1A9666 | • • PIN - SLAB PRE SBE72-0093 | aa-ae | 2 |
| 040A | 2A2205 | • • PIN - SLAB POST SBE72-0093 | aa-ae | 2 |
| 060 | 4023117 | • NUT - OPTION 77445 PRE SBE70-0481 | aa-ae | 18 |
| 060A | 4023117 | • NUT - OPTION 77445 ALT ST2113-11 POST SBE70-0481 | aa-ae | 18 |
| -060B | ST2113-11 | • NUT - SELF LOCKING 77445 ALT ST2118-11 POST SBE70-0481 | ad-ae | REF |
| -060C | ST2118-11 | • NUT - SELF LOCKING 77445 ALT ST2119-11 POST SBE70-0481 | ad-ae | REF |
| -060D | ST2119-11 | • NUT - SELF LOCKING 77445 ALT 4023117 POST SBE70-0481 | aa-ac | REF |
| 080 | 2A0422 | • STUD - SHLDR PRE SBE72-0059 | aa | 18 |
| 080A | 2A1667 | • STUD POST SBE72-0059 | ab-ae | 18 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

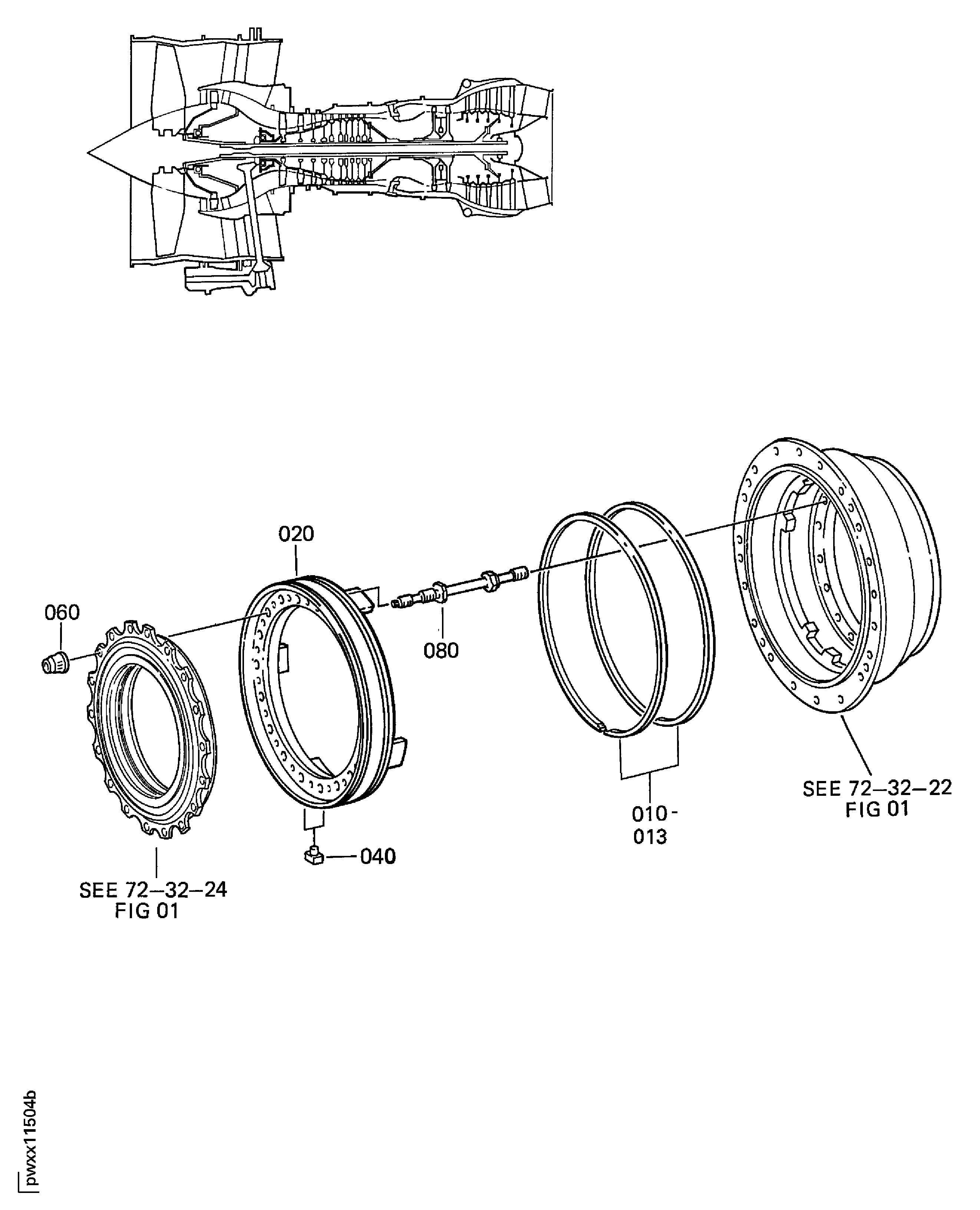

Figure: ENGINE-NO.3 BEARING HOUSING
NUMBER THREE BEARING HOUSING ASSEMBLY
