DMC:V2500-A1-72-32-26-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72322601 | ENGINE-INTERNAL GEARBOX DRIVING GEAR, PRE SBE70-0010 | aa | ||
| SBE0010-01 | ENGINE-INTERNAL GEARBOX DRIVING GEAR, PRE SBE70-0240 | ab | ||
| SBE0240-01 | ENGINE-INTERNAL GEARBOX DRIVING GEAR, PRE SBE70-0282 | ac | ||
| SBE0282-01 | ENGINE-INTERNAL GEARBOX DRIVING GEAR, PRE SBE70-0390 | ad | ||
| SBE0390-01 | ENGINE-INTERNAL GEARBOX DRIVING GEAR | ae | ||
| 300 | 5A1000 | • NUT - NO.3 BEARING | aa-ae | 1 |
| 350 | 5A0686 | • WASHER - CUP PRE SBE70-0010 | aa-ae | 1 |
| 350A | 5A0242 | • WASHER - CUP POST SBE70-0010 | aa-ae | 1 |
| 400 | 5A6189 | • GEAR - SHAFT BEVEL WHEEL 83T | aa-ae | 1 |
| 430 | 5A1001 | • WASHER - ADJUSTING, 0.177INS (4.50 MM) PRE SBE70-0390 | aa-ae | 1 |
| 430A | 5A1539 | • WASHER - ADJUSTING PTO, THK .177 IN POST SBE70-0390 | aa-ae | 1 |
| 431 | 5A1002 | • WASHER - ADJUSTING, 0.179INS (4.55 MM) PRE SBE70-0390 | aa-ae | 1 |
| 431A | 5A1540 | • WASHER - ADJUSTING PTO, THK .179 IN POST SBE70-0390 | aa-ae | 1 |
| 432 | 5A1003 | • WASHER - ADJUSTING, 0.181INS (4.60 MM) PRE SBE70-0390 | aa-ae | 1 |
| 432A | 5A1541 | • WASHER - ADJUSTING PTO, THK .181 IN POST SBE70-0390 | aa-ae | 1 |
| 433 | 5A1004 | • WASHER - ADJUSTING, 0.183INS (4.65 MM) PRE SBE70-0390 | aa-ae | 1 |
| 433A | 5A1542 | • WASHER - ADJUSTING PTO, THK .183 IN POST SBE70-0390 | aa-ae | 1 |
| 434 | 5A1005 | • WASHER - ADJUSTING, 0.185INS (4.70 MM) PRE SBE70-0390 | aa-ae | 1 |
| 434A | 5A1543 | • WASHER - ADJUSTING PTO, THK .185 IN POST SBE70-0390 | aa-ae | 1 |
| 435 | 5A1006 | • WASHER - ADJUSTING, 0.187INS (4.75 MM) PRE SBE70-0390 | aa-ae | 1 |
| 435A | 5A1544 | • WASHER - ADJUSTING PTO, THK .187 IN POST SBE70-0390 | aa-ae | 1 |
| 436 | 5A1007 | • WASHER - ADJUSTING, 0.189INS (4.80 MM) PRE SBE70-0390 | aa-ae | 1 |
| 436A | 5A1545 | • WASHER - ADJUSTING PTO, THK .189 IN POST SBE70-0390 | aa-ae | 1 |
| 437 | 5A1008 | • WASHER - ADJUSTING, 0.191INS (4.85 MM) PRE SBE70-0390 | aa-ae | 1 |
| 437A | 5A1546 | • WASHER - ADJUSTING PTO, THK .191 IN POST SBE70-0390 | aa-ae | 1 |
| 438 | 5A1009 | • WASHER - ADJUSTING, 0.193INS (4.90 MM) PRE SBE70-0390 | aa-ae | 1 |
| 438A | 5A1547 | • WASHER - ADJUSTING PTO, THK .193 IN POST SBE70-0390 | aa-ae | 1 |
| 439 | 5A1010 | • WASHER - ADJUSTING, 0.195INS (4.95 MM) PRE SBE70-0390 | aa-ae | 1 |
| 439A | 5A1548 | • WASHER - ADJUSTING PTO, THK .195 IN POST SBE70-0390 | aa-ae | 1 |
| 440 | 5A1011 | • WASHER - ADJUSTING, 0.197INS (5.00 MM) PRE SBE70-0390 | aa-ae | 1 |
| 440A | 5A1549 | • WASHER - ADJUSTING PTO, THK .197 IN POST SBE70-0390 | aa-ae | 1 |
| 451 | 5A1032 | • WASHER - ADJUSTING PTO, 0.169INS (4.30 MM) PRE SBE70-0390 | aa-ae | 1 |
| 451A | 5A1535 | • WASHER - ADJUSTING PTO, THK .169 IN POST SBE70-0390 | aa-ae | 1 |
| 452 | 5A1033 | • WASHER - ADJUSTING PTO, 0.171INS (4.35 MM) PRE SBE70-0390 | aa-ae | 1 |
| 452A | 5A1536 | • WASHER - ADJUSTING PTO, THK .171 IN POST SBE70-0390 | aa-ae | 1 |
| 453 | 5A1034 | • WASHER - ADJUSTING PTO, 0.173INS (4.40 MM) PRE SBE70-0390 | aa-ae | 1 |
| 453A | 5A1537 | • WASHER - ADJUSTING PTO, THK .173 IN POST SBE70-0390 | aa-ae | 1 |
| 454 | 5A1035 | • WASHER - ADJUSTING PTO, 0.175INS (4.45 MM) PRE SBE70-0390 | aa-ae | 1 |
| 454A | 5A1538 | • WASHER - ADJUSTING PTO, THK .175 IN POST SBE70-0390 | aa-ae | 1 |
| 500 | 5A1022 | • WASHER - ADJUSTING, THK .157 IN PRE SBE70-0282 | aa-ae | 1 |
| 500A | 5A1520 | • WASHER - ADJUSTING HPC, THK .157 IN POST SBE70-0282 | aa-ae | 1 |
| 501 | 5A1023 | • WASHER - ADJUSTING, 0.167INS (4.25 MM) PRE SBE70-0282 | aa-ae | 1 |
| 501A | 5A1521 | • WASHER - ADJUSTING HPC, 0.167INS (4.25 MM) POST SBE70-0282 | aa-ae | 1 |
| 502 | 5A1024 | • WASHER - ADJUSTING, 0.177INS (4.50 MM) PRE SBE70-0282 | aa-ae | 1 |
| 502A | 5A1522 | • WASHER - ADJUSTING HPC, 0.177INS (4.50 MM) POST SBE70-0282 | aa-ae | 1 |
| 503 | 5A1025 | • WASHER - ADJUSTING, 0.187INS (4.75 MM) PRE SBE70-0282 | aa-ae | 1 |
| 503A | 5A1523 | • WASHER - ADJUSTING HPC, 0.187INS (4.75 MM) POST SBE70-0282 | aa-ae | 1 |
| 504 | 5A1026 | • WASHER - ADJUSTING, 0.197INS (5.00 MM) PRE SBE70-0282 | aa-ae | 1 |
| 504A | 5A1524 | • WASHER - ADJUSTING HPC, 0.197INS (5.00 MM) POST SBE70-0282 | aa-ae | 1 |
| 505 | 5A1027 | • WASHER - ADJUSTING, 0.207INS (5.25 MM) PRE SBE70-0282 | aa-ae | 1 |
| 505A | 5A1526 | • WASHER - ADJUSTING HPC, 0.207INS (5.25 MM) POST SBE70-0282 | aa-ae | 1 |
| 506 | 5A1028 | • WASHER - ADJUSTING, 0.217INS (5.50 MM) PRE SBE70-0282 | aa-ae | 1 |
| 506A | 5A1528 | • WASHER - ADJUSTING HPC, 0.217INS (5.50 MM) POST SBE70-0282 | aa-ae | 1 |
| 507 | 5A1029 | • WASHER - ADJUSTING, 0.226INS (5.75 MM) PRE SBE70-0282 | aa-ae | 1 |
| 507A | 5A1530 | • WASHER - ADJUSTING HPC, 0.226INS (5.75 MM) POST SBE70-0282 | aa-ae | 1 |
| 508 | 5A1030 | • WASHER - ADJUSTING, 0.236INS (6.00 MM) PRE SBE70-0282 | aa-ae | 1 |
| 508A | 5A1532 | • WASHER - ADJUSTING HPC, 0.236INS (6.00 MM) POST SBE70-0282 | aa-ae | 1 |
| 511 | 5A0890 | • WASHER - ADJUSTING HPC, THK .202 IN POST SBE70-0240 PRE SBE70-0282 | ac | 1 |
| 511A | 5A1525 | • WASHER - ADJUSTING HPC, THK .202 IN POST SBE70-0282 | ad-ae | 1 |
| 512 | 5A0891 | • WASHER - ADJUSTING HPC, THK. 212 IN POST SBE70-0240 PRE SBE70-0282 | ac-ae | 1 |
| 512A | 5A1527 | • WASHER - ADJUSTING HPC, THK .212 IN POST SBE70-0282 | ac-ae | 1 |
| 513 | 5A1500 | • WASHER - ADJUSTING HPC, 0.222INS (5.63 MM) POST SBE70-0240 PRE SBE70-0282 | ac-ae | 1 |
| 513A | 5A1529 | • WASHER - ADJUSTING HPC, 0.222INS (5.63 MM) POST SBE70-0282 | ac-ae | 1 |
| 514 | 5A1501 | • WASHER - ADJUSTING HPC, THK .231 IN POST SBE70-0240 PRE SBE70-0282 | ac-ae | 1 |
| 514A | 5A1531 | • WASHER - ADJUSTING HPC, THK. 231 IN POST SBE70-0282 | ac-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

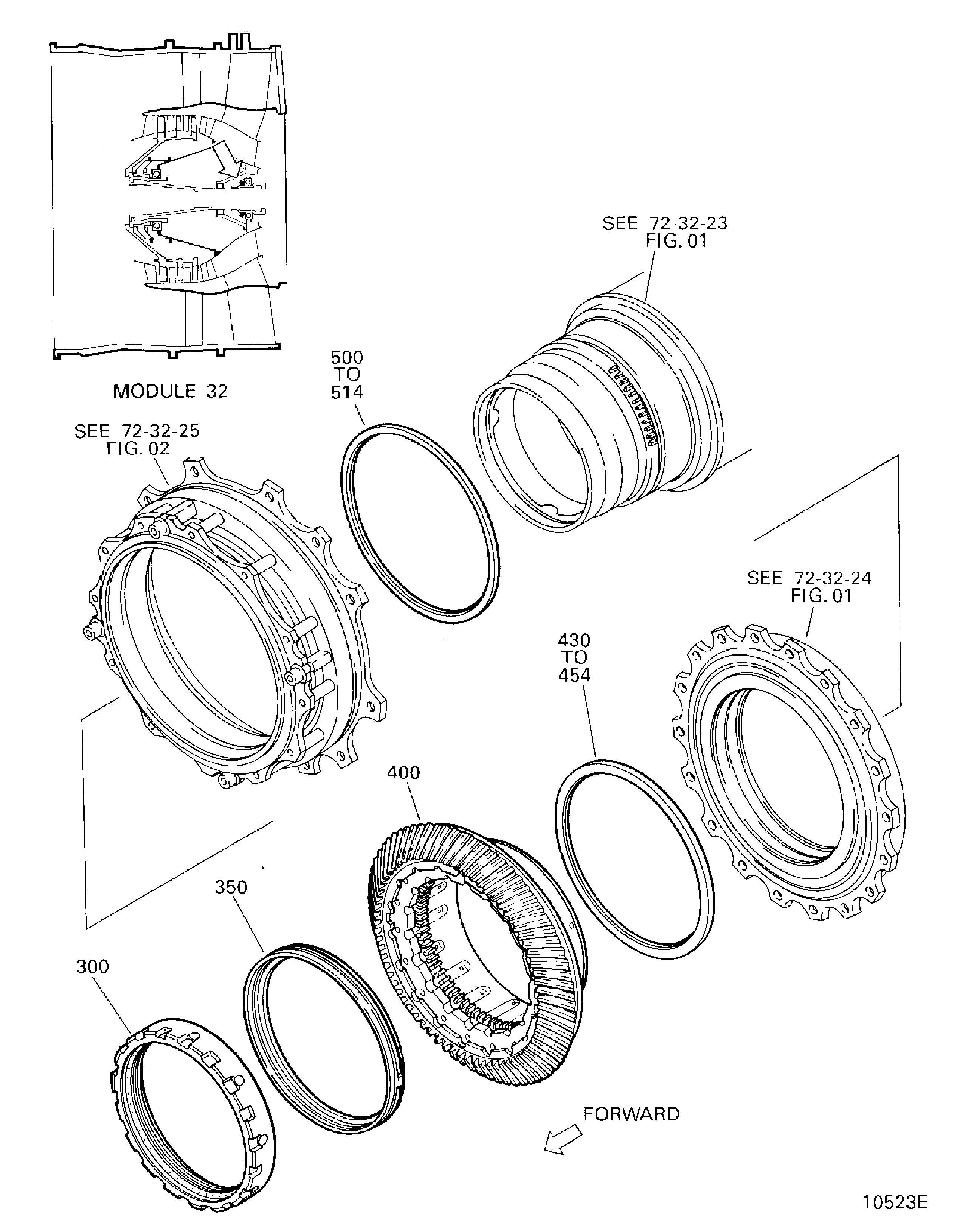

Figure: ENGINE-INTERNAL GEARBOX DRIVING GEAR
INTERNAL GEARBOX DRIVING GEAR
