TASK 72-32-35-300-002 Front Bearing Compartment Rear Air Seal Assembly - Replace The Brush Seal, Repair-002 (VRS1252)
General
Price and availability
Refer to IAE for the following:
Tools
Engine parts
Repair of spares
This Repair gives the procedure for replacement of the brush seal.
The practices and processes referred to in the procedure by the TASK number are in the SPM.
A ** following a Repair referenced in this repair indicates that the Repair is not yet published in the current revision of this manual and the part must be rejected.
Contact IAE for additional information concerning FAA approved repair data.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 03-026 LIQUID NITROGEN | LOCAL | CoMat 03-026 |
Spares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Seal, A/O brush | 6A2054 | 1 |
Safety Requirements
NONEProcedure
Within the limit in Figure.
Repair VRS1253, TASK 72-32-35-300-004**.
Diameter more than in Step.
SUBTASK 72-32-35-220-056 Examine the Inner Diameter of the Brush Seal Holder
Immerse the brush seal in CoMat 03-026 LIQUID NITROGEN.
WARNING
APPLICABLE PROTECTIVE CLOTHING MUST BE WORN WHEN HANDLING LIQUID NITROGEN AND COOLED COMPONENTS.Cool the brush seal.
SUBTASK 72-32-35-350-053 Install the Brush Seal
Refer to TASK 72-32-35-200-000.
Do a visual inspection.
SUBTASK 72-32-25-220-057 Examine the FBC Rear Seal Assembly

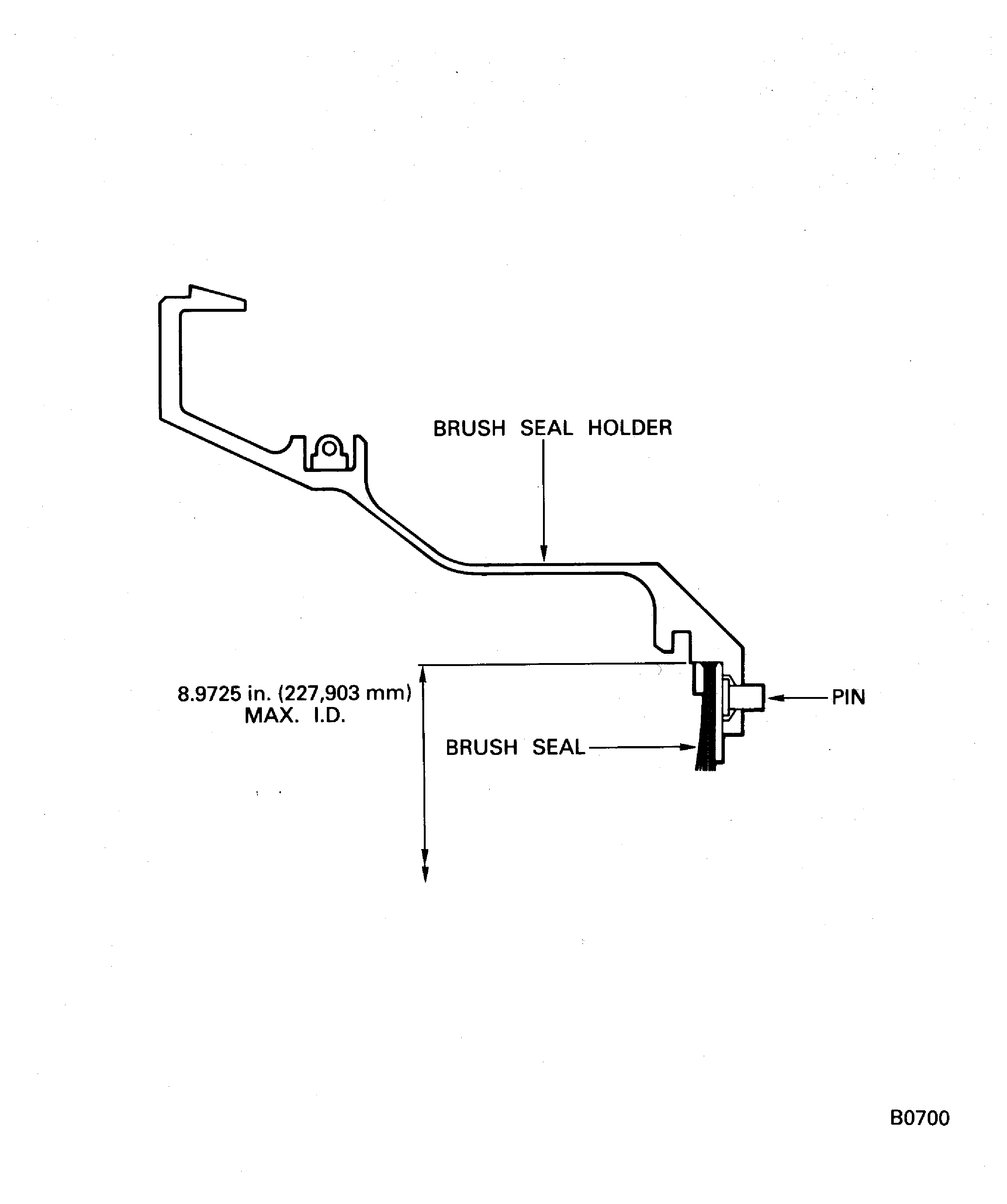

Figure: FBC Rear air seal
FBC Rear air seal
