DMC:V2500-A1-72-32-37-01A-941A-DIssue No:002.00Issue Date:2017-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72323701 | ENGINE-FAN SPEED/TRIM BALANCE PROBES HARNESS, PRE SBE70-0004 | aa | ||
| SBE0004-01 | ENGINE-FAN SPEED/TRIM BALANCE PROBES HARNESS, PRE SBE70-0284 | ab | ||
| SBE0284-01 | ENGINE-FAN SPEED/TRIM BALANCE PROBES HARNESS, PRE SBE72-0683 | ac | ||
| SBE0683-01 | ENGINE-FAN SPEED/TRIM BALANCE PROBES HARNESS, PRE SBE72-0684 | ad | ||
| SBE0684-01 | ENGINE-FAN SPEED/TRIM BALANCE PROBES HARNESS | ae | ||
| 100 | 5A1361 | • ELECTRCL - HARNESS NF PRE SBE70-0004 PRE SBE72-0683 | aa | 1 |
| 100A | 5A0244 | • HARNESS - ELECTRICAL,NF POST SBE70-0004 PRE SBE72-0683 | ab-ac | 1 |
| 100B | 5A2211 | • HARNESS - ELECTRICAL,NF POST SBE72-0683 | ad | 1 |
| 105 | 20-32492-6 | • • SLEEVE 0ABG9 | aa-ac | 1 |
| 110 | 5A1239 | • • SLEEVE - MARKER-A | aa-ac | 2 |
| 115 | 5A9536 | • • SLEEVE - MARKER 1 | aa-ac | 1 |
| 120 | 5A9537 | • • SLEEVE - MARKER 2 | aa-ac | 1 |
| 125 | 20-32492-5 | • • SLEEVE 0ABG9 | aa-ac | 2 |
| 130 | 150457 | • • TERMINAL K1636 PRE SBE70-0284 | aa-ac | 2 |
| 130A | 150457 | • • TERMINAL K1636 ALT 321896 POST SBE70-0284 | aa-ac | 2 |
| -130B | 321896 | • • TAG - NO.10 K1636 ALT 150457 POST SBE70-0284 | aa-ac | REF |
| 145 | 20-32492-6 | • • SLEEVE 0ABG9 | aa-ac | 1 |
| 150 | 5A1256 | • • SLEEVE - MARKER-B | aa-ac | 2 |
| 155 | 5A9538 | • • SLEEVE - MARKER 3 | aa-ac | 1 |
| 160 | 5A9539 | • • SLEEVE - MARKER 4 | aa-ac | 1 |
| 165 | 20-32492-5 | • • SLEEVE 0ABG9 | aa-ac | 2 |
| 170 | 150457 | • • TERMINAL K1636 PRE SBE70-0284 | aa-ac | 2 |
| 170A | 150457 | • • TERMINAL K1636 ALT 321896 POST SBE70-0284 | aa-ac | 2 |
| -170B | 321896 | • • TAG - NO.10 K1636 ALT 150457 POST SBE70-0284 | aa-ac | REF |
| 185 | 20-32492-6 | • • SLEEVE 0ABG9 | aa-ac | 1 |
| 190 | 5A1257 | • • SLEEVE - MARKER-C | aa-ac | 2 |
| 195 | 5A9540 | • • SLEEVE - MARKER 5 | aa-ac | 1 |
| 200 | 5A9541 | • • SLEEVE - MARKER 6 | aa-ac | 1 |
| 205 | 20-32492-5 | • • SLEEVE 0ABG9 | aa-ac | 2 |
| 210 | 150457 | • • TERMINAL K1636 PRE SBE70-0284 | aa-ac | 2 |
| 210A | 150457 | • • TERMINAL K1636 ALT 321896 POST SBE70-0284 | aa-ac | 2 |
| -210B | 321896 | • • TAG - NO.10 K1636 ALT 150457 POST SBE70-0284 | aa-ac | REF |
| 225 | 20-32492-6 | • • SLEEVE 0ABG9 | aa-ac | 1 |
| 230 | 5A1258 | • • SLEEVE - MARKER-D | aa-ac | 2 |
| 235 | 5A9542 | • • SLEEVE - MARKER 7 | aa-ac | 1 |
| 240 | 5A9543 | • • SLEEVE - MARKER 8 | aa-ac | 1 |
| 245 | 20-32492-5 | • • SLEEVE 0ABG9 | aa-ac | 2 |
| 250 | 150457 | • • TERMINAL K1636 PRE SBE70-0284 | aa-ac | 2 |
| 250A | 150457 | • • TERMINAL K1636 ALT 321896 POST SBE70-0284 | aa-ac | 2 |
| -250B | 321896 | • • TAG - NO.10 K1636 ALT 150457 POST SBE70-0284 | aa-ac | REF |
| -335 | 5A2212 | • • SLEEVE POST SBE72-0684 | ae | A/R |
| 450 | 5A1348 | • • BRACKET - NF | aa-ac | 1 |
| 460 | 5A0045 | • • BOLT PRE SBE70-0004 | aa-ac | 2 |
| 460A | AS43205 | • • BOLT U1653 POST SBE70-0004 | aa-ac | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

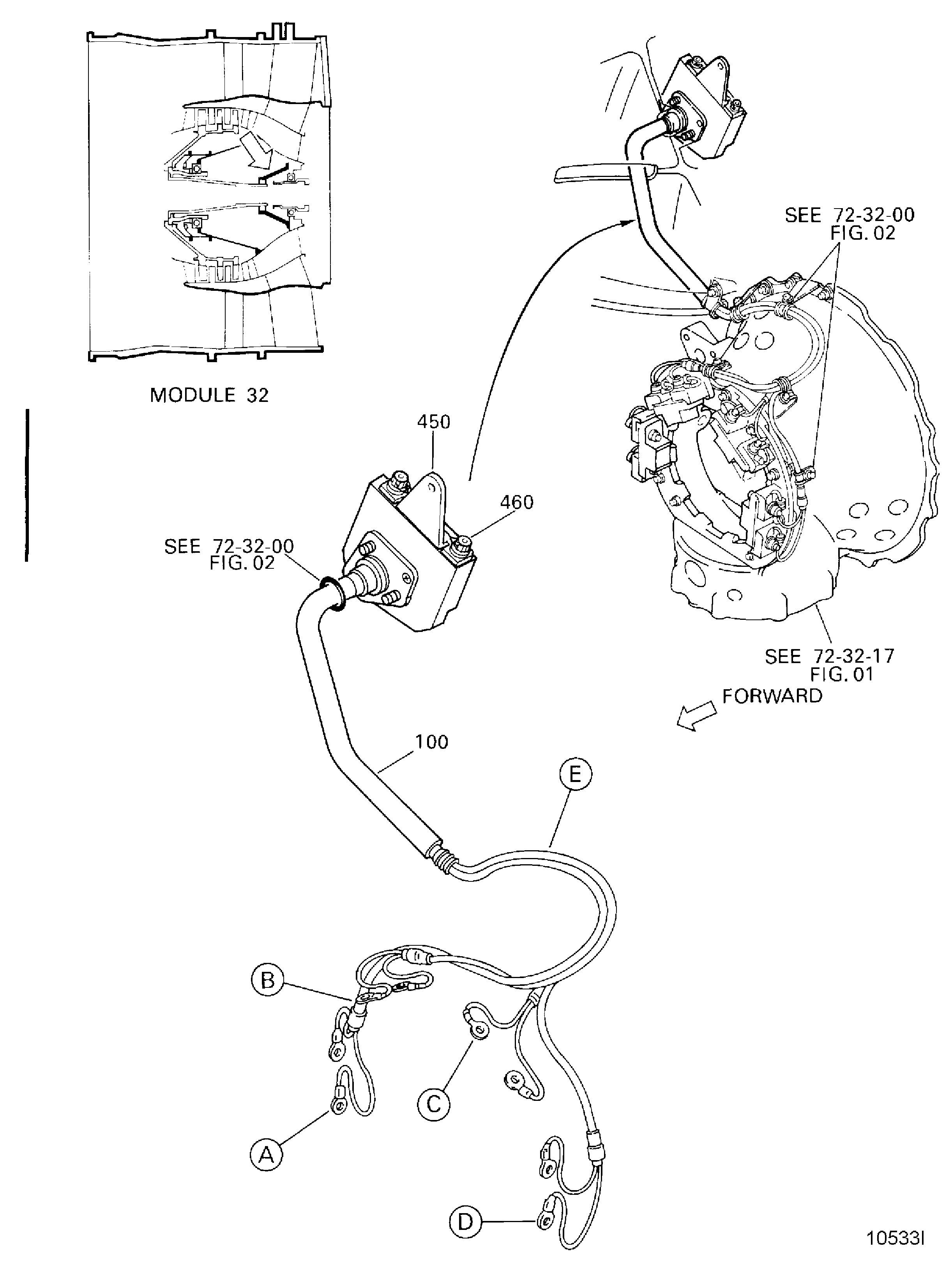

Figure: ENGINE-FAN SPEED/TRIM BALANCE PROBES HARNESS
FAN SPEED/TRIM BALANCE PROBES HARNESS
FAN SPEED/TRIM BALANCE PROBES HARNESS
