ENGINE-OIL JET AND OIL SUPPLY TUBE

DMC:V2500-A1-72-32-42-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B72324201ENGINE-OIL JET AND OIL SUPPLY TUBE, PRE SBE72-0081aa
000SBE0081-01ENGINE-OIL JET AND OIL SUPPLY TUBE, PRE SBE70-0114ab
000SBE0114-01ENGINE-OIL JET AND OIL SUPPLY TUBE, PRE SBE70-0503ac
000SBE0503-01ENGINE-OIL JET AND OIL SUPPLY TUBE, PRE SBE70-0952ad
000SBE0952-01ENGINE-OIL JET AND OIL SUPPLY TUBEae
1001005A5427• TUBE - A/O OIL FEED
PRE SBE70-0114		aa-ae1
100100A5A0995• TUBE - A/O OIL FEED
POST SBE70-0114		aa-ae1
110110AS43013-110• RING - 9.19MM I/D X 2.62MM
U1653		aa-ae2
2002005A5428• OILJET - A/O NO.1 BEARING
PRE SBE70-0503		aa-ae1
200200A5A1712• JET - OIL,A/O NO.1 BRG
POST SBE70-0503		aa-ae1
2102104W0002• NUT - .250 DIAaa-ae2
212212AN960C416• WASHER
81352
PRE SBE72-0081		aa-ae2
212212AMS9321-10• WASHER
96906
POST SBE72-0081		aa-ae2
2202204W0167• BOLT - .250 DIA X .812aa-ae2
2502505R0572• STRAINER - A/O OILJETaa-ae1
4504505A5426• HOUSING - STRAINER
PRE SBE70-0952		aa-ae1
450450A5A1155• HOUSING - STRAINER
POST SBE70-0952		aa-ae1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

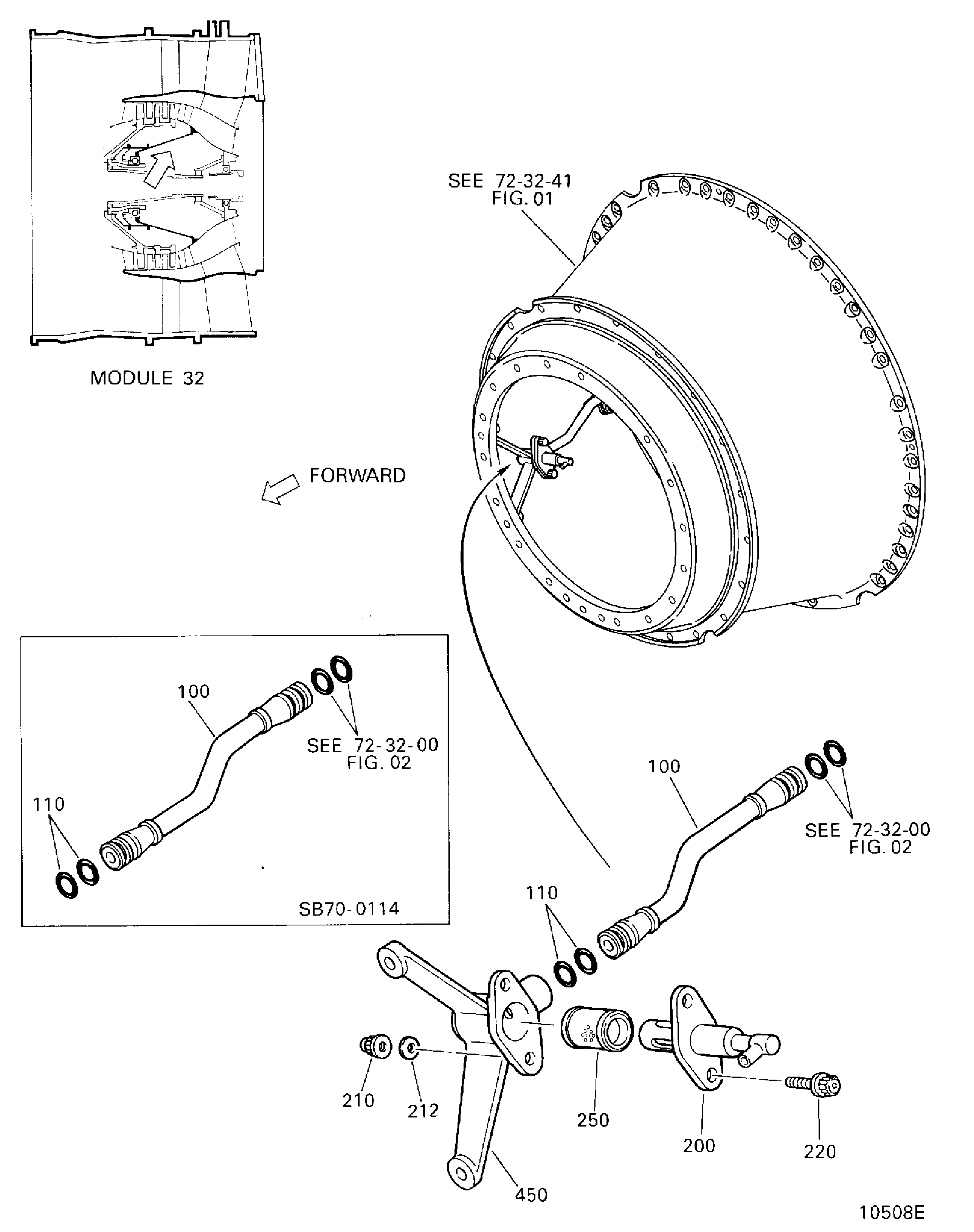

Figure: ENGINE-OIL JET AND OIL SUPPLY TUBE

OIL JET AND OIL SUPPLY TUBE

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0167
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .812
Manufacturer Code:0AM53
Part Number:5A0995
Part Name:TUBE - OIL, FEED, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1155
Part Name:HOUSING - STRAINER
Manufacturer Code:0AM53
Part Number:5A1712
Part Name:JET
Manufacturer Code:0AM53
Part Number:5A5426
Part Name:HOUSING - STRAINER
Manufacturer Code:0AM53
Part Number:5A5427
Part Name:TUBE - OIL, FEED, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A5428
Part Name:JET - OIL, NO. 1 BEARING, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0572
Part Name:STRAINER - OIL, JET, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS43013-110
Part Name:RING - SEAL, 9.19 MM ID X 2.62 MM
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:MS9321-10
Part Name:WASHER - FLAT, 0.500 X 0.276 X 0.062
Manufacturer Code:96906
