DMC:V2500-A1-72-32-52-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72325201 | ENGINE-NO.2 BEARING, PRE SBE70-0058 | aa | ||
| SBE0058-01 | ENGINE-NO.2 BEARING | ab | ||
| 100 | 5R6002 | • BEARING - ROLLER NO.2 OUTER PRE SBE70-0058 | aa-ab | 1 |
| 100A | 5R6002 | • BEARING - ROLLER NO.2 OUTER ALT 5R6004 POST SBE70-0058 | aa-ab | 1 |
| -100B | 5R6004 | • BEARING - ROLLER NO.2 OUTER ALT 5R6002 POST SBE70-0058 | ab | REF |
| 160 | 5R6003 | • BEARING - ROLLER NO.2 INNER PRE SBE70-0058 | aa-ab | 1 |
| 160A | 5R6003 | • BEARING - ROLLER NO.2 INNER ALT 5R6005 POST SBE70-0058 | aa-ab | 1 |
| -160B | 5R6005 | • BEARING - ROLLER NO.2 INNER ALT 5R6003 POST SBE70-0058 | ab | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

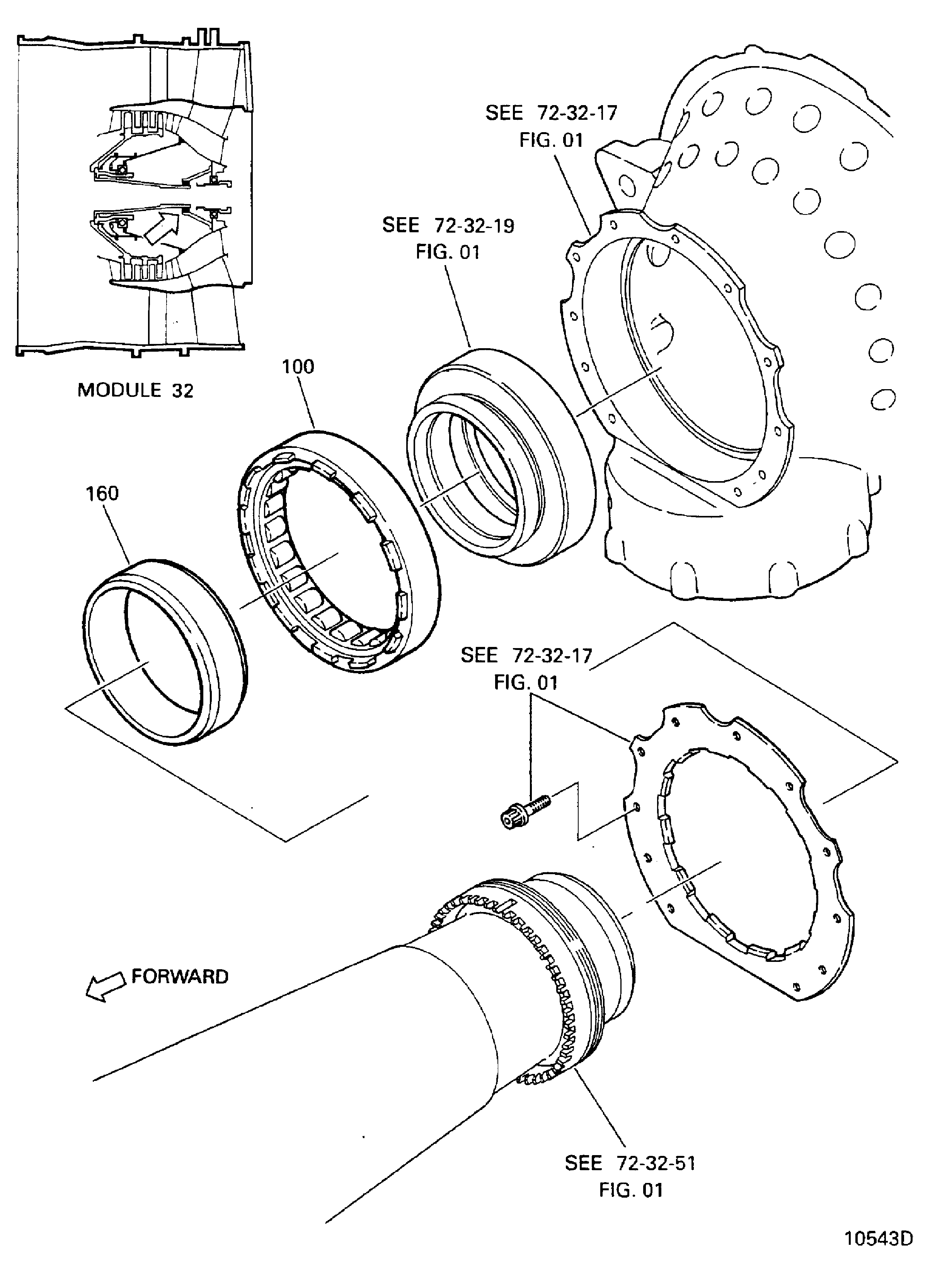

Figure: ENGINE-NO.2 BEARING
NO.2 BEARING
