DMC:V2500-A1-72-32-53-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72325301 | ENGINE-NO.1 BEARING FRONT SEAL, PRE SBE72-0082 | aa | ||
| SBE0082-01 | ENGINE-NO.1 BEARING FRONT SEAL, PRE SBE72-0090 | ab | ||
| SBE0090-01 | ENGINE-NO.1 BEARING FRONT SEAL, PRE SBE70-0096 | ac | ||
| SBE0096-01 | ENGINE-NO.1 BEARING FRONT SEAL, PRE SBE70-0091 | ad | ||
| SBE0091-01 | ENGINE-NO.1 BEARING FRONT SEAL, PRE SBE72-0132 | ae | ||
| SBE0132-01 | ENGINE-NO.1 BEARING FRONT SEAL, PRE SBE70-0115 | af | ||
| SBE0115-01 | ENGINE-NO.1 BEARING FRONT SEAL, PRE SBE70-0857 | ag | ||
| SBE0857-01 | ENGINE-NO.1 BEARING FRONT SEAL | ah | ||
| 105 | 2A1782 | • SEAL - ASSY NO.1 BRG PRE SBE72-0082 | aa | 1 |
| 105A | 2A2036 | • SEAL - ASSY NO 1 BRG POST SBE72-0082 PRE SBE70-0096 | ab-ae | 1 |
| 105B | 2A2203 | • SEAL - ASSEMBLY NO.1 BEARING POST SBE70-0096 PRE SBE72-0132 | ab-ae | 1 |
| 105C | 2A1065 | • SEAL - ASSY #1 BRG POST SBE72-0132 PRE SBE70-0115 | af-ah | 1 |
| 105D | 2A2933 | • SEAL - ASSY POST SBE70-0115 | af-ah | 1 |
| 105E | 2A2917 | • SEAL - ASSY ALT 2A2036-001 POST SBE70-0115 | af-ah | 1 |
| 105F | 2A2203-001 | • SEAL - ASSY 77445 ALT 2A2036-001 POST SBE70-0115 | ag-ah | 1 |
| 105G | 2A2036-001 | • SEAL - ASSY 77445 ALT 2A2933 POST SBE70-0115 | ag-ah | 1 |
| 150 | 2A1773 | • • SEAL - A/O FACE NO.1 BRG PRE SBE70-0096 | aa-ah | 1 |
| 150A | 2A2199 | • • SEAL - FACE,NO.1 BRG-ASSY OF POST SBE70-0096 PRE SBE70-0115 | aa-ah | 1 |
| 150B | 2A2915 | • • SEAL - ASSY POST SBE70-0115 | aa-ah | 1 |
| 170 | 2A1770 | • • • GUIDE - SEAL SPRING PRE SBE70-0115 | aa-af | 12 |
| 180 | 2A2924 | • • • SEAL - FACE POST SBE70-0115 | ag-ah | 1 |
| 192 | 2A1770 | • • • • GUIDE - SEAL SPRING POST SBE70-0115 | ag-ah | 12 |
| -194 | 2A2916 | • • • SEAL - FACE POST SBE70-0115 | ag-ah | REF |
| -196 | 2A1770 | • • • • GUIDE - SEAL SPRING POST SBE70-0115 | ag-ah | REF |
| 200 | 2A1779 | • • SEAL - A/O HOLDER NO.1 BRG PRE SBE72-0132 | aa-ae | 1 |
| 200A | 2A1066 | • • SUPPORT - #1 BRG SEAL POST SBE72-0132 | af-ah | 1 |
| 220 | 2A1774 | • • • PIN PRE SBE72-0132 | aa-ae | 4 |
| 220A | 2A1639 | • • • PIN - #1 BRG SEAL POST SBE72-0132 | af-ah | 4 |
| 230 | 2A1777 | • • • SUPPORT PRE SBE72-0132 | aa-ae | 1 |
| 240 | 2A1778 | • • • SEAL - RING HOLDER PRE SBE72-0132 | aa-ae | 1 |
| 250 | MS21209F4-10 | • • • INSERT - SCREW THREAD 96906 PRE SBE72-0132 | aa-ae | 18 |
| 250A | MS21209F4-15 | • • • INSERT - SCREW THREAD 96906 POST SBE72-0132 | af-ah | 25 |
| 260 | AN125460 | • • • RIVET - UNIVERSAL HEAD 81352 PRE SBE72-0132 | aa-ae | 12 |
| 270 | AN125462 | • • • RIVET - UNIVERSAL HEAD 81352 PRE SBE72-0132 | aa-ae | 8 |
| 280 | 2A1775 | • • SPACER - SLEEVE PRE SBE72-0082 | aa | 2 |
| 280A | 2A2057 | • • SPACER - SLEEVE POST SBE72-0082 | ab-ah | 2 |
| 300 | 2A1776 | • • RETAINNG - COLLAR PRE SBE72-0082 | aa | 4 |
| 300A | 2A2035 | • • COLLAR - RTNG, .203 X .500 X .310 POST SBE72-0082 | ab-ah | 4 |
| 320 | 2A1780 | • • SPRING - HELICAL COMPRESSION | aa-ah | 12 |
| 340 | 2A1781 | • • SEAL - RING PRE SBE70-0091 | aa-ae | 1 |
| 340A | 2A1781 | • • SEAL - RING POST SBE70-0091 PRE SBE72-0132 | aa-ae | 1 |
| 340B | 2A1941 | • • SEAL - PLAIN POST SBE72-0132 | af-ah | 1 |
| 342 | 2A1781P5 | • • SEAL - RING, 10.390 X.158 X.1775 POST SBE70-0091 PRE SBE72-0132 | ae | 1 |
| 344 | 2A1781P10 | • • SEAL - RING, 10.390 X.163 X.1775 POST SBE70-0091 PRE SBE72-0132 | ae | 1 |
| 346 | 2A1781P15 | • SEAL - RING, 10.390 X.168 X.1775 POST SBE70-0091 PRE SBE72-0132 | ae | 1 |
| 348 | 2A1781P20 | • • SEAL - RING, 10.390 X.173 X.1775 POST SBE70-0091 PRE SBE72-0132 | ae | 1 |
| 360 | MS9245-25 | • • PIN - COTTER SPLIT 96906 | aa-ah | 4 |
| 400 | AS3209-280 | • PACKING - PREFORMED U1653 PRE SBE72-0132 | aa-ae | 1 |
| 400A | AS3209-279 | • PACKING - PREFORMED U1653 POST SBE72-0132 | af-ah | 1 |
| 400B | ST1946-280 | • PACKING - PERFORMED O-RING 77445 POST SBE70-0857 | ah | 1 |
| 450 | 2A1795 | • SEAL - SEAT PRE SBE72-0090 | aa-ah | 1 |
| 450A | 2A2058 | • SEAT - #1 BRG SEAL POST SBE72-0090 | aa-ah | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

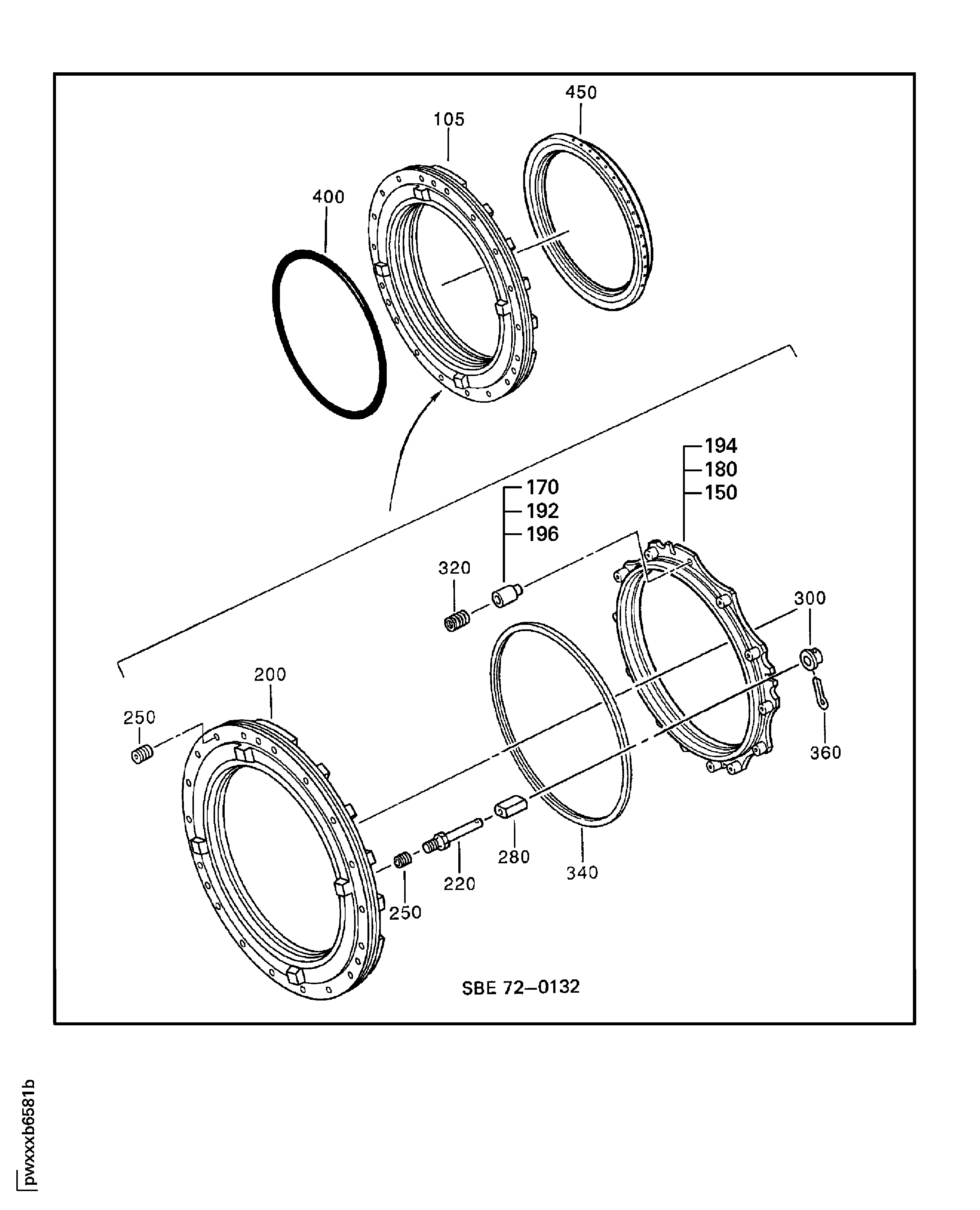

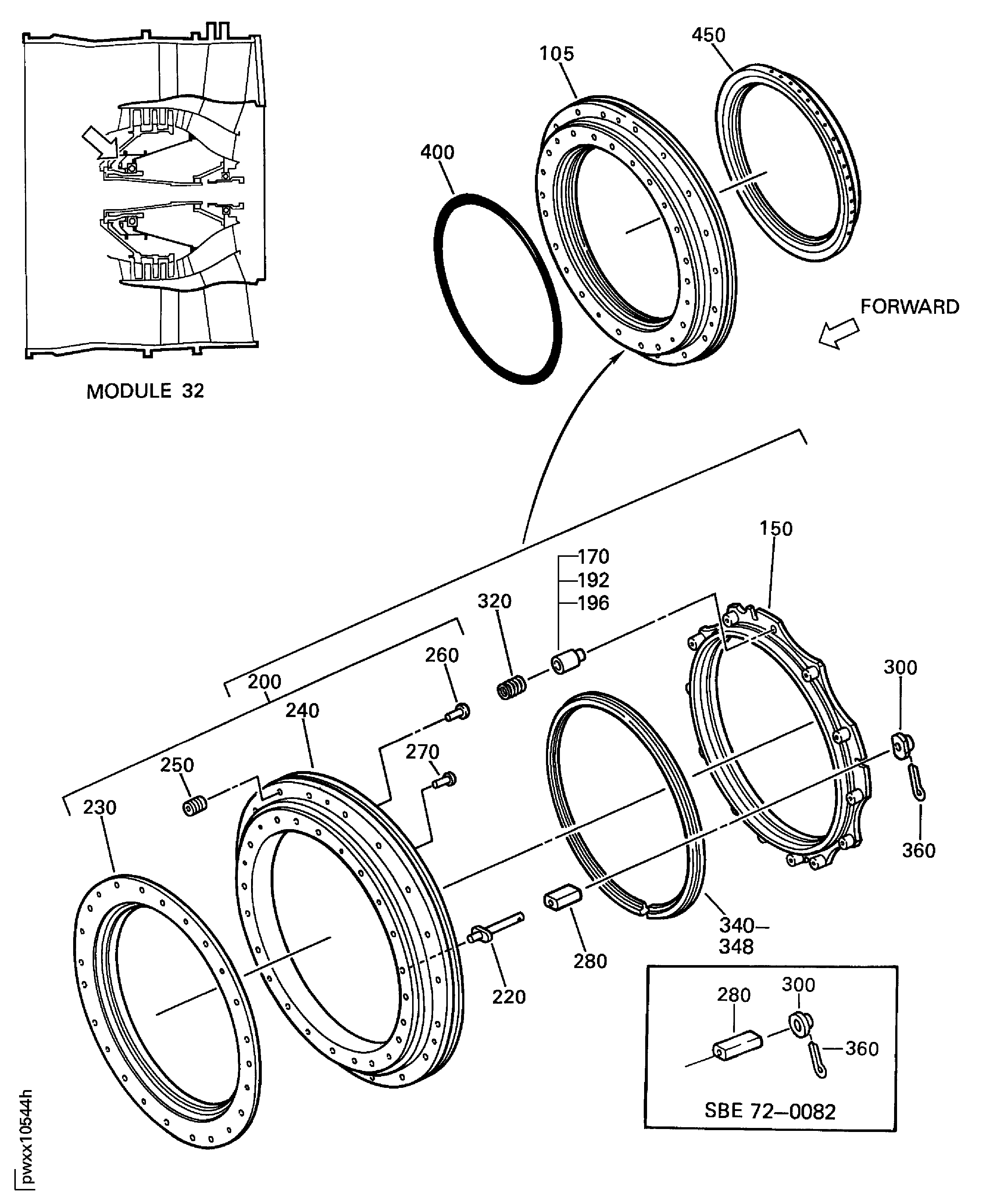

Figure: ENGINE-NO.1 BEARING FRONT SEAL
NO.1 BEARING FRONT OIL SEAL
NO.1 BEARING FRONT OIL SEAL
