TASK 72-32-82-300-003 LPC Stage 2.5 Blade - Blend Repair, Repair-003 (VRS1370)

DMC:V2500-A1-72-32-8225-00A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-32-82-300-003 LPC Stage 2.5 Blade - Blend Repair, Repair-003 (VRS1370)

Effectivity

FIG/ITEM

PART NO.

01-100

5R0045

01-100

5R7104

General

This TASK gives the instruction to remove damage on the LP Compressor Rotor Blade(s), stage 2.5 by material removal.

Material of Components

IAE

DESCRIPTION

SYMBOL

MATERIAL

LPC stage 2.5 blade

Titanium alloy

Price and Availability - refer to IAE

The practice and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

Equivalent materials or equipment can be used.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Glass bead peening equipmentLOCALGlass bead peening equipment
Shot peening equipmentLOCALShot peening equipment
IAE 3J13159 Shot peening fixture0AM53IAE 3J131591
IAE 3J13160 Glass peening fixture0AM53IAE 3J131601
IAE 3J13162 Glass peening fixture0AM53IAE 3J131621

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-293 GLASS BEADSLOCALCoMat 01-293
CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOFLOCALCoMat 02-003
CoMat 05-006 GLASS BEADS0AM53CoMat 05-006
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030
CoMat 05-162 GLASS BEADSLOCALCoMat 05-162

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-82-350-062 Remove the Damage from the LPC Stage 2.5 Blade

      1. CAUTION

        WHEELS, STONES AND ABRASIVE PAPERS USED TO DRESS, MAKE SMOOTH, OR POLISH A TITANIUM COMPONENT MUST BE OF THE SILICON CARBIDE TYPE. ALUMINUM OXIDE TYPES MUST NOT BE USED.
        THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. THIS HAS OCCURRED IF THE COMPONENT SHOWS DARK STRAW TO BLUE DISCOLORATION. IF AT ANY TIME THIS COLORATION OCCURS, THE BLADE MUST BE REJECTED.

        Scallop, make smooth and/or hand polish to remove nicks, scratches and/or damage.

      1. Use abrasive stones or papers and/or fine file. Use light pressure to prevent any risk of overheating material. Any polish marks must be made in a radial direction from root to tip of blade.

      2. Surface finish of the repair area must be the same as the adjacent area.

      2. Hand polish the Blade leading and/or trailing edge radius and the vane profile to make a smooth shape.

      2. Remove the minimum amount of material necessary to give correct radius.

      3. Refer to the SPM TASK 70-35-03-300-501.

      4. Refer to Figure.

    2. SUBTASK 72-32-82-220-082 Examine the LPC Stage 2.5 Blade

      1. Do a visual and dimensional examine on the blade.

      1. Visually examine the repaired area for nicks, scratches and/or damage, using 10x magnifying glass.

      2. Follow inspection procedure as given in TASK 72-32-82-200-001-A00.

    3. SUBTASK 72-32-82-230-058 Examine the LPC Stage 2.5 Blade for Cracks

      1. Fluorescent penetrant examine the repaired area.

      1. Refer to the SPM TASK 70-23-01-230-501.

      2. Make sure there are no cracks in the repaired area.

    4. SUBTASK 72-32-82-380-054 Glass Bead Peen the LPC Stage 2.5 Blade

      1. NOTE

        This is an optional procedure. Do this SUBTASK if necessary after blending to remove the damage from locations 1, 2 and 3, refer to Figure.

        Apply the adhesive tape.

      1. Apply CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOF to the area which is not to be glass peened.

      2. Refer to Figure.

      2. Install the blade in to the glass bead peening fixture.

      3. Glass bead peen the airfoil.

      1. Refer to Figure.

      2. Use 0.003 to 0.012 in. (0.08 to 0.30 mm) diameter CoMat 05-006 GLASS BEADS or CoMat 05-162 GLASS BEADS or 0.0098 to 0.0165 in. (0.25 to 0.41 mm) diameter CoMat 01-293 GLASS BEADS an intensity of 10N-13N.

      3. Use IAE 3J13162 Glass peening fixture 1 off to hold an Almen test-strip.

      4. Refer to the SPM TASK 70-38-04-300-503.

    4. Remove the blade from the fixture and remove the adhesive tape.

      5. Remove the glass beads.

      1. Use a clean dry air blast or a soft brush.

      2. Use a vacuum assisted brush to make sure all the glass beads are removed.

      6. Examine the blade.

      1. Visually examine the peened surface for uniform coverage and complete overlapping of the shot impressions.

      2. Refer to the SPM TASK 70-38-04-300-503.

    5. SUBTASK 72-32-82-380-056 Shot Peen the LPC Stage 2.5 Blade

      1. NOTE

        This is an optional procedure. Do this SUBTASK if necessary after blending to remove the damage from locations 4, 5, 6, 9 and 10, refer to Figure.

        Apply the adhesive tape.

      1. Apply the adhesive tape to the area which is not to be shot peened.

      2. Refer to Figure.

      2. Install the blade in to the shot peening fixture.

      3. Shot peen repaired area of blade shank.

      1. Refer to Figure.

      2. Use SAE No.110 steel shot at an intensity of 6A-8A.

      3. Refer to the SPM TASK 70-38-04-300-503.

    4. Remove the blade from the fixture and remove the adhesive tape.

      5. Remove the steel shot.

      1. Use a clean dry air blast or a soft brush.

      2. Use a vacuum assisted brush to make sure all the steel shot is removed.

      6. Examine the blade.

      1. Visually examine the peened surface for uniform coverage and complete overlapping of the shot impressions.

      2. Refer to the SPM TASK 70-38-04-300-503.

    6. SUBTASK 72-32-82-220-125 Examine the Repaired Blades

      1. Examine repaired area.

      1. Make sure that repair is satisfactory and that it agrees with repair instructions.

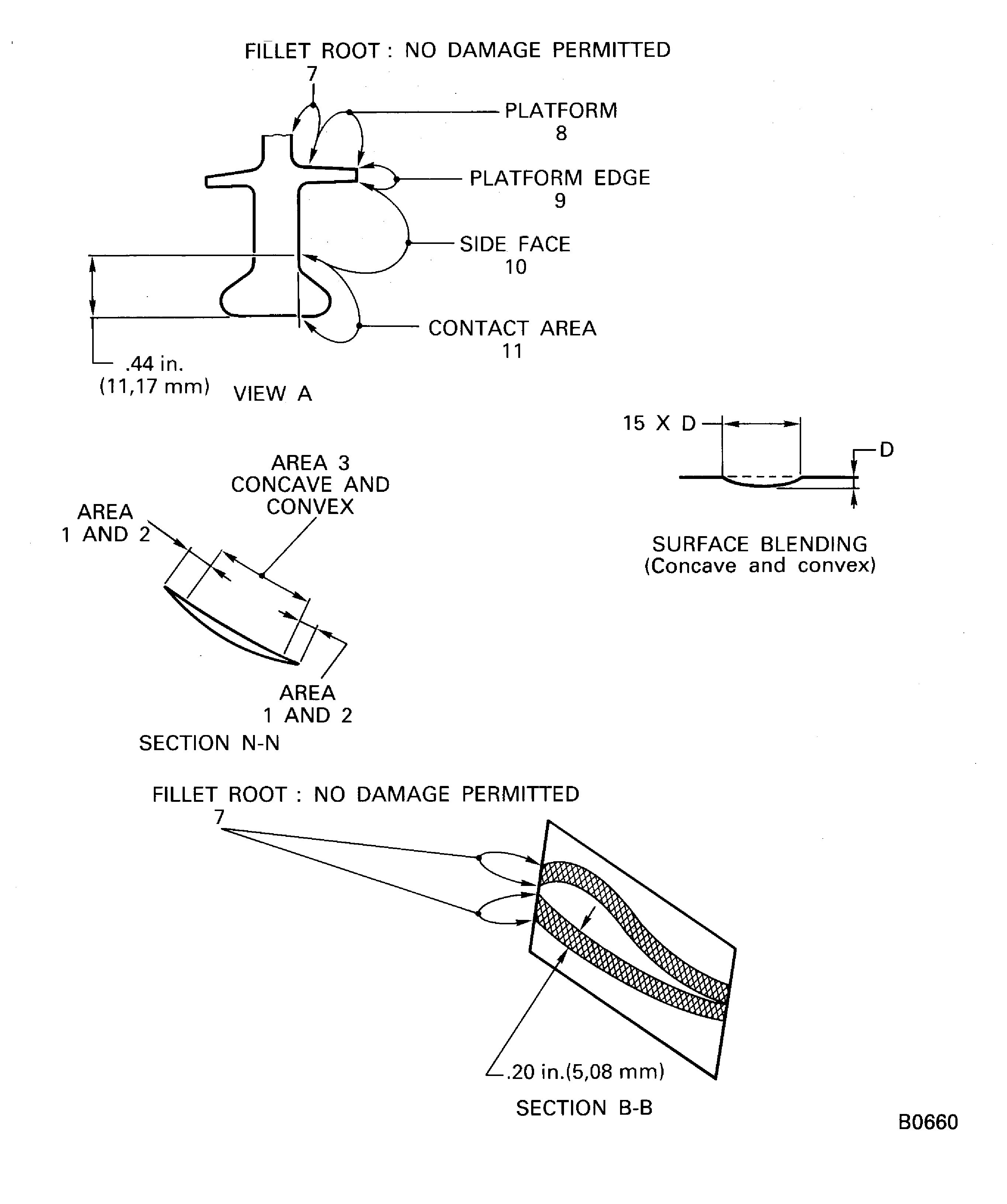

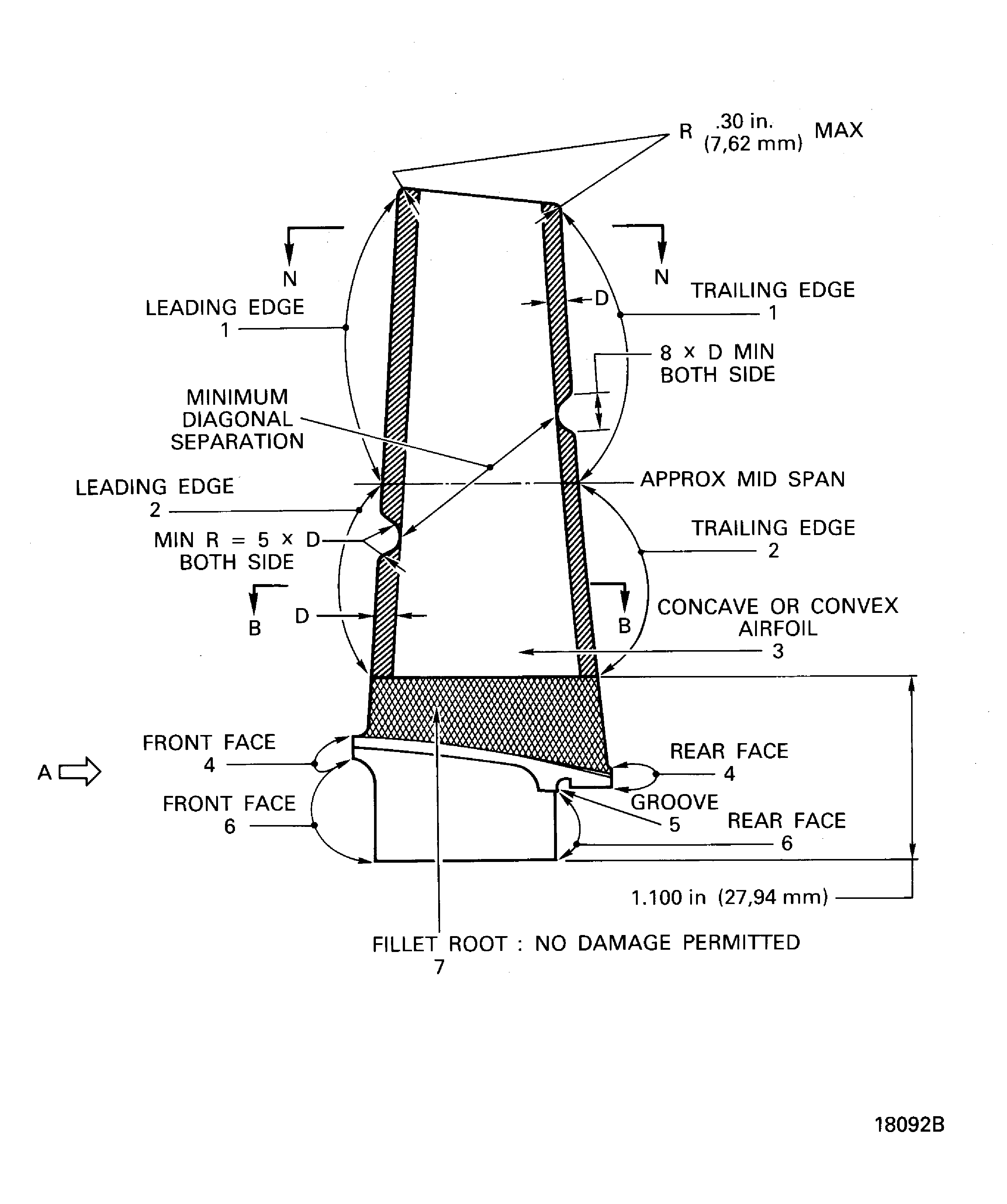

    7. Figure: LP compressor stage 2.5 blades, dressing dimensions

    Sheet 1

    Legend
    LP compressor stage 2.5 blades, dressing dimensions

    Sheet 1

    Close

    Figure: LP compressor stage 2.5 blades, dressing dimensions

    Sheet 2

    Legend
    LP compressor stage 2.5 blades, dressing dimensions

    Sheet 2

    Close

    Figure: LP compressor stage 2.5 blades, dressing dimensions

    Sheet 3

    Legend
    LP compressor stage 2.5 blades, dressing dimensions

    Sheet 3

    Close

    Figure: LPC stage 2.5 blades - glass bead peening area

    LPC stage 2.5 blades - glass bead peening area

    Figure: LP compressor stage blades - shot peening area

    LP compressor stage blades - shot peening area

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Corrected the SPM Task number
