ENGINE-FAN CASE

DMC:V2500-A1-72-32-85-01A-941A-D|Issue No:003.00|Issue Date:2018-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B72328501ENGINE - FAN CASE, PRE SBE72-0081aa
000SBE0081-01ENGINE - FAN CASE, PRE SBE70-0077ab
000SBE0077-01ENGINE - FAN CASE, PRE SBE70-0002ac
000SBE0002-01ENGINE - FAN CASE, PRE SBE72-0103ad
000SBE0103-01ENGINE - FAN CASE, PRE SBE70-0232ae
000SBE0232-01ENGINE - FAN CASE, PRE SBE70-0433af
000SBE0433-01ENGINE - FAN CASE, PRE SBE72-0249ag
000SBE0249-01ENGINE - FAN CASE, PRE SBE70-0492ah
000SBE0492-01ENGINE - FAN CASE, PRE SBE72-0382ai
000SBE0382-01ENGINE - FAN CASE, PRE SBE72-0392aj
000SBE0392-01ENGINE - FAN CASE, PRE SBE70-0807ak
000SBE0807-01ENGINE - FAN CASE, PRE SBE70-0601al
000SBE0601-01ENGINE - FAN CASE, PRE SBE72-0435am
000SBE0435-01ENGINE - FAN CASE, PRE SBE72-0503an
000SBE0503-01ENGINE - FAN CASE, PRE SBE72-0578ao
000SBE0578-01ENGINE - FAN CASE, PRE SBE72-0579ap
000SBE0579-01ENGINE - FAN CASE, PRE SBE72-0692aq
000SBE0692-01ENGINE - FAN CASEar
0100105A0046• BRACKET - PANEL SUPPORTING
PRE SBE70-0202		*****1
0200204W0002• NUT - 0.250 DIA
PRE SBE70-0202		*****2
0300304W0166• BOLT - 0.250 DIA X 0.750
PRE SBE70-0202		*****2
040040AN960C416• WASHER - FLAT
88044
PRE SBE72-0081		aa2
040040AMS9321-10• WASHER - FLAT, 0.500 X 0.276 X 0.062
96906
POST SBE72-0081
PRE SBE70-0202		aa2
0500505A0046• BRACKET - PANEL SUPPORTING
PRE SBE70-0202		*****1
0700704W0166• BOLT - 0.250 DIA X 0.750
PRE SBE70-0202		*****2
080080AN960C416• WASHER - FLAT
88044
PRE SBE72-0081		aa2
080080AMS9321-10• WASHER - FLAT, 0.500 X 0.276 X 0.062
96906
POST SBE72-0081
PRE SBE70-0202		aa2
0900904W0002• NUT - 0.250 DIA
PRE SBE70-0202		*****2
1001005W0069• CASE - FAN, ASSEMBLY OF
PRE SBE70-0077		aa-ad1
-100100A5W0100• CASE - FAN, ASSEMBLY OF
PRE SBE72-0435		aa-amREF
-100100B5W0093• CASE - FAN, ASSEMBLY OF
PRE SBE72-0435		aa-amREF
-100100C5W0094• CASE - FAN, ASSEMBLY OF
PRE SBE72-0435		aa-amREF
100100D5W0072• CASE - FAN, ASSEMBLY OF
POST SBE70-0077
PRE SBE72-0103		aa-ad1
100100E5W0081• CASE - FAN, ASSEMBLY OF
POST SBE70-0002
PRE SBE72-0435		ad-am1
100100F5W0124• CASE - FAN, ASSEMBLY OF
POST SBE72-0103
PRE SBE72-0249		ae-am1
100100G5W0168• CASE - FAN, ASSEMBLY OF
POST SBE72-0249
PRE SBE72-0382		ae-am1
100100H5W0171• CASE - FAN, ASSEMBLY OF
POST SBE72-0382
PRE SBE72-0435		ae-am1
100100J5W0193• CASE - FAN, ASSEMBLY OF
POST SBE72-0435
PRE SBE72-0578		an-aq1
100100K5W0185• CASE - FAN, ASSEMBLY OF
POST SBE72-0435
PRE SBE72-0435		*****1
100100L5W0187• CASE - FAN, ASSEMBLY OF
POST SBE72-0435
PRE SBE72-0435		*****1
100100M5W0190• CASE - FAN, ASSEMBLY OF
POST SBE72-0435
PRE SBE72-0435		*****1
100100N5W0192• CASE - FAN, ASSEMBLY OF
POST SBE72-0435
PRE SBE72-0435		*****1
100100P5W0191• CASE - FAN, ASSEMBLY OF
POST SBE72-0435
PRE SBE72-0435		*****1
100100Q5W0184• CASE - FAN, ASSEMBLY OF
POST SBE72-0435
PRE SBE72-0503		an1
100100R5W0186• CASE - FAN, ASSEMBLY OF
POST SBE72-0435
PRE SBE72-0503		an1
100100S5W0188• CASE - FAN, ASSEMBLY OF
POST SBE72-0435
PRE SBE72-0503		an1
100100T5W0189• CASE - FAN, ASSEMBLY OF
POST SBE72-0435
PRE SBE72-0503		an1
100100U5W0199• CASE
POST SBE72-0503		ao-aq1
100100V5W0201• CASE
POST SBE72-0503		ao-aq1
100100W5W0202• CASE
POST SBE72-0503		ao-aq1
100100X5W0203• CASE
POST SBE72-0503		ao-aq1
100100Y5W0204• CASE
POST SBE72-0503		ao-aq1
100100Z5W0205• CASE
POST SBE72-0503		ao-aq1
100100AA5W0206• CASE
POST SBE72-0503		ao-aq1
100100AB5W0207• CASE
POST SBE72-0503		ao-aq1
100100AC5W0208• CASE
POST SBE72-0503		ao-aq1
100100AD5W0209• CASE
POST SBE72-0503		ao-aq1
100100AE5W0210• CASE
POST SBE72-0503		ao-aq1
100100AF5W0211• CASE
POST SBE72-0503		ao-aq1
100100AG5W0212• CASE
POST SBE72-0503		ao-aq1
100100AH5W0213• CASE
POST SBE72-0503		ao-aq1
100100AJ5W0200• CASE
POST SBE72-0503		ao-aq1
100100AK5W0214• CASE
POST SBE72-0503		ao-aq1
100100AL5W0215• CASE
POST SBE72-0503		ao-aq1
100100AM5W0216• CASE
POST SBE72-0503		ao-aq1
100100AN5W0306• CASE - FAN, ASSEMBLY OF
POST SBE72-0578		an-aq1
1101104W0107• BOLT - MACHINE DOUBLE HEX, .190 DIA X .750
PRE SBE70-0202		*****3
110110A4W0107• BOLT - MACHINE DOUBLE HEX, .190 DIA X .750
PRE SBE70-0202		*****3
550550CR2663-3-3• • • RIVET - BLIND
81349
PRE SBE70-0433		aa-aq40
550550ACR2663-3-03• • • RIVET - BLIND
81349
POST SBE70-0433		aa-aq40
-550550BCR2673-3-03• • • RIVET
81349
POST SBE70-0433		ag-aqREF

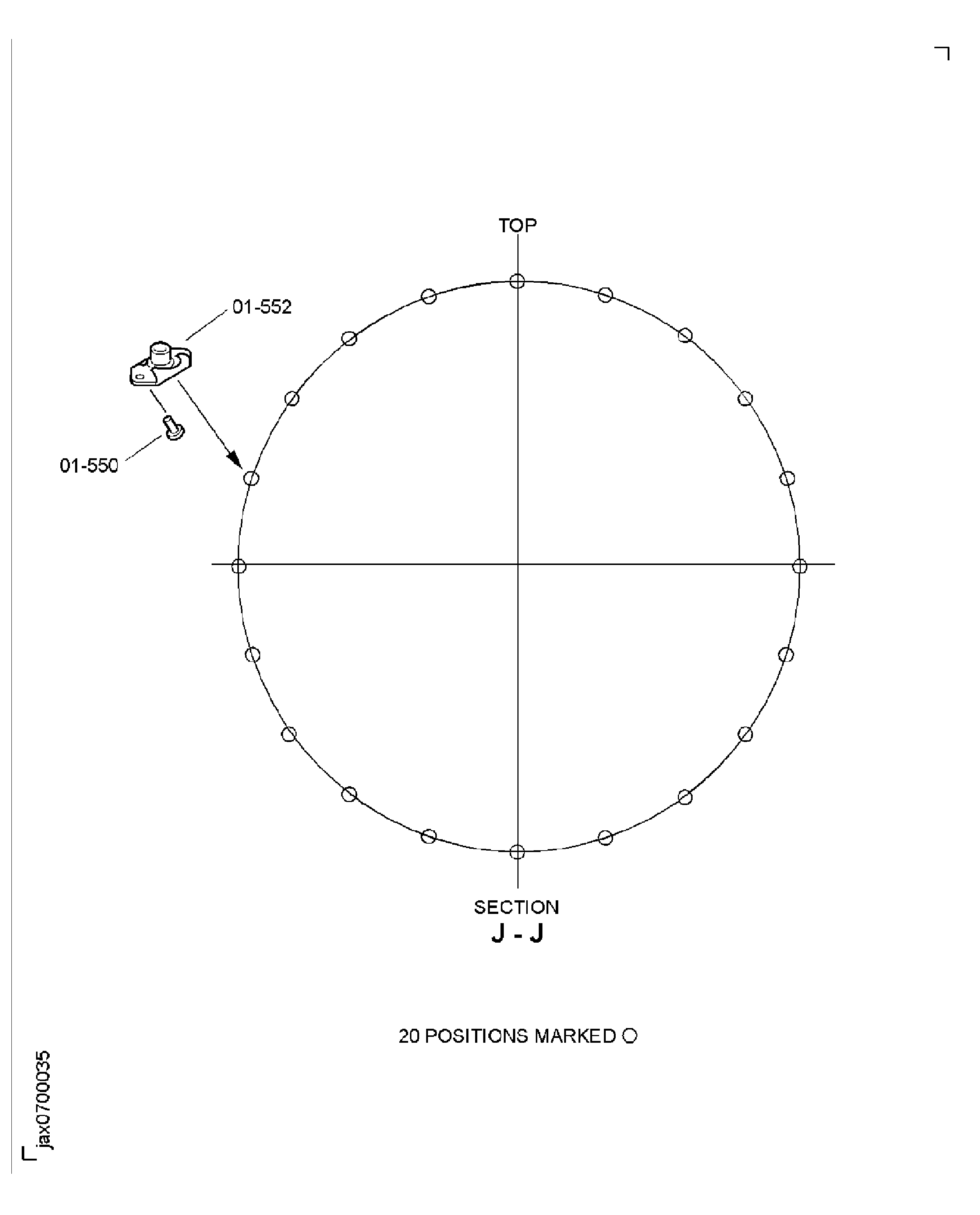

552552MS21060L4• • • NUT - ANCHOR
96906		aa-aq20

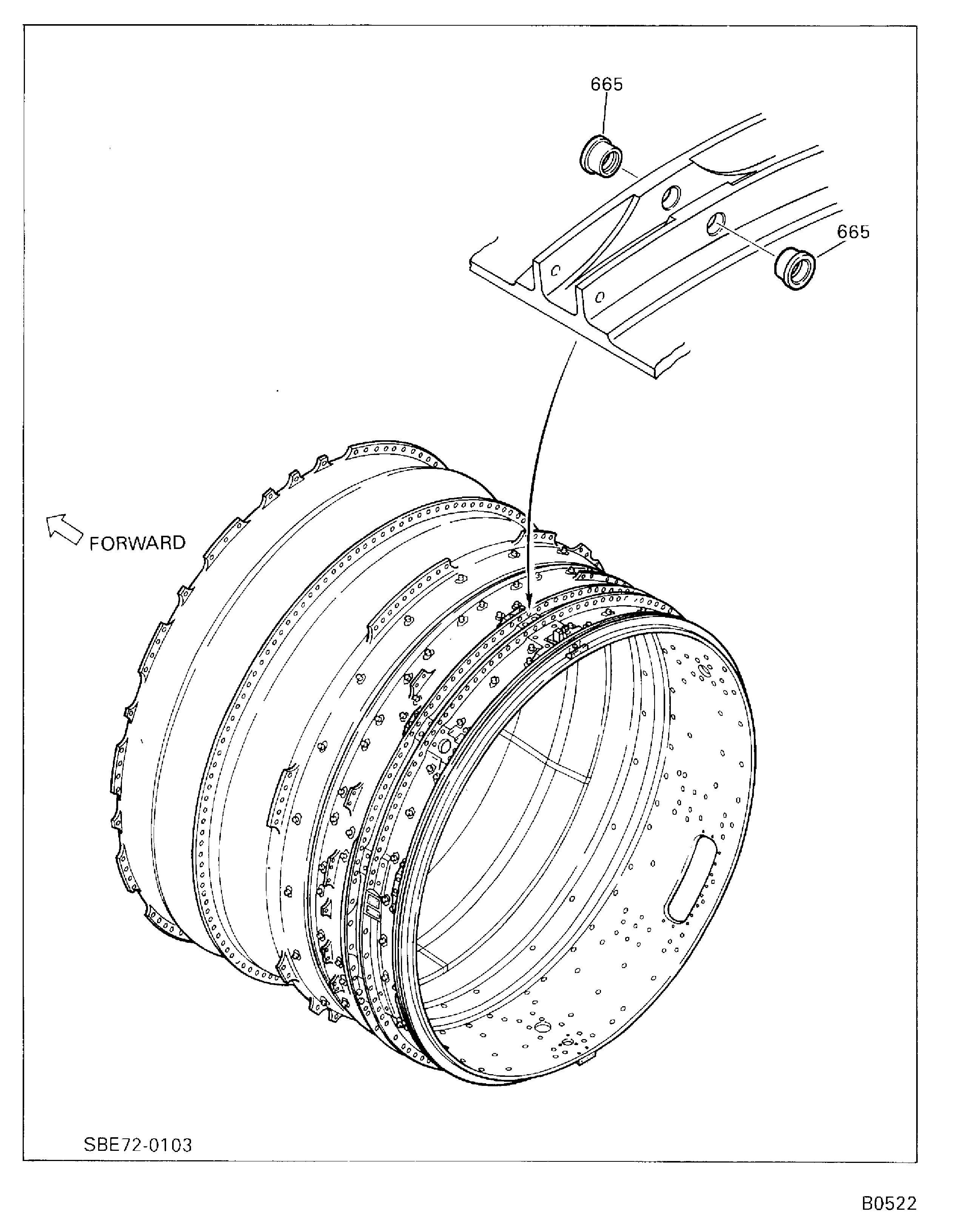

6656655A0993• • • BUSHING
POST SBE72-0103		ae-aq2
670670AGS3732• • • INSERT - SCREW THREAD, .250 DIA X 1.5D
U1653		aa-aq4

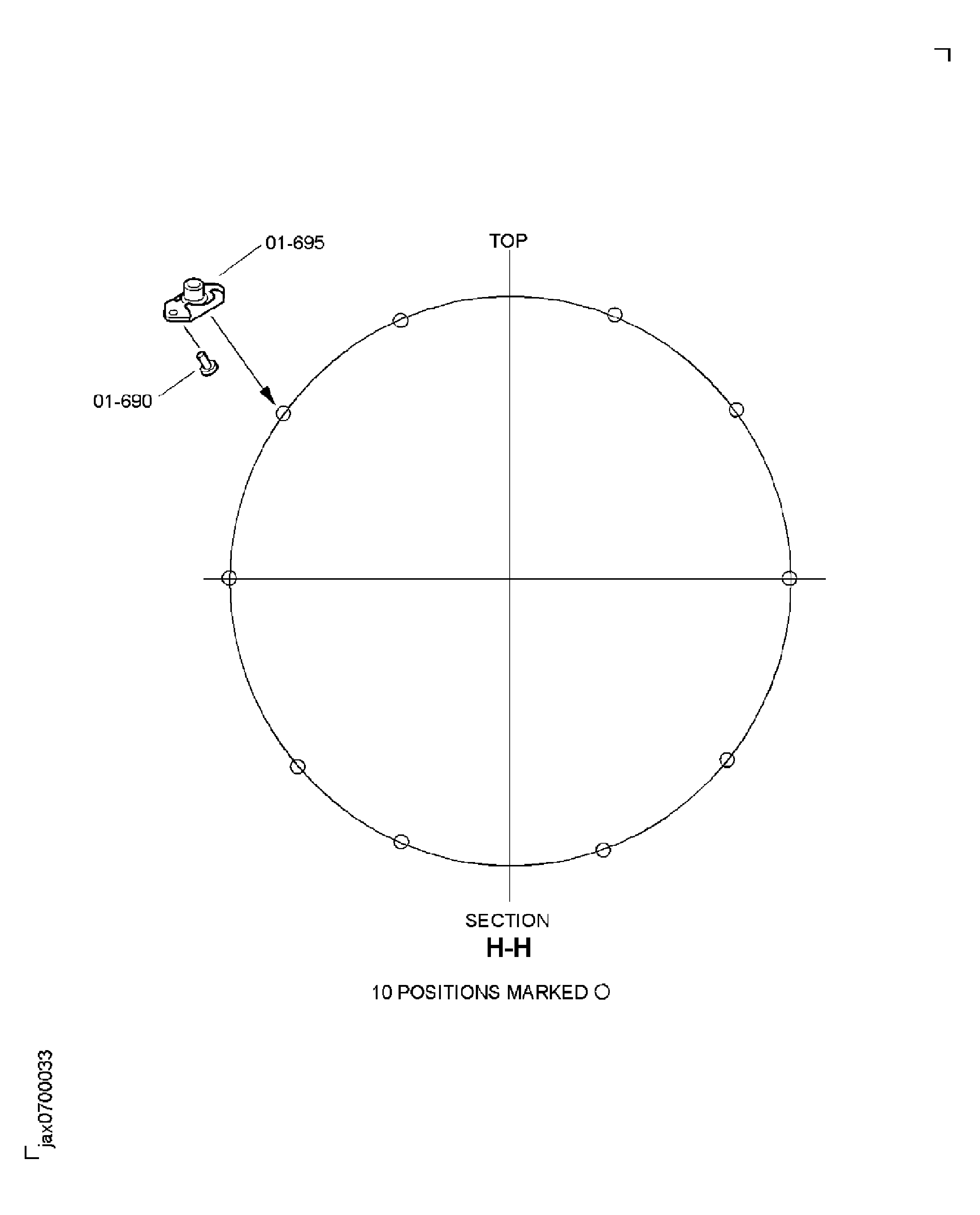

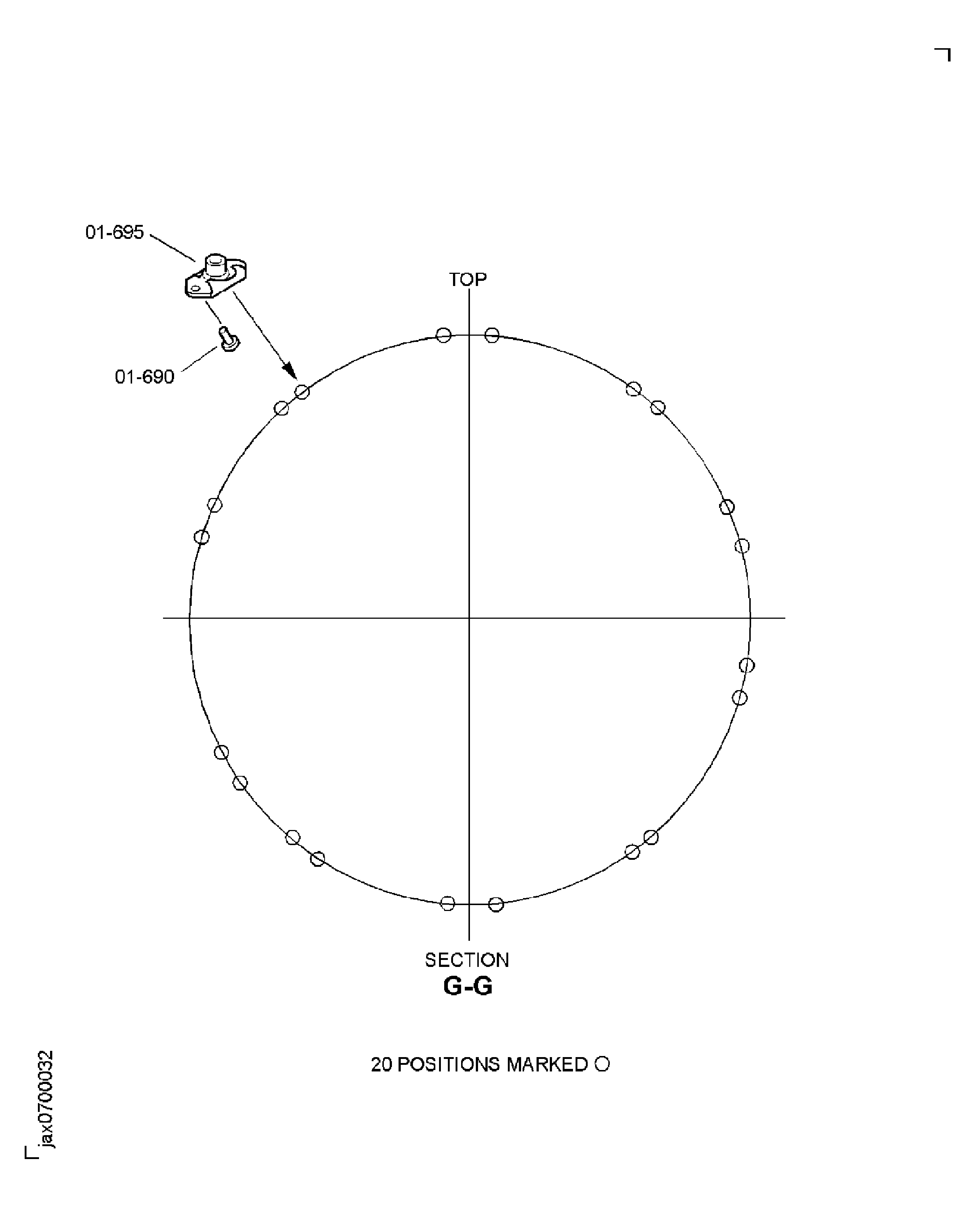

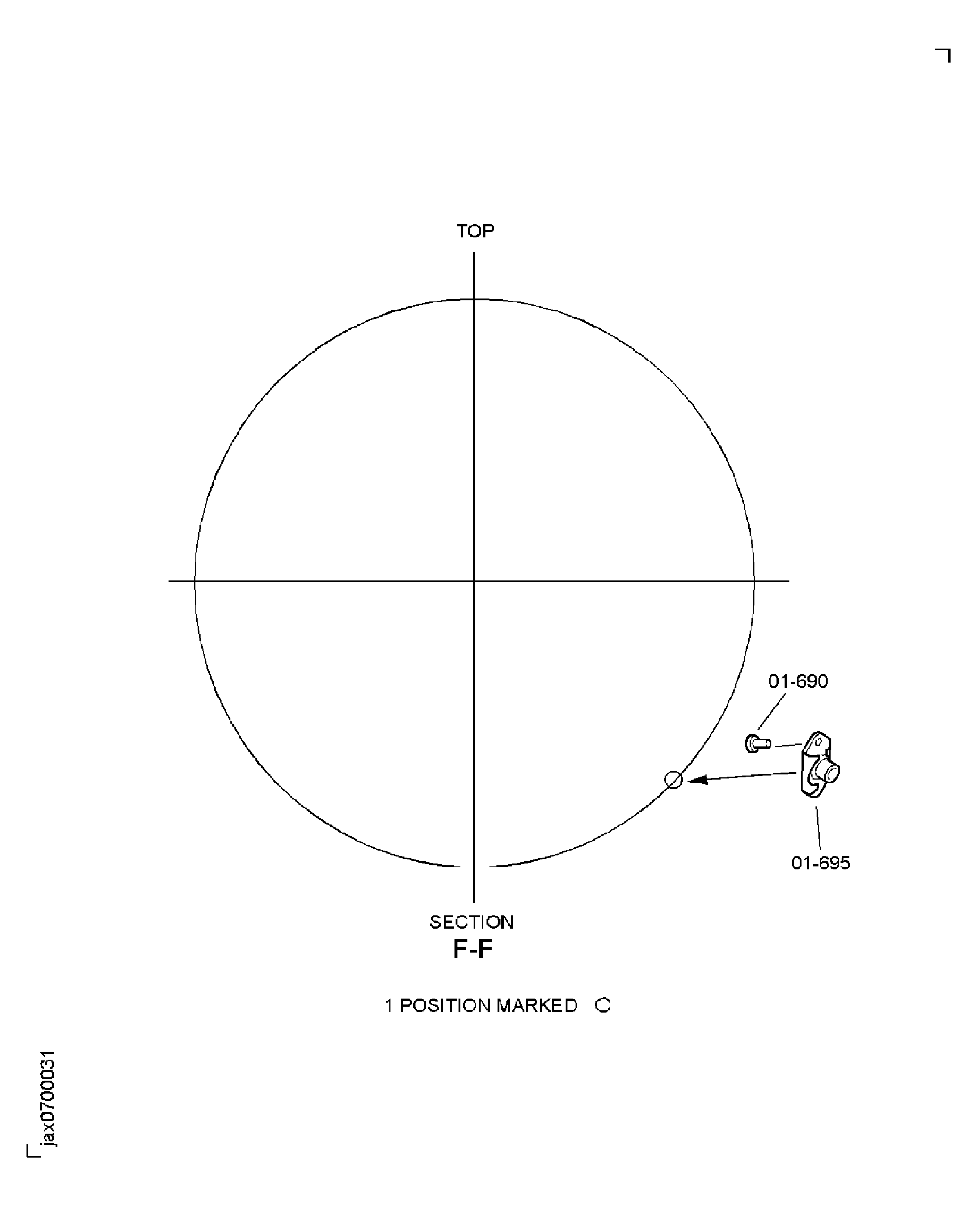

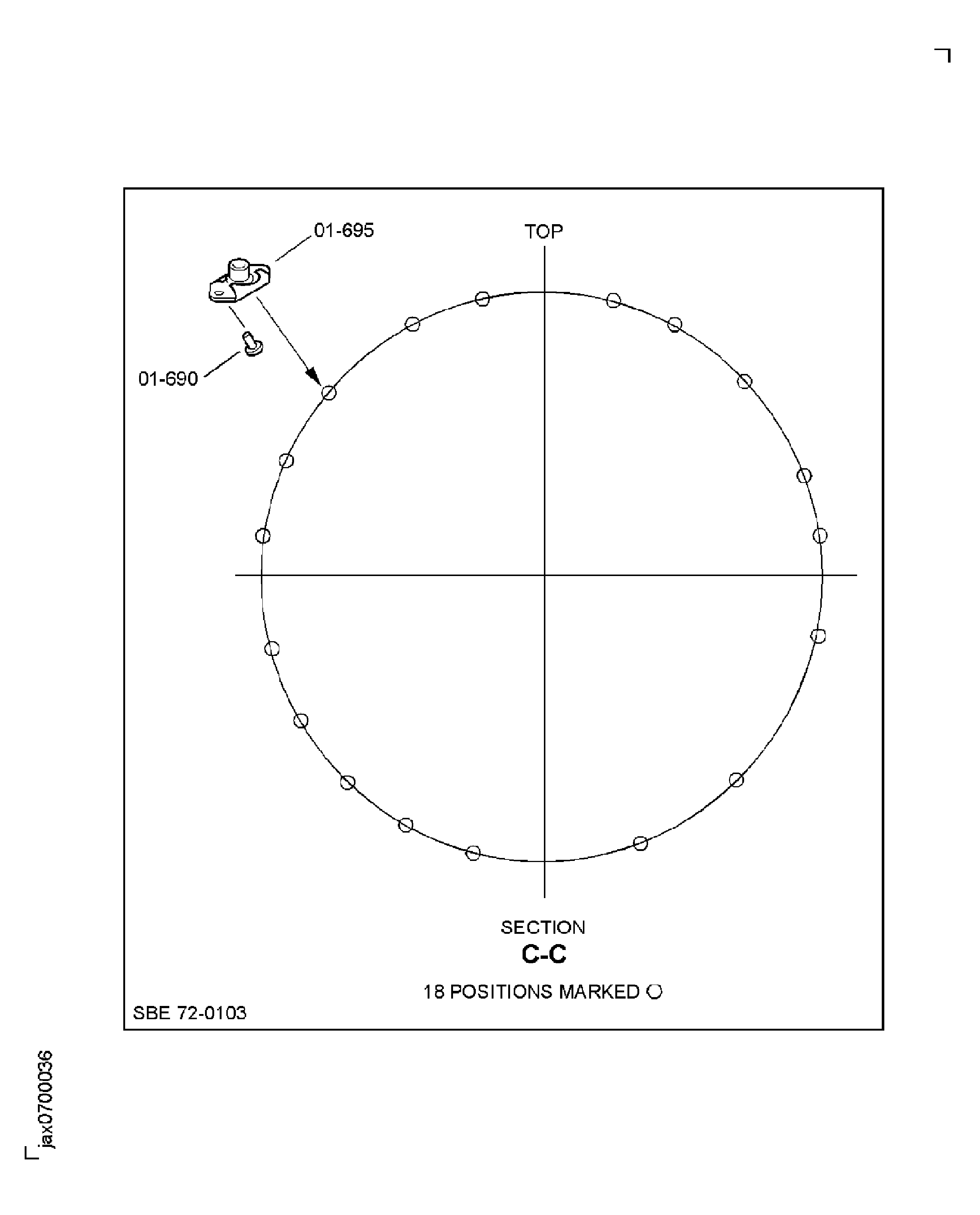

690690CR2663-3-3• • • RIVET - BLIND
81349
PRE SBE72-0103		aa-ad118
690690ACR2663-3-3• • • RIVET - BLIND
81349
POST SBE72-0103
PRE SBE70-0433		ae-aq148
690690BCR2673-3-03• • • RIVET
81349
ALT CR2663-3-03
POST SBE70-0433		ae-aq148
-690690CCR2663-3-03• • • RIVET - BLIND
81349
ALT CR2673-3-03
POST SBE70-0433		ae-aqREF
695695MS21060-4• • • NUT - ANCHOR
96906
PRE SBE72-0103		aa-ad59
695695AMS21060-4• • • NUT - ANCHOR
96906
POST SBE72-0103		ae-aq74

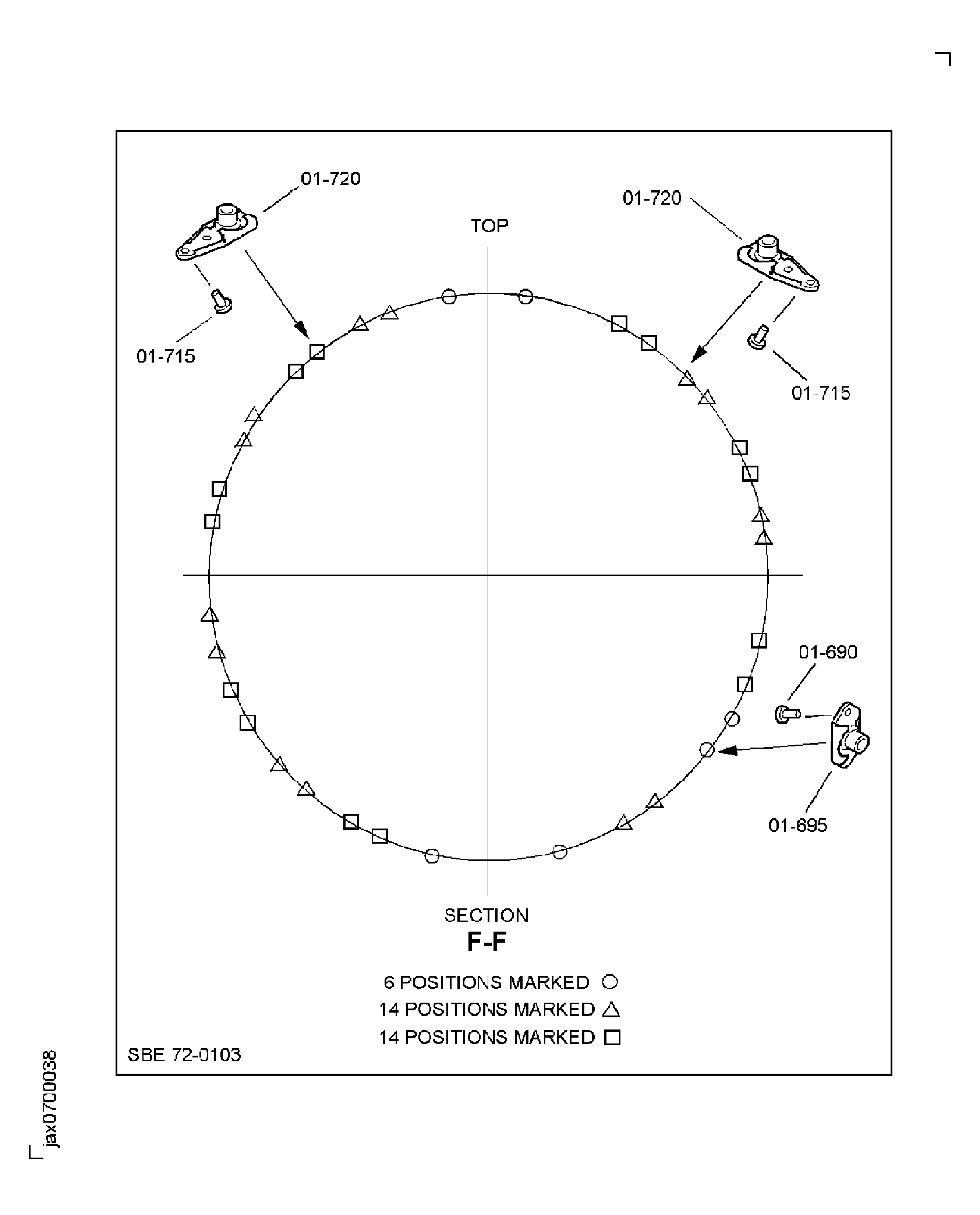

715715CR2663-3-3• • • RIVET - BLIND
81349
PRE SBE72-0103		aa-ad52
715715ACR2663-3-3• • • RIVET - BLIND
81349
POST SBE72-0103
PRE SBE70-0433		ae-aq100
715715BCR2673-3-03• • • RIVET
81349
ALT CR2663-3-03
POST SBE70-0433		ae-aq100
-715715CCR2663-3-03• • • RIVET - BLIND
81349
ALT CR2673-3-03
POST SBE70-0433		ae-aqREF
720720MS21062-4• • • NUT - ANCHOR
96906
PRE SBE72-0103		aa-ad26
720720AMS21062-4• • • NUT - ANCHOR
96906
POST SBE72-0103		ae-aq50
730730CR2663-3-4• • • RIVET - BLIND
81349
PRE SBE70-0433		aa-aq80
730730ACR2673-3-04• • • RIVET
81349
ALT CR2663-3-04
POST SBE70-0433		aa-aq80
-730730BCR2663-3-04• • • RIVET
81349
ALT CR2673-3-04
POST SBE70-0433		aa-aqREF
735735MS21060-4• • • NUT - ANCHOR
96906		aa-aq40
7407405A2128• • • BUSHINGaa-aq2

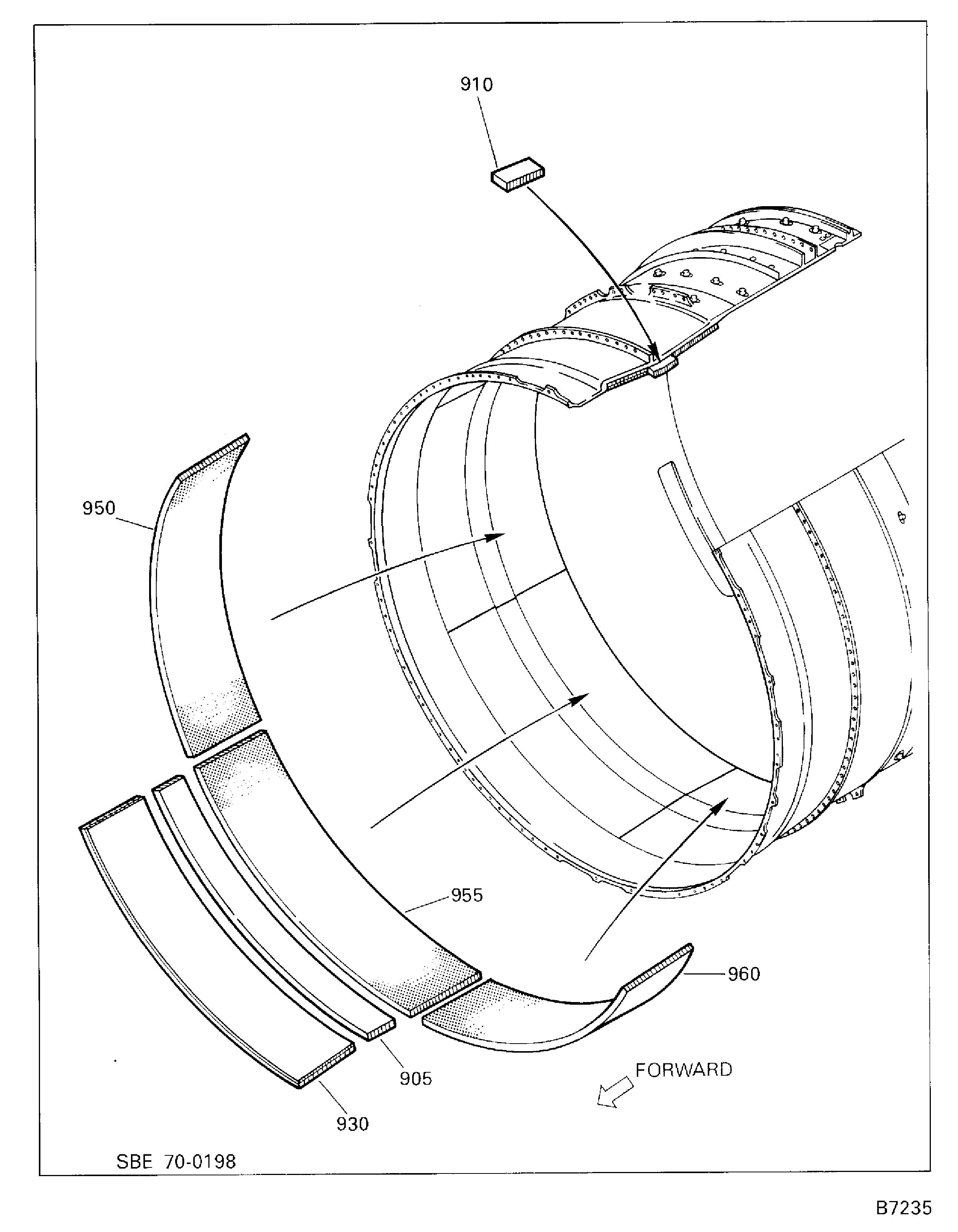

9009005R0083• • PANEL - REPAIR, FRONT, ASSEMBLY OF
POST SBE70-0066
PRE SBE70-0198		*****6
900900A5R0300• • PANEL - REPAIR, FRONT, ASSEMBLY OF
POST SBE72-0579		aq6
9059055R0084• • PANEL - REPAIR, MIDDLE, ASSEMBLY OF
POST SBE70-0066		*****6
905905A5R0183• • PANEL - REPAIR, ICE IMPACT, ASSEMBLY OF
PRE SBE72-0579		*****6
905905B5R0301• • PANEL - REPAIR, MIDDLE, ASSEMBLY OF
POST SBE72-0579		aq6
905905C5R0306• • PANEL - REPAIR, ICE IMPACT, ASSEMBLY OF
POST SBE72-0579		*****6
9109105R0085• • PANEL - REPAIR, MIDDLE, ASSEMBLY OF
POST SBE70-0066		*****1
910910A5R0184• • PANEL - REPAIR, ICE IMPACT, ASSEMBLY OF
PRE SBE72-0579		*****1
910910B5R0302• • PANEL - REPAIR, MIDDLE, ASSEMBLY OF
POST SBE72-0579		aq1
910910C5R0307• • PANEL - REPAIR, ICE IMPACT, ASSEMBLY OF
POST SBE72-0579		*****1
9159155R0086• • PANEL - REPAIR, REAR, ASSEMBLY OF
POST SBE70-0066
PRE SBE70-0198		*****6
915915A5R0303• • PANEL - REPAIR, REAR, ASSEMBLY OF
POST SBE72-0579		aq6
9209205R0087• • PANEL - REPAIR, REAR, ASSEMBLY OF
POST SBE70-0066
PRE SBE70-0198		*****1
920920A5R0304• • PANEL - REPAIR, REAR, ASSEMBLY OF
POST SBE72-0579		aq1
9309305R0078• • LINING - REPAIR, FRONT, ASSEMBLY OF
POST SBE70-0066		*****1
930930A5R0182• • LINING - ATTRITION REPAIR, ASSEMBLY OF
PRE SBE70-0601		*****1
930930B5R0274• • LINER - REPAIR, ATTRITION, ASSEMBLY OF
POST SBE70-0601
PRE SBE72-0579		am-aq1
930930C5R0310• • LINER - REPAIR, ATTRITION, ASSEMBLY OF
POST SBE72-0579		am-aq1
930930D5R0298• • LINER - FRONT, REPAIR, ASSEMBLY OF
POST SBE72-0579		aq1
9409405R0079• • LINING - REPAIR, REAR, ASSEMBLY OF
POST SBE70-0066
PRE SBE70-0198		*****1
940940A5R0299• • LINER - REAR, REPAIR, ASSEMBLY OF
POST SBE72-0579		aq1
9509505R0080• • LINING - ACOUSTIC REPAIR, ASSEMBLY OF
POST SBE70-0066		*****4
950950A5R0185• • LINER - ACOUSTIC, ASSEMBLY OF
PRE SBE70-0492		*****4
950950B5R0279• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE70-0492
PRE SBE72-0392		*****4
950950C5R0291• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0392
PRE SBE72-0579		ak-aq8
950950D5R0292• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE70-0807
PRE SBE72-0579		al-aq4
950950E5R0311• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0579
PRE SBE72-0692		aq8
950950F5R0312• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0579
PRE SBE72-0692		aq4
950950G5R0325• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0692		ar8
950950H5R0326• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0692		ar4
9559555R0081• • LINING - ACOUSTIC REPAIR, ASSEMBLY OF
POST SBE70-0066		*****1
955955A5R0186• • LINER - ACOUSTIC, ASSEMBLY OF
PRE SBE70-0492		*****1
955955B5R0280• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE70-0492
PRE SBE72-0392		*****1
955955C5R0291• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0392
PRE SBE72-0579		ak-aq2
955955D5R0292• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE70-0807
PRE SBE72-0579		al-aq1
955955E5R0311• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0579
PRE SBE72-0692		aq2
955955F5R0312• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0579
PRE SBE72-0692		aq1
955955G5R0325• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0692		ar2
955955H5R0326• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0692		ar1
9609605R0082• • LINING - ACOUSTIC REPAIR, ASSEMBLY OF
POST SBE70-0066		*****1
960960A5R0187• • LINER - ACOUSTIC, ASSEMBLY OF
PRE SBE70-0492		*****1
960960B5R0281• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE70-0492
PRE SBE72-0392		*****1
960960C5R0291• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0392
PRE SBE72-0579		ak-aq2
960960D5R0292• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE70-0807
PRE SBE72-0579		al-aq1
960960E5R0311• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0579
PRE SBE72-0692		aq2
960960F5R0312• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0579
PRE SBE72-0692		aq1
960960G5R0325• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0692		ar2
960960H5R0326• • LINER - ACOUSTIC, ASSEMBLY OF
POST SBE72-0692		ar1
9709705R0294• BRACKET - EXTENSION
POST SBE72-0503		ao-aq1
9909905A1482• • BUSHING
POST SBE70-0232		af-aq1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

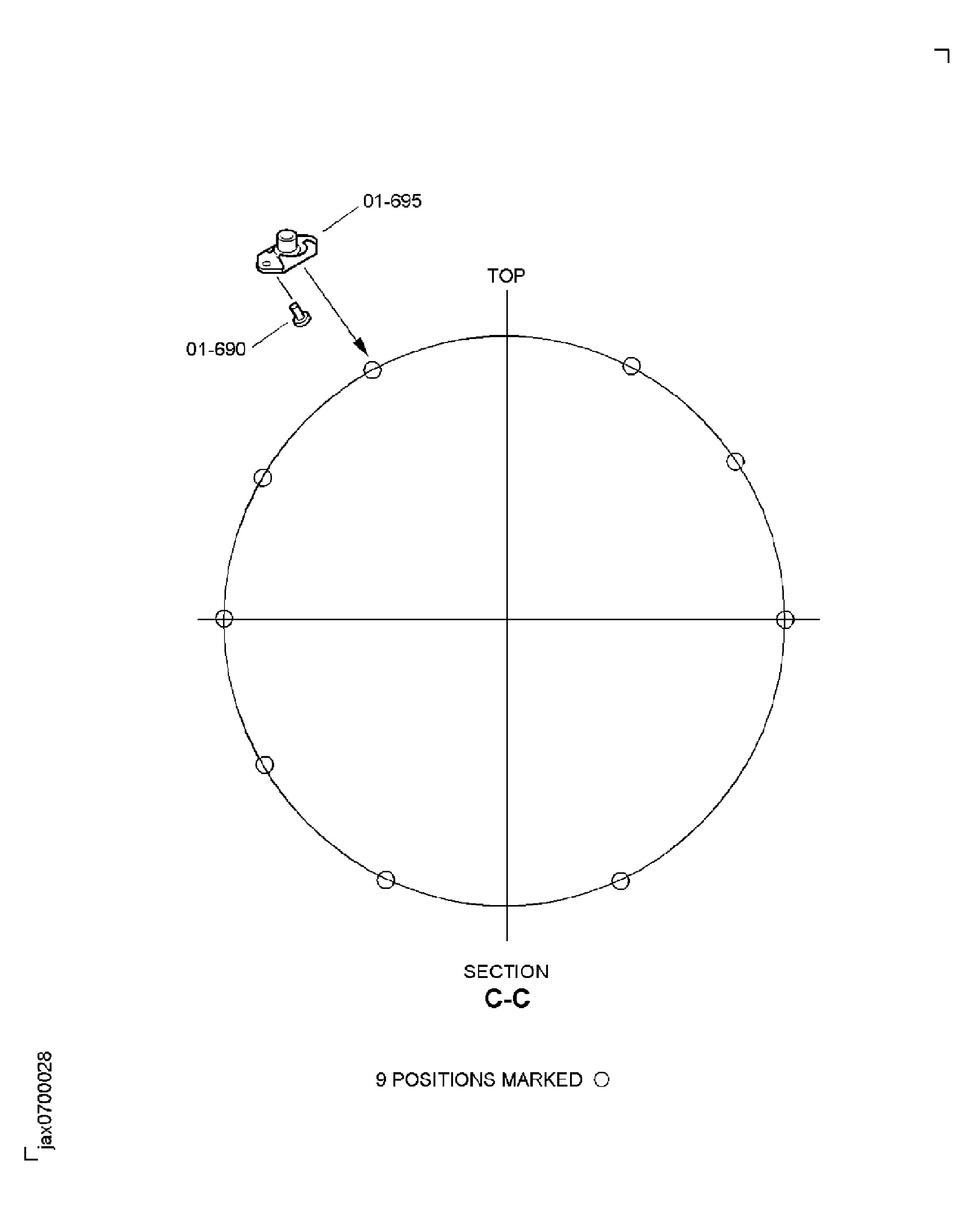

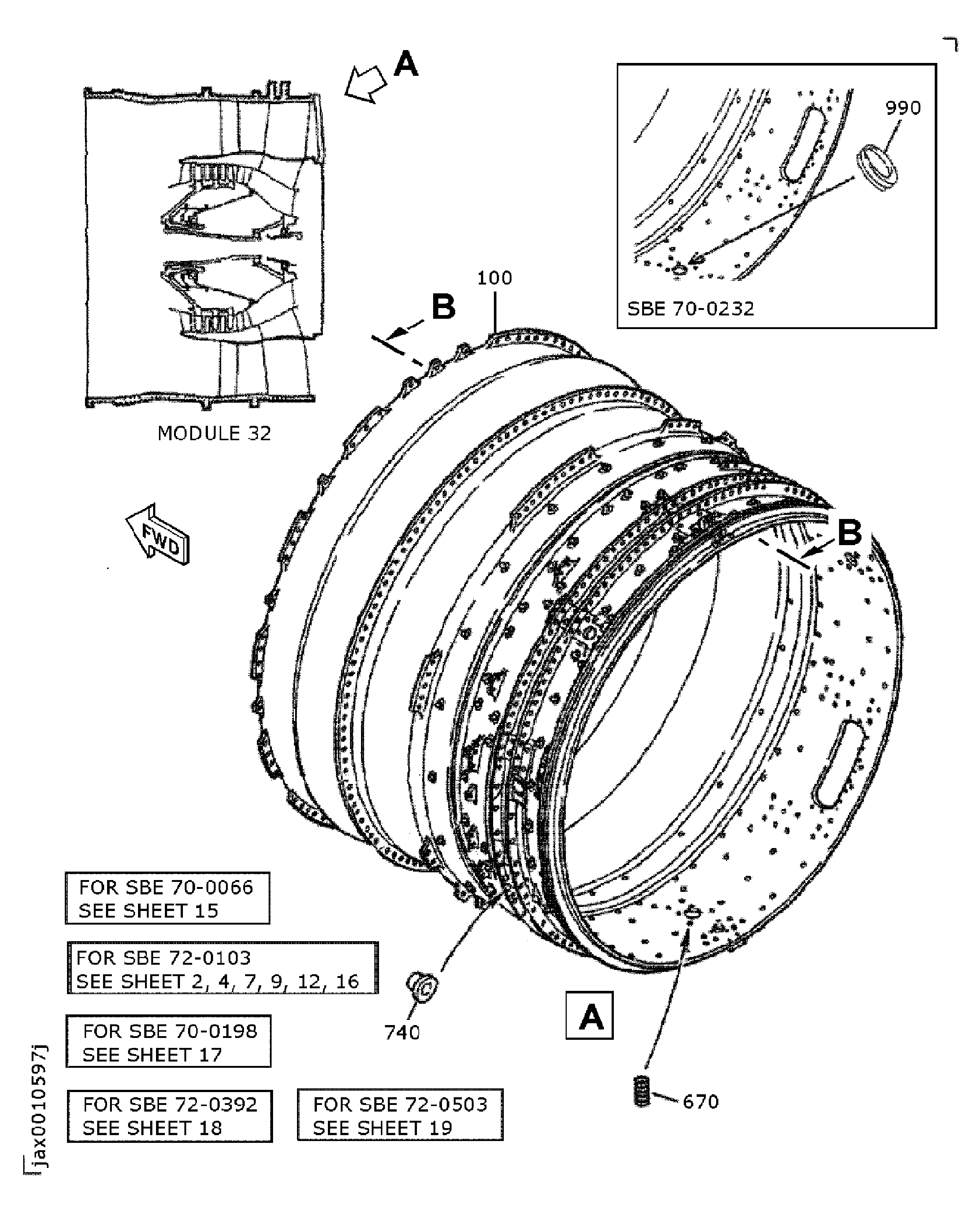

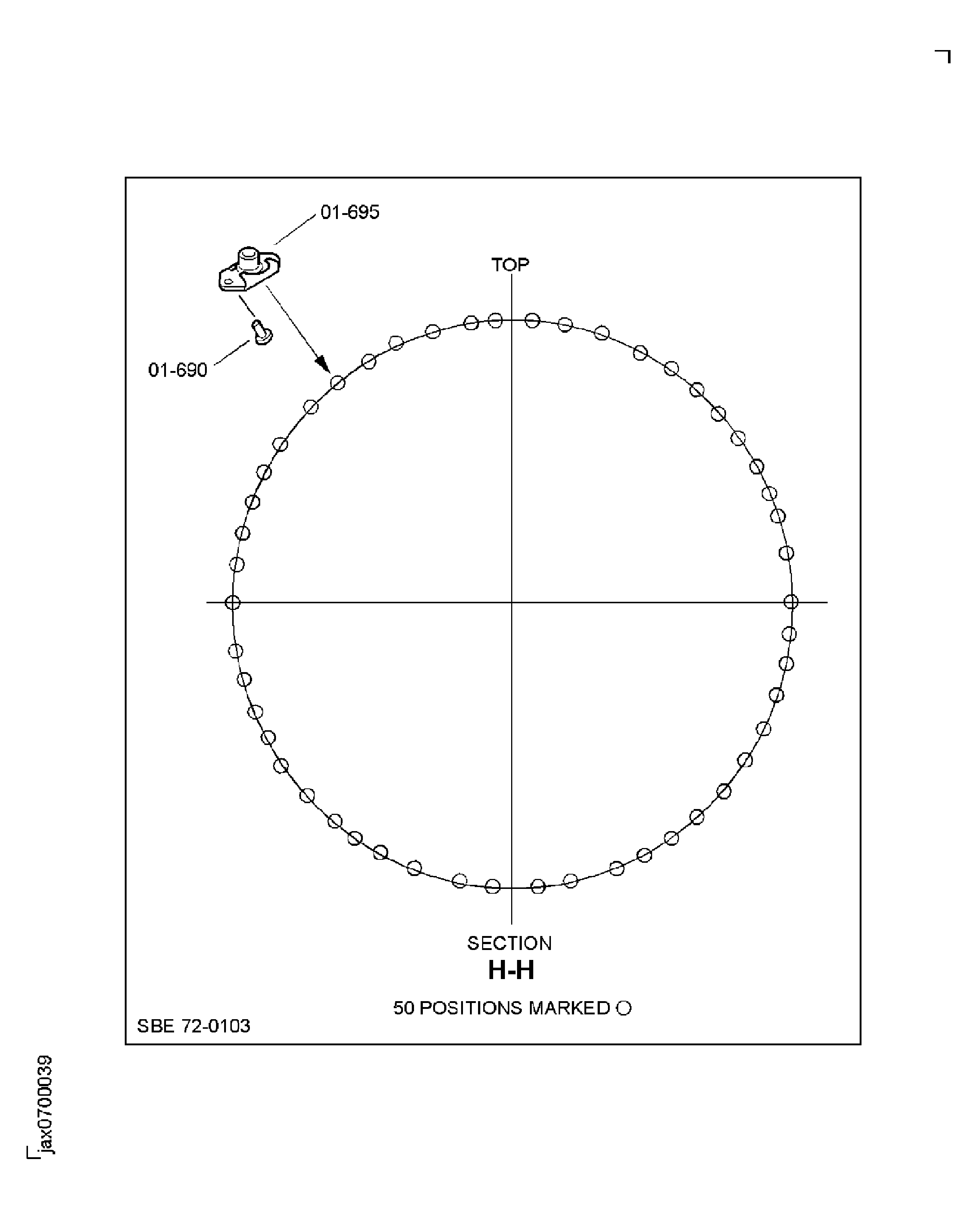

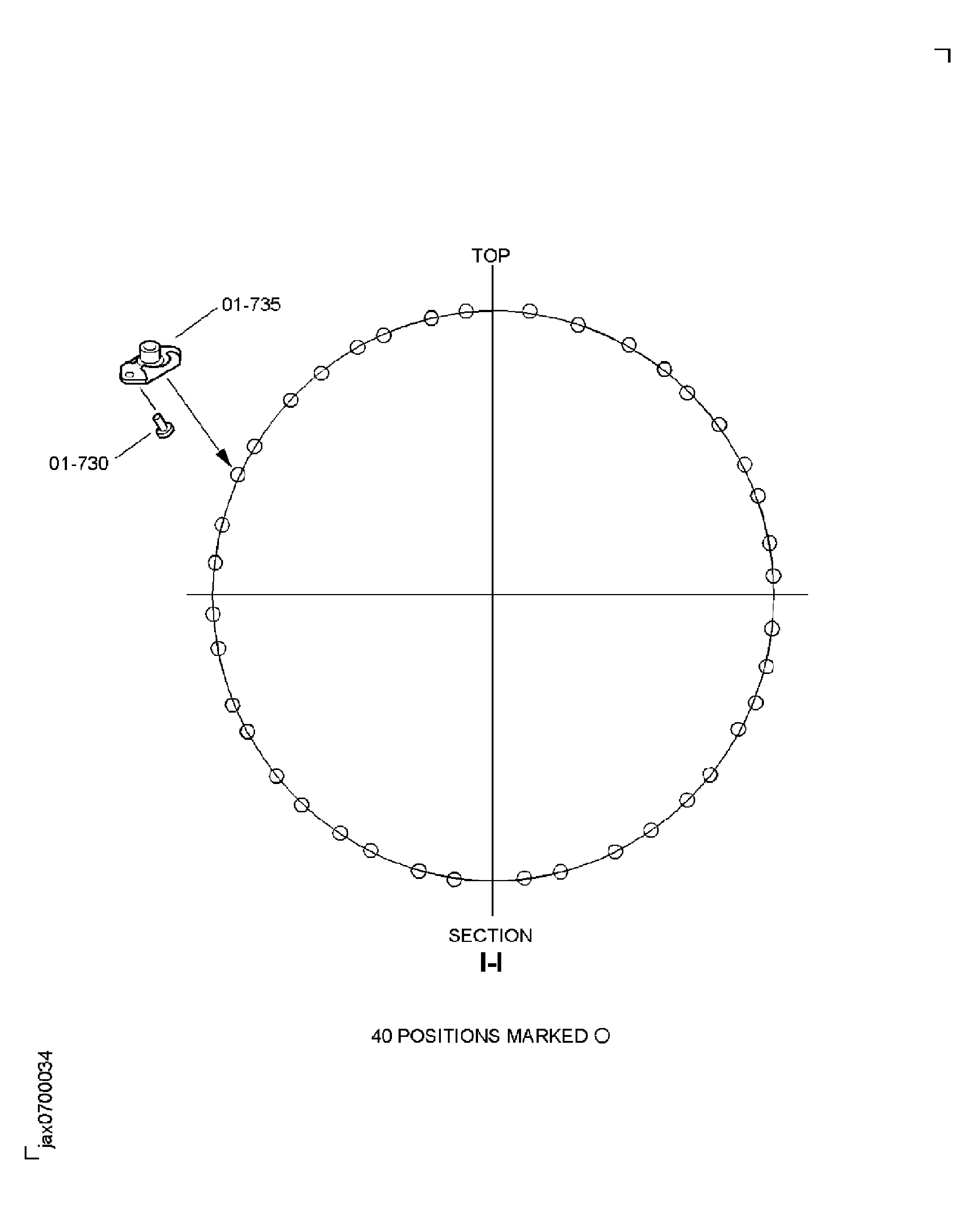

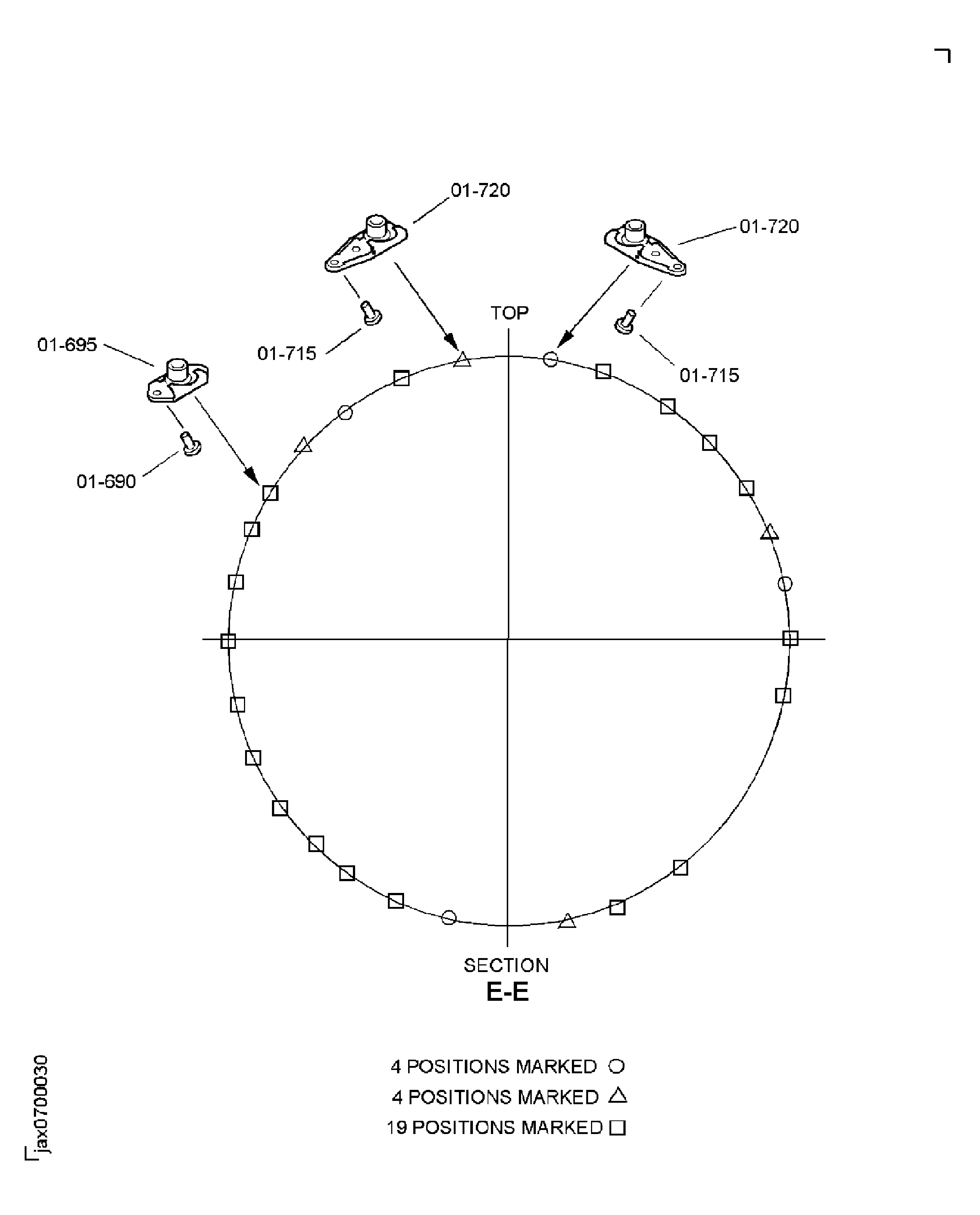

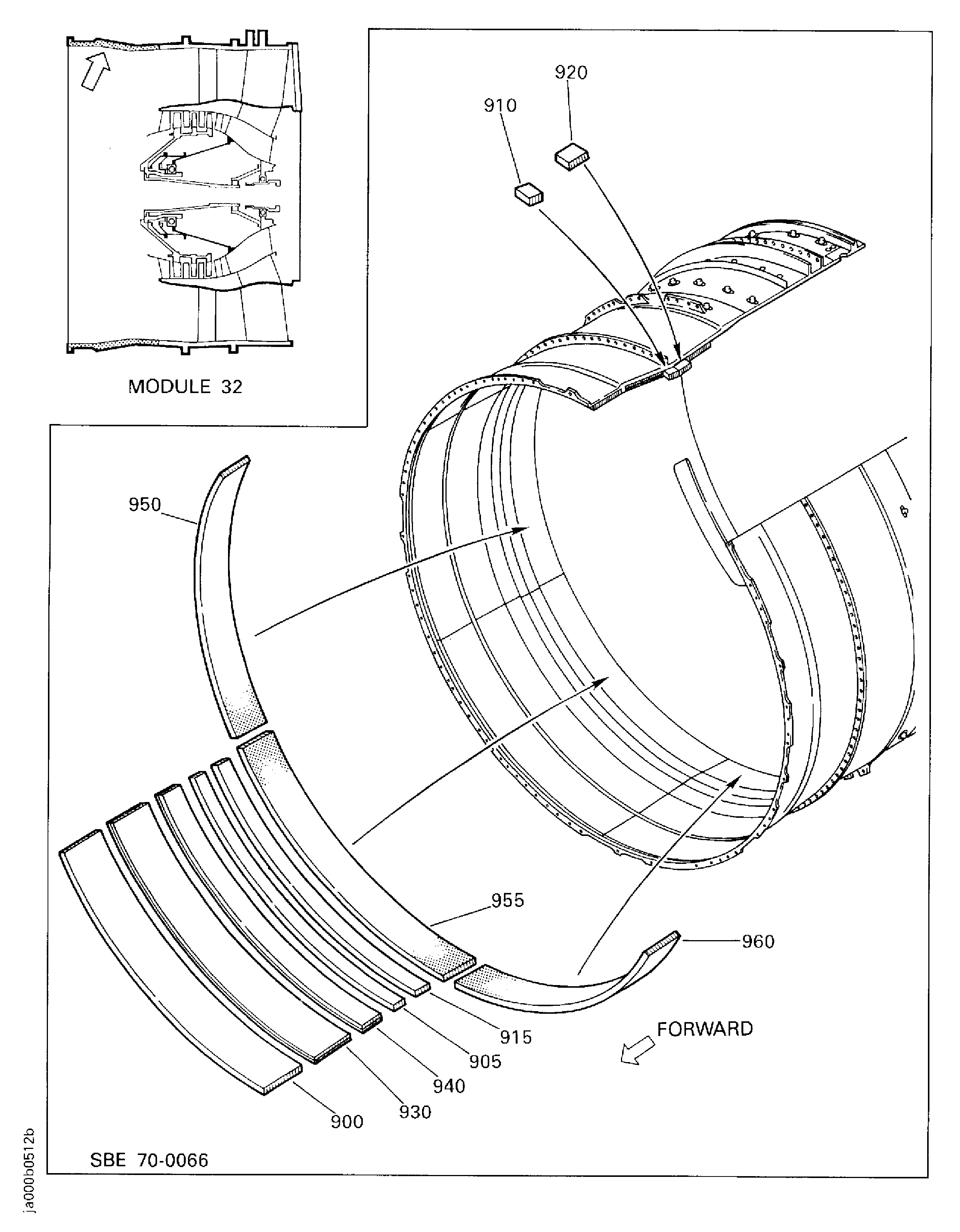

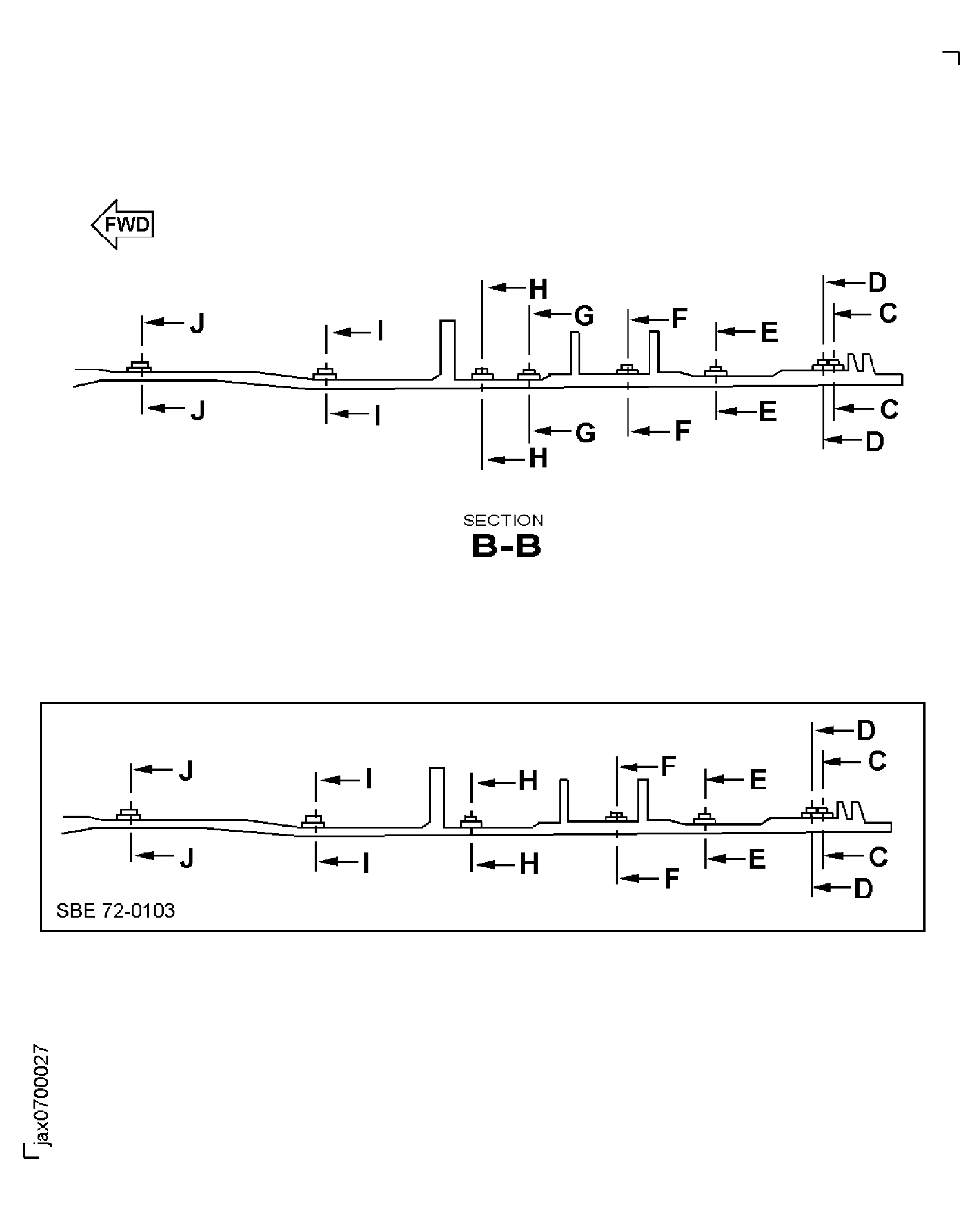

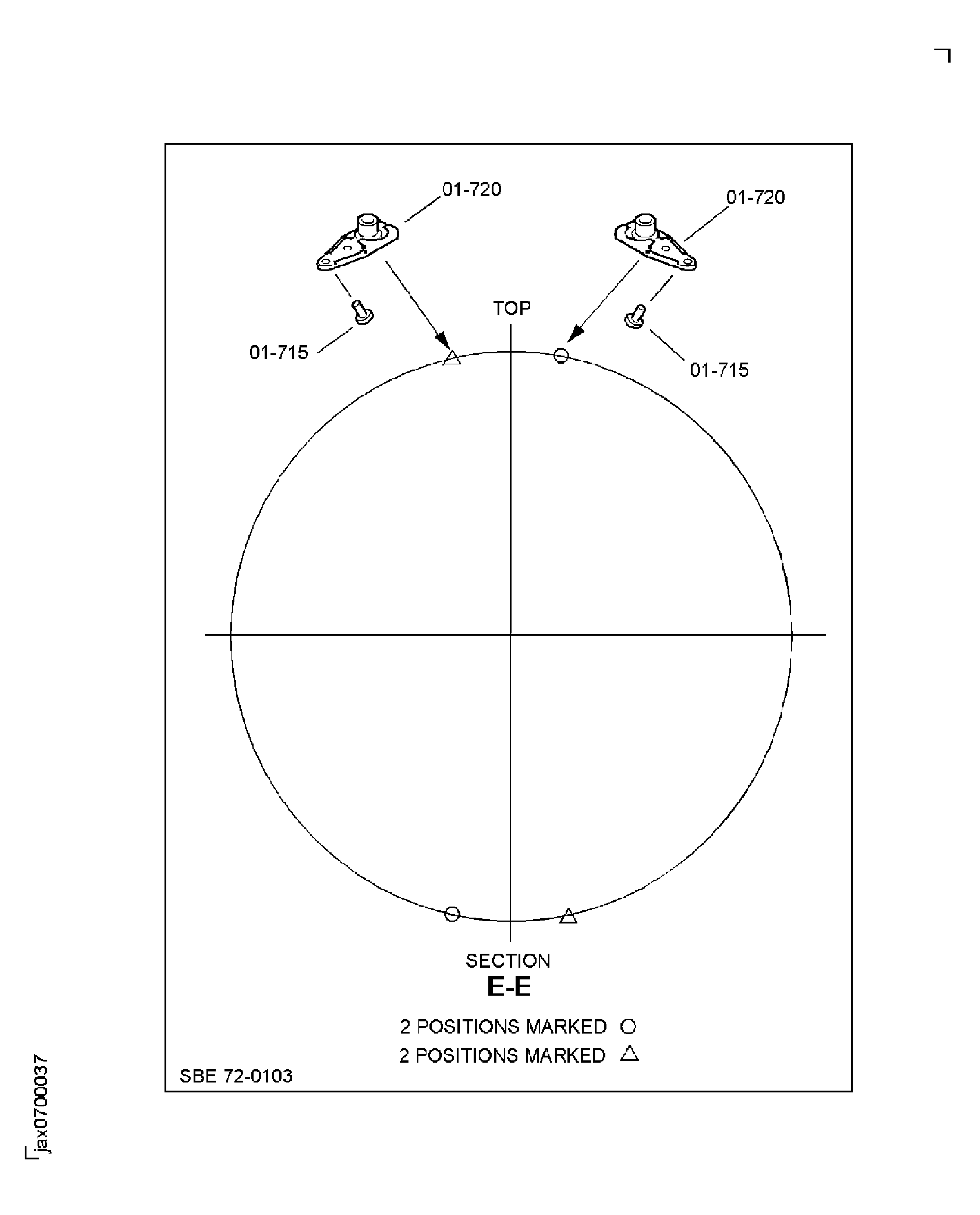

Figure: ENGINE-FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

FAN CASE

Change Type:

Incorporated SB 72-0692.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:81349
Enterprise Name:DELETED, SEE CAGE CODE 81348
Manufacturer Code:88044
Enterprise Name:AERONAUTICAL STANDARD GROUP NAVY AND AIR FORCE
BU Name:AERONAUTICAL STANDARD GROUP NAVY AND AIR FORCE
Street:NA
City:NA
Country:USA
Phone Number:NA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0107
Part Name:BOLT - MACHINE DOUBLE HEX, .190 DIA X .750
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21412BOLT - 0.190 DIA X 0.750U1653
Part Number:4W0166
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .750
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21512BOLT - 0.25 DIA X 0.750U1653
Part Number:5A0046
Part Name:BRACKET - PANEL SUPPORTING
Manufacturer Code:0AM53
Part Number:5A0993
Part Name:BUSHING
Manufacturer Code:0AM53
Part Number:5A1482
Part Name:BUSHING
Manufacturer Code:0AM53
Part Number:5A2128
Part Name:BUSHING
Manufacturer Code:0AM53
Part Number:5R0078
Part Name:LINING - REPAIR, FRONT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0079
Part Name:LINING - REPAIR, REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0080
Part Name:LINING - ACOUSTIC REPAIR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0081
Part Name:LINING - ACOUSTIC REPAIR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0082
Part Name:LINING - ACOUSTIC REPAIR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0083
Part Name:PANEL - REPAIR, FRONT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0084
Part Name:PANEL - REPAIR, MIDDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0085
Part Name:PANEL - REPAIR, MIDDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0086
Part Name:PANEL - REPAIR, REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0087
Part Name:PANEL - REPAIR, REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0182
Part Name:LINING - ATTRITION REPAIR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0183
Part Name:PANEL - REPAIR, ICE IMPACT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0184
Part Name:PANEL - REPAIR, ICE IMPACT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0185
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0186
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0187
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0274
Part Name:LINER - REPAIR, ATTRITION, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0279
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0280
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0281
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0291
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0292
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0294
Part Name:BRACKET - EXTENSION
Manufacturer Code:0AM53
Part Number:5R0298
Part Name:LINER - FRONT, REPAIR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0299
Part Name:LINER - REAR, REPAIR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0300
Part Name:PANEL - REPAIR, FRONT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0301
Part Name:PANEL - REPAIR, MIDDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0302
Part Name:PANEL - REPAIR, MIDDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0303
Part Name:PANEL - REPAIR, REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0304
Part Name:PANEL - REPAIR, REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0306
Part Name:PANEL - REPAIR, ICE IMPACT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0307
Part Name:PANEL - REPAIR, ICE IMPACT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0310
Part Name:LINER - REPAIR, ATTRITION, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0311
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0312
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0325
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5R0326
Part Name:LINER - ACOUSTIC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0069
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0072
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0081
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0093
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0094
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0100
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0124
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0168
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0171
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0184
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0185
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0186
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0187
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0188
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0189
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0190
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0191
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0192
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0193
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W0199
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0200
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0201
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0202
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0203
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0204
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0205
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0206
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0207
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0208
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0209
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0210
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0211
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0212
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0213
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0214
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0215
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0216
Part Name:CASE
Manufacturer Code:0AM53
Part Number:5W0306
Part Name:CASE - FAN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:AGS3732
Part Name:INSERT - SCREW THREAD, .250 DIA X 1.5D
Manufacturer Code:U1653
Part Number:AN960C416
Part Name:WASHER - FLAT
Manufacturer Code:88044
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21412
Part Name:BOLT - 0.190 DIA X 0.750
Manufacturer Code:U1653
Part Number:AS21512
Part Name:BOLT - 0.25 DIA X 0.750
Manufacturer Code:U1653
Part Number:CR2663-3-03
Part Name:RIVET - BLIND
Manufacturer Code:81349
Part Number:CR2663-3-04
Part Name:RIVET
Manufacturer Code:81349
Part Number:CR2663-3-3
Part Name:RIVET - BLIND
Manufacturer Code:81349
Part Number:CR2663-3-4
Part Name:RIVET - BLIND
Manufacturer Code:81349
Part Number:CR2673-3-03
Part Name:RIVET
Manufacturer Code:81349
Optional Parts
Part NumberPart NameManufacturer
CR2663-3-03RIVET - BLIND81349
CR2663-3-3RIVET - BLIND81349
Part Number:CR2673-3-04
Part Name:RIVET
Manufacturer Code:81349
Part Number:MS21060-4
Part Name:NUT - ANCHOR
Manufacturer Code:96906
Part Number:MS21060L4
Part Name:NUT - ANCHOR
Manufacturer Code:96906
Part Number:MS21062-4
Part Name:NUT - ANCHOR
Manufacturer Code:96906
Part Number:MS9321-10
Part Name:WASHER - FLAT, 0.500 X 0.276 X 0.062
Manufacturer Code:96906
