ENGINE-FAN CASE REAR PANELS

DMC:V2500-A1-72-32-87-02A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
02
000B72328702ENGINE-FAN CASE REAR PANELS, PRE SBE70-0002aa
000SBE0002-01ENGINE-FAN CASE REAR PANELS, PRE SBE72-0077ab
000SBE0077-01ENGINE-FAN CASE REAR PANELS, PRE SBE72-0103ac
000SBE0103-01ENGINE-FAN CASE REAR PANELS, PRE SBE70-0106ad
000SBE0106-01ENGINE-FAN CASE REAR PANELS, PRE SBE70-0194ae
000SBE0194-01ENGINE-FAN CASE REAR PANELS, PRE SBE70-0452af
000SBE0452-01ENGINE-FAN CASE REAR PANELSag
1001005A2149• PANEL - A/O FAN CASE LINER A
PRE SBE70-0002		aa1
100100A5A0258• PANEL - A/O FAN CASE LINER A
POST SBE70-0002
PRE SBE72-0077		ab1
100100B5A2149• PANEL - A/O FAN CASE LINER A
POST SBE72-0077		ac-ag1
100100C5A0809• PANEL - A/O LINER REAR TYPE A
POST SBE72-0103
PRE SBE70-0452		ad-ag1
100100D5A0842• PANEL - A/O FAN CASE LINER A
POST SBE70-0106
PRE SBE70-0194		ae-ag1
100100E5A1379• PANEL - A/O FAN CASE LINER A
POST SBE70-0194		ae-ag1
100100F5A1622• PANEL
POST SBE70-0452		ad-ag1
1501505A2149• PANEL - A/O FAN CASE LINER A
PRE SBE70-0002		aa1
150150A5A0258• PANEL - A/O FAN CASE LINER A
POST SBE70-0002		ab-ag1
150150B5A0809• PANEL - A/O LINER REAR TYPE A
POST SBE72-0103
PRE SBE70-0452		ad-ag1
150150C5A0842• PANEL - A/O FAN CASE LINER A
POST SBE70-0106
PRE SBE70-0194		ae-ag1
150150D5A1379• PANEL - A/O FAN CASE LINER A
POST SBE70-0194		ae-ag1
150150E5A1622• PANEL
POST SBE70-0452		ad-ag1
2002005A2150• PANEL - A/O FAN CASE LINER B
PRE SBE70-0002		aa1
200200A5A0259• PANEL - A/O FAN CASE LINER B
POST SBE70-0002		ab-ag1
200200B5A0814• PANEL - A/O LINER REAR TYPE B
POST SBE72-0103
PRE SBE70-0452		ad-ag1
200200C5A0843• PANEL - A/O FAN CASE LINER B
POST SBE70-0106
PRE SBE70-0194		ae-ag1
200200D5A1380• PANEL - A/O FAN CASE LINER B
POST SBE70-0194		ae-ag1
200200E5A1623• PANEL
POST SBE70-0452		ad-ag1
2502505A2151• PANEL - A/O FAN CASE LINER C
PRE SBE72-0103		aa-ac1
250250A5A0817• PANEL - A/O LINER REAR TYPE D
POST SBE72-0103
PRE SBE70-0452		ad-ag1
250250B5A0844• PANEL - A/O FAN CASE LINER C
POST SBE70-0106
PRE SBE70-0194		ae-ag1
250250C5A1381• PANEL - A/O FAN CASE LINER C
POST SBE70-0194		ae-ag1
250250D5A1625• PANEL - A/O, LINER REAR TYPE
POST SBE70-0452		ad-ag1
2902905A0815• PANEL - A/O, LINER MID
POST SBE72-0103
PRE SBE70-0452		ad-ag1
290290A5A1626• PANEL - A/O, LINER MID
POST SBE70-0452		ad-ag1
3003005A2152• PANEL - A/O FAN CASE LINER D
PRE SBE70-0002		aa1
300300A5A0260• PANEL - A/O FAN CASE LINER D
POST SBE70-0002		ab-ag1
300300B5A0818• PANEL - A/O LINER REAR TYPE C
POST SBE72-0103
PRE SBE70-0452		ad-ag1
300300C5A0845• PANEL - A/O FAN CASE LINER D
POST SBE70-0106
PRE SBE70-0194		ae-ag1
300300D5A1382• PANEL - A/O FAN CASE LINER D
POST SBE70-0194		ae-ag1
300300E5A1624• PANEL
POST SBE70-0452		ad-ag1
3503505A2149• PANEL - A/O FAN CASE LINER A
PRE SBE70-0002		aa1
350350A5A0258• PANEL - A/O FAN CASE LINER A
POST SBE70-0002		ab-ag1
350350B5A0809• PANEL - A/O LINER REAR TYPE A
POST SBE72-0103
PRE SBE70-0452		ad-ag1
350350C5A0842• PANEL - A/O FAN CASE LINER A
POST SBE70-0106
PRE SBE70-0194		ae-ag1
350350D5A1379• PANEL - A/O FAN CASE LINER A
POST SBE70-0194		ae-ag1
350350E5A1622• PANEL
POST SBE70-0452		ad-ag1
4004005A2150• PANEL - A/O FAN CASE LINER B
PRE SBE70-0002		aa1
400400A5A0259• PANEL - A/O FAN CASE LINER B
POST SBE70-0002		ab-ag1
400400B5A0814• PANEL - A/O LINER REAR TYPE B
POST SBE72-0103
PRE SBE70-0452		ad-ag1
400400C5A0843• PANEL - A/O FAN CASE LINER B
POST SBE70-0106
PRE SBE70-0194		ae-ag1
400400D5A1380• PANEL - A/O FAN CASE LINER B
POST SBE70-0194		ae-ag1
400400E5A1623• PANEL
POST SBE70-0452		ad-ag1
4504505A2150• PANEL - A/O FAN CASE LINER B
PRE SBE70-0002		aa1
450450A5A0259• PANEL - A/O FAN CASE LINER B
POST SBE70-0002		ab-ag1
450450B5A0814• PANEL - A/O LINER REAR TYPE B
POST SBE72-0103
PRE SBE70-0452		ad-ag1
450450C5A0843• PANEL - A/O FAN CASE LINER B
POST SBE70-0106
PRE SBE70-0194		ae-ag1
450450D5A1380• PANEL - A/O FAN CASE LINER B
POST SBE70-0194		ae-ag1
450450E5A1623• PANEL
POST SBE70-0452		ad-ag1
5005005A2152• PANEL - A/O FAN CASE LINER D
PRE SBE70-0002		aa1
500500A5A0260• PANEL - A/O FAN CASE LINER D
POST SBE70-0002		ab-ag1
500500B5A0818• PANEL - A/O LINER REAR TYPE C
POST SBE72-0103
PRE SBE70-0452		ad-ag1
500500C5A0845• PANEL - A/O FAN CASE LINER D
POST SBE70-0106
PRE SBE70-0194		ae-ag1
500500D5A1382• PANEL - A/O FAN CASE LINER D
POST SBE70-0194		ae-ag1
500500E5A1624• PANEL
POST SBE70-0452		ad-ag1
5505505A2152• PANEL - A/O FAN CASE LINER D
PRE SBE70-0002		aa1
550550A5A0260• PANEL - A/O FAN CASE LINER D
POST SBE70-0002		ab-ag1
550550B5A0818• PANEL - A/O LINER REAR TYPE C
POST SBE72-0103
PRE SBE70-0452		ad-ag1
550550C5A0845• PANEL - A/O FAN CASE LINER D
POST SBE70-0106
PRE SBE70-0194		ae-ag1
550550D5A1382• PANEL - FAN CASE LINER D
POST SBE70-0194		ae-ag1
550550E5A1624• PANEL
POST SBE70-0452		ad-ag1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

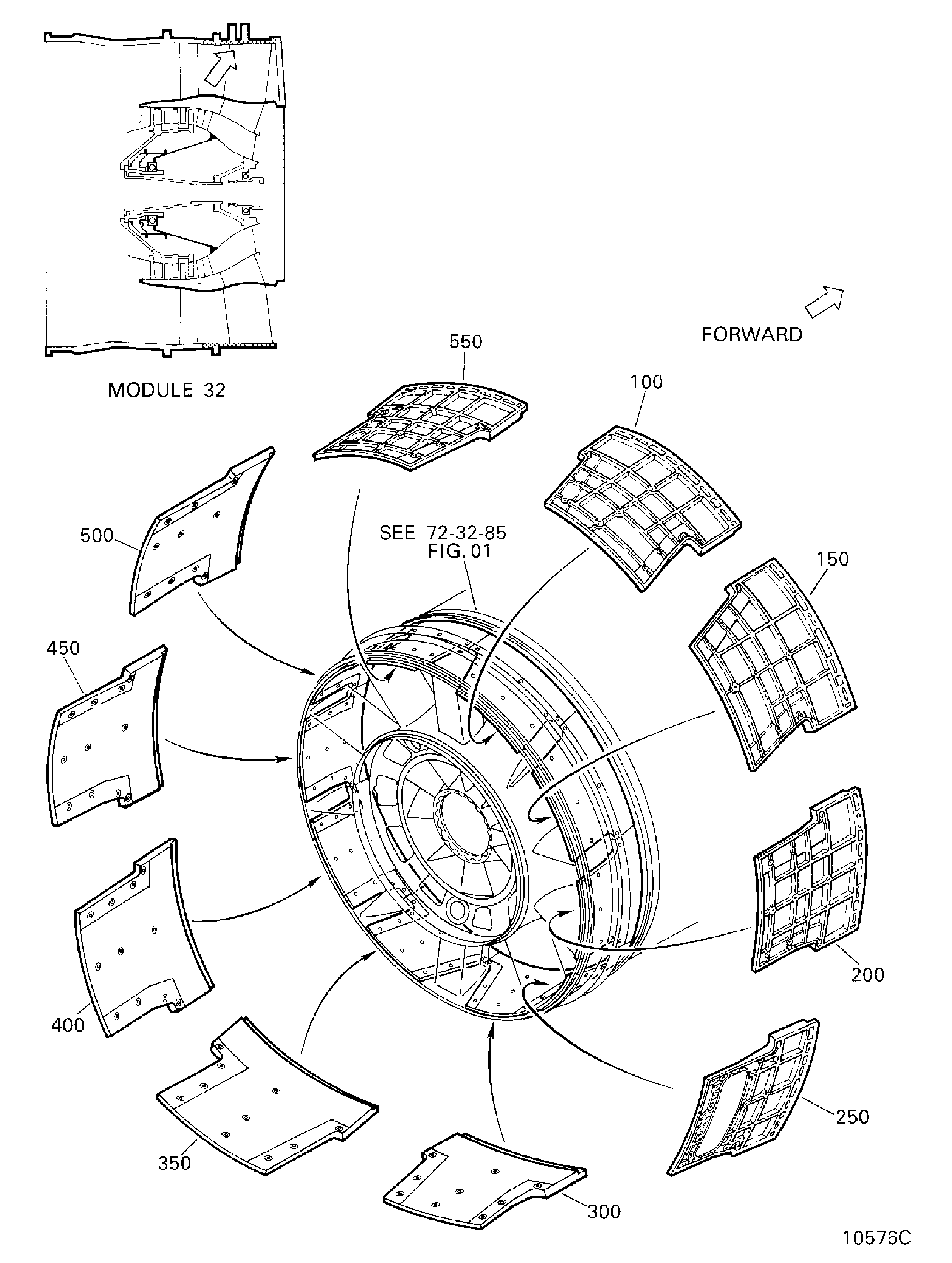

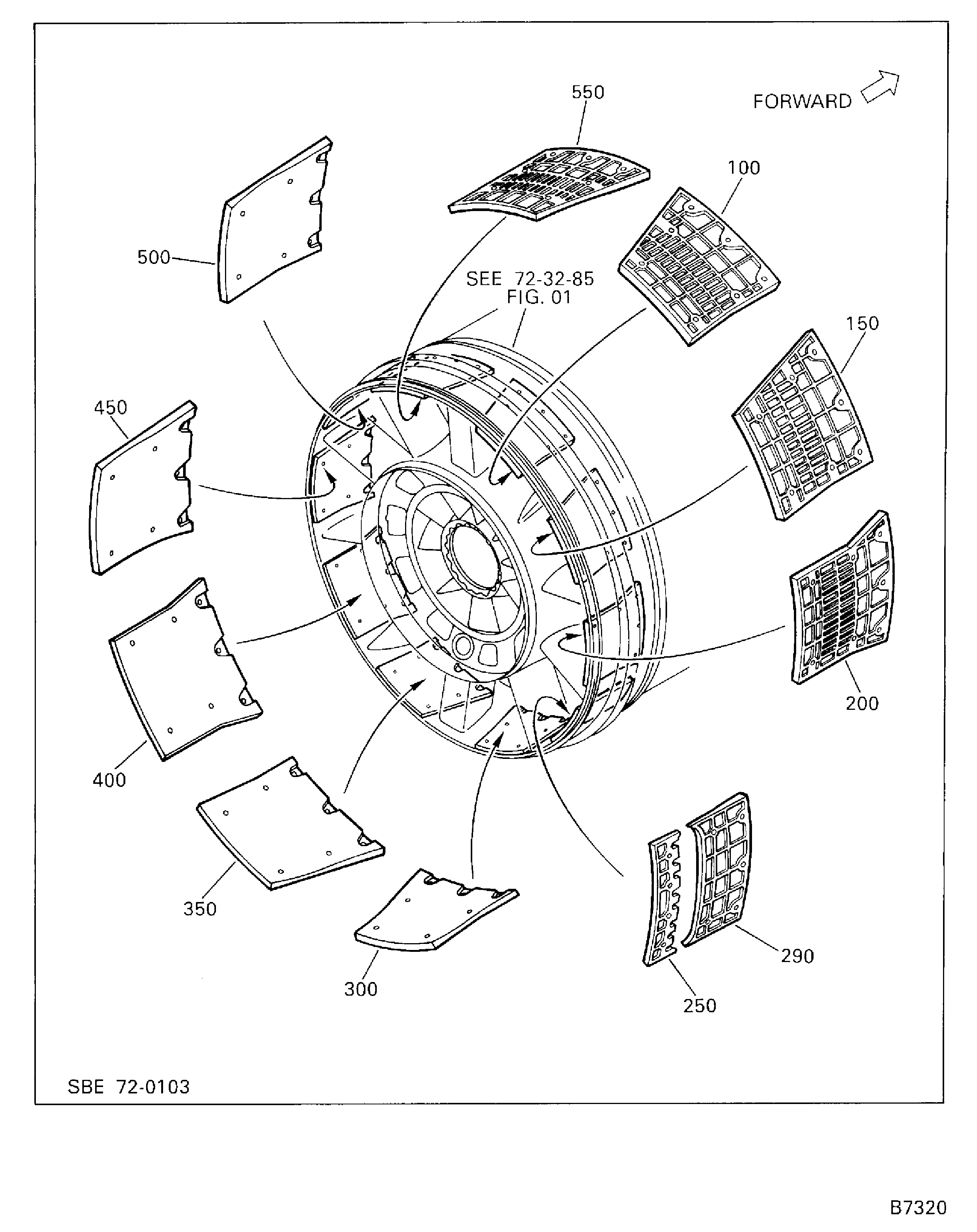

Figure: ENGINE-FAN CASE REAR PANELS

FAN CASE REAR PANELS

FAN CASE REAR PANELS

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Part Number:5A0258
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0259
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0260
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0809
Part Name:PANEL - LINER, TYPE A, REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0814
Part Name:PANEL - LINER, TYPE B, REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0815
Part Name:PANEL - LINER, MID
Manufacturer Code:0AM53
Part Number:5A0817
Part Name:PANEL - LINER, TYPE D, REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0818
Part Name:PANEL - LINER, TYPE C, REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0842
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0843
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0844
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0845
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1379
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1380
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1381
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1382
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1622
Part Name:PANEL
Manufacturer Code:0AM53
Part Number:5A1623
Part Name:PANEL
Manufacturer Code:0AM53
Part Number:5A1624
Part Name:PANEL
Manufacturer Code:0AM53
Part Number:5A1625
Part Name:PANEL - LINER, TYPE D, REAR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1626
Part Name:PANEL - LINER, MID
Manufacturer Code:0AM53
Part Number:5A2149
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A2150
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A2151
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A2152
Part Name:PANEL - FAN CASE LINER, ASSEMBLY OF
Manufacturer Code:0AM53
