ENGINE-FAN CASE REAR PANELS

DMC:V2500-A1-72-32-87-03A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
03
000B72328703ENGINE-FAN CASE REAR PANELS, PRE SBE72-0103aa
000SBE0103-01ENGINE-FAN CASE REAR PANELS, PRE SBE70-0452ab
000SBE0452-01ENGINE-FAN CASE REAR PANELSac
1001005A1086• PANEL - A/O LINER FRONT
POST SBE72-0103
PRE SBE70-0452		ab-ac1
100100A5A1627• PANEL
POST SBE70-0452		ab-ac1
1501505A1086• PANEL - A/O LINER FRONT
POST SBE72-0103
PRE SBE70-0452		ab-ac1
150150A5A1627• PANEL
POST SBE70-0452		ab-ac1
2002005A1086• PANEL - A/O LINER FRONT
POST SBE72-0103
PRE SBE70-0452		ab-ac1
200200A5A1627• PANEL
POST SBE70-0452		ab-ac1
2502505A1086• PANEL - A/O LINER FRONT
POST SBE72-0103
PRE SBE70-0452		ab-ac1
250250A5A1627• PANEL
POST SBE70-0452		ab-ac1
3003005A1086• PANEL - A/O LINER FRONT
POST SBE72-0103
PRE SBE70-0452		ab-ac1
300300A5A1627• PANEL
POST SBE70-0452		ab-ac1
3503505A1086• PANEL - A/O LINER FRONT
POST SBE72-0103
PRE SBE70-0452		ab-ac1
350350A5A1627• PANEL
POST SBE70-0452		ab-ac1
4004005A1086• PANEL - A/O LINER FRONT
POST SBE72-0103
PRE SBE70-0452		ab-ac1
400400A5A1627• PANEL
POST SBE70-0452		ab-ac1
4504505A1086• PANEL - A/O LINER FRONT
POST SBE72-0103
PRE SBE70-0452		ab-ac1
450450A5A1627• PANEL
POST SBE70-0452		ab-ac1
5005005A1086• PANEL - A/O LINER FRONT
POST SBE72-0103
PRE SBE70-0452		ab-ac1
500500A5A1627• PANEL
POST SBE70-0452		ab-ac1
5505505A1086• PANEL - A/O LINER FRONT
POST SBE72-0103
PRE SBE70-0452		ab-ac1
550550A5A1627• PANEL
POST SBE70-0452		ab-ac1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

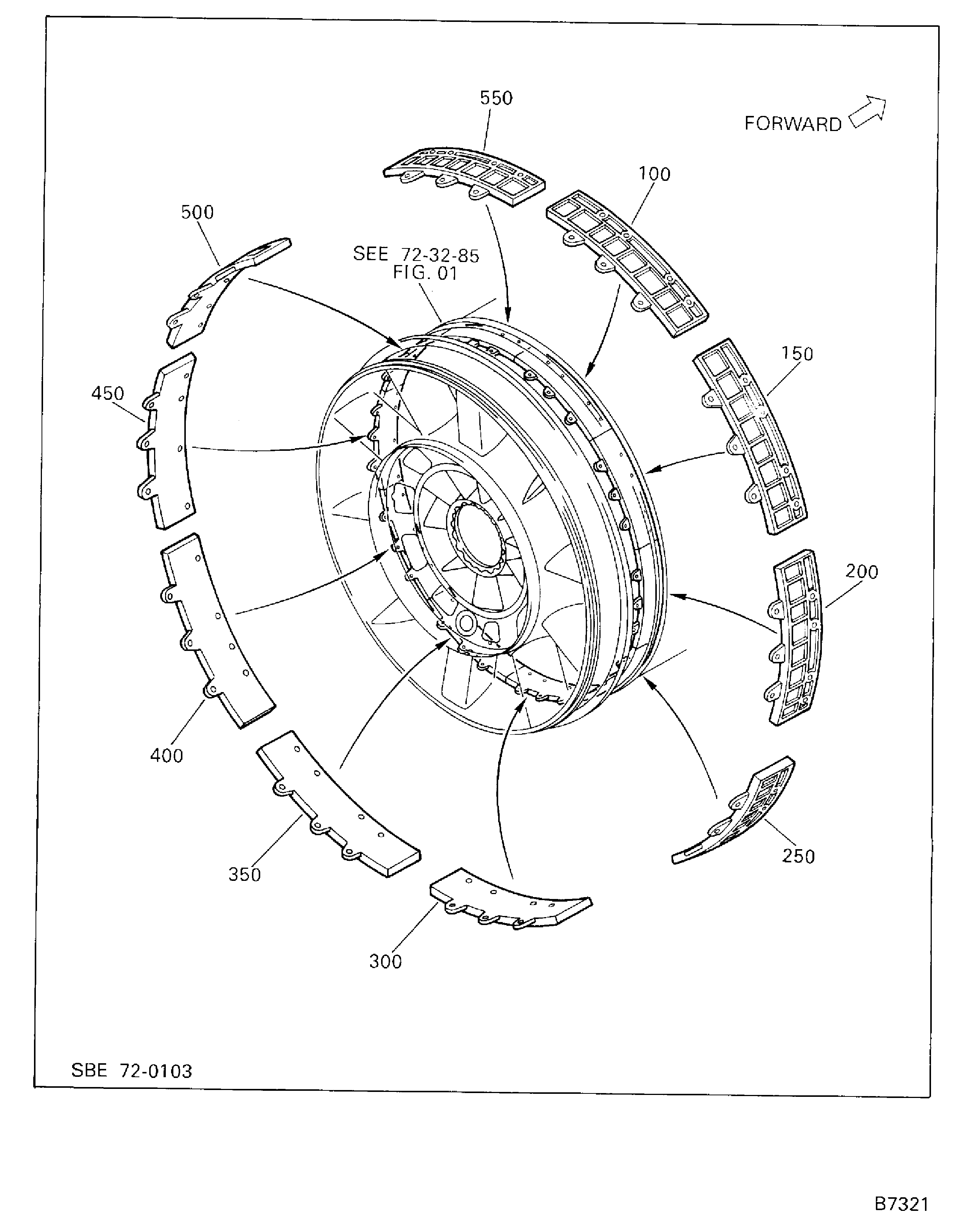

Figure: ENGINE-FAN CASE REAR PANELS

FAN CASE REAR PANELS

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Part Number:5A1086
Part Name:PANEL - FRONT LINER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1627
Part Name:PANEL
Manufacturer Code:0AM53
