HPC Module - Attaching Parts

DMC:V2500-A1-72-40-00-01A-941A-D|Issue No:002|Issue Date:2019-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

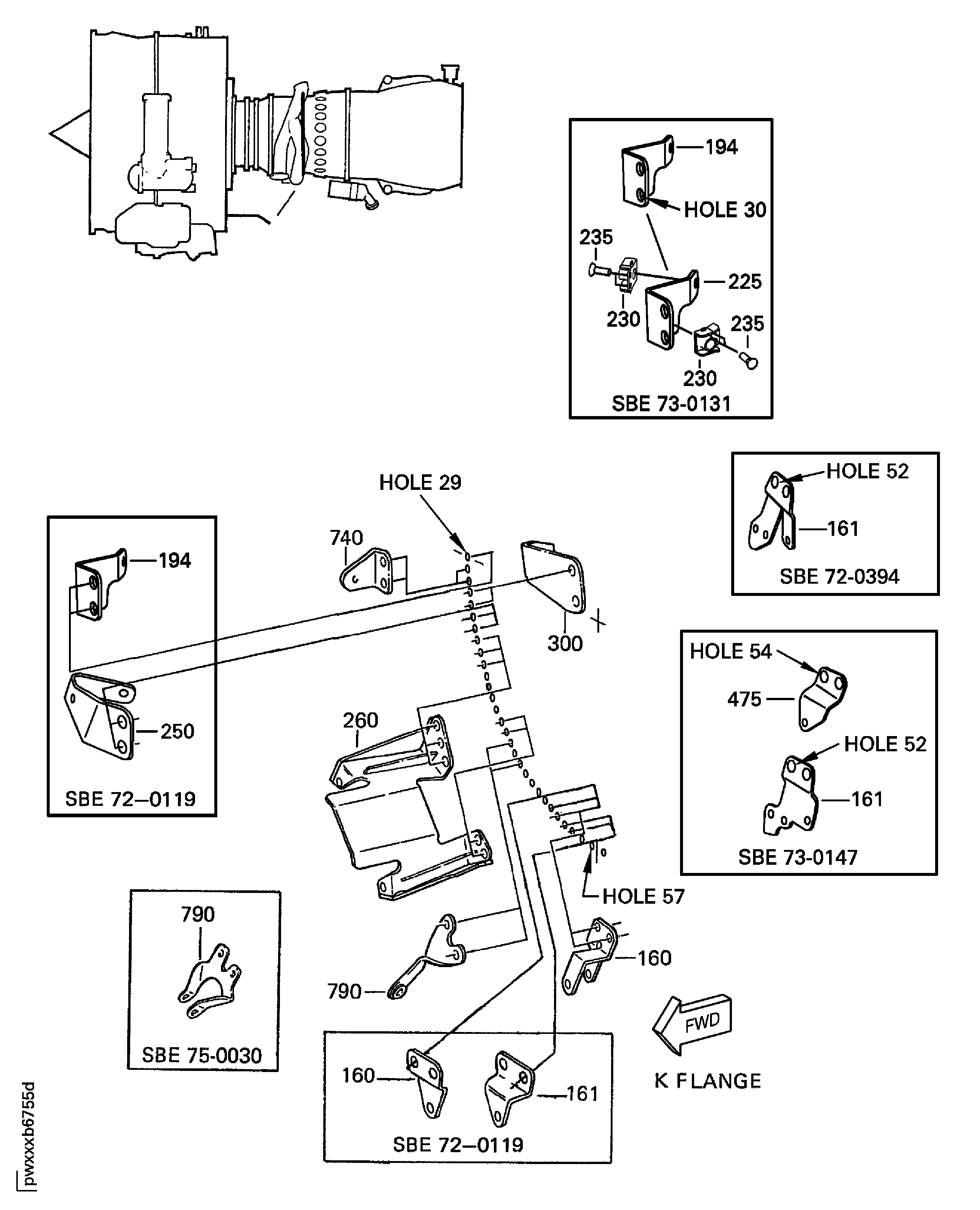

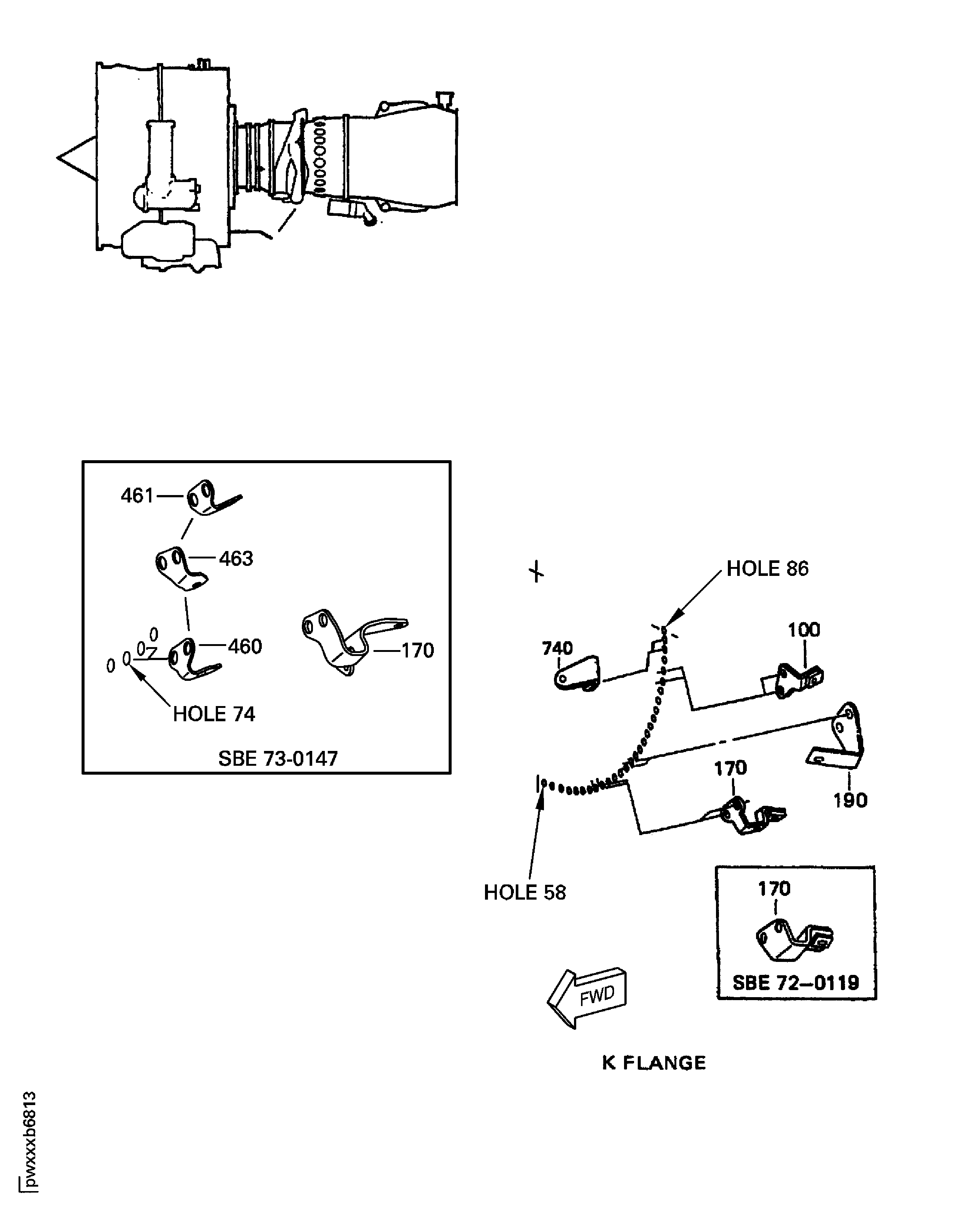

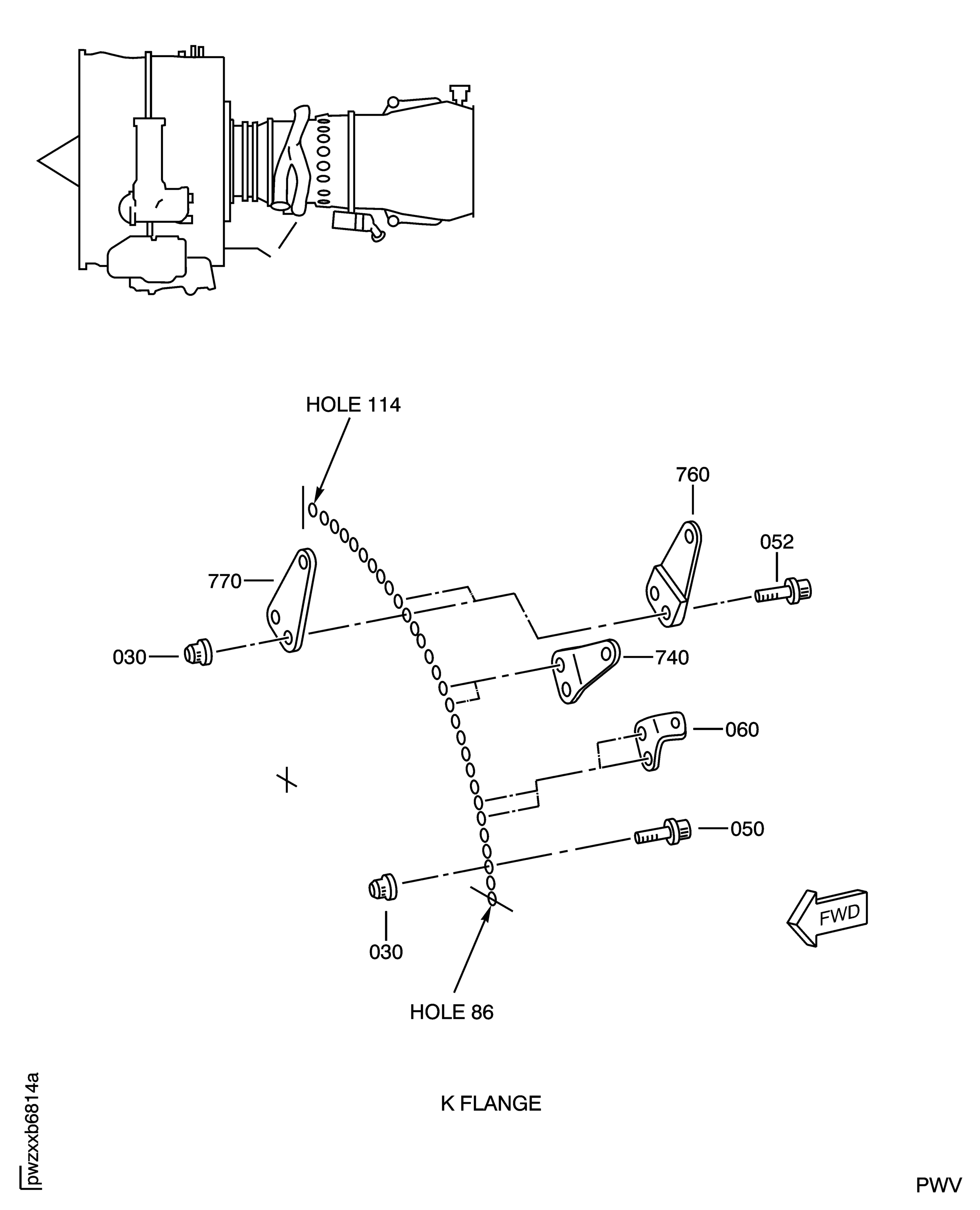

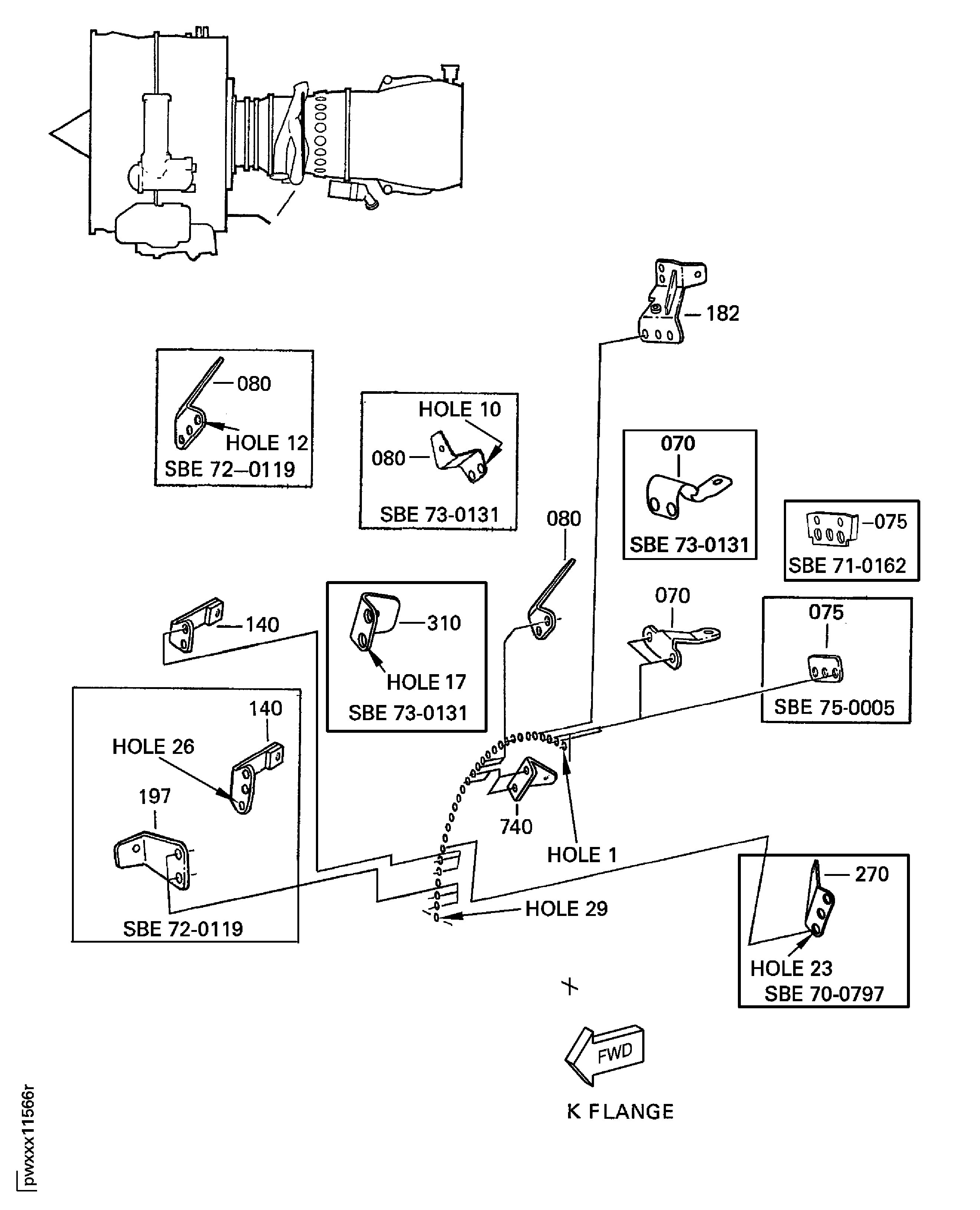

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
-000	B72400001	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM	aa
-000	SBE0005-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SBE72-0078	ab
-000	SBE0078-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SBE75-0030	ac
-000	SBE0030-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SBE72-0119	ad
-000	SBE0119-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SBE71-0162	ae
-000	SBE0162-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SBE73-0131	af
-000	SBE0131-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SBE72-0329	ag
-000	SBE0329-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SBE73-0147	ah
-000	SBE0147-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SBE70-0797	ai
-000	SBE0797-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SBE72-0394	aj
-000	SBE0394-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SBE70-0991	ak
-000	SBE0991-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM, PRE SB73-0139	al
-000	SBE0139-01	ENGINE - ATTACH PARTS AND FITTINGS - HP SYSTEM	am
-001001	4W6195	DRAWING - HP SYSTEM, ASSEMBLY OF POST SBE70-0991	al	REF
-001001A	4W6412	DRAWING - HP SYSTEM, ASSEMBLY OF POST SBE70-0991	al	REF

030030	4W0003	• NUT - 0.3125 DIA	aa-al	114
050050	4W0649	• BOLT - 0.3125 DIA X 1.000	aa-al	112
052052	4W0656	• BOLT - 0.3125 DIA X 1.438	aa-al	2

060060	2A0406	• BRACKET - LOOP CLAMP PRE SBE73-0147	aa-ah	1
060060A	2A0406	• BRACKET - LOOP CLAMP POST SBE72-0394	ak-al	1
070070	2A1225	• BRACKET - LOOP CLAMP PRE SBE73-0131	aa-af	1
070070A	2A3281	• BRACKET - LOOP CLAMP POST SBE73-0131	ag-al	1
075075	6A3992	• PLATE - ATTACHING AIR DEFLECT POST SBE75-0005 PRE SBE71-0162	ab-al	1
075075A	6A5911	• BRACKET - ATTACHING POST SBE71-0162 PRE SBE72-0329	ab-al	1
075075B	6A7458	• BRACKET - ATTACHING POST SBE72-0329	ab-al	1
075075C	6A7459	• BRACKET - ATTACHING ALT 6A7458 POST SBE72-0329	ah-al	1
080080	2A0876	• BRACKET - LOOP CLAMP PRE SBE72-0119	aa-ad	1
080080A	2A1939	• BRACKET - LOOP CLAMP POST SBE72-0119 PRE SBE73-0131 PRE SBE73-0139	ae-af	1
080080B	2A3373	• BRACKET - LOOP CLAMP POST SBE73-0131	ae-al	1
100100	2A1196	• BRACKET - LOOP CLAMP, ASSEMBLY OF PRE SBE73-0147	aa-ah	1
140140	2A0878	• BRACKET - LOOP CLAMP PRE SBE72-0119	aa-ad	1
140140A	2A1938-01	• BRACKET - LOOP CLAMP POST SBE72-0119 PRE SBE73-0131 PRE SBE73-0139	ae-af	1
140140B	2A1938-01	• BRACKET - LOOP CLAMP POST SBE73-0131 PRE SBE73-0139	ag-al	1
140140C	2A3276	• BRACKET- LOOP CLAMP, ASSEMBLY OF 77445 POST SBE73-0139	am	1
160160	2A0929	• BRACKET - LOOP CLAMP PRE SBE72-0119	aa-ad	1
160160A	2A1963	• BRACKET - LOOP CLAMP POST SBE72-0119 PRE SBE73-0147	ae-ah	1
161161	2A1964	• BRACKET - LOOP CLAMP POST SBE72-0119 PRE SBE73-0147	ae-aj	1
161161A	2A3389	• BRACKET - LOOP CLAMP POST SBE73-0147 PRE SBE72-0394	ae-aj	1
161161B	2A3553	• BRACKET - LOOP CLAMP POST SBE72-0394	ak-al	1
170170	2A0897	• BRACKET - LOOP CLAMP PRE SBE72-0119	aa-ad	1
170170A	2A1952-01	• BRACKET POST SBE72-0119 PRE SBE73-0147	ae-al	1
170170B	2A3391	• BRACKET - LOOP CLAMP POST SBE73-0147	ae-al	1
170170B	2A3379	• BRACKET - LOOP CLAMP POST SBE73-0147	af-ai	1
182182	5W8386	• BRACKET - ASSEMBLY OF	aa-al	1
-190190	5W8378	• BRACKET	aa-al	1
194194	2A2529-01	• BRACKET - LOOP CLAMP, ASSEMBLY OF POST SBE72-0119 PRE SBE73-0131	ae-af	1
194194A	2A3275	• BRACKET - LOOP CLAMP POST SBE73-0131	ag-al	1
197197	2A2537	• BRACKET - LOOP CLAMP POST SBE72-0119 PRE SBE73-0131	ae-af	1
225225	2A3288-01	• BRACKET - LOOP CLAMP, ASSEMBLY OF POST SBE73-0131	ag-al	1
230230	ST5030-09	• • NUT 77445 POST SBE73-0131	ag-al	1
-231231	ST5032-09	• • • NUT 77445 POST SBE73-0131	ag-al	1
-232232	ST5033-09	• • • NUT - PLATE, SELF LOCKING, 1 LUG, FLOATING, 0.190 - 32 X 0.250 77445 POST SBE73-0131	ag-al	1
235235	AN123469	• • RIVET - SOLID, 100 DEGREE FLUSH HEAD, 0.094 X 0.250 88044 POST SBE73-0131	ad-ai	2
250250	2A2546	• BRACKET - LOOP CLAMP POST SBE72-0119 PRE SBE73-0131	ae-af	1
260260	2A1903-01	• BRACKET - FUEL FLOW DIVIDER VALVE, ASSEMBLY OF	aa-al	1
260260A	2A2073-01	• BRACKET - FUEL FLOW DIVIDER VALVE	aa-al	1
270270	2A3277	• BRACKET - LOOP CLAMP POST SBE70-0797	aj-al	1
300300	5W8363	• BRACKET PRE SBE72-0329	aa-ag	1
300300A	6A7457	• BRACKET - CLIPPING POST SBE72-0329	aa-al	1
310310	2A3279	• BRACKET - LOOP CLAMP POST SBE73-0131	ag-al	1
460460	2A3388	• BRACKET - LOOP CLAMP POST SBE73-0147	ai-al	1
461461	2A3405	• BRACKET - LOOP CLAMP POST SBE73-0147	ai-al	1
463463	2A3406	• BRACKET - LOOP CLAMP POST SBE73-0147	ai=al	1
470470	2A3387	• BRACKET - LOOP CLAMP POST SBE73-0147	ai-al	1
475475	2A3381	• BRACKET - LOOP CLAMP POST SBE73-0147	ai-al	1
740740	740-5070-503	• BRACKET 51563	aa-al	2
760760	740-5063-501	• BRACKET - SUPPORT 51563	aa-al	1
770770	740-5064-501	• BRACKET - SUPPORT 51563	aa-al	1
790790	5W2141	• BRACKET PRE SBE75-0030	aa-ac	1
790790A	5W2242	• BRACKET POST SBE75-0030	ad-al	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE
