DMC:V2500-A1-72-40-00-05A-941A-DIssue No:002.00Issue Date:2014-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| - | B72400005 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM, PRE SBE75-0006 | aa | |
| - | SBE0006-01 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM, PRE SBE72-0079 | ab | |
| - | SBE0079-01 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM, PRE SBE75-0013 | ac | |
| - | SBE0013-01 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM, PRE SBE75-0030 | ad | |
| - | SBE0030-01 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM, PRE SBE75-0060 | ae | |
| - | SBE0060-01 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM, PRE SBE70-0574 | af | |
| - | SBE0574-01 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM | ag | |
| 020 | 4W0471 | • BOLT, .3125 DIA X 1.125 | aa-ag | 100 |
| 040 | 4W0003 | • NUT - .3125 DIA | aa-ag | 100 |
| 140 | 2A1485 | • BRACKET, TCA NO.1 | aa-ag | 1 |
| 160 | 5W8262 | • BRACKET PRE SBE72-0079 | aa-ag | 1 |
| 160A | 5W0101 | • BRACKET - ASSEMBLY POST SBE72-0079 | aa-ag | 1 |
| 180 | 5W8262 | • BRACKET PRE SBE72-0079 | aa-ag | 1 |
| 180A | 5W0101 | • BRACKET POST SBE72-0079 | aa-ag | 1 |
| 250 | 2A0803 | • BRACKET, TCA NO.2 | aa-ag | 1 |
| 270 | 5W8262 | • BRACKET PRE SBE72-0079 | aa-ag | 1 |
| 270 | 5W0101 | • BRACKET POST SBE72-0079 | aa-ag | 1 |
| 300 | 5T8121 | • BRACKET PRE SBE70-0574 | aa-af | 1 |
| -300A | 5T8098 | • BRACKET PRE SBE70-0574 | aa-af | REF |
| 300B | 6A6589 | • BRACKET POST SBE70-0574 | aa-af | 1 |
| 300C | 5T8098 | • BRACKET POST SBE70-0574 | ag | 1 |
| 300D | 5T8121 | • BRACKET POST SBE70-0574 | aa-af | 1 |
| 340 | 5T8122 | • BRACKET PRE SBE70-0574 | aa-af | 1 |
| -340A | 5T8099 | • BRACKET PRE SBE70-0574 | aa-af | REF |
| 340B | 6A6590 | • BRACKET POST SBE70-0574 | aa-af | 1 |
| 340C | 5T8099 | • BRACKET POST SBE70-0574 | ag | 1 |
| 340D | 5T8122 | • BRACKET POST SBE70-0574 | aa-af | 1 |
| 360 | 5W8346 | • BRACKET | aa-ag | 1 |
| 380 | 2A0805 | • BRACKET, TCA NO.3 | aa-ag | 1 |
| 400 | 5W8262 | • BRACKET PRE SBE72-0079 | aa-ag | 1 |
| 400A | 5W8397 | • BRACKET POST SBE72-0079 | aa-ag | 1 |
| 420 | 2A1474 | • BRACKET, TCA NO.4 | aa-ag | 1 |
| 440 | 5W8262 | • BRACKET PRE SBE72-0079 | aa-ag | 1 |
| 440A | 5W8397 | • BRACKET POST SBE72-0079 | aa-ag | 1 |
| 460 | 5W8262 | • BRACKET PRE SBE72-0079 | aa-ag | 1 |
| 460A | 5W8397 | • BRACKET POST SBE72-0079 | aa-ag | 1 |
| 500 | 5W1699 | • BRACKET, VALVE ACC ASSY OF PRE SBE75-0060 | aa-ae | 1 |
| 500A | 5W2099 | • BRACKET, VALVE ACC ASSY OF POST SBE75-0060 PRE SBE75-0060 | aa-ae | 1 |
| 500B | 6A6487 | • BRACKET, VALVE ACC ASSY OF POST SBE75-0060 PRE SBE70-0574 | af-ag | 1 |
| 500C | 6A6591 | • BRACKET, VALVE ACC ASSY OF POST SBE70-0574 | af-ag | 1 |
| 500D | 6A6487 | • BRACKET, VALVE ACC ASSY OF POST SBE70-0574 | af-ag | 1 |
| 507 | VTB12351 | • • • BEARING - SPHERICAL 06710 ALT P25001 POST SBE75-0060 | af-ag | 1 |
| 507A | P25001 | • • • BEARING - SPHERICAL 57606 ALT VTB12351 POST SBE75-0060 | af-ag | 1 |
| 520 | 2A0290 | • BRACKET, MANIFOLD SUPPORT PRE SBE75-0013 | aa-ac | 4 |
| 520A | 2A0290 | • BRACKET, MANIFOLD SUPPORT POST SBE75-0013 | ad-ag | 4 |
| 525 | MS20427M3-4 | • • RIVET, 100 DEGREE C/S 96906 | aa-ag | 2 |
| 530 | MS21048-3 | • • NUT, ANCHOR TWO-LUG PLATE 96906 | aa-ag | 1 |
| 550 | 5W2241 | • BRACKET POST SBE75-0030 PRE SBE70-0574 | aa-ac | 1 |
| 550A | 6A6592 | • BRACKET ALT 5W2241 POST SBE70-0574 | ae-ag | 1 |
| 550B | 5W2241 | • BRACKET ALT 6A6592 POST SBE70-0574 | ae-ag | 1 |
| 570 | 5W2237 | • BRACKET POST SBE75-0030 PRE SBE75-0060 | ae-ag | 1 |
| 570A | 6A6489 | • BRACKET POST SBE75-0060 PRE SBE70-0574 | ae-ag | 1 |
| 570B | 6A6593 | • BRACKET ALT 6A6489 POST SBE70-0574 | ae-ag | 1 |
| 570C | 6A6489 | • BRACKET ALT 6A6593 POST SBE70-0574 | ae-ag | 1 |
| 582 | 5W2097 | • • BEARING POST SBE75-0030 PRE SBE75-0060 | ae | 1 |
| -582A | P25000 | • • BEARING, ASSEMBLY 57606 ALT VTB12350E POST SBE75-0060 | af-ag | REF |
| 584 | VTB12351 | • • • BEARING - SPHERICAL 06710 ALT P25001 POST SBE75-0060 | af-ag | 1 |
| 584A | P25001 | • • • BEARING - SPHERICAL 57606 ALT VTB12351 POST SBE75-0060 | af-ag | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

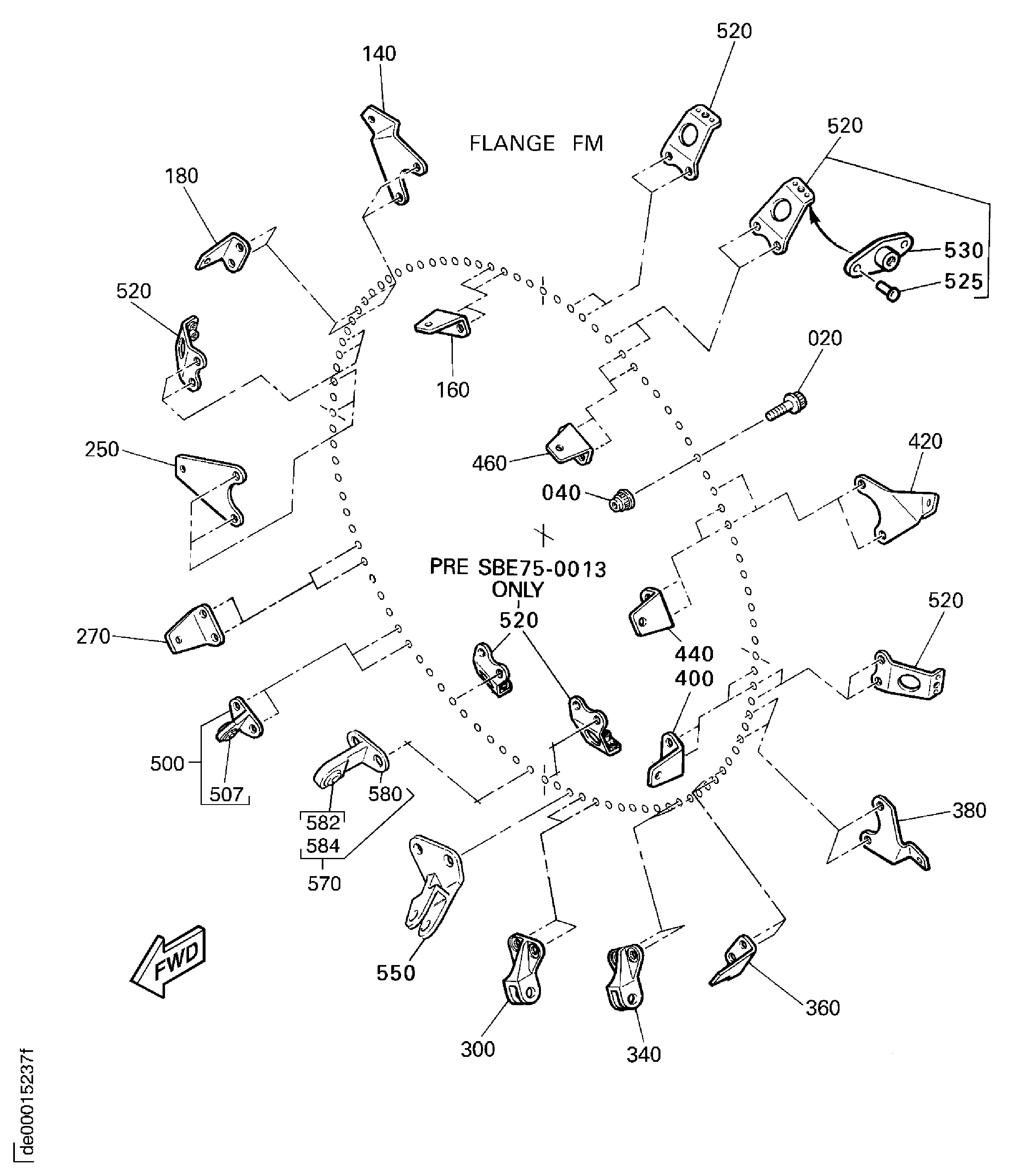

Figure: HPC Module - Attaching Parts
HPC Module - Attaching Parts
HPC Module - Attaching Parts
