TASK 72-41-20-440-007-A01 HPC Rear Cases And Vanes Assembly - Disassemble (For Subsequent Final Assembly) After Machining (Encapsulating Method) For Subsequent Final Assembly, Assembly-007

DMC:V2500-A1-72-41-2000-01A-710B-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-41-20-440-007-A01 HPC Rear Cases And Vanes Assembly - Disassemble (For Subsequent Final Assembly) After Machining (Encapsulating Method) For Subsequent Final Assembly, Assembly-007

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Refer to Figure for a sectional view of the HP compressor rear cases and vanes.

As each set of stator vanes are removed from the assembly they must be kept in IAE 1R18283 Cabinet 1 off. Make sure the stator vanes are put in to the cabinet in the correct sequence.

As each rotor path ring or case is removed they must be put in to IAE 1R18281 Storage rack 1 off.

As the H.P. compressor rear cases and vanes are disassembled remove any visible rigidax wax. Use CoMat 01-001 SOLVENT, DELETEDand a clean lint free cloth or a brush to remove the rigidax wax.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1R18240 Extractor0AM53IAE 1R182401
IAE 1R18242 Extractor0AM53IAE 1R182421
IAE 1R18243 Extractor0AM53IAE 1R182431
IAE 1R18281 Storage rack0AM53IAE 1R182811
IAE 1R18283 Cabinet0AM53IAE 1R182831
IAE 1R18284 Extractor0AM53IAE 1R182841
IAE 1R18636 Spanner Wrench0AM53IAE 1R186361
IAE 1R18684 Case extractor0AM53IAE 1R186841

(alternative to IAE 1R18434)

IAE 1R18434 Case extractor0AM53IAE 1R184343

(alternative to IAE 1R18684)

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001

Spares

NONE

Safety Requirements

WARNING

WHEN YOU USE CoMat 01-001 SOLVENT, DELETED YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

Procedure

    1. SUBTASK 72-41-20-440-091 Identify the Positions of the HP Compressor Rear Cases and Vanes Parts

    1. Before any part is removed it must be identified with its position on the assembly. Refer to the SPM TASK 70-09-00-400-501 for the procedure to mark components and assemblies.

    2. SUBTASK 72-41-20-440-120 Remove the Stage 7, 9 and 10 Front and Rear Heatshields

    1. Remove the 10 bolts which attach the stage 10 rear heatshield to the stage 10 case rear flange. Refer to Figure detail identified B.

    2. Remove the two halves of the stage 10 rear heatshields.

    3. Use IAE 1R18636 Spanner Wrench 1 off and remove the 10 bolts, washers and nuts which attach the stage 10 front heatshield to the stage 10 case front flange. Refer to Figure detail at B.

    4. Remove the two halves of the stage 10 front heatshield.

    5. Remove the 10 bolts which attach the stage 9 front heatshield to the stage 9 case front flange. Refer to Figure detail identified B.

    6. Remove the two halves of the stage 9 front heatshield.

    7. Remove the 10 bolts which attach the stage 7 rear heatshield to the stage 7 case rear flange. Refer to Figure detail identified B.

    8. Remove the two halves of the stage 7 rear heatshield.

    9. Remove the 10 bolts which attach the stage 7 front heatshield to the stage 7 case front flange. Refer to Figure detail identified B.

    10. Remove the two halves of the stage 7 front heatshield.

    3. SUBTASK 72-41-20-440-092 Remove the Cross Key Ring and Seal Assembly and the Stage 12 Rotor Path Ring

    1. Refer to Figure and Figure.

    2. Remove the 47 nuts and bolts which attach the cross key location ring and seal assembly and the stage 12 rotor path ring to the stage 11 case.

    3. Remove the stage 12 LH and RH rotor path heatshields.

      4. Remove the cross key location ring, the seal ring and the stage 12 rotor path ring as an assembly.

      1. Use IAE 1R18240 Extractor 3 off to remove the assembly. The extractors must be set at equal distances around the flange. Refer to extractor detail A.

      2. Engage the pins of the extractors in one of the extraction holes in the rear flange of the stage 11 case.

      3. Adjust the bolts of the extractors until the plates touch the stage 11 case front flange.

      4. Continue to turn the bolts in sequence, by a small equal amount to remove the assembly.

      5. Remove the extractors from the HP compressor rear cases and vanes.

      5. Remove the cross key location ring from the stage 12 rotor path ring. Refer to Figure.

      1. Put the removed assembly rear face down on to a clean work surface.

      2. Engage the pins of IAE 1R18284 Extractor 1 off in one of the extraction holes in the stage 12 rotor path ring flange.

      3. Adjust the nuts of the extractor and locate the rings of the extractors on the stage 12 rotor path ring rear flange.

      4. Continue to adjust the nuts of the extractors to push the cross key location ring off the stage 12 rotor path ring.

      5. Remove the extractor from the stage 12 rotor path ring.

    4. SUBTASK 72-41-20-440-093 Remove the Stage 11 Case and Stator Vanes

    1. Refer to Figure and Figure.

    2. Remove the 37 nuts and bolts which attach the stage 11 case and rotor path ring to the stage 10 case. Refer to Figure.

      3. Remove the stage 11 case. Refer to Figure extractor detail B.

      1. Use the IAE 1R18240 Extractor 3 off. Locate the extractors at equal distances around the stage 11 case.

      2. Engage the pins of the extractors in three of the extraction holes in the front flange of the stage 11 case.

      3. Adjust the bolts of the extractors until the plates touch the rear flange of the stage 11 case.

      4. Continue to turn the bolts in sequence, by a small equal amount to remove the stage 11 case.

      5. Remove the extractors from the stage 11 case.

    4. Remove the stage 11 stator vanes from the stage 11 rotor path ring. As each stator vane is removed it must be identified with its location number. Vane No.1 is located adjacent to the stator stop vane at the 11 o'clock position. Number the vanes in a clockwise direction. Identify the vane location number on the stator vane platform outer face.

    5. SUBTASK 72-41-20-440-094 Remove the Stage 11 Rotor Path Ring, the Stage 10 Case and Stator Vanes

    1. Refer to Figure and Figure.

    2. Use IAE 1R18636 Spanner Wrench 1 to remove the 37 flange nuts and bolts. These attach the stage 10 case and rotor path ring to the stage 9 case. Refer to Figure detail at A.

      3. Remove the stage 11 rotor path ring. Refer to Figure extractor detail B.

      1. Use IAE 1R18240 Extractor 3 off. Locate the extractors at equal distances around the stage 10 case.

      2. Engage the pins of the extractors in three of the extraction holes in the rear flange of the stage 10 case.

      3. Adjust the bolts of the extractors until the plates touch the front flange of the stage 10 case.

      4. Continue to turn the bolts is sequence, by a small equal amount to remove the stage 11 rotor path ring.

      5. Remove the extractors from the stage 10 case.

      4. Remove the stage 10 case. Refer to Figure extractor detail B. Use the three extractors used in step B. Locate the extractors at equal distances around the stage 10 case.

      1. Engage the pins of the extractors in three of the extraction holes in the front flange of the stage 10 case.

      2. Adjust the bolts of the extractors until the plate touch the rear flange of the stage 10 case.

      3. Continue to turn the bolts in sequence, by a small equal amount to remove the stage 10 case.

      4. Remove the extractors from the stage 10 case.

    5. Remove the stage 10 stator vanes from the stage 10 rotor path ring. As each stator vane is removed it must be identified with its location number. Vane No. 1 is located adjacent to the stator stop vane at the 11 o'clock position. Number the vanes in a clockwise direction. Identify the vane location number on the stator vane platform outer face.

    6. SUBTASK 72-41-20-440-095 Remove the Stage 10 Rotor Path Ring, the Stage 9 Case and Stator Vanes

    1. Refer to Figure and Figure.

    2. Remove the 37 nuts and bolts which attach the stage 9 case and rotor path ring to the stage 8 case. Refer to Figure detail identified A.

      3. Remove the stage 10 rotor path ring. Refer to Figure extractor detail C.

      1. Use IAE 1R18240 Extractor 3 off. Locate the extractors at equal distances around the stage 9 case.

      2. Engage the pins of the extractors in three of the extraction holes in the rear flange of the stage 9 case.

      3. Adjust the bolts of the extractors until the plates touch the front flange of the stage 9 case.

      4. Continue to turn the bolts in sequence, by a small equal amount to remove the stage 10 rotor path ring.

      5. Remove the extractors from the stage 9 case.

      4. Remove the stage 9 case. Refer to Figure extractor detail B. Use the extractors used in step B. Locate the extractors at equal distances around the stage 9 case.

      1. Engage the pins of the extractors in three of the extraction holes in the front flange of the stage 9 case.

      2. Adjust the bolts of the extractors until the plates touch the rear flange of the stage 9 case.

      3. Continue to turn the bolts in sequence, by a small equal amount to remove the stage 9 case.

      4. Remove the extractors from the stage 9 case.

    5. Remove the stage 9 stator vanes from the stage 9 rotor path ring. As each stator vane is removed it must be identified with its location number. Vane No. 1 is located adjacent to the stator stop vane at the 11 o'clock position. Number the vanes in a clockwise direction. Identify the vane location number on the stator vane platform outer face.

    7. SUBTASK 72-41-20-440-096 Remove the Stage 9 Rotor Path Ring, the Stage 8 Case and Stator Vanes

    1. Refer toFigure and Figure.

    2. Remove the 28 nuts and bolts which attach the stage 8 case and rotor path ring to the stage 7 case. Refer to Figure detail identified A.

      3. Remove the stage 9 rotor path ring. Refer to Figure extractor detail c.

      1. Use IAE 1R18240 Extractor 3 off. Locate the extractors at equal distances around the stage 8 case.

      2. Engage the pins of the extractors in three of the extraction holes in the rear flange of the stage 8 case.

      3. Adjust the bolts of the extractors until the plates touch the front flange of the stage 8 case.

      4. Continue to turn the bolts in sequence, by a small equal amount to remove the stage 9 rotor path ring.

      5. Remove the extractors from the stage 8 case.

      4. Remove the stage 8 case. Refer to Figure extractor detail B. Locate the extractors used in step B at equal distances around the stage 8 case.

      1. Engage the pins of the extractors in three of the location holes in the front flange of the stage 8 case.

      2. Adjust the bolts of the extractors until the plates touch the stage 8 case rear flange.

      3. Continue to turn the bolts in sequence, by a small equal amount to remove the stage 8 case.

      4. Remove the extractors from the stage 8 case.

    5. Remove the stage 8 stator vanes from the stage 8 rotor path ring. As each stator vane is removed it must be identified with its location number. Vane No. 1 is located adjacent to the stator stop vane at the 12 o'clock position. Identify the vane location number on the stator vane platform outer face.

    8. SUBTASK 72-41-20-440-097 Remove the Stage 8 Rotor Path Ring, the Stage 7 Case and Stator Vanes

    1. Refer to Figure, Figure and Figure.

      2. Remove the stage 8 rotor path ring. Refer to Figure extractor detail A.

      1. Use the IAE 1R18684 Case extractor 1 off to remove the stage 8 rotor path ring.

      2. Put the ring assembly on the front support cone. The nylon part of the assembly touches the support cone.

      3. Install one half of the split ring on the stage 7 case.

      4. Install the pins of the split ring in the extraction holes in the rear flange of the stage 7 case.

      5. Install the keeper ring on the split ring with the three bolts.

      6. Do steps A. (3) thru A. (5) again to install the other of the split ring.

      7. Install the remaining three bolts in the keeper ring.

      8. Install the six extractor bolts through the keeper ring and split ring. Make sure the bolts go into the ring assembly.

      9. Tighten the six extractor bolts by a small equal quantity until the stage 8 rotor path ring is removed. Do not remove the extractor.

    3. Remove the 37 nuts and bolts which attach the stage 7 case and rotor path ring to the front support cone. Refer to Figure detail identified A.

      4. Remove the stage 7 case. Use extracter IAE 1R18684 Case extractor or IAE 1R18434 Case extractor, 3 off. Refer to Figure or Figure.

      1. Turn each extracter bolt a small amont, repeat this procedure until the stage 7 case is removed.

      2. Remove the extractor from the stage 7 case.

    5. Remove the stage 7 stator vanes from the stage 7 rotor path ring. As each stator vane is removed it must be identified with its location number. Vane No. 1 is located adjacent to the stator stop vane at the 11 o'clock position. identify the vane location number on the stator vane platform outer face.

      6. Remove the stage 7 rotor path ring, front support cone and support ring from the support ring.

      1. Remove the 6 bolts and washers, part of the support ring, which attach the front support cone to the support ring.

      2. Remove the assembly from the support ring.

      3. Put the assembly on to a clean work surface. Put the front support cone outer flange rear face down on the work surface.

      7. Remove the stage 7 rotor path ring. Refer to Figure extractor detail D.

      1. Use IAE 1R18242 Extractor 3 off. Locate the extractors at equal distances around the front support cone outer flange.

      2. Adjust the tommy bars of the extractors until the pins on the extractors touch the stage 7 rotor path ring front face.

      3. Continue to turn the tommy bars in sequence, by a small equal amount to remove the stage 7 rotor path ring.

      4. Remove the extractors from the stage 7 rotor path ring.

      8. Remove the front support cone stiffening ring from the front support cone. Refer to Figure extractor detail C.

      1. Use IAE 1R18243 Extractor 3 off. Locate the extractors at equal distances around the front support cone.

      2. Adjust the tommy bars of the extractors. Engage the pins of the extractors in three of the extraction holes in the front flange of the front support cone.

      3. Continue to turn the tommy bars in sequence, by a small amount, until the front support cone stiffening ring is removed.

      4. Remove the extractors from the front support cone.

        .

    9. Figure: View through the HP compressor rear cases and vanes

    View through the HP compressor rear cases and vanes

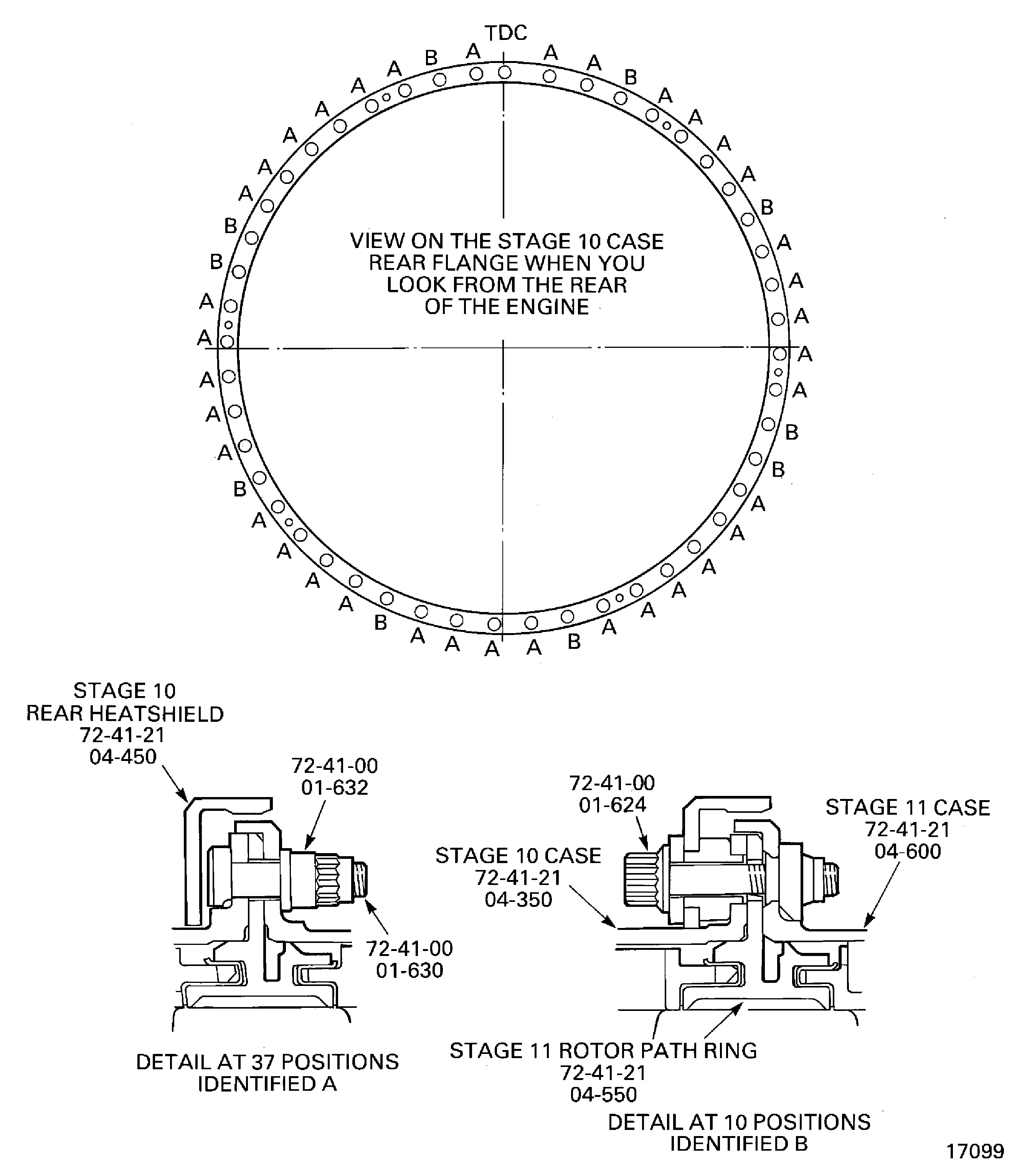

    Figure: Stage 11 rotor path ring flange details

    Stage 11 rotor path ring flange details

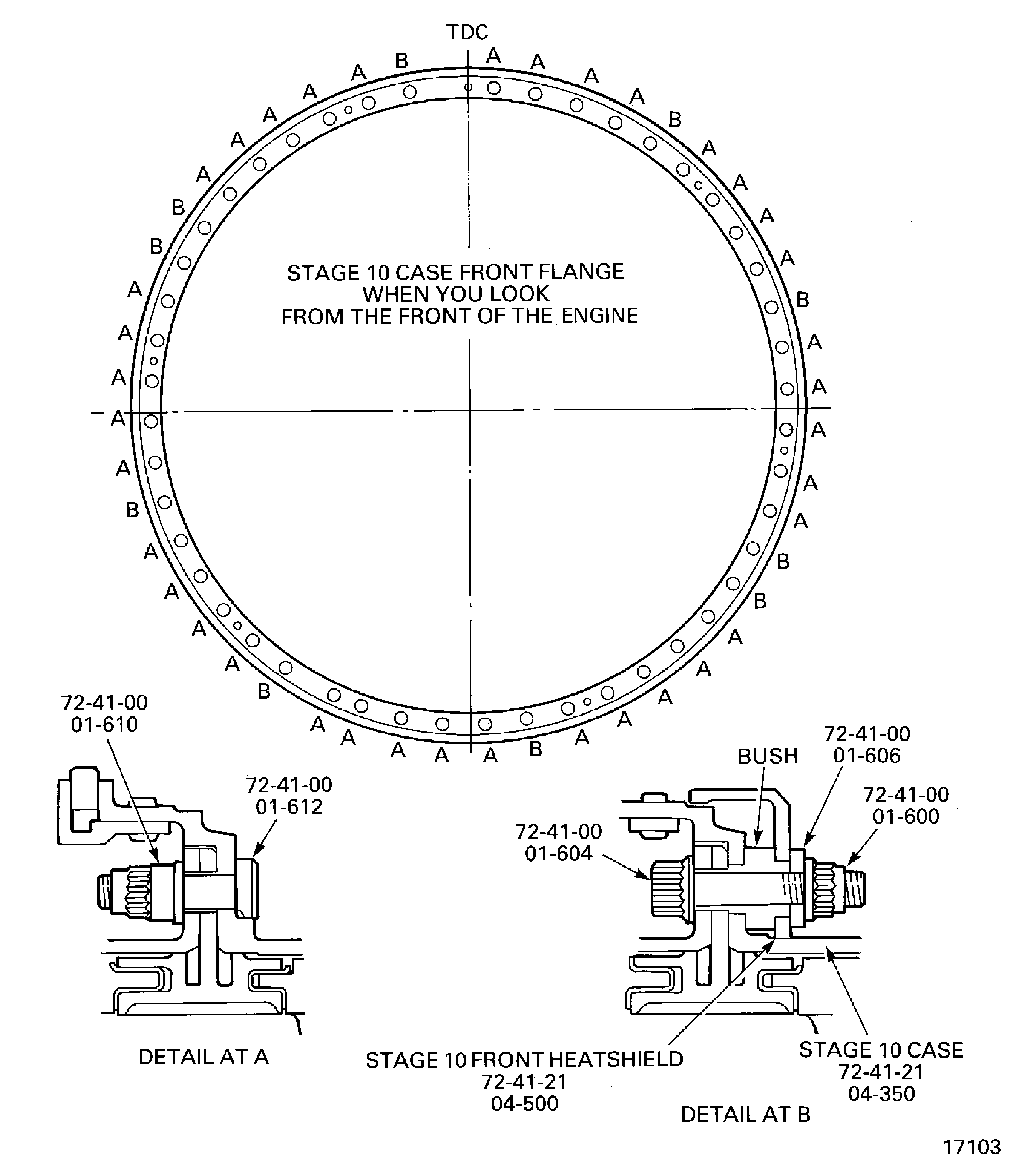

    Figure: Stage 10 rotor path ring flange details

    Stage 10 rotor path ring flange details

    Figure: Stage 9 rotor path ring flange details

    Stage 9 rotor path ring flange details

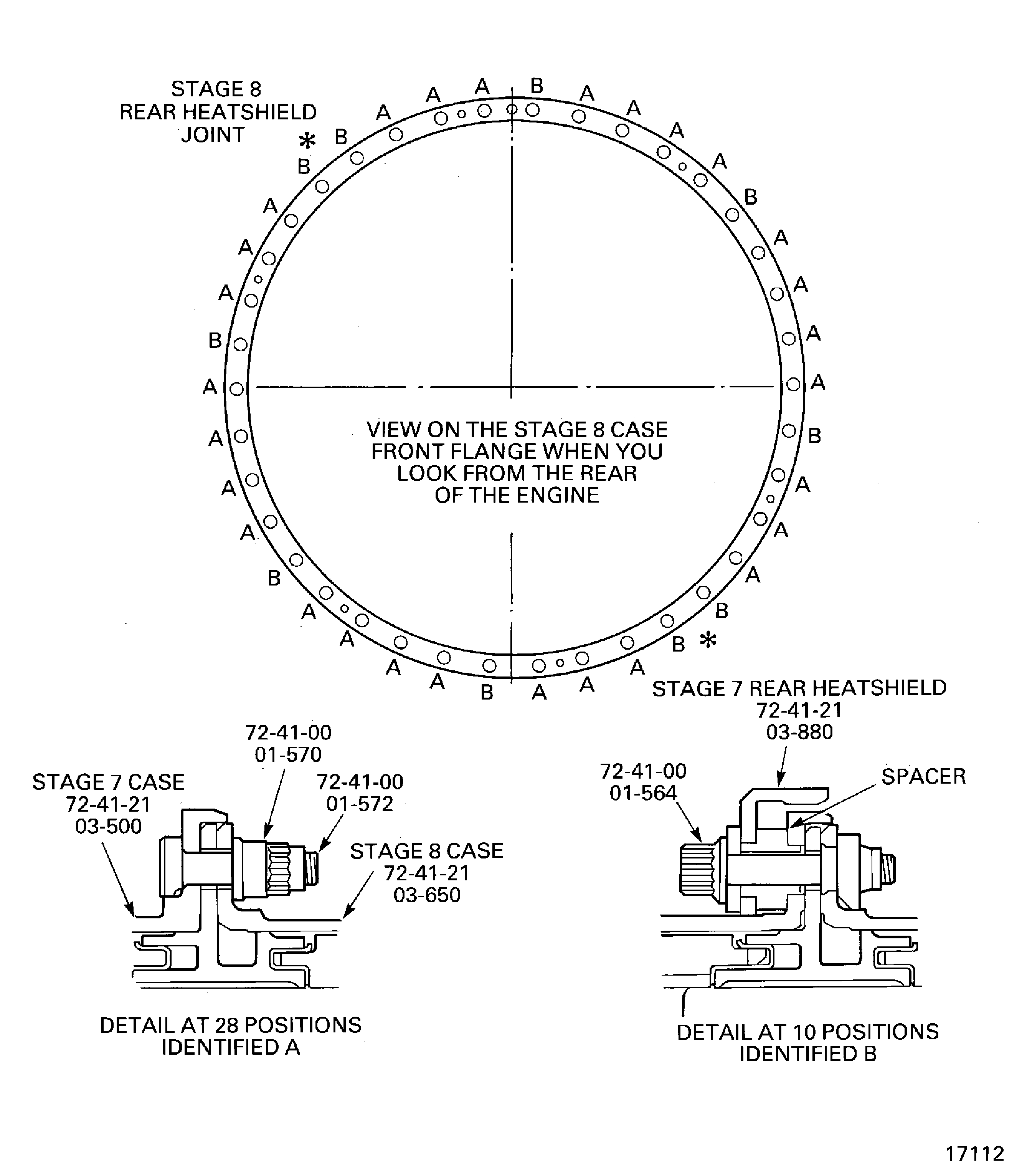

    Figure: Stage 8 rotor path ring details

    Stage 8 rotor path ring details

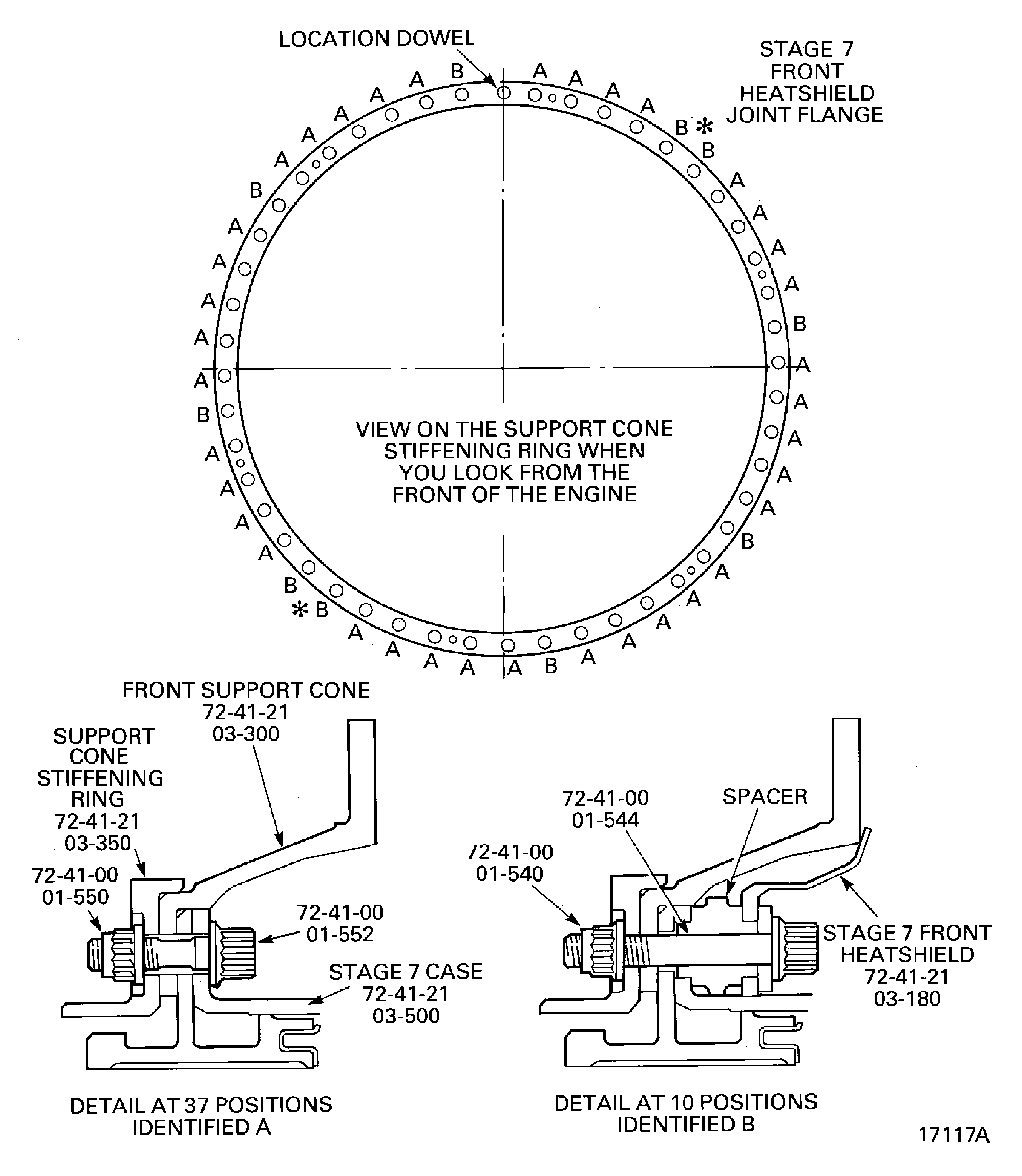

    Figure: Stage 7 rotor path ring flange details

    Stage 7 rotor path ring flange details

    Figure: Tools to remove the rotor path rings and the cases

    Tools to remove the rotor path rings and the cases

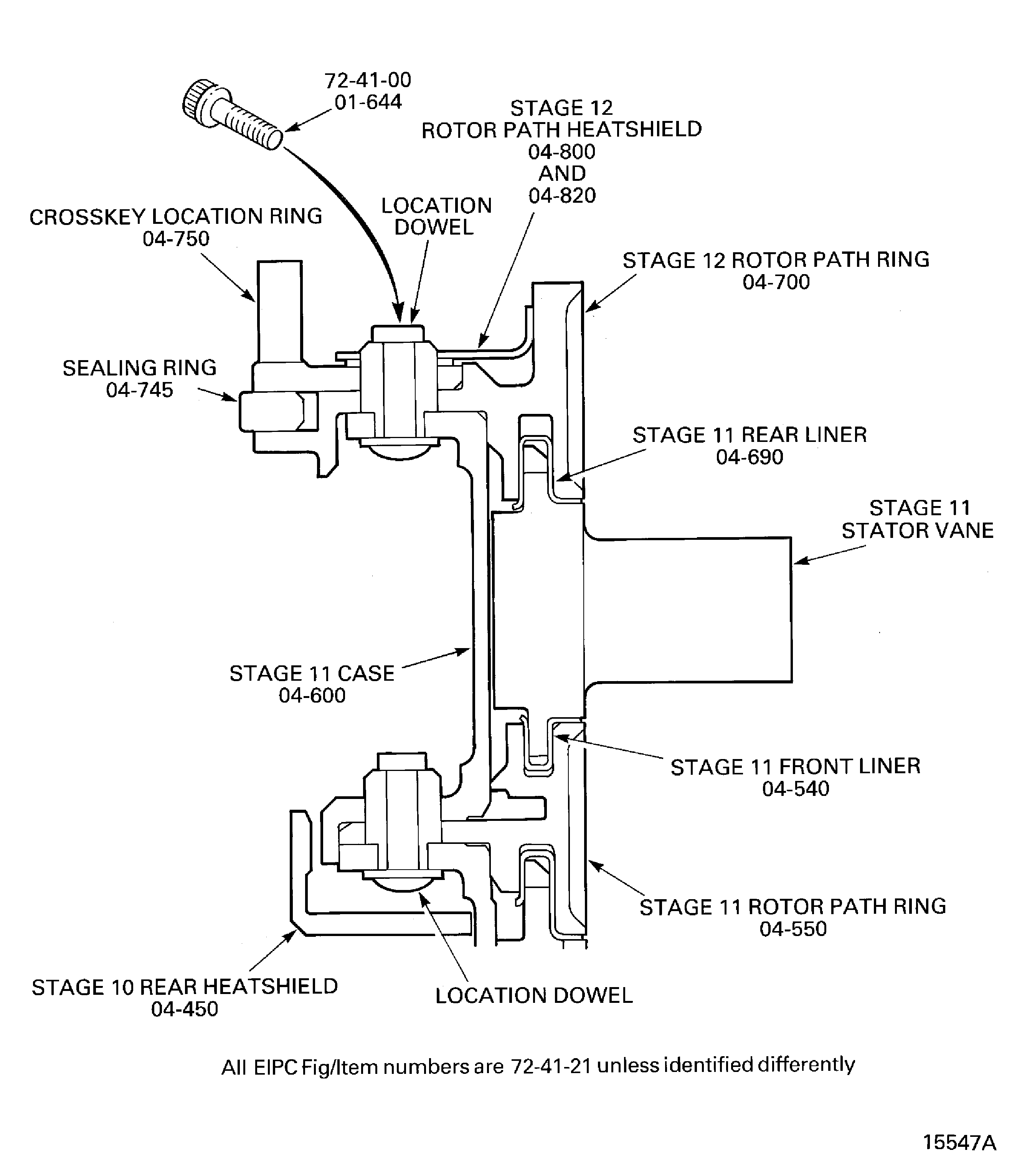

    Figure: Remove the cross key ring and seal assembly and the stage 12 rotor path ring

    Remove the cross key ring and seal assembly and the stage 12 rotor path ring

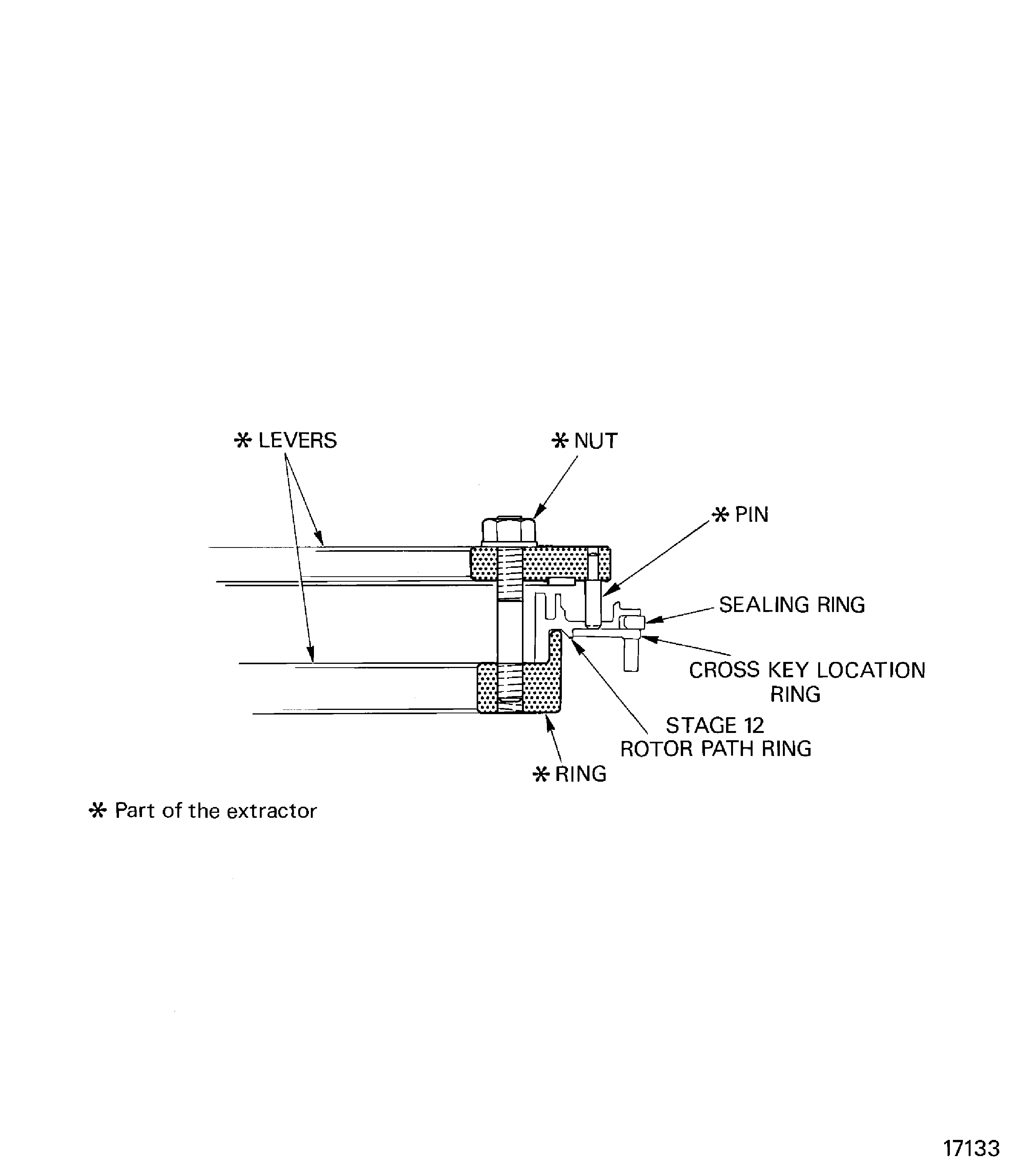

    Figure: Remove the cross key location ring from the stage 12 rotor path ring

    Remove the cross key location ring from the stage 12 rotor path ring

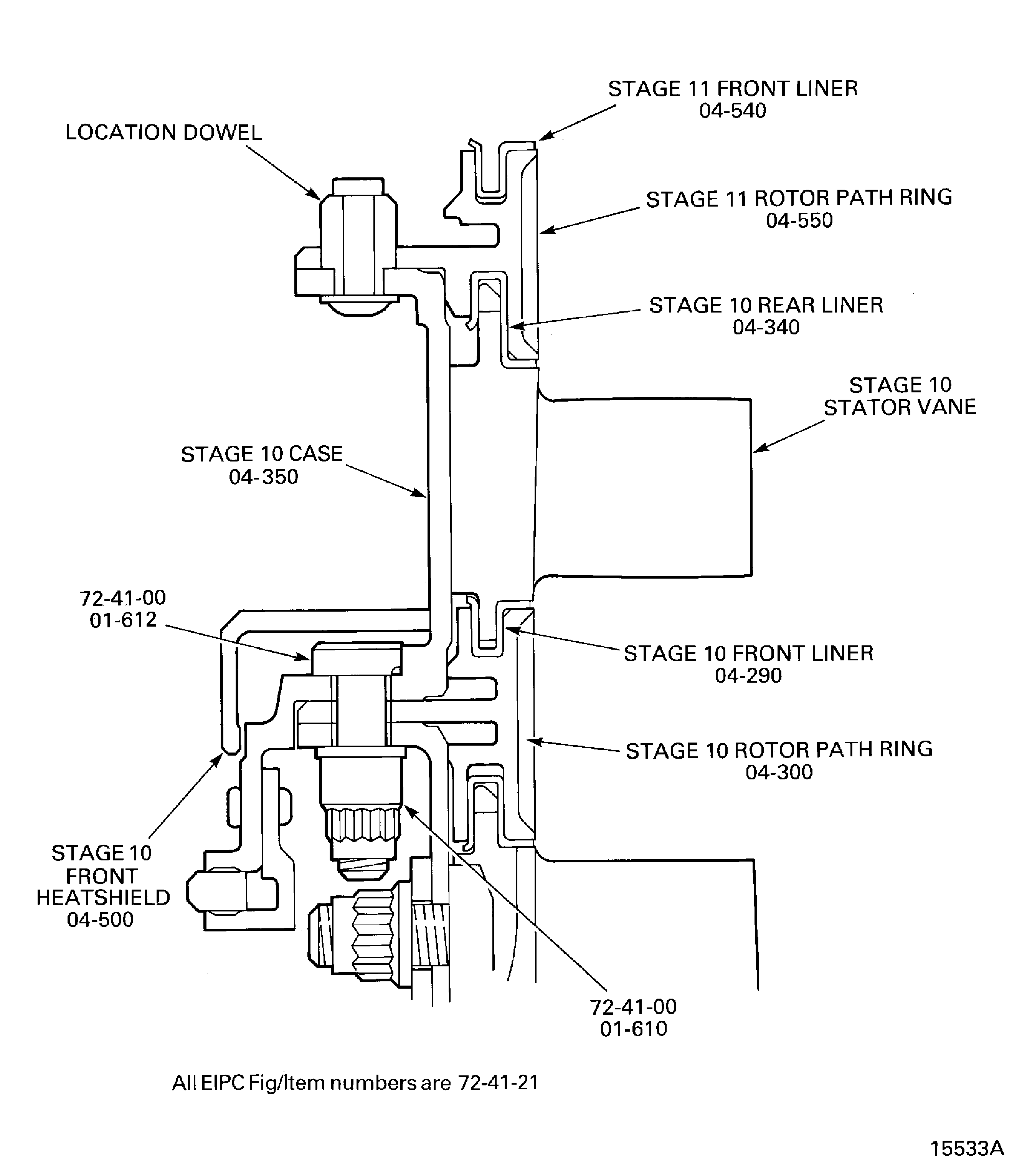

    Figure: Remove the stage 11 case and stator vanes

    Remove the stage 11 case and stator vanes

    Figure: Remove the stage 10 case, the stage 9 case and the stator vanes

    Remove the stage 10 case, the stage 9 case and the stator vanes

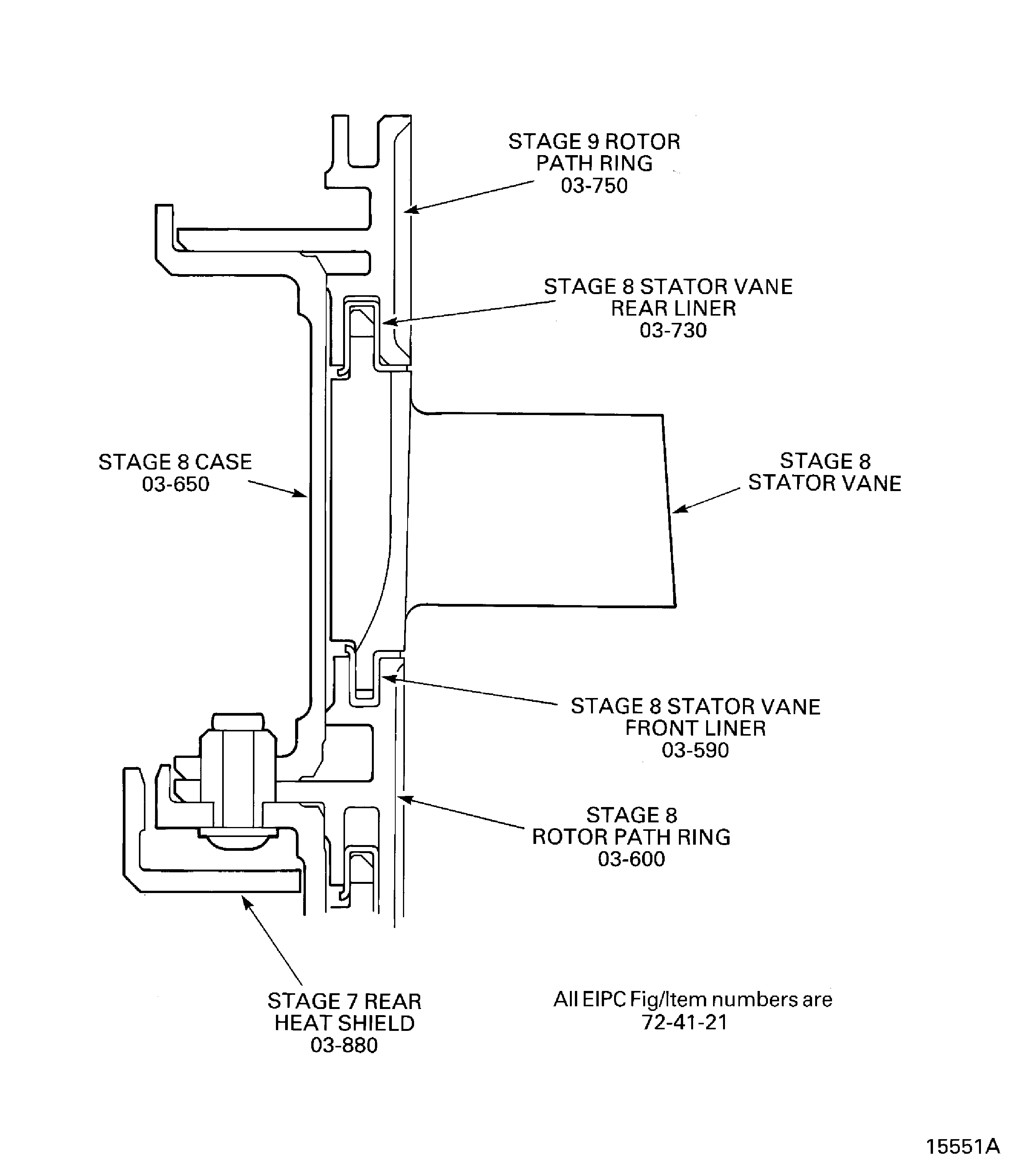

    Figure: Remove the stage 9 rotor path ring, the stage 8 case and the stator vanes

    Remove the stage 9 rotor path ring, the stage 8 case and the stator vanes

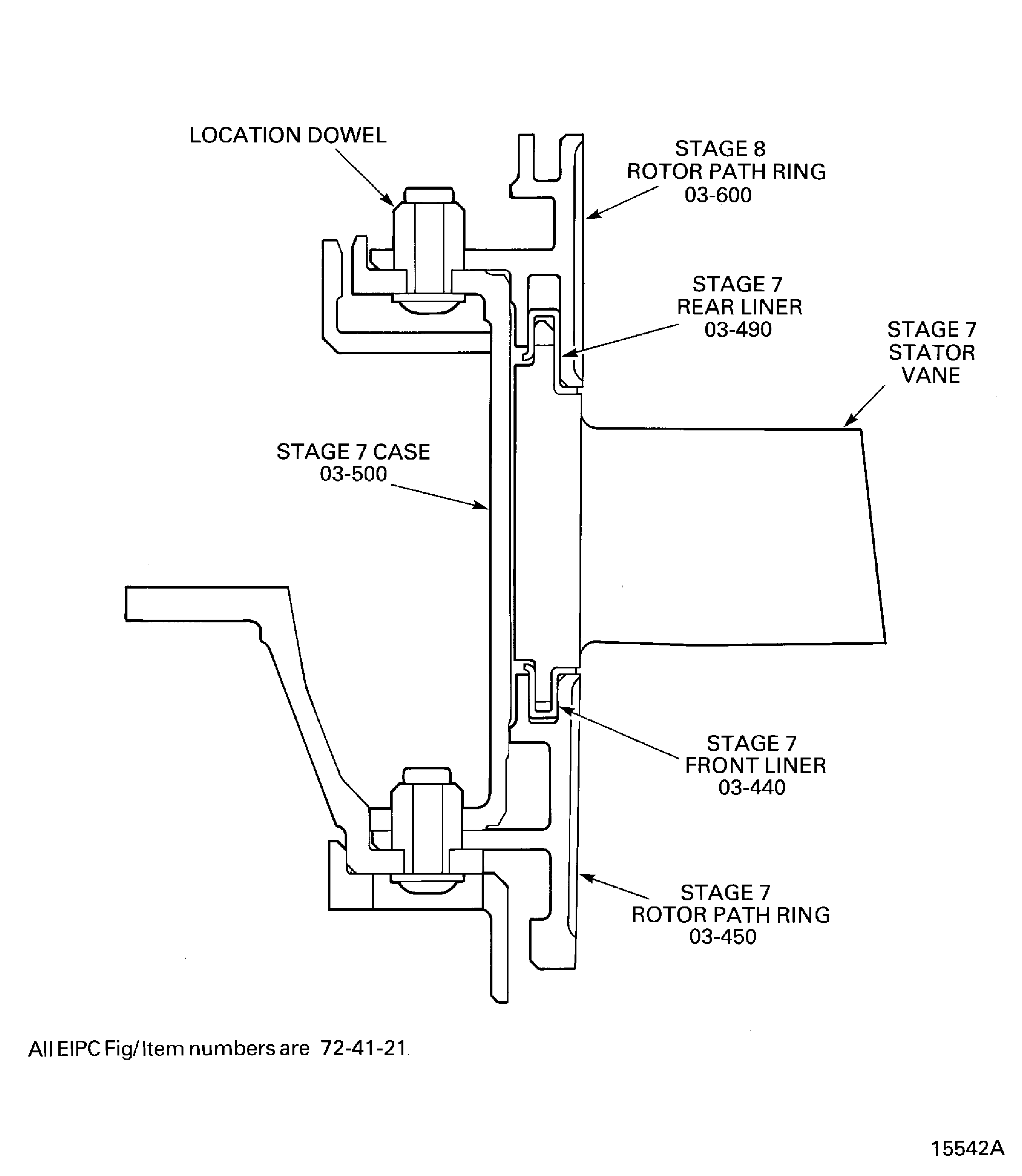

    Figure: Remove the stage 8 rotor path ring, the stage 7 case and stator vanes and the front support cone

    Sheet 1

    Legend
    Remove the stage 8 rotor path ring, the stage 7 case and stator vanes and the front support cone

    Sheet 1

    Close

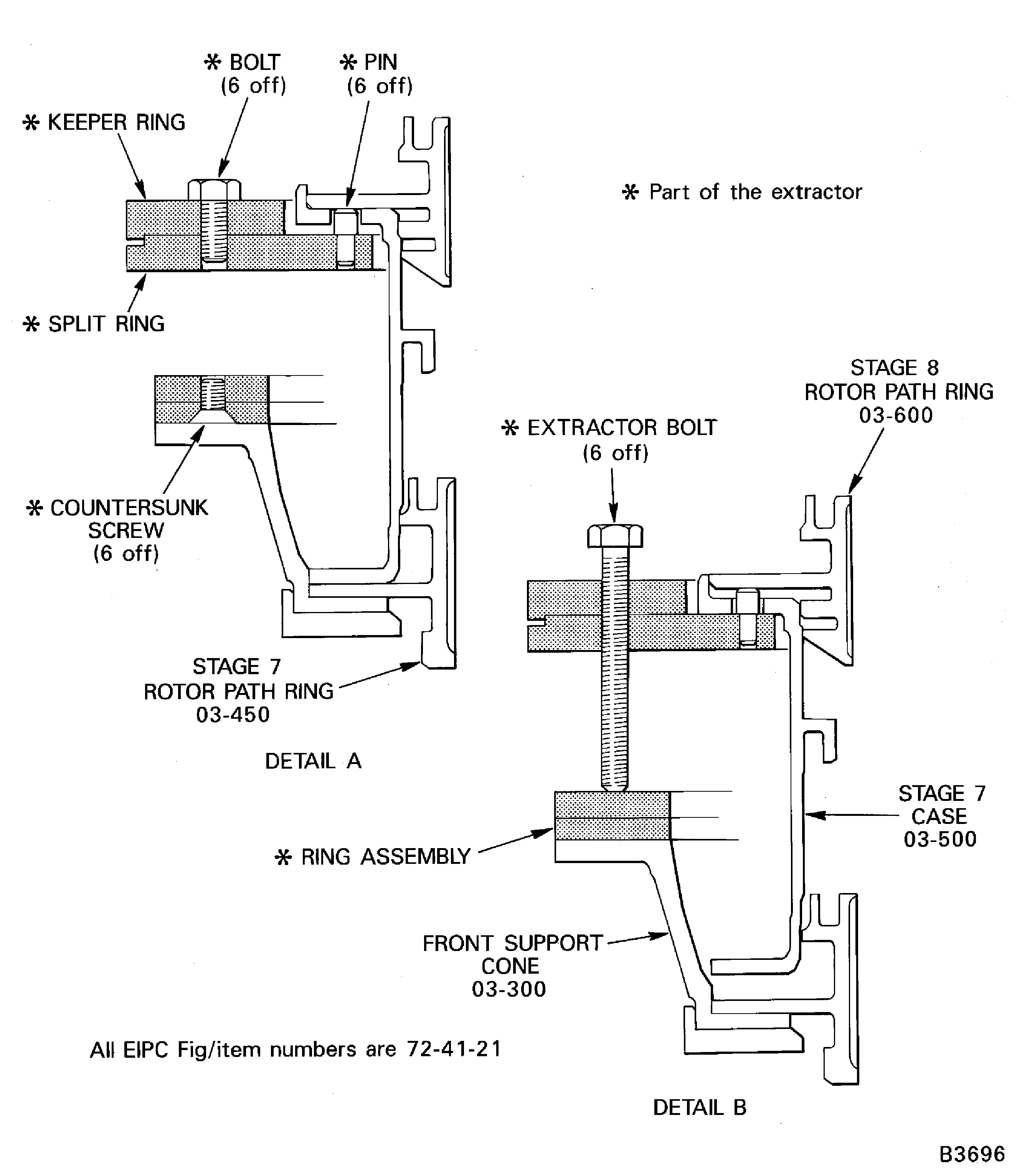

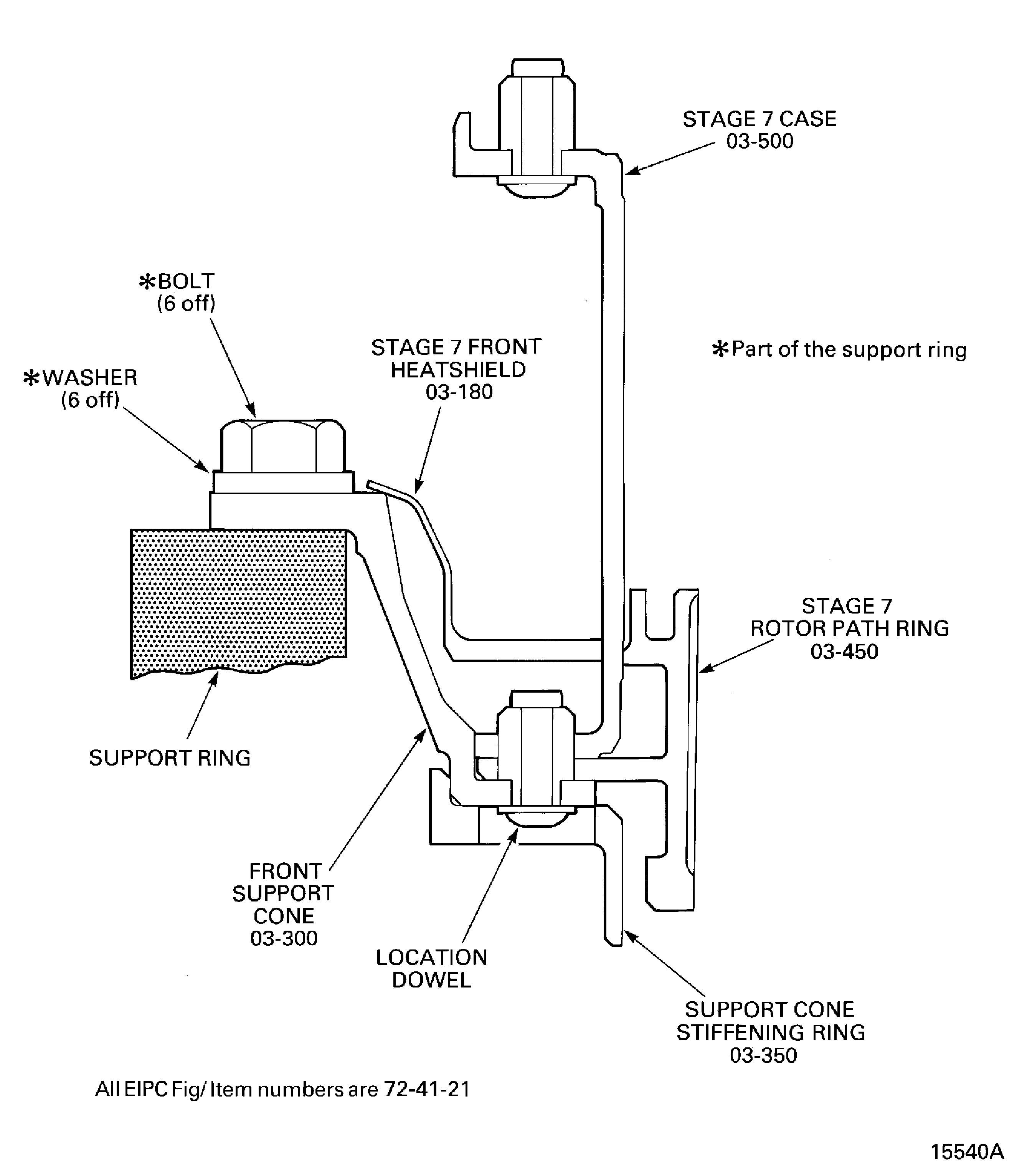

    Figure: Remove the stage 7 rotor path ring, the stage 7 case and stator vanes and the front support cone

    Sheet 2

    Legend
    Remove the stage 7 rotor path ring, the stage 7 case and stator vanes and the front support cone

    Sheet 2

    Close

    Figure: Remove the stage 8 rotor path ring, stage 7 case and rotor path ring and the front support cone and stiffening ring

    Sheet 1

    Legend
    Remove the stage 8 rotor path ring, stage 7 case and rotor path ring and the front support cone and stiffening ring

    Sheet 1

    Close

    Figure: Remove the stage 8 rotor path ring, stage 7 case and rotor path ring and the front support cone and stiffening ring

    Sheet 2

    Legend
    Remove the stage 8 rotor path ring, stage 7 case and rotor path ring and the front support cone and stiffening ring

    Sheet 2

    Close

    Figure: Remove the stage 7 case.

    Sheet 3

    Legend
    Remove the stage 7 case.

    Sheet 3

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:X111X
Supply Number:CoMat 01-001
Type:sp01
Supply Short Name:CoMat 01-001 SOLVENT, DELETED
Supply Name:CoMat 01-001 SOLVENT, DELETED
Specification Groups:
Doc NumberType
wiring harnesses. Where CoMat 01‐001 is specified to clean mechanical components, use one or more of the solvents that SPM TASK 70‐11‐26‐300‐503 specifies as applicable.DELETED. Where CoMat 01‐001 is specified to clean electrical contacts or wiring harnesses, use one or more of the solvents that SPM TASK 70‐11‐57‐110‐501 specifies to clean electrical contacts or
Suppliers:
ManufacturerRemarks
X111X
Manufacturer Code:0AM53
Tool Number:IAE 1R18240
Tool Name:IAE 1R18240 Extractor
Manufacturer Code:0AM53
Tool Number:IAE 1R18242
Tool Name:IAE 1R18242 Extractor
Manufacturer Code:0AM53
Tool Number:IAE 1R18243
Tool Name:IAE 1R18243 Extractor
Manufacturer Code:0AM53
Tool Number:IAE 1R18281
Tool Name:IAE 1R18281 Storage rack
Manufacturer Code:0AM53
Tool Number:IAE 1R18283
Tool Name:IAE 1R18283 Cabinet
Manufacturer Code:0AM53
Tool Number:IAE 1R18284
Tool Name:IAE 1R18284 Extractor
Manufacturer Code:0AM53
Tool Number:IAE 1R18434
Tool Name:IAE 1R18434 Case extractor
Manufacturer Code:0AM53
Tool Number:IAE 1R18636
Tool Name:IAE 1R18636 Spanner Wrench
Manufacturer Code:0AM53
Tool Number:IAE 1R18684
Tool Name:IAE 1R18684 Case extractor
