ENGINE-HP COMPRESSOR SPLIT CASES

DMC:V2500-A1-72-41-31-01A-941A-D|Issue No:002|Issue Date:2014-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B72413101	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE70-0052	aa
000	SBE0052-01	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE72-0132	ab
000	SBE0132-01	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE70-0165	ac
000	SBE0165-01	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE72-0027	ad
000	SBE0027-01	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE72-0258	ae
000	SBE0258-01	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE72-0265	af
000	SBE0265-01	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE72-0308	ag
000	SBE0308-01	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE72-0338	ah
000	SBE0338-01	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE72-0337	ai
000	SBE0337-01	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE70-0722	aj
000	SBE0722-01	ENGINE-HP COMPRESSOR SPLIT CASES, PRE SBE72-0591	ak
000	SBE0591-01	ENGINE-HP COMPRESSOR SPLIT CASES	al
100100	6A2330	• BLANK - B/SCOPE,ST.3 STATOR	aa-al	1

102102	AS21011	• BOLT - .250 DIA X .6875 U1653	aa-al	2

105105	6A3855	• PLUG - BLANKING POST SBE72-0027 PRE SBE72-0591	ae-al	1
105105A	6A3855	• PLUG - BLANKING POST SBE72-0591	ae-al	1
107107	AS21011	• BOLT - BIHEX HD, .250 DIA X .6875 U1653 POST SBE72-0027 PRE SBE72-0591	ae-ak	2
107107A	AS21011	• BOLT - BIHEX HD, .250 DIA X .6875 U1653 POST SBE72-0591	al	2
115115	6A3689	• BRACKET	aa-al	1
118118	6A3080	• BRACKET - SUPPORT A.C.C. ACT PRE SBE72-0258	aa-al	1
118118A	6A4571	• BRACKET POST SBE72-0258	aa-al	1
120120	6A1069	• BLANK	aa-al	3

122122	AS21011	• BOLT - .250 DIA X .6875 U1653	aa-al	6

135135	6A3986	• PLUG - BLANKING STG 6 BOROSCO POST SBE72-0027 PRE SBE72-0337	ae-al	1
135135A	6A7456	• PLUG - BLANKING POST SBE72-0337	ae-al	1
135135B	6A3986	• PLUG - BLANKING POST SBE72-0591	al	1
136136	6A3986	• PLUG - BLANKING POST SBE72-0591	al	1
140140	6A3119	• BLANK - B/SCOPE,ST.5 PRE SBE72-0027	aa-ad	1
140140A	6A3852	• PLATE - RETAINING PLUG BLANKI POST SBE72-0027	ae-al	1
140140B	6A6477	• PLUG - BLANKING,STG 5 & 6 BOROSCOPE POST SBE72-0265 PRE SBE72-0338	ag-ah	1
140140C	6A7455	• PLUG - BLANKING POST SBE72-0338	ai-al	1
140140D	6A3852	• PLATE - RETAINING POST SBE72-0591	al	1

142142	4W2386	• SCREW - .250 DIA X .625 PRE SBE72-0265	aa-af	2
142142A	AS21010	• BOLT - .250 DIA X .625 U1653 POST SBE72-0265 PRE SBE72-0338	ag-ah	1
142142B	AS51010	• SCREW - .250-28UNJF X .625 U1653 POST SBE72-0338	ai-al	2

241241	1012378	• BUSH 07-414-09-008E003 PRE SBE72-0591	aa-al	80
241241A	1012378	• BUSH 07-414-09-008E003 POST SBE72-0591	aa-al	80
242242	1012379	• BUSH 07-414-09-008E002 PRE SBE72-0591	aa-al	80
242242A	1012379	• BUSH 07-414-09-008E002 POST SBE72-0591	aa-al	80
243243	1012377	• BUSH 07-414-09-008E001 PRE SBE72-0591	aa-al	80
243243A	1012377	• BUSH 07-414-09-008E001 POST SBE72-0591	aa-al	80
245245	1001000	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	80
245245A	1001000	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	80
246246	1001900	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	80
246246A	1001900	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	80
247247	1002000	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	80
247247A	1002000	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	80
251251	1012387	• BUSH 07-414-08-013E004 PRE SBE72-0591	aa-al	228
251251A	1012387	• BUSH 07-414-08-013E004 POST SBE72-0591	aa-al	228
252252	1012388	• BUSH 07-414-08-013E003 PRE SBE72-0591	aa-al	228
252252A	1012388	• BUSH 07-414-08-013E003 POST SBE72-0591	aa-al	228
253253	1012386	• BUSH 07-414-08-013E002 PRE SBE72-0591	aa-al	228
253253A	1012386	• BUSH 07-414-08-013E002 POST SBE72-0591	aa-al	228
255255	1002700	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	228
255255A	1002700	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	228
256256	1002900	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	228
256256A	1002900	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	228
257257	1003000	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	228
257257A	1003000	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	228
261261	1012381	• BUSH 07-414-10-020E014 PRE SBE72-0591	aa-al	60
261261A	1012381	• BUSH 07-414-10-020E014 POST SBE72-0591	aa-al	60
262262	1012382	• BUSH 07-414-10-020E013 PRE SBE72-0591	aa-al	60
262262A	1012382	• BUSH 07-414-10-020E013 POST SBE72-0591	aa-al	60
263263	1012380	• BUSH 07-414-10-020E012 PRE SBE72–0591	aa-al	60
263263A	1012380	• BUSH 07-414-10-020E012 POST SBE72-0591	aa-al	60
265265	1002300	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	60
265265A	1002300	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	60
266266	1002400	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	60
266266A	1002400	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	60
267267	1002600	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	60
267267A	1002600	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	60
270270	1012383	• BUSH 07-414-10-015E015 PRE SBE72-0591	aa-al	4
270270A	1012383	• BUSH 07-414-10-015E015 POST SBE72-0591	aa-al	4
271271	1012384	• BUSH 07-414-10-015E017 PRE SBE72-0591	aa-al	4
271271A	1012384	• BUSH 07-414-10-015E017 POST SBE72-0591	aa-al	4
272272	1012385	• BUSH 07-414-10-015E016 PRE SBE72-0591	aa-al	4
272272A	1012385	• BUSH 07-414-10-015E016 POST SBE72-0591	aa-al	4
275275	1002500	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	4
275275A	1002500	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	4
276276	1001600	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	4
276276A	1001600	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	4
277277	1001700	• BUSH - SPINDLE U9101 POST SBE70-0052 PRE SBE72-0591	ab-al	4
277277A	1001700	• BUSH - SPINDLE U9101 POST SBE72-0591	ab-al	4
280280	1012389	• BUSH 07-414-08-015E001 PRE SBE72-0591	aa-al	84
280280A	1012389	• BUSH 07-414-08-015E001 POST SBE72-0591	aa-al	84
281281	1012390	• BUSH 07-414-08-015E003 PRE SBE72-0591	aa-al	84
281281A	1012390	• BUSH 07-414-08-015E003 POST SBE72-0591	aa-al	84
282282	1012391	• BUSH 07-414-08-015E002 PRE SBE72-0591	aa-al	84
282282A	1012391	• BUSH 07-414-08-015E002 POST SBE72-0591	aa-al	84
285285	1002200	• BUSH - SPINDLE U9101 POST SBE70-0165 PRE SBE72-0591	ad-al	84
285285A	1002200	• BUSH - SPINDLE U9101 POST SBE72-0591	ad-al	84
286286	1002100	• BUSH - SPINDLE U9101 POST SBE70-0165 PRE SBE72-0591	ad-al	84
286286A	1002100	• BUSH - SPINDLE U9101 POST SBE72-0591	ad-al	84
287287	1004100	• BUSH - SPINDLE U9101 POST SBE70-0165 PRE SBE72-0591	ad-al	84
287287A	1004100	• BUSH - SPINDLE U9101 POST SBE72-0591	ad-al	84
290290	1012392	• BUSH 07-414-06-008E021 PRE SBE70-0165	aa-ac	168
290290A	1012392	• BUSH - ST. 6 INNER SPINDLES 07-414-06-008E021 POST SBE70-0165 PRE SBE72-0308	aa-al	168
-290290B	1039400	• BUSH - HALF INNER-STG 6 U9101 POST SBE70-0165 PRE SBE72-0308	aa-ag	REF
290290C	13786-00	• BUSH - HALF 55231 POST SBE72-0308	aa-al	168
290290D	1012392	• BUSH 07-414-06-008E021 POST SBE72-0591	aa-ag	168
-290290E	1039400	• BUSH U9101 POST SBE72-0591	ad-ag	REF
295295	1006108	• BUSH - SPINDLE U9101 POST SBE72-0591	al	168
350350	6A3457	• PLATE - BLANKING PRE SBE72-0132	aa-ab	2
350350A	6A3457	• PLATE - BLANKING POST SBE72-0132 PRE SBE72-0027	ac-ad	4
350350B	6A3457	• PLATE - BLANKING POST SBE72-0027 PRE SBE72-0591	ae-ak	2

352352	AS21011	• BOLT - .250 DIA X .6875 U1653 PRE SBE72-0132	aa-ab	4
352352A	AS21011	• BOLT - .250 DIA X .6875 U1653 POST SBE72-0132 PRE SBE72-0027	ac-ad	8
352352B	AS21011	• BOLT - .250 DIA X .6875 U1653 POST SBE72-0027 PRE SBE72-0591	ae-ak	4

400400	6A3675	• CASE - FRONT ASSY PRE SBE72-0027	aa-ad	1
-400400A	6A3462	• CASE - FRONT ASSY PRE SBE72-0027	aa-ad	REF
400400B	6A5470	• CASE - ASSY,FRONT POST SBE72-0027	ae-al	1
400400C	6A5470	• CASE - ASSY,FRONT POST SBE72-0591	al	1
432432	AGS3732	• • INSERT - SCREW THREAD,(VRS6514), .250 DIA X 1.5D POST SBE70-0353 PRE SBE72-0591	*****	1
432432A	AGS3732	• • INSERT - SCREW THREAD, .250 DIA X 1.5D POST SBE72-0591	al	16
433433	AGS3733	• • INSERT - SCREW THREAD,(VRS6345) POST SBE70-0812 PRE SBE72-0591	*****	8
433433A	AGS3733	• • INSERT - SCREW THREAD POST SBE72-0591	*****	8
455455	AS20762	• • RING - RETAINING,(VRS6321) U1653 POST SBE70-0353 PRE SBE72-0591	*****	1
455455A	AS20762	• • RING - RETAINING U1653 POST SBE72-0591	al	3
456456	AS20742	• • PIN - GROOVED HEADLESS,(VRS6321) U1653 POST SBE70-0353 PRE SBE72-0591	*****	1
456456A	AS20742	• • PIN - GROOVED HEADLESS U1653 POST SBE72-0591	al	3
457457	6A5954	• • PIN - ,(VRS6321), 0.005 O/SIZE POST SBE70-0353	*****	1
458458	6A5955	• • PIN - ,(VRS6321), 0.010 O/SIZE POST SBE70-0353	*****	1
459459	AS20763	• • RING - RETAINING,(VRS6321) U1653 POST SBE70-0353 PRE SBE72-0591	*****	1
459459A	AS20763	• • RING - RETAINING U1653 POST SBE72-0591	al	3
460460	AS20745	• • PIN - GROOVED HEADLESS,(VRS6321) U1653 POST SBE70-0353 PRE SBE72-0591	*****	1
460460A	AS20745	• • PIN - GROOVED HEADLESS U1653 POST SBE72-0591	al	2
461461	6A5956	• • PIN - ,(VRS6321), 0.005 O/SIZE POST SBE70-0353	*****	1
461461A	AS20744	• • PIN - GROOVED HEADLESS U1653 POST SBE72-0591	al	1
462462	6A5957	• • PIN - ,(VRS6321), 0.010 O/SIZE POST SBE70-0353	*****	1
465465	AS20744	• • PIN - GROOVED HEADLESS,(VRS6321) U1653 POST SBE70-0353	*****	1
466466	6A5958	• • PIN - ,(VRS6321), 0.005 O/SIZE POST SBE70-0353	*****	1
467467	6A5959	• • PIN - ,(VRS6321), 0.010 O/SIZE POST SBE70-0353	*****	1
480480	6A6576	• LINER POST SBE70-0722	ak-al	1
677677	6A3759	• STRIP - SEALING-ST.3 PRE SBE72-0027	aa-ad	4
678678	6A2328	• STRIP - SEALING PRE SBE72-0027	aa-ad	4
679679	6A2329	• STRIP - SEALING-ST.5	aa-al	4
680680	6A2331	• STRIP - SEALING	aa-al	4
685685	6A3758	• RING - STAGE 3 ROTOR PATH PRE SBE72-0027	aa-ad	4
690690	6A3531	• RING - SEGMENT PRE SBE72-0027	aa-ad	4
695695	6A3025	• RING - STAGE 5 ROTOR PATH PRE SBE72-0027	aa-ad	4
695695A	6A3976	• RING - SEGMENT POST SBE72-0027	ae-al	4
695695B	6A3976	• RING - SEGMENT POST SBE72-0591	al	4
700700	6A3466	• RING - SEGMENT STG 6 ROT/PATH PRE SBE72-0027	aa-ad	4
700700A	6A3977	• RING - SEGMENT POST SBE72-0027	ae-al	4
700700B	6A3977	• RING - SEGMENT POST SBE72-0591	al	4
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	55231
Enterprise Name:	DU PONT VESPEL PARTS AND SHAPES INC
BU Name:	DU PONT VESPEL PARTS AND SHAPES INC
Street:	6200 HILLCREST DRIVE
City:	VALLEY VIEW
State:	OHIO
Zip Code:	44125-4624
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Manufacturer Code:	U9101
Enterprise Name:	DU PONT UK LTD
BU Name:	DU PONT UK LTD
Street:	MAYLANDS AVENUE
City:	HEMEL HEMPSTEAD
State:	HERTS
Zip Code:	HP2 7DP
Country:	ENGLAND

ENGINE-HP COMPRESSOR SPLIT CASES

Export Control

Copyright

Applicability

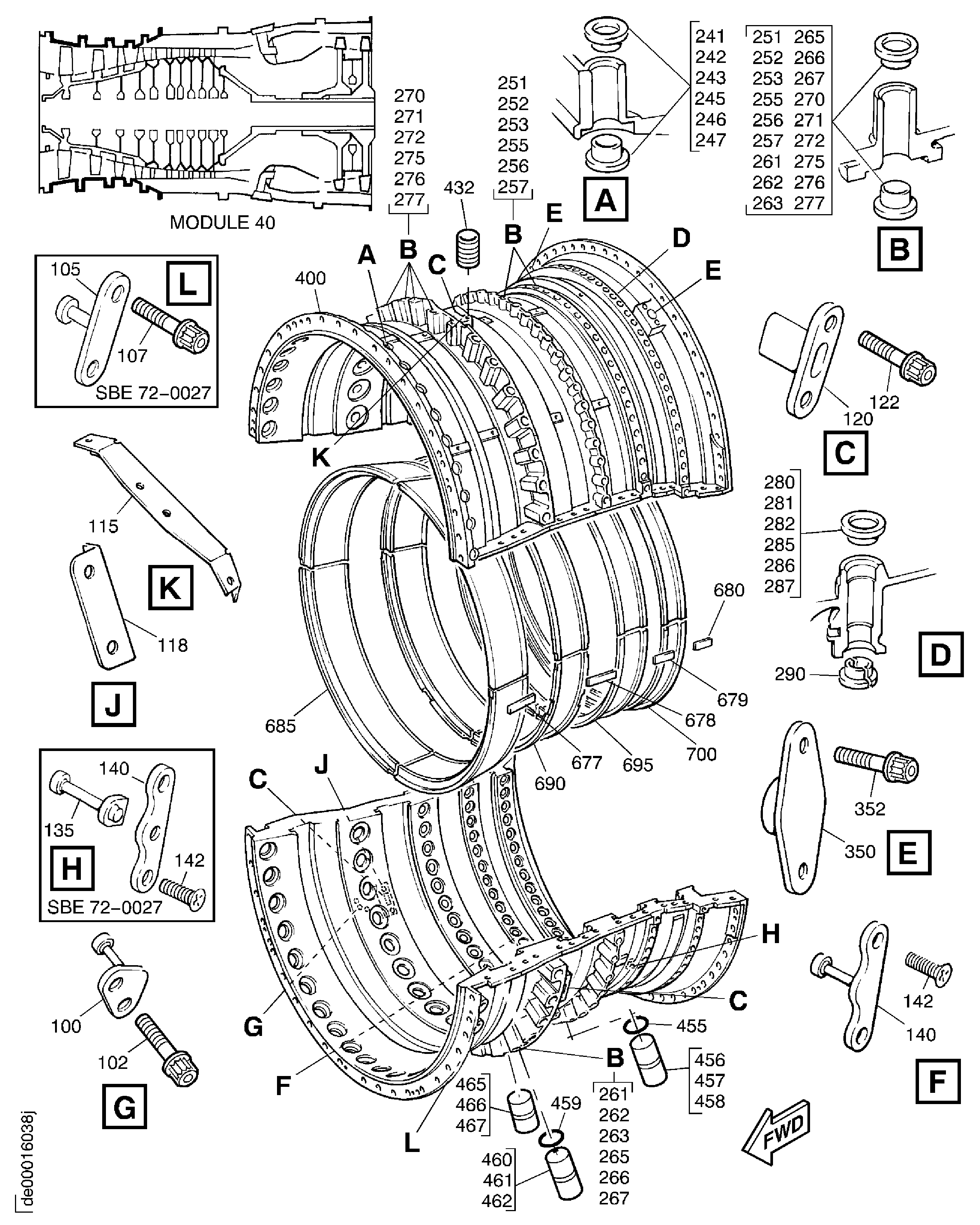

Figure: ENGINE-HP COMPRESSOR SPLIT CASES
