DMC:V2500-A1-72-41-34-01A-941A-AIssue No:003.00Issue Date:2019-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72413401 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0019 | aa | ||
| SBE0019-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE70-0378 | ab | ||
| SBE0378-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE79-0087 | ac | ||
| SBE0087-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES | ad | ||
| 178 | SP90E4 | • PIN - COTTER, SPLIT K7766 | aa-ad | 1 |
| 180 | U755246 | • NUT - CASTELLATED | aa-ad | 1 |
| 181 | SP90C4 | • PIN - COTTER, SPLIT K7766 | aa-ad | 1 |
| 182 | U755245 | • NUT - CASTELLATED | aa-ad | 1 |
| 184 | BLT5362 | • BOLT | aa-ad | 1 |
| 185 | UP11083 | • SPACER | aa-ad | 1 |
| 189 | A234-6LW | • NUT- LOCKING THIN | aa-ad | 1 |
| 190 | 12-412-06E001 | • BEARING - LEFT HAND 09455 | aa-ad | 1 |
| 194 | A234-6RW | • NUT - THIN WIRE LOCKING | aa-ad | 1 |
| 195 | 02-412-05E002 | • BEARING - RIGHT HAND, .3750-24 UNJF-3B 09455 | aa-ad | 1 |
| 200 | UP11076 | • ROD - CONTROL, 6TH STAGE | aa-ad | 1 |
| 228 | SP90C4 | • PIN - COTTER, SPLIT K7766 | aa-ad | 1 |
| 230 | U755245 | • NUT - CASTELLATED | aa-ad | 1 |
| 232 | 4W0003 | • NUT - 0.3125 DIA Optional Part 4W0003 | aa-ad | 1 |
| 233 | 4W2623 | • WASHER Optional Part 4W2623 | aa-ad | 1 |
| 234 | BLT5382 | • BOLT | aa-ad | 1 |
| 236 | AS22626 | • BOLT - CLOSE TOLERANCE, DOUBLE HEXAGON U1653 | aa-ad | 1 |
| 237 | UP11193 | • SPACER | aa-ad | 2 |
| 239 | A234-6LW | • NUT- LOCKING THIN | aa-ad | 1 |
| 240 | 12-412-05E002 | • BEARING - LEFT HAND, .3750 - 24 UNJF - 3B 09455 | aa-ad | 1 |
| 244 | A234-6RW | • NUT - THIN WIRE LOCKING | aa-ad | 1 |
| 245 | 02-412-05E002 | • BEARING - RIGHT HAND, .3750-24 UNJF-3B 09455 | aa-ad | 1 |
| 250 | 6A2564 | • ROD - CONTROL, ASSEMBLY OF REF SBE72-0703 | aa-ad | 1 |
| 278 | SP90C4 | • PIN - COTTER, SPLIT K7766 | aa-ad | 1 |
| 280 | U755245 | • NUT - CASTELLATED | aa-ad | 1 |
| 281 | UP11193 | • SPACER | aa-ad | 2 |
| 282 | 4W0003 | • NUT - 0.3125 DIA Optional Part 4W0003 | aa-ad | 1 |
| 283 | 4W2623 | • WASHER Optional Part 4W2623 | aa-ad | 1 |
| 284 | BLT5382 | • BOLT | aa-ad | 1 |
| 286 | AS22626 | • BOLT - CLOSE TOLERANCE, DOUBLE HEXAGON U1653 | aa-ad | 1 |
| 289 | A234-6LW | • NUT- LOCKING THIN | aa-ad | 1 |
| 290 | 12-412-05E002 | • BEARING - LEFT HAND, .3750 - 24 UNJF - 3B 09455 | aa-ad | 1 |
| 294 | A234-6RW | • NUT - THIN WIRE LOCKING | aa-ad | 1 |
| 295 | 02-412-05E002 | • BEARING - RIGHT HAND, .3750-24 UNJF-3B 09455 | aa-ad | 1 |
| 300 | 6A2564 | • ROD - CONTROL, ASSEMBLY OF | aa-ad | 1 |
| 328 | SP90C4 | • PIN - COTTER, SPLIT K7766 | aa-ad | 1 |
| 330 | U755245 | • NUT - CASTELLATED | aa-ad | 1 |
| 331 | 4W2623 | • WASHER Optional Part 4W2623 | aa-ad | 1 |
| 332 | 4W0003 | • NUT - 0.3125 DIA Optional Part 4W0003 | aa-ad | 1 |
| 333 | UP11193 | • SPACER | aa-ad | 2 |
| 334 | AS22626 | • BOLT - CLOSE TOLERANCE, DOUBLE HEXAGON U1653 | aa-ad | 1 |
| 336 | BLT5382 | • BOLT | aa-ad | 1 |
| 339 | A234-6LW | • NUT- LOCKING THIN | aa-ad | 1 |
| 340 | 12-412-05E002 | • BEARING - LEFT HAND, .3750 - 24 UNJF - 3B 09455 | aa-ad | 1 |
| 344 | A234-6RW | • NUT - THIN WIRE LOCKING | aa-ad | 1 |
| 345 | 02-412-05E002 | • BEARING - RIGHT HAND, .3750-24 UNJF-3B 09455 | aa-ad | 1 |
| 350 | 6A3530 | • ROD - CONTROL | aa-ad | 1 |
| 428 | SP90E4 | • PIN - COTTER, SPLIT K7766 | aa-ad | 1 |
| 430 | U755246 | • NUT - CASTELLATED | aa-ad | 1 |
| 431 | 4W2624 | • WASHER Optional Part 4W2624 | aa-ad | 2 |
| 432 | 4W0003 | • NUT - 0.3125 DIA Optional Part 4W0003 | aa-ad | 1 |
| 436 | AS22624 | • BOLT - CLOSE TOLERANCE, DOUBLE HEXAGON U1653 | aa-ad | 1 |
| 439 | A234-6LW | • NUT- LOCKING THIN | aa-ad | 1 |
| 440 | 12-412-06E001 | • BEARING - LEFT HAND 09455 | aa-ad | 1 |
| 444 | A234-6RW | • NUT - THIN WIRE LOCKING | aa-ad | 1 |
| 445 | 02-412-05E002 | • BEARING - RIGHT HAND, .3750-24 UNJF-3B 09455 | aa-ad | 1 |
| 450 | UP11076 | • ROD - CONTROL, 6TH STAGE | aa-ad | 1 |
| 470 | 6A3299 | • SUPPORT - BEARING HOUSING | aa-ad | 1 |
| 472 | AS21019 | • BOLT - 0.250 DIA X 1.1875 U1653 | aa-ad | 2 |
| 474 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA | aa-ad | 2 |
| 475 | AS21012 | • CLAMP - LOOP, DOUBLE HEX, .250 DIA X .750 U1653 | aa-ad | 2 |
| 476 | 4W2622 | • WASHER OPTION | aa-ad | 2 |
| 500 | 6A3833 | • LEVER - CRANK, VARIABLE INLET GUIDE VANES | aa-ad | 1 |
| 520 | 6A3834 | • LEVER - CRANK, 4TH STAGE | aa-ad | 1 |
| 522 | 4W0003 | • NUT - 0.3125 DIA | aa-ad | 2 |
| 523 | AS26325 | • BOLT U1653 | aa-ad | 2 |
| 540 | 6A3524 | • LEVER - CRANK, 5TH STAGE | aa-ad | 1 |
| 560 | 6A3835 | • LEVER - CRANK, 3RD STAGE | aa-ad | 1 |
| 562 | AS26322 | • BOLT U1653 | aa-ad | 2 |
| 563 | 4W0003 | • NUT - 0.3125 DIA | aa-ad | 2 |
| 564 | AS21115 | • BOLT - 0.3125 DIA X 0.938 U1653 | aa-ad | 2 |
| 579 | 6A3836 | • LEVER - CRANK, ASSEMBLY OF | aa-ad | 1 |
| 581 | AS21123 | • BOLT - 0.3125 DIA X 1.438 U1653 | aa-ad | 2 |
| 582 | AS26322 | • BOLT U1653 | aa-ad | 2 |
| 583 | 4W0003 | • NUT - 0.3125 DIA | aa-ad | 2 |
| 600 | 6A3805 | • SHAFT - ASSEMBLY OF PRE SBE70-0378 | aa-ad | 1 |
| 600A | 6A5889 | • SHAFT - CRANK, ADAPTABLE, ASSEMBLY OF POST SBE70-0378 | aa-ad | 1 |
| 604 | AS24118 | • BOLT - .3125 DIA X 1.125 U1653 | aa-ad | 2 |
| 613 | AGS3733 | • • INSERT - SCREW THREAD,(VRS6258) | aa-ad | 2 |
| 613A | AGS3733 | • • INSERT - SCREW THREAD,(VRS6258) POST SBE70-0269 | ***** | 1 |
| 623 | RSN250 | • • RING - RETAINING 80756 | aa-ad | 1 |
| 630 | 6A3806 | • • SHAFT - CRANK PRE SBE70-0378 | aa-ad | 1 |
| 630A | 6A5890 | • • SHAFT - CRANK POST SBE70-0378 | aa-ad | 1 |
| 720 | 5W8355 | • BRACKET PRE SBE72-0019 | aa-ac | 1 |
| 720A | 5W0088 | • BRACKET POST SBE72-0019 PRE SBE79-0087 | aa-ac | 1 |
| 720B | 6A5825 | • BRACKET - CLIPPING POST SBE79-0087 | ad | 1 |
| 730 | 6A3517 | • • HOUSING - FRONT, ASSEMBLY OF | aa-ad | 1 |
| 738 | RRN362 | • • • RING - RETAINING 80756 POST SBE70-0222 | ***** | 1 |
| 740 | AS20643 | • • PIN - STRAIGHT, HEADLESS U1653 POST SBE70-0222 | ***** | 1 |
| 742 | 03-413-40E001 | • • • BEARING - SPHERICAL, FRONT 09455 POST SBE70-0222 | ***** | 1 |
| 760 | 6A3519 | • HOUSING - REAR, ASSEMBLY OF | aa-ad | 1 |
| 762 | AS24118 | • BOLT - .3125 DIA X 1.125 U1653 | aa-ad | 2 |
| 768 | RRN362 | • • RING - RETAINING 80756 POST SBE70-0222 | ***** | 1 |
| 770 | AS20643 | • • PIN - STRAIGHT, HEADLESS U1653 POST SBE70-0222 | ***** | 1 |
| 772 | 03-413-40E002 | • • BEARING - SPHERICAL, REAR 09455 POST SBE70-0222 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

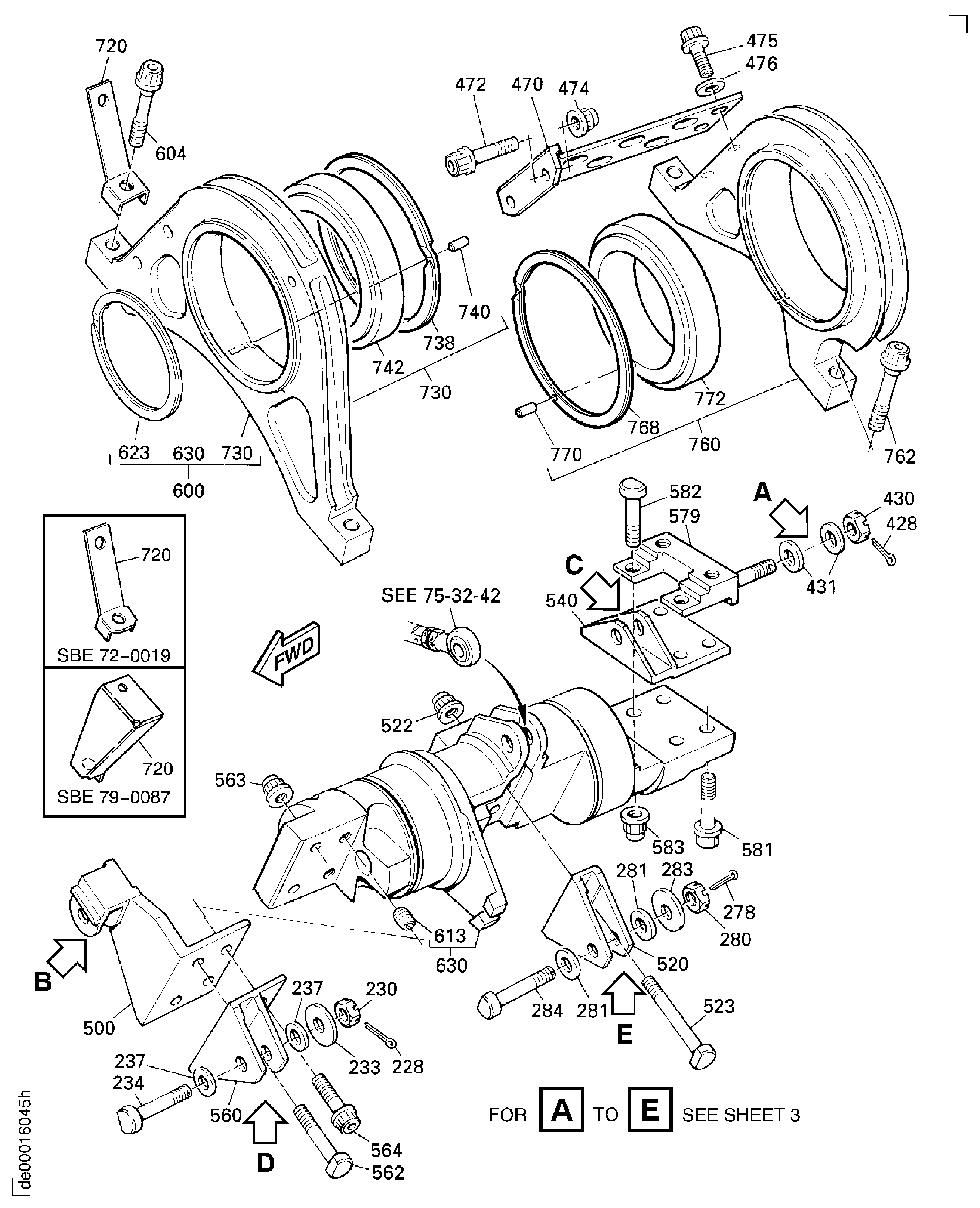

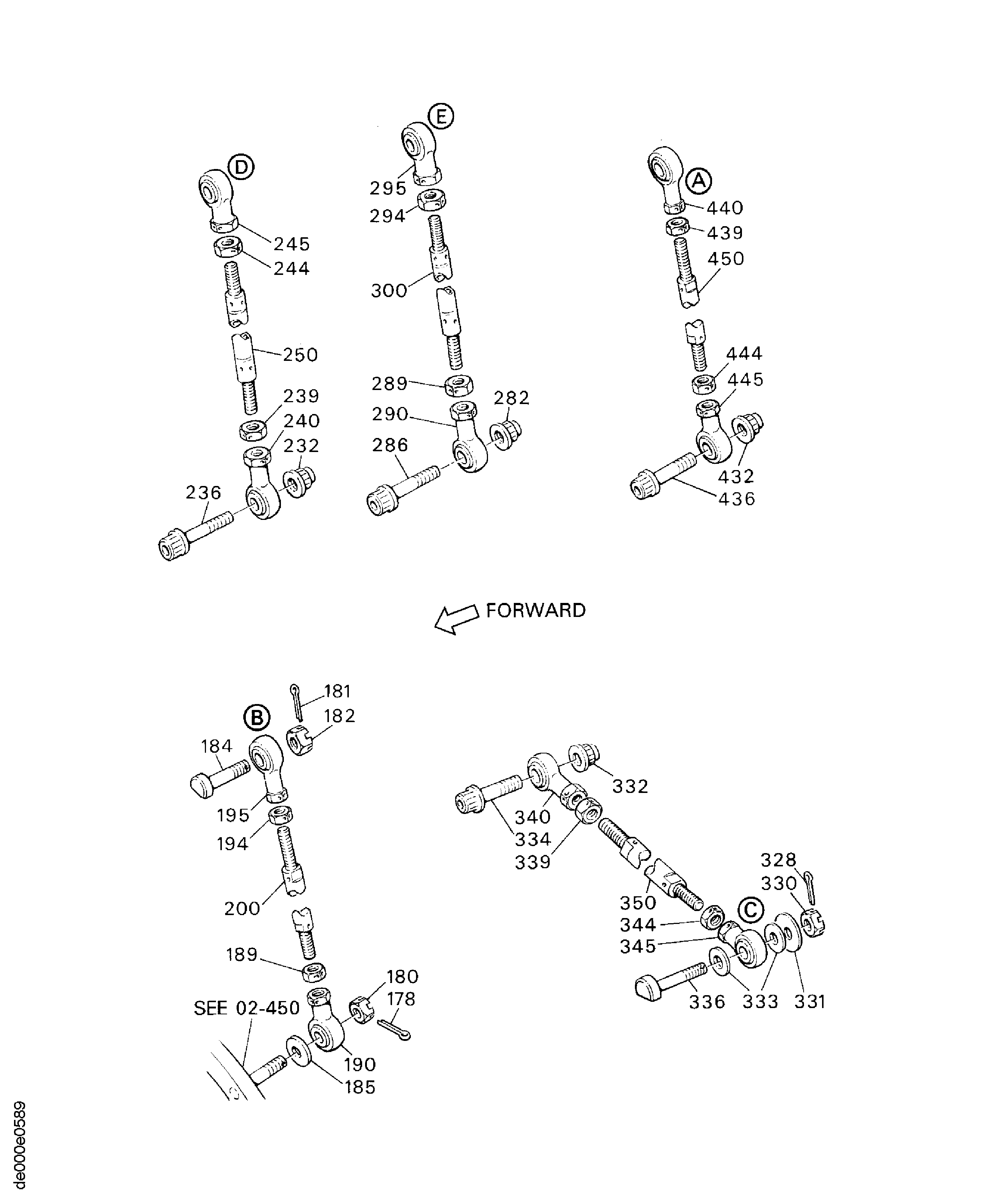

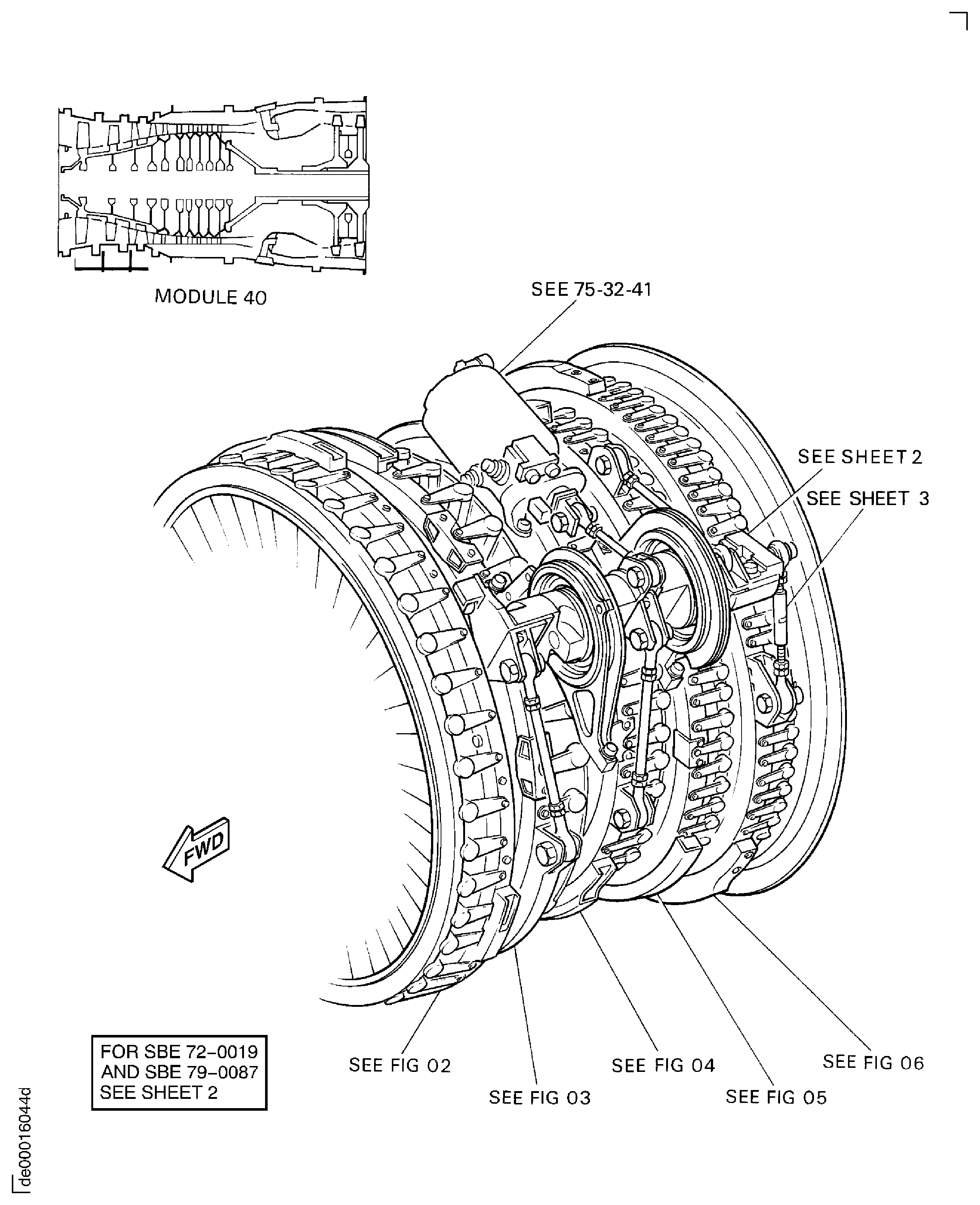

Figure: ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES
Variable Inlet Guide Vane And Variable
Variable Inlet Guide Vane And Variable
Variable Inlet Guide Vane And Variable
