DMC:V2500-A1-72-41-34-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B72413403 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0084 | aa | ||
| SBE0084-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0027 | ab | ||
| SBE0027-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0181 | ac | ||
| SBE0181-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0269 | ad | ||
| SBE0269-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0277 | ae | ||
| SBE0277-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0334 | af | ||
| SBE0334-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0385 | ag | ||
| SBE0385-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0416 | ah | ||
| SBE0416-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0418 | ai | ||
| SBE0418-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0591 | aj | ||
| SBE0591-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES | ak | ||
| 060 | 6A2037C01 | • SPACER | aa-ak | 64 |
| 062 | 6A2037C02 | • SPACER | aa-ak | 64 |
| 064 | 6A2037C03 | • SPACER | aa-ak | 64 |
| 066 | 6A2037C04 | • SPACER | aa-ak | 64 |
| 068 | 6A2037C05 | • SPACER | aa-ak | 64 |
| 070 | 6A2037C06 | • SPACER | aa-ak | 64 |
| 072 | 6A2037C07 | • SPACER | aa-ak | 64 |
| 074 | 6A2037C08 | • SPACER | aa-ak | 64 |
| 076 | 6A2037C09 | • SPACER | aa-ak | 64 |
| 100 | 6A3321 | • LEVER - A/O,ST.3-V/VANE PRE SBE72-0334 | aa-ak | 22 |
| 100A | 6A7460 | • LEVER - ASSY,VSV SHORT POST SBE72-0334 | aa-ak | 22 |
| 103 | 4W0002 | • NUT - .250 DIA | aa-ak | 22 |
| 110 | 6A2434 | • • PIN - SHOULDER,(VRS6190) POST SBE70-0269 | ***** | 1 |
| 120 | 6A3322 | • LEVER - A/O,ST.3-V/VANE-CONN PRE SBE72-0269 | aa-ad | 8 |
| 120A | 6A6547 | • LEVER - ASSY OF POST SBE72-0269 | ae-ak | 8 |
| 123 | 4W0002 | • NUT - .250 DIA | aa-ak | 8 |
| 130 | 6A2438 | • • PIN - SHOULDER,(VRS6192) POST SBE70-0222 | ***** | 1 |
| 140 | 6A3323 | • LEVER - A/O,ST.3-V/VANE SHORT PRE SBE72-0334 | aa-ak | 2 |
| 140A | 6A7461 | • LEVER - ASSY,VSV LONG POST SBE72-0334 | aa-ak | 2 |
| 143 | 4W0002 | • NUT - .250 DIA | aa-ak | 2 |
| 150 | 6A2434 | • • PIN - SHOULDER,(VRS6190) POST SBE70-0269 | ***** | 1 |
| 200 | 6A2523 | • CONN - ASSY,ST.3-ACT.RING-LH PRE SBE72-0385 | aa-ag | 1 |
| 200A | 6A7594 | • BRIDGE - PIECE ASSY STG.3,PORT POST SBE72-0385 | ah-ak | 1 |
| 200B | 6A7855 | • BRIDGE - PIECE ASSY STG.3PORT POST SBE72-0416 | ai-ak | 1 |
| 202 | AS21020 | • BOLT - .250 DIA X 1.250 U1653 PRE SBE72-0385 | aa-ag | 4 |
| 202A | AS21013 | • BOLT - .250 DIA X .812 U1653 POST SBE72-0385 | ah-ak | 4 |
| 202B | AS21013 | • BOLT - .250 DIA X .812 U1653 POST SBE72-0416 | ai-ak | 4 |
| 205 | UP12204 | • WASHER POST SBE72-0416 | ai-ak | 4 |
| 206 | 6A2520 | • DOWEL PRE SBE72-0385 | aa-ag | 4 |
| 220 | 6A2512 | • • BUSH - ,(VRS6263) POST SBE70-0222 | ***** | 1 |
| 280 | 6A2521 | • CONN - ASSY,ST.3-ACT.RING-RH PRE SBE72-0385 | aa-ag | 1 |
| 280A | 6A7593 | • BRIDGE - PIECE ASSY STG.3,STBD POST SBE72-0385 | ah-ak | 1 |
| 280B | 6A7853 | • BRIDGE - PIECE ASSY STG.3STBD POST SBE72-0416 | ai-ak | 1 |
| 282 | AS21020 | • BOLT - .250 DIA X 1.250 U1653 PRE SBE72-0385 | aa-ag | 4 |
| 282A | AS21013 | • BOLT - .250 DIA X .812 U1653 POST SBE72-0385 | ah-ak | 4 |
| 282B | AS21013 | • BOLT - .250 DIA X .812 U1653 POST SBE72-0416 | ai-ak | 4 |
| 284 | AS21014 | • BOLT - .250 DIA X .875 U1653 PRE SBE72-0385 | aa-ag | 1 |
| 284A | AS21008 | • BOLT - .250 DIA X .500 U1653 POST SBE72-0385 | ah-ak | 1 |
| 284B | AS21008 | • BOLT - .250 DIA X .500 U1653 POST SBE72-0416 | ai-ak | 1 |
| 285 | UP12204 | • WASHER POST SBE72-0416 | ai-ak | 4 |
| 286 | 6A2520 | • DOWEL PRE SBE72-0385 | aa-ag | 4 |
| 287 | BA41252 | • SPACER - WASHER POST SBE72-0385 | ah-ak | 1 |
| 287A | BA41252 | • SPACER - WASHER POST SBE72-0416 | ai-ak | 1 |
| 288 | 6A2527 | • DOWEL PRE SBE72-0385 | aa-ag | 1 |
| 300 | 6A2512 | • • BUSH - ,(VRS6263) POST SBE70-0222 | ***** | 1 |
| 440 | 6A3539 | • RING - ASSY,ST.3,ACT.UPPER ALT 6A3753 PRE SBE72-0084 | aa | 1 |
| -440A | 6A3753 | • RING - ASSY,ST.3,ACT.UPPER ALT 6A3539 PRE SBE72-0084 | aa | REF |
| 440B | 6A3982 | • RING - ASSY,ST.3,ACT.UPPER POST SBE72-0084 PRE SBE72-0385 | ab-ag | 1 |
| 440C | 6A7588 | • RING - ASSY STG.3,UPPER UNISON POST SBE72-0385 | ah-ak | 1 |
| 440D | 6A7588 | • RING - ASSY STG.3 UPPER UNISON POST SBE72-0416 | ai-ak | 1 |
| 440E | 6A7861 | • RING - ASSY STG.3,UPPER UNISON POST SBE72-0416 PRE SBE72-0416 | ***** | 1 |
| 440F | 6A7863 | • RING - ASSY STG.3,UPPER UNISON POST SBE72-0416 PRE SBE72-0416 | ***** | 1 |
| 440G | 6A8115 | • RING - ASSY POST SBE72-0418 | aj-ak | 1 |
| 440H | 6A8117 | • RING - ASSY POST SBE72-0418 | aj-ak | 1 |
| 440J | 6A7903 | • RING - ASSY POST SBE72-0418 | aj-ak | 1 |
| 460 | UP11069 | • • BUSH - ,(VRS6248) POST SBE70-0322 PRE SBE72-0418 | ***** | 1 |
| 460A | BRR12496 | • • BUSHING - SLEEVE POST SBE72-0418 | aj-ak | 12 |
| 470 | 6A2869 | • • BRACKET - ASSY STG 3 ACT RING,(VRS6248) POST SBE70-0322 | ***** | 1 |
| 480 | 6A3660 | • • BRACKET - ASSY STG 3 CONN,(VRS6248) POST SBE70-0322 PRE SBE72-0385 | ***** | 1 |
| 483 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ak | 2 |
| 483A | AGS3732 | • • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| 490 | 6A3678 | • • BRACKET - ASSY STG 3 RIG PIN,(VRS6248) POST SBE70-0322 | ***** | 1 |
| 493 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ak | 2 |
| 493A | AGS3732 | • • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| 502 | UP11019 | • • PIN - HEADED,BAULKING POST SBE72-0416 | ai-ak | 4 |
| 520 | 6A3678 | • • BRACKET - ASSY STG3 RIG PIN,(VRS6248) POST SBE70-0322 | ***** | 1 |
| 520A | 6A3678 | • • BRACKET - ASSY POST SBE72-0416 | ai-ak | 1 |
| 520B | 6A7905 | • • BRACKET - ASSY POST SBE72-0418 | aj-ak | 1 |
| 530 | 6A7583 | • • DOWEL - ASSY POST SBE72-0416 | ai-ak | 4 |
| 540 | 6A3541 | • RING - ASSY,ST.3,ACT.LOWER PRE SBE72-0084 | aa | 1 |
| 540A | 6A3987 | • RING - ASSY,ST.3,ACT.LOWER POST SBE72-0084 PRE SBE72-0385 | ab-ag | 1 |
| 540B | 6A7590 | • RING - ASSY STG.3,LOWER UNISON POST SBE72-0385 | ah-ak | 1 |
| 540C | 6A7590 | • RING - ASSY STG.3LOWER UNISON POST SBE72-0416 | ai-ak | 1 |
| 540D | 6A7865 | • RING - ASSY STG.3 LOWER UNISON POST SBE72-0416 PRE SBE72-0416 | ***** | 1 |
| 540E | 6A8119 | • RING - ASSY POST SBE72-0418 | aj-ak | 1 |
| 540F | 6A7906 | • RING - ASSY POST SBE72-0418 | aj-ak | 1 |
| 560 | UP11069 | • • BUSH - ,(VRS6248) POST SBE70-0322 PRE SBE72-0418 | ***** | 1 |
| 560A | BRR12496 | • • BUSHING - SLEEVE POST SBE72-0418 | aj-ak | 12 |
| 570 | 6A2869 | • • BRACKET - ASSY STG 3 ACT RING,(VRS6248) POST SBE70-0322 | ***** | 1 |
| 573 | AGS3731 | • • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 | aa-ak | 2 |
| 580 | 6A2877 | • • BRACKET - ASSY,(VRS6248) POST SBE70-0322 PRE SBE72-0385 | ***** | 1 |
| 583 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ak | 3 |
| 583A | AGS3732 | • • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| 590 | 6A2873 | • • BRACKET - ASSY,(VRS6248) POST SBE70-0322 PRE SBE72-0385 | ***** | 1 |
| 593 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ak | 2 |
| 593A | AGS3732 | • • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| 602 | UP11019 | • • PIN - HEADED,BAULKING POST SBE72-0416 | ai-ak | 5 |
| 620 | 6A3678 | • • BRACKET - ASSY STG 3 RIG PIN,(VRS6248) POST SBE70-0322 | ***** | 1 |
| 623 | AGS3731 | • • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 | aa-ak | 2 |
| 630 | 6A7583 | • • DOWEL - ASSY POST SBE72-0416 | ai-ak | 4 |
| 640 | 6A7592 | • • DOWEL - ASSY POST SBE72-0416 | ai-ak | 1 |
| 654 | 6A2630C01 | • WASHER - ADJUSTING, 0.005INS (0.127 MM) | aa-ak | 1 |
| 655 | 6A2630C02 | • WASHER - ADJ, 0.007INS (0.178 MM) | aa-ak | 1 |
| 656 | 6A2630C03 | • WASHER - ADJ, 0.008INS (0.203 MM) | aa-ak | 1 |
| 657 | 6A2630C04 | • WASHER - ADJ, 0.010INS (0.254 MM) | aa-ak | 1 |
| 658 | 6A2630C05 | • WASHER - ADJ, 0.014INS (0.356 MM) | aa-ak | 1 |
| 659 | 6A2630C06 | • WASHER - ADJ, 0.018INS (0.450 MM) | aa-ak | 1 |
| 660 | 6A2630C07 | • WASHER - ADJ, 0.022INS (0.550 MM) | aa-ak | 1 |
| 661 | 6A2630C08 | • WASHER - ADJ, 0.026INS (0.650 MM) | aa-ak | 1 |
| 662 | 6A2630C09 | • WASHER - ADJ, 0.030INS 0.750 MM | aa-ak | 1 |
| 663 | 6A2630C10 | • WASHER - ADJ, 0.031INS (0.775 MM) | aa-ak | 1 |
| 664 | 6A2630C11 | • WASHER - ADJ, 0.032INS (0.800 MM) | aa-ak | 1 |
| 665 | 6A2630C12 | • WASHER - ADJ, 0.033INS (0.825 MM) | aa-ak | 1 |
| 666 | 6A2630C13 | • WASHER - ADJ, 0.034INS (0.850 MM) | aa-ak | 1 |
| 680 | 6A2467 | • PAD - A/O,CENTRALIZING-ST.3 PRE SBE72-0027 | aa-ab | 4 |
| 680A | 6A3957 | • PAD - A/O,CENTRALIZING-ST.3 POST SBE72-0027 PRE SBE72-0277 | ac-ae | 4 |
| 680B | 6A6514 | • PAD - A/O,CENTRALIZING-ST.3 POST SBE72-0277 | af-ak | 4 |
| 680C | 6A3957 | • PAD - A/O,CENTRALIZING-ST.3 POST SBE72-0591 | ak | 4 |
| 682 | AS20911 | • BOLT - .190 DIA X .688 U1653 | aa-ak | 8 |
| 704 | 6A2625C01 | • WASHER - ADJUSTING, 0.031INS (0.787MM) | aa-ak | 1 |
| 705 | 6A2625C02 | • WASHER - ADJ, 0.030INS (0.763MM) | aa-ak | 1 |
| 706 | 6A2625C03 | • WASHER - ADJ, 0.029INS (0.737MM) | aa-ak | 1 |
| 707 | 6A2625C04 | • WASHER - ADJ, 0.027INS (0.687MM) | aa-ak | 1 |
| 708 | 6A2625C05 | • WASHER - ADJ, 0.025INS (0.637MM) | aa-ak | 1 |
| 709 | 6A2625C06 | • WASHER - ADJ, 0.023INS (0.587MM) | aa-ak | 1 |
| 710 | 6A2625C07 | • WASHER - ADJ, 0.021INS (0.537MM) | aa-ak | 1 |
| 711 | 6A2625C08 | • WASHER - ADJ, 0.019INS (0.487MM) | aa-ak | 1 |
| 712 | 6A2625C09 | • WASHER - ADJ, 0.017INS (0.437MM) | aa-ak | 1 |
| 713 | 6A2625C10 | • WASHER - ADJ, 0.015INS (0.387MM) | aa-ak | 1 |
| 714 | 6A2625C11 | • WASHER - ADJ, 0.014INS (0.345MM) | aa-ak | 1 |
| 715 | 6A2625C12 | • WASHER - ADJ, 0.012INS (0.305MM) | aa-ak | 1 |
| 716 | 6A2625C13 | • WASHER - ADJ, 0.010INS (0.254MM) | aa-ak | 1 |
| 717 | 6A2625C14 | • WASHER - ADJ, 0.007INS (0.178MM) | aa-ak | 1 |
| 718 | 6A2625C15 | • WASHER - ADJ, 0.006INS (0.152MM) | aa-ak | 1 |
| 719 | 6A2625C16 | • WASHER - ADJ, 0.005INS (0.127MM) | aa-ak | 1 |
| 720 | 6A2625C17 | • WASHER - ADJ, 0.004INS (0.102MM) | aa-ak | 1 |
| 730 | 6A2925 | • HSG - ASSY,ST.3 CONN PRE SBE72-0027 | aa-ab | 4 |
| 730A | 6A3988 | • HSG - ASSY,ST.3 CONN POST SBE72-0027 | ac-ak | 4 |
| 730B | 6A3988 | • HSG - ASSY,ST.3 CONN POST SBE72-0591 | ak | 4 |
| 732 | AS21018 | • BOLT - .250 DIA X 1.125 U1653 PRE SBE72-0027 | aa-ab | 8 |
| 732A | BLT5412 | • BOLT POST SBE72-0027 | ac-ak | 8 |
| 732B | BLT5412 | • BOLT POST SBE72-0591 | ak | 8 |
| 736 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ak | 2 |
| 736A | AGS3732 | • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| 736B | AGS3782 | • • INSERT - SCREW THREAD, .250-28 X 2.5D U1653 POST SBE72-0591 | ak | 2 |
| 744 | 6A2922 | • • • PAD - RUBBING | aa-ak | 1 |
| 744A | 6A3953 | • • • PAD - RUBBING,(VRS6314) POST SBE72-0027 | ***** | 1 |
| 744B | 6A3953 | • • • PAD - RUBBING POST SBE72-0591 | ak | 1 |
| 760 | 6A3871 | • BRACKET - STG 3-RIG PIN LOC. PRE SBE72-0084 | aa | 1 |
| 762 | AS20911 | • BOLT - .190 DIA X .688 U1653 PRE SBE72-0084 | aa | 2 |
| 766 | 6A3680 | • DOWEL PRE SBE72-0084 | aa | 2 |
| 770 | 6A3872 | • BRACKET - STG 3-RIG PIN LOC. PRE SBE72-0181 | aa-ac | 1 |
| 770A | 6A5458 | • BRACKET - STAGE 3 RIG PIN POST SBE72-0181 | ad-ak | 1 |
| 772 | AS20911 | • BOLT - .190 DIA X .688 U1653 | aa-ak | 2 |
| 776 | 6A3680 | • DOWEL | aa-ak | 2 |
| 780 | 6A3873 | • BRACKET - STG 3-RIG PIN LOC. PRE SBE72-0084 | aa | 1 |
| 782 | AS20911 | • BOLT - .190 DIA X .688 U1653 PRE SBE72-0084 | aa | 2 |
| 786 | 6A3680 | • DOWEL PRE SBE72-0084 | aa | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

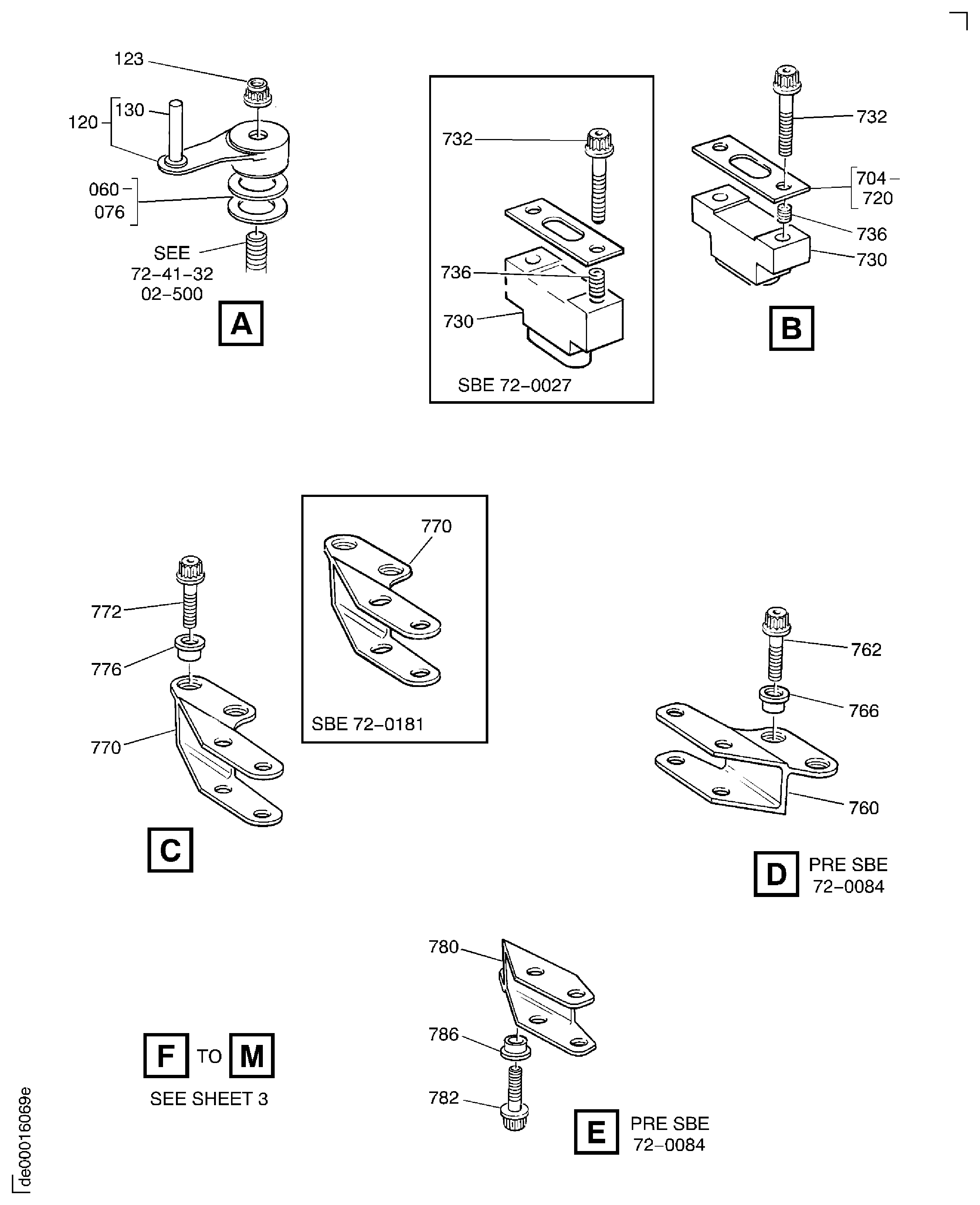

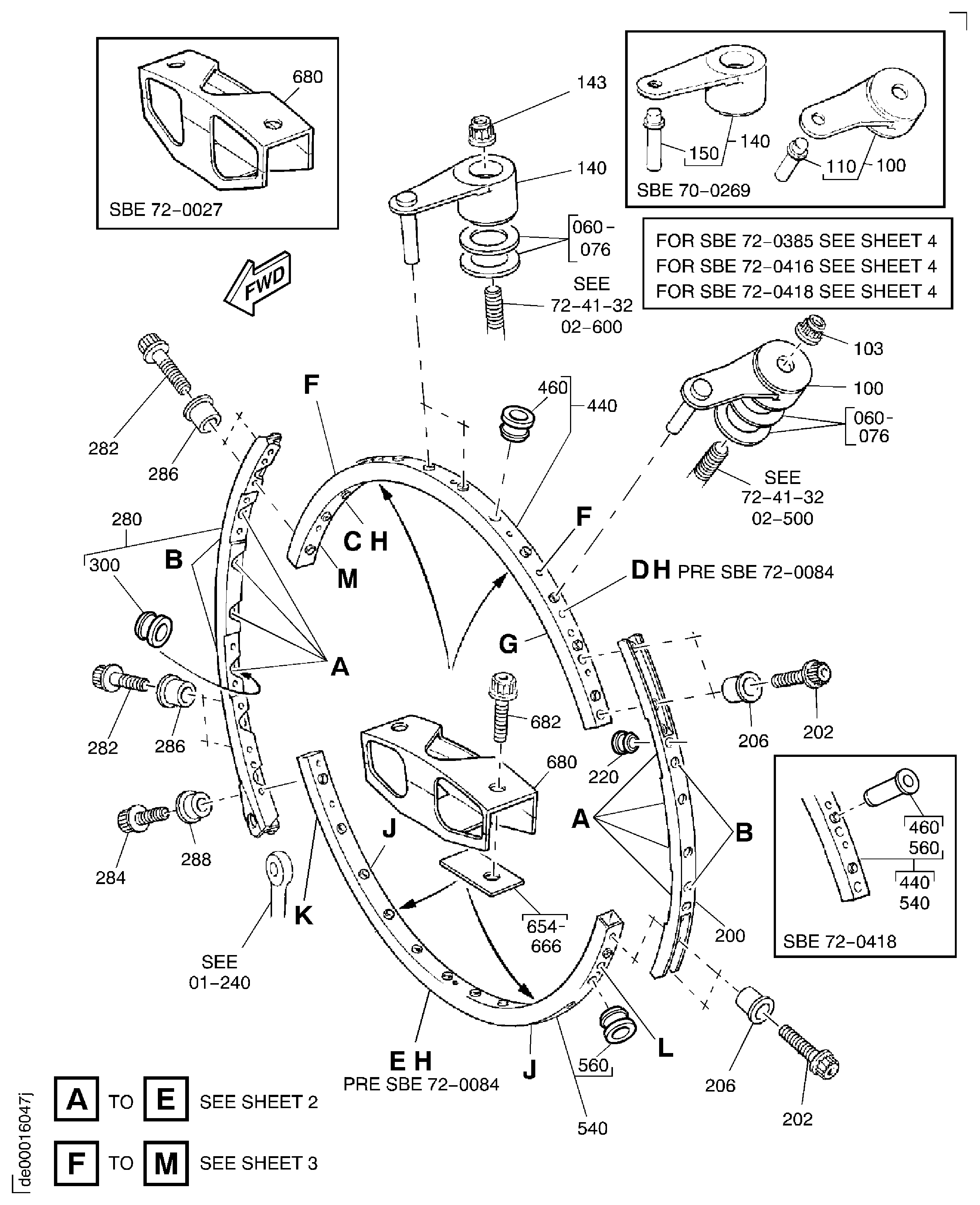

Figure: ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES
VARIABLE INLET GUIDE VANE AND VARIABLE
VARIABLE INLET GUIDE VANE AND VARIABLE
VARIABLE INLET GUIDE VANE AND VARIABLE
VARIABLE INLET GUIDE VANE AND VARIABLE
